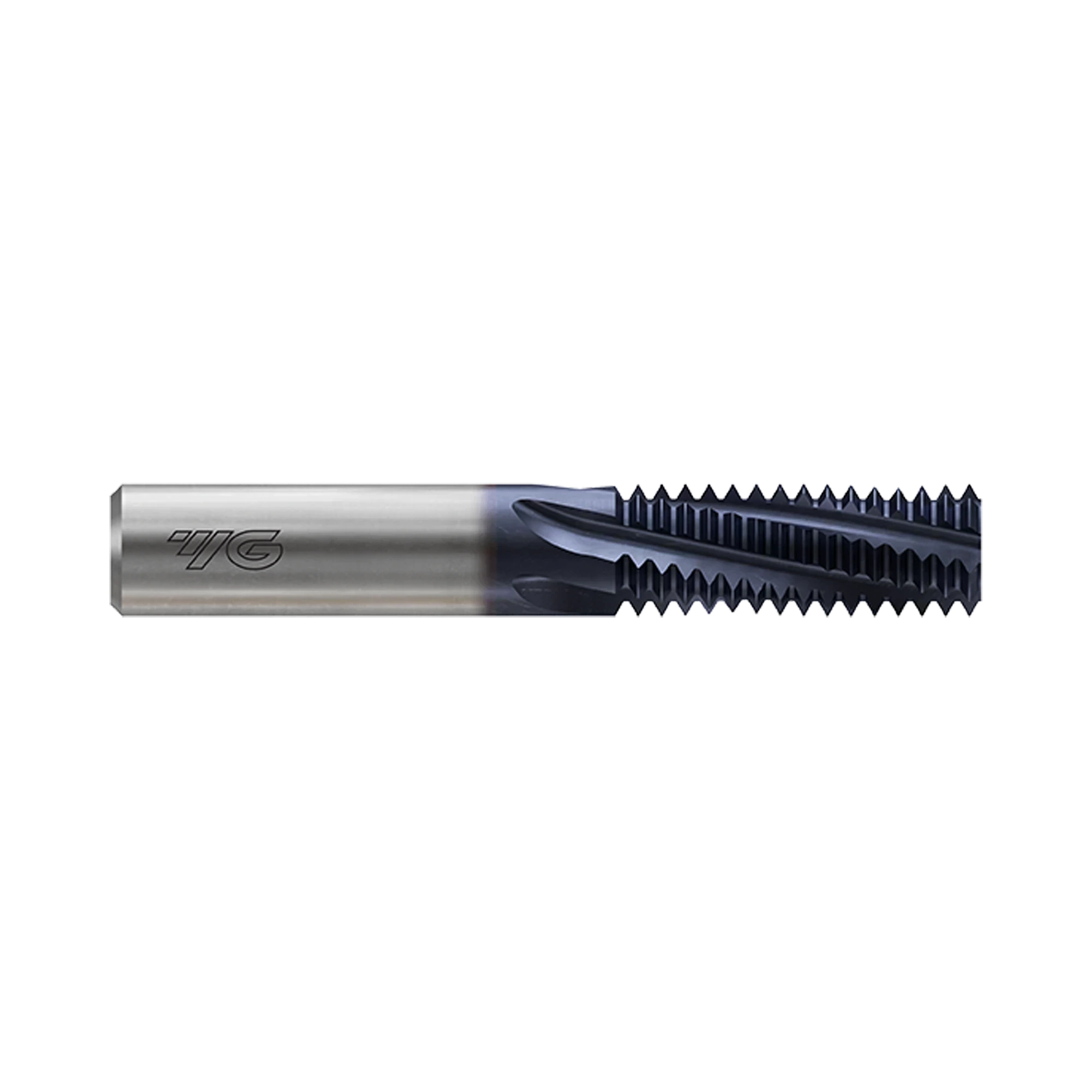

(L1213) Carbide UNC Thread Mill

  • $162.14INC GST $147.40 EX GST
(L1213) Carbide UNC Thread Mill
(L1213) Carbide UNC Thread Mill

(L1213) Carbide UNC Thread Mill

  • $162.14INC GST $147.40 EX GST

Code: L1213400

P M K N S
Size
TPI
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

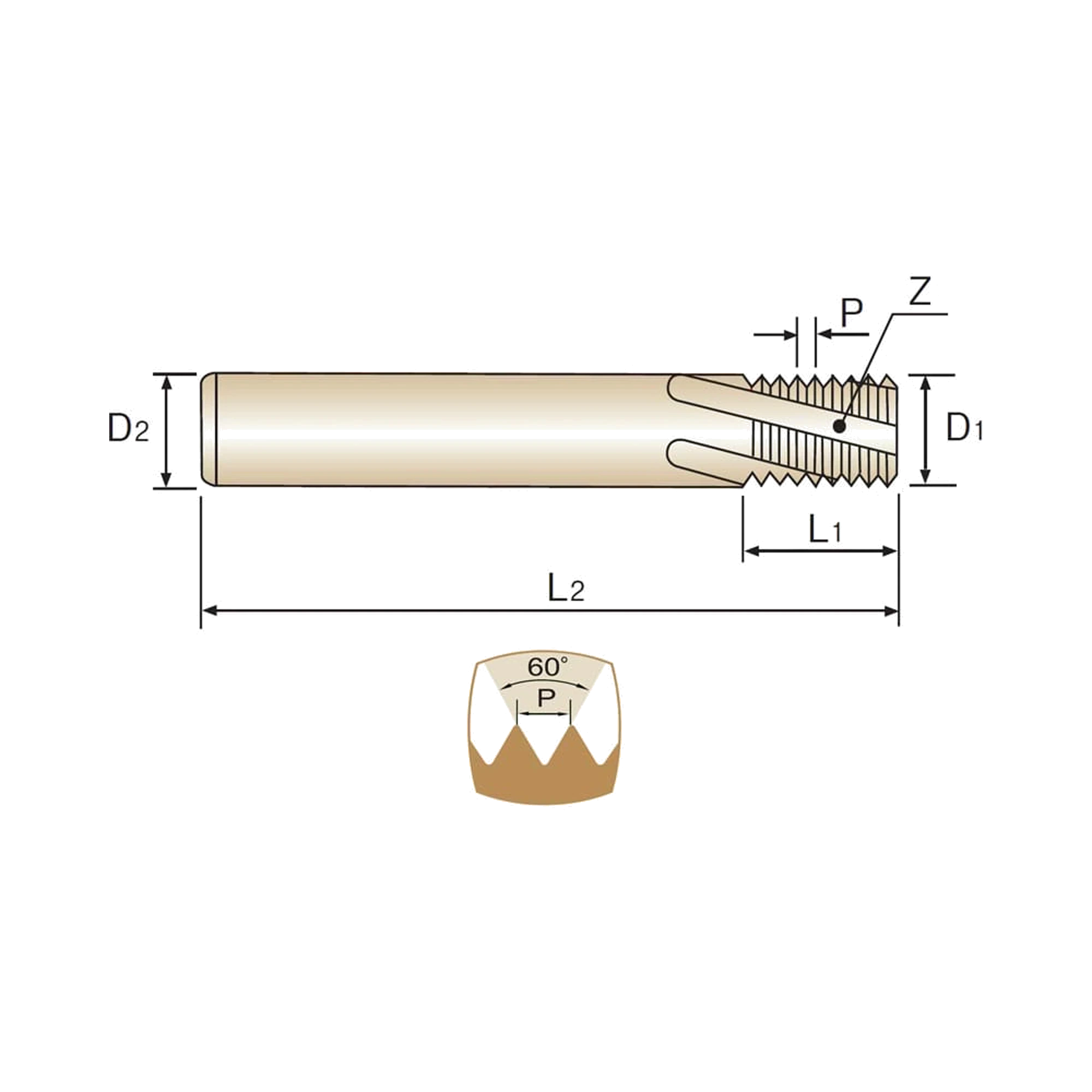

SKUSizeTPIThread length (mm)Overall length (mm)Shank dia. (mm)FlutesStock Price Qty Add
L12134001/42014.057.06.03 Quantity unavailable $147.40
L12134405/161816.965.06.03 Low stock $182.10
L12134803/81620.672.08.04 Low stock $201.50
L12135207/161423.672.08.04 Low stock $261.50
L12135601/21327.480.010.04 In stock $261.50
L12136009/161231.883.010.04 Low stock $261.50
L12136405/81134.692.012.04 Low stock $355.50
L12137003/41040.6104.014.05 5 days $391.10

Add (L1213) Carbide UNC Thread Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Easy to cut threads even if exotic materials like Nickel, Titanium or their alloys.
  • For Internal Thread
  • Thread Depth : 2.0 x D Max.
Product Data
Workpiece Material P M K N S
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Shape UNC
Tool Material Carbide
EDP No. Size TPI Thread Length Overall Length Shank Diameter No. of Flute L1213400 1/4 20 14 57 6 3 L1213400 1/4 20 14 57 6 3 L1213400 1/4 20 14 57 6 3 L1213440 5/16 18 16.9 65 6 3 L1213440 5/16 18 16.9 65 6 3 L1213440 5/16 18 16.9 65 6 3 L1213480 3/8 16 20.6 72 8 4 L1213480 3/8 16 20.6 72 8 4 L1213480 3/8 16 20.6 72 8 4 L1213520 7/16 14 23.6 72 8 4 L1213520 7/16 14 23.6 72 8 4 L1213520 7/16 14 23.6 72 8 4 L1213560 1/2 13 27.4 80 10 4 L1213560 1/2 13 27.4 80 10 4 L1213560 1/2 13 27.4 80 10 4 L1213600 9/16 12 31.8 83 10 4 L1213600 9/16 12 31.8 83 10 4 L1213600 9/16 12 31.8 83 10 4 L1213640 5/8 11 34.6 92 12 4 L1213640 5/8 11 34.6 92 12 4 L1213640 5/8 11 34.6 92 12 4 L1213700 3/4 10 40.6 104 14 5 L1213700 3/4 10 40.6 104 14 5 L1213700 3/4 10 40.6 104 14 5
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size TPI Thread Length Overall Length Shank Diameter No. of Flute L1213400 1/4 20 14 57 6 3 L1213400 1/4 20 14 57 6 3 L1213400 1/4 20 14 57 6 3 L1213440 5/16 18 16.9 65 6 3 L1213440 5/16 18 16.9 65 6 3 L1213440 5/16 18 16.9 65 6 3 L1213480 3/8 16 20.6 72 8 4 L1213480 3/8 16 20.6 72 8 4 L1213480 3/8 16 20.6 72 8 4 L1213520 7/16 14 23.6 72 8 4 L1213520 7/16 14 23.6 72 8 4 L1213520 7/16 14 23.6 72 8 4 L1213560 1/2 13 27.4 80 10 4 L1213560 1/2 13 27.4 80 10 4 L1213560 1/2 13 27.4 80 10 4 L1213600 9/16 12 31.8 83 10 4 L1213600 9/16 12 31.8 83 10 4 L1213600 9/16 12 31.8 83 10 4 L1213640 5/8 11 34.6 92 12 4 L1213640 5/8 11 34.6 92 12 4 L1213640 5/8 11 34.6 92 12 4 L1213700 3/4 10 40.6 104 14 5 L1213700 3/4 10 40.6 104 14 5 L1213700 3/4 10 40.6 104 14 5

Thread Mill
