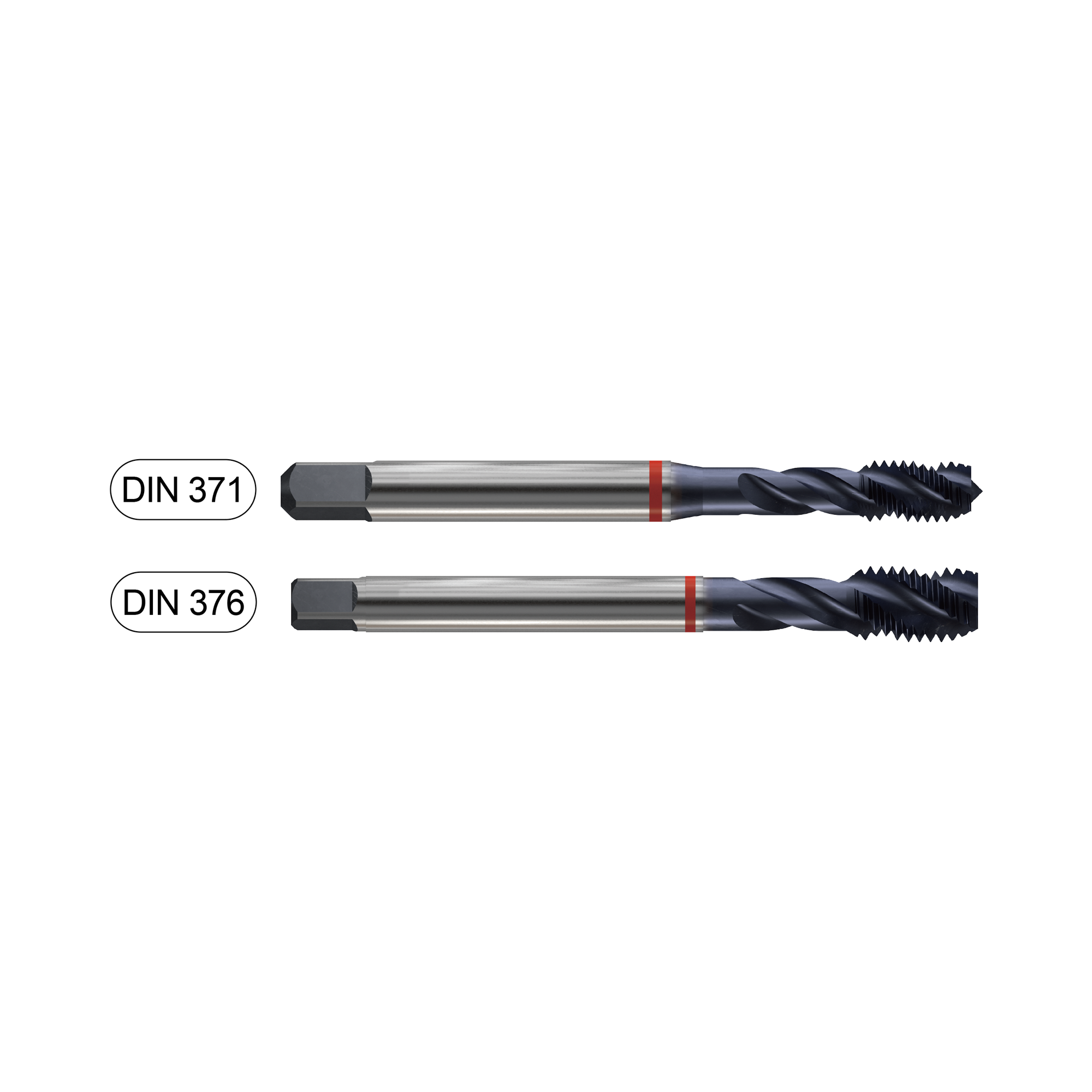

(TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated)

  • $69.39INC GST $63.09 EX GST
(TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated)
(TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated)

(TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated)

  • $69.39INC GST $63.09 EX GST

Code: TY313426

P H
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $100.00
$100.00 to go
Spend $100.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TY313426M101.515.0100.039.010.08.011.038.5 Low stock $63.09
TY313506M121.7518.0110.044.09.07.010.0310.2 In stock $67.10
TY313606M16220.0110.044.012.09.012.0314.0 In stock $80.20

Add (TY313) HSS-E (M35) Metric Spiral Flute for Hardened Steel (TiAlN Coated) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
  • * DIN profile not ISO
Product Data
Workpiece Material P H
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TY313136 M2 0.4 8 45 13 2.8 2.1 5 3 TY313156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TY313176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TY313196 * M2.3 0.4 8 45 13 2.8 2.1 5 3 TY313206 M3 0.5 6 56 18 3.5 2.7 6 3 TY313226 M3.5 0.6 7 56 20 4 3 6 3 TY313246 M4 0.7 7 63 21 4.5 3.4 6 3 TY313266 M4.5 0.75 8 70 25 6 4.9 8 3 TY313286 M5 0.8 8 70 25 6 4.9 8 3 TY313316 M6 1 10 80 30 6 4.9 8 3 TY313346 M7 1 10 80 30 7 5.5 8 3 TY313366 M8 1.25 13 90 35 8 6.2 9 3 TY313396 M9 1.25 13 90 35 9 7 10 3 TY313426 M10 1.5 15 100 39 10 8 11 3 TY313466 M11 1.5 17 100 40 8 6.2 9 3 TY313496 * M2.6 0.45 9 50 15 2.8 2.1 5 3 TY313506 M12 1.75 18 110 44 9 7 10 3 TY313546 M14 2 20 110 44 11 9 12 3 TY313606 M16 2 20 110 44 12 9 12 3 TY313656 M18 2.5 25 125 50 14 11 14 4 TY313706 M20 2.5 25 140 54 16 12 15 4 TY313746 M22 2.5 25 140 54 18 14.5 17 4 TY313786 M24 3 30 160 60 18 14.5 17 4 TY313866 M27 3 30 160 60 20 16 19 4 TY313946 M30 3.5 35 180 70 22 18 21 4
Blind Drilling
P Alloy Steels

Great

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Excellent

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TY313136 M2 0.4 8 45 13 2.8 2.1 5 3 TY313156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TY313176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TY313196 * M2.3 0.4 8 45 13 2.8 2.1 5 3 TY313206 M3 0.5 6 56 18 3.5 2.7 6 3 TY313226 M3.5 0.6 7 56 20 4 3 6 3 TY313246 M4 0.7 7 63 21 4.5 3.4 6 3 TY313266 M4.5 0.75 8 70 25 6 4.9 8 3 TY313286 M5 0.8 8 70 25 6 4.9 8 3 TY313316 M6 1 10 80 30 6 4.9 8 3 TY313346 M7 1 10 80 30 7 5.5 8 3 TY313366 M8 1.25 13 90 35 8 6.2 9 3 TY313396 M9 1.25 13 90 35 9 7 10 3 TY313426 M10 1.5 15 100 39 10 8 11 3 TY313466 M11 1.5 17 100 40 8 6.2 9 3 TY313496 * M2.6 0.45 9 50 15 2.8 2.1 5 3 TY313506 M12 1.75 18 110 44 9 7 10 3 TY313546 M14 2 20 110 44 11 9 12 3 TY313606 M16 2 20 110 44 12 9 12 3 TY313656 M18 2.5 25 125 50 14 11 14 4 TY313706 M20 2.5 25 140 54 16 12 15 4 TY313746 M22 2.5 25 140 54 18 14.5 17 4 TY313786 M24 3 30 160 60 18 14.5 17 4 TY313866 M27 3 30 160 60 20 16 19 4 TY313946 M30 3.5 35 180 70 22 18 21 4

YG Tap Hardened
