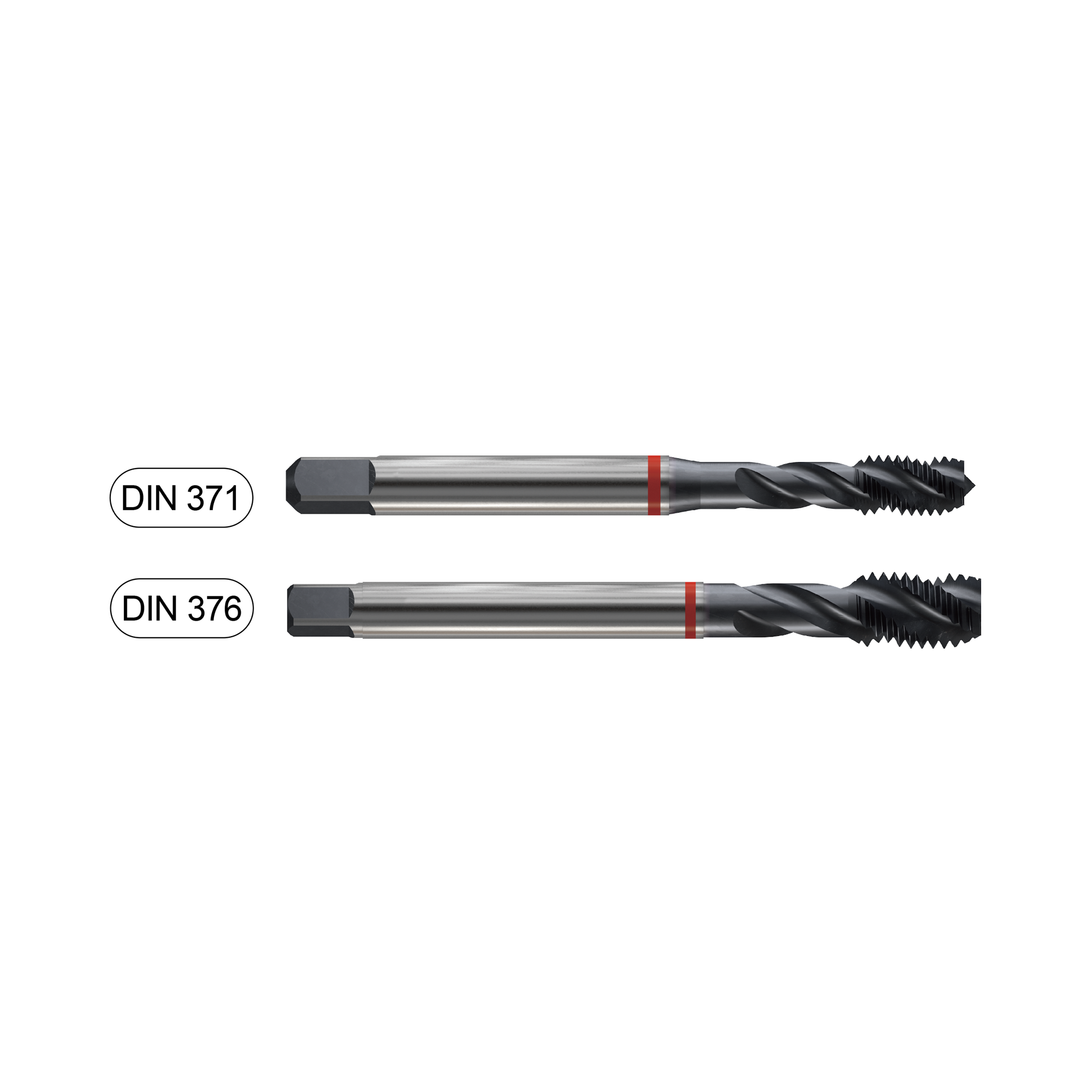

(TB313) HSS-E (M35) Metric Spiral Flute for Hardened

Blind-Hole Metric Spiral Tap for Hardened
  • $0.00INC GST $0.00 EX GST
(TB313) HSS-E (M35) Metric Spiral Flute for Hardened
(TB313) HSS-E (M35) Metric Spiral Flute for Hardened

(TB313) HSS-E (M35) Metric Spiral Flute for Hardened

Blind-Hole Metric Spiral Tap for Hardened
  • $0.00INC GST $0.00 EX GST Price available on request

Code: TB313136

P H
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TB313136M20.48.045.013.02.82.15.031.6 5 days -
TB313156M2.20.458.045.013.02.82.15.031.75 5 days -
TB313176M2.50.45-------- 5 days -
TB313196* M2.30.4-------- 5 days -
TB313206M30.56.056.018.03.52.76.032.5 5 days $15.80
TB313226M3.50.67.056.020.04.03.06.032.9 5 days -
TB313246M40.77.063.021.04.53.46.033.3 5 days $15.80
TB313266M4.50.758.070.025.06.04.98.033.7 5 days -
TB313286M50.88.070.025.06.04.98.034.2 5 days -
TB313316M6110.080.030.06.04.98.035.0 5 days $16.40
TB313346M7110.080.030.07.05.58.036.0 5 days -
TB313366M81.2513.090.035.08.06.29.036.8 5 days $21.10
TB313396M91.2513.090.035.09.07.010.037.8 5 days -
TB313426M101.515.0100.039.010.08.011.038.5 5 days $25.50
TB313466M111.517.0100.040.08.06.29.039.5 5 days -
TB313496* M2.60.45-------- 5 days -
TB313506M121.7518.0110.044.09.07.010.0310.2 Low stock $34.00
TB313546M14220.0110.044.011.09.012.0312.0 5 days -
TB313606M16220.0110.044.012.09.012.0314.0 5 days $56.20
TB313656M182.525.0125.050.014.011.014.0415.5 5 days -
TB313706M202.525.0140.054.016.012.015.0417.5 5 days -
TB313746M222.5-------- 5 days -
TB313786M24330.0160.060.018.014.517.0421.0 5 days -
TB313866M27330.0160.060.020.016.019.0424.0 5 days -
TB313946M303.5-------- 5 days -

Add (TB313) HSS-E (M35) Metric Spiral Flute for Hardened to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
  • * DIN profile not ISO
Product Data
Workpiece Material P H
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS-E
Tool Standard DIN 371-376
EDP No. Size Pitch ThreadClass Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB313136 M2 0.4 6H 8 45 13 2.8 2.1 5 3 TB313156 M2.2 0.45 6H 8 45 13 2.8 2.1 5 3 TB313176 M2.5 0.45 6H 9 50 15 2.8 2.1 5 3 TB313196 * M2.3 0.4 6H 8 45 13 2.8 2.1 5 3 TB313206 M3 0.5 6H 6 56 18 3.5 2.7 6 3 TB313226 M3.5 0.6 6H 7 56 20 4 3 6 3 TB313246 M4 0.7 6H 7 63 21 4.5 3.4 6 3 TB313266 M4.5 0.75 6H 8 70 25 6 4.9 8 3 TB313286 M5 0.8 6H 8 70 25 6 4.9 8 3 TB313316 M6 1 6H 10 80 30 6 4.9 8 3 TB313346 M7 1 6H 10 80 30 7 5.5 8 3 TB313366 M8 1.25 6H 13 90 35 8 6.2 9 3 TB313396 M9 1.25 6H 13 90 35 9 7 10 3 TB313426 M10 1.5 6H 15 100 39 10 8 11 3 TB313466 M11 1.5 6H 17 100 40 8 6.2 9 3 TB313496 * M2.6 0.45 6H 9 50 15 2.8 2.1 5 3 TB313506 M12 1.75 6H 18 110 44 9 7 10 3 TB313546 M14 2 6H 20 110 44 11 9 12 3 TB313606 M16 2 6H 20 110 44 12 9 12 3 TB313656 M18 2.5 6H 25 125 50 14 11 14 4 TB313706 M20 2.5 6H 25 140 54 16 12 15 4 TB313746 M22 2.5 6H 25 140 54 18 14.5 17 4 TB313786 M24 3 6H 30 160 60 18 14.5 17 4 TB313866 M27 3 6H 30 160 60 20 16 19 4 TB313946 M30 3.5 6H 35 180 70 22 18 21 4
Blind Drilling
P Alloy Steels

Great

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Excellent

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch ThreadClass Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB313136 M2 0.4 6H 8 45 13 2.8 2.1 5 3 TB313156 M2.2 0.45 6H 8 45 13 2.8 2.1 5 3 TB313176 M2.5 0.45 6H 9 50 15 2.8 2.1 5 3 TB313196 * M2.3 0.4 6H 8 45 13 2.8 2.1 5 3 TB313206 M3 0.5 6H 6 56 18 3.5 2.7 6 3 TB313226 M3.5 0.6 6H 7 56 20 4 3 6 3 TB313246 M4 0.7 6H 7 63 21 4.5 3.4 6 3 TB313266 M4.5 0.75 6H 8 70 25 6 4.9 8 3 TB313286 M5 0.8 6H 8 70 25 6 4.9 8 3 TB313316 M6 1 6H 10 80 30 6 4.9 8 3 TB313346 M7 1 6H 10 80 30 7 5.5 8 3 TB313366 M8 1.25 6H 13 90 35 8 6.2 9 3 TB313396 M9 1.25 6H 13 90 35 9 7 10 3 TB313426 M10 1.5 6H 15 100 39 10 8 11 3 TB313466 M11 1.5 6H 17 100 40 8 6.2 9 3 TB313496 * M2.6 0.45 6H 9 50 15 2.8 2.1 5 3 TB313506 M12 1.75 6H 18 110 44 9 7 10 3 TB313546 M14 2 6H 20 110 44 11 9 12 3 TB313606 M16 2 6H 20 110 44 12 9 12 3 TB313656 M18 2.5 6H 25 125 50 14 11 14 4 TB313706 M20 2.5 6H 25 140 54 16 12 15 4 TB313746 M22 2.5 6H 25 140 54 18 14.5 17 4 TB313786 M24 3 6H 30 160 60 18 14.5 17 4 TB313866 M27 3 6H 30 160 60 20 16 19 4 TB313946 M30 3.5 6H 35 180 70 22 18 21 4
