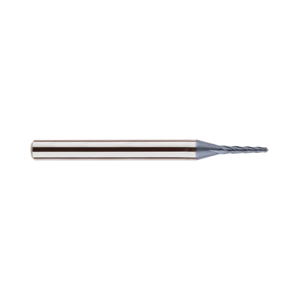

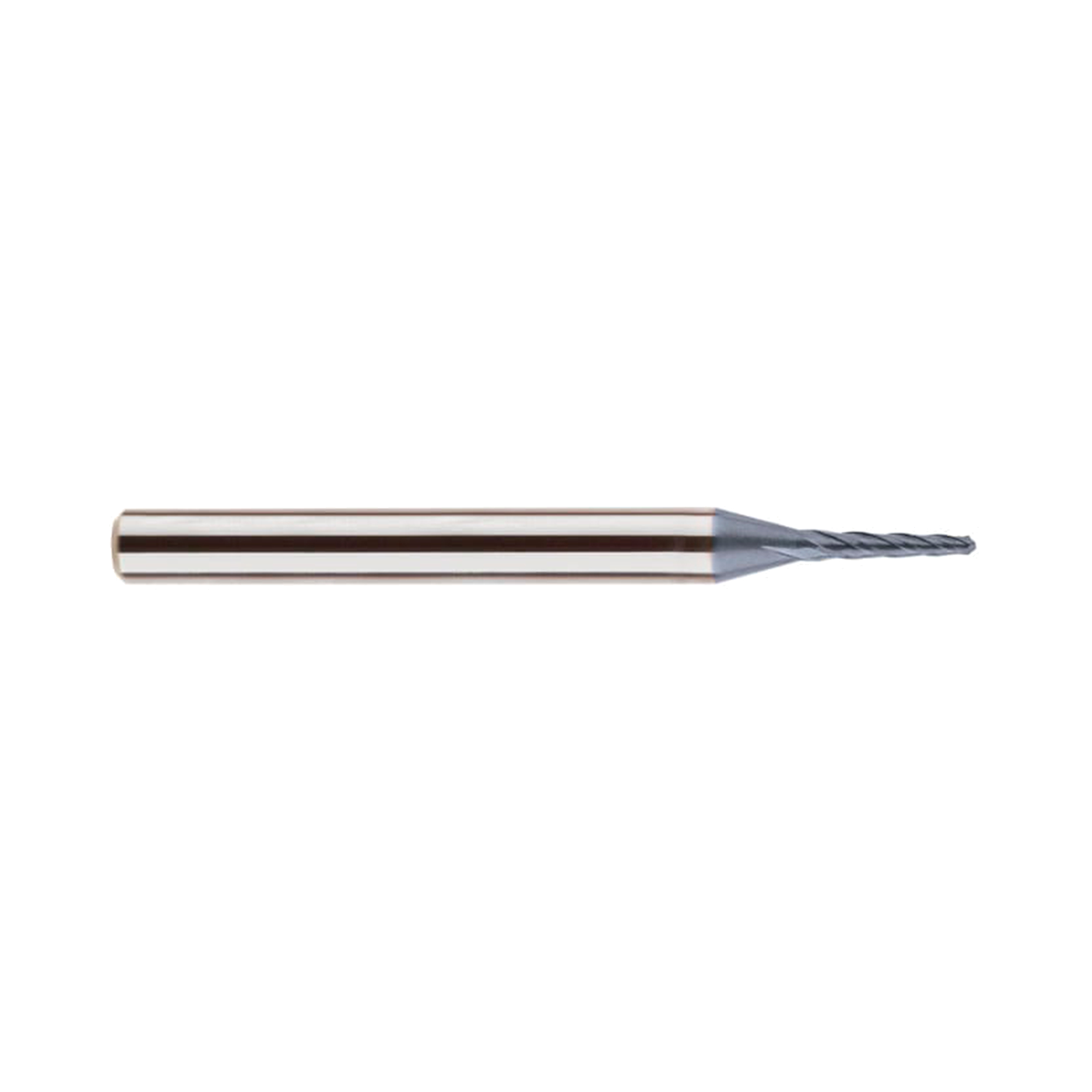

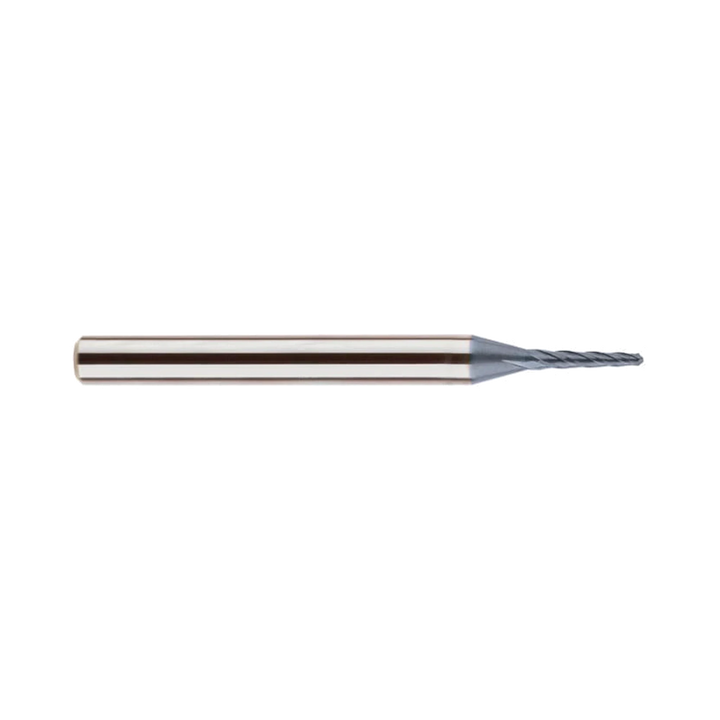

4G MILL 4 Flute 30°Helix Taper Neck Corner Radius End Mill (SEME65)

4G MILL 4 Flute 30°Helix Taper Neck Corner Radius End Mill (SEME65)
$0.00 INC GST $0.00 EX GST Price available on request
SKU
Work materials
PKH
Tool material Carbide
Surface treatment YG-1 Y Coating
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 4 Flute 30°Helix Taper Neck Corner Radius End Mill (SEME65) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent for cutting pre-hardened steels, carbon steels and alloy steels of molds and dies up to HRc55 and machine parts.
  • Tools can cut deep grooves without breaking due to high strength of taper neck.
  • Small corner radii applied to protect chipping of cutting edges.

SEME65010010106 SEME65010010108 SEME65010010110 SEME65010010112 SEME65010010116 SEME65010010120 SEME65010010125 SEME65010010130 SEME65010010140 SEME65010010150 SEME65010010206 SEME65010010208 SEME65010010210 SEME65010010212 SEME65010010216 SEME65010010220 SEME65010010225 SEME65010010230 SEME65010010240 SEME65010010250 SEME65010020106 SEME65010020108 SEME65010020110 SEME65010020112 SEME65010020116 SEME65010020120 SEME65010020125 SEME65010020130 SEME65010020140 SEME65010020150 SEME65010020206 SEME65010020208 SEME65010020210 SEME65010020212 SEME65010020216 SEME65010020220 SEME65010020225 SEME65010020230 SEME65010020240 SEME65010020250 SEME65012010108 SEME65012010112 SEME65012010116 SEME65012010120 SEME65012010125 SEME65012010130 SEME65012010208 SEME65012010212 SEME65012010216 SEME65012010220 SEME65012010225 SEME65012010230 SEME65012020108 SEME65012020112 SEME65012020116 SEME65012020120 SEME65012020125 SEME65012020130 SEME65012020208 SEME65012020212 SEME65012020216 SEME65012020220 SEME65012020225 SEME65012020230 SEME65015010108 SEME65015010110 SEME65015010112 SEME65015010116 SEME65015010120 SEME65015010125 SEME65015010130 SEME65015010140 SEME65015010150 SEME65015010208 SEME65015010210 SEME65015010212 SEME65015010216 SEME65015010220 SEME65015010225 SEME65015010230 SEME65015010240 SEME65015010250 SEME65015020108 SEME65015020110 SEME65015020112 SEME65015020116 SEME65015020120 SEME65015020125 SEME65015020130 SEME65015020140 SEME65015020150 SEME65015020208 SEME65015020210 SEME65015020212 SEME65015020216 SEME65015020220 SEME65015020225 SEME65015020230 SEME65015020240 SEME65015020250 SEME65015030108 SEME65015030110 SEME65015030112 SEME65015030116 SEME65015030120 SEME65015030125 SEME65015030130 SEME65015030140 SEME65015030150 SEME65015030208 SEME65015030210 SEME65015030212 SEME65015030216 SEME65015030220 SEME65015030225 SEME65015030230 SEME65015030240 SEME65015030250 SEME65020010110 SEME65020010112 SEME65020010116 SEME65020010120 SEME65020010125 SEME65020010130 SEME65020010140 SEME65020010150 SEME65020010160 SEME65020010180 SEME65020010210 SEME65020010212 SEME65020010216 SEME65020010220 SEME65020010225 SEME65020010230 SEME65020010240 SEME65020010250 SEME65020010260 SEME65020010280 SEME65020020110 SEME65020020112 SEME65020020116 SEME65020020120 SEME65020020125 SEME65020020130 SEME65020020140 SEME65020020150 SEME65020020160 SEME65020020180 SEME65020020210 SEME65020020212 SEME65020020216 SEME65020020220 SEME65020020225 SEME65020020230 SEME65020020240 SEME65020020250 SEME65020020260 SEME65020020280 SEME65020030110 SEME65020030112 SEME65020030116 SEME65020030120 SEME65020030125 SEME65020030130 SEME65020030140 SEME65020030150 SEME65020030160 SEME65020030180 SEME65020030210 SEME65020030212 SEME65020030216 SEME65020030220 SEME65020030225 SEME65020030230 SEME65020030240 SEME65020030250 SEME65020030260 SEME65020030280 SEME65020050110 SEME65020050112 SEME65020050116 SEME65020050120 SEME65020050125 SEME65020050130 SEME65020050140 SEME65020050150 SEME65020050160 SEME65020050180 SEME65020050210 SEME65020050212 SEME65020050216 SEME65020050220 SEME65020050225 SEME65020050230 SEME65020050240 SEME65020050250 SEME65020050260 SEME65020050280 SEME65030020116 SEME65030020120 SEME65030020130 SEME65030020140 SEME65030020150 SEME65030020160 SEME65030020216 SEME65030020220 SEME65030020230 SEME65030020240 SEME65030020250 SEME65030020260 SEME65030020270 SEME65030030116 SEME65030030120 SEME65030030130 SEME65030030140 SEME65030030150 SEME65030030160 SEME65030030216 SEME65030030220 SEME65030030230 SEME65030030240 SEME65030030250 SEME65030030260 SEME65030030270 SEME65030050116 SEME65030050120 SEME65030050130 SEME65030050140 SEME65030050150 SEME65030050160 SEME65030050216 SEME65030050220 SEME65030050230 SEME65030050240 SEME65030050250 SEME65030050260 SEME65030050270 SEME65040020140 SEME65040020150 SEME65040020160 SEME65040020170 SEME65040020240 SEME65040020250 SEME65040020260 SEME65040020270 SEME65040030140 SEME65040030150 SEME65040030160 SEME65040030170 SEME65040030240 SEME65040030250 SEME65040030260 SEME65040030270 SEME65040050140 SEME65040050150 SEME65040050160 SEME65040050170 SEME65040050240 SEME65040050250 SEME65040050260 SEME65040050270

Specifications

Flutes 4
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min D1.0
Size Max D20.0
Length Extended Neck
Coating Y-Coating



Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.01
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 30
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

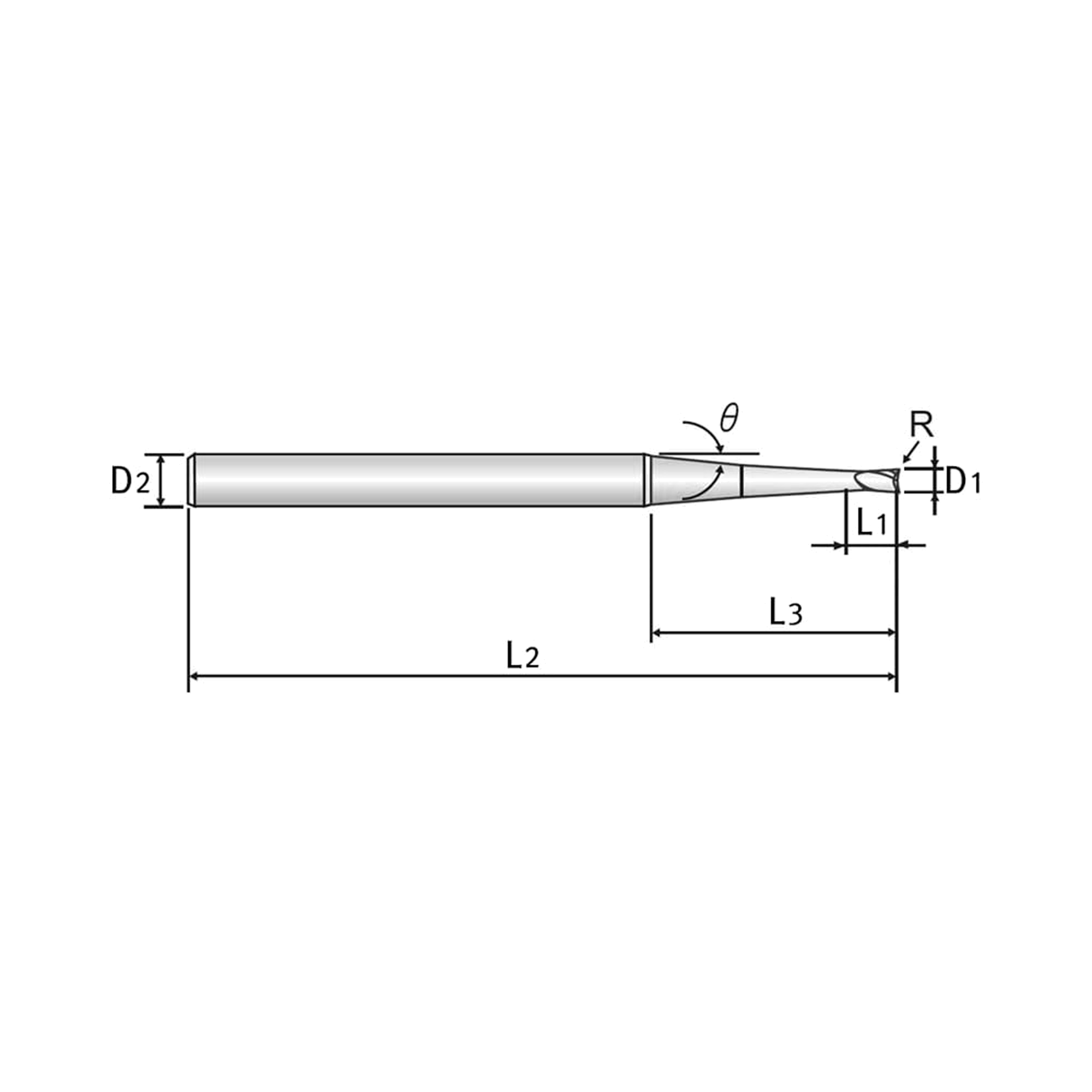

EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME65010010106 1 4 1.5 50 0~-0.012 h5 4 SEME65010010108 1 4 1.5 50 0~-0.012 h5 4 SEME65010010110 1 4 1.5 50 0~-0.012 h5 4 SEME65010010112 1 4 1.5 50 0~-0.012 h5 4 SEME65010010116 1 4 1.5 50 0~-0.012 h5 4 SEME65010010120 1 4 1.5 50 0~-0.012 h5 4 SEME65010010125 1 4 1.5 60 0~-0.012 h5 4 SEME65010010130 1 4 1.5 70 0~-0.012 h5 4 SEME65010010140 1 4 1.5 80 0~-0.012 h5 4 SEME65010010150 1 4 1.5 90 0~-0.012 h5 4 SEME65010010206 1 4 1.5 50 0~-0.012 h5 4 SEME65010010208 1 4 1.5 50 0~-0.012 h5 4 SEME65010010210 1 4 1.5 50 0~-0.012 h5 4 SEME65010010212 1 4 1.5 50 0~-0.012 h5 4 SEME65010010216 1 4 1.5 50 0~-0.012 h5 4 SEME65010010220 1 4 1.5 50 0~-0.012 h5 4 SEME65010010225 1 4 1.5 60 0~-0.012 h5 4 SEME65010010230 1 4 1.5 70 0~-0.012 h5 4 SEME65010010240 1 4 1.5 80 0~-0.012 h5 4 SEME65010010250 1 6 1.5 90 0~-0.012 h5 4 SEME65010020106 1 4 1.5 50 0~-0.012 h5 4 SEME65010020108 1 4 1.5 50 0~-0.012 h5 4 SEME65010020110 1 4 1.5 50 0~-0.012 h5 4 SEME65010020112 1 4 1.5 50 0~-0.012 h5 4 SEME65010020116 1 4 1.5 50 0~-0.012 h5 4 SEME65010020120 1 4 1.5 50 0~-0.012 h5 4 SEME65010020125 1 4 1.5 60 0~-0.012 h5 4 SEME65010020130 1 4 1.5 70 0~-0.012 h5 4 SEME65010020140 1 4 1.5 80 0~-0.012 h5 4 SEME65010020150 1 4 1.5 90 0~-0.012 h5 4 SEME65010020206 1 4 1.5 50 0~-0.012 h5 4 SEME65010020208 1 4 1.5 50 0~-0.012 h5 4 SEME65010020210 1 4 1.5 50 0~-0.012 h5 4 SEME65010020212 1 4 1.5 50 0~-0.012 h5 4 SEME65010020216 1 4 1.5 50 0~-0.012 h5 4 SEME65010020220 1 4 1.5 50 0~-0.012 h5 4 SEME65010020225 1 4 1.5 60 0~-0.012 h5 4 SEME65010020230 1 4 1.5 70 0~-0.012 h5 4 SEME65010020240 1 4 1.5 80 0~-0.012 h5 4 SEME65010020250 1 6 1.5 90 0~-0.012 h5 4 SEME65012010108 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010112 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010116 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010120 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010125 1.2 4 1.8 60 0~-0.012 h5 4 SEME65012010130 1.2 4 1.8 70 0~-0.012 h5 4 SEME65012010208 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010212 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010216 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010220 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012010225 1.2 4 1.8 60 0~-0.012 h5 4 SEME65012010230 1.2 4 1.8 70 0~-0.012 h5 4 SEME65012020108 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020112 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020116 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020120 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020125 1.2 4 1.8 60 0~-0.012 h5 4 SEME65012020130 1.2 4 1.8 70 0~-0.012 h5 4 SEME65012020208 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020212 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020216 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020220 1.2 4 1.8 50 0~-0.012 h5 4 SEME65012020225 1.2 4 1.8 60 0~-0.012 h5 4 SEME65012020230 1.2 4 1.8 70 0~-0.012 h5 4 SEME65015010108 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010110 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010112 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010116 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010120 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010125 1.5 4 2.3 60 0~-0.012 h5 4 SEME65015010130 1.5 4 2.3 70 0~-0.012 h5 4 SEME65015010140 1.5 4 2.3 80 0~-0.012 h5 4 SEME65015010150 1.5 4 2.3 90 0~-0.012 h5 4 SEME65015010208 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010210 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010212 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010216 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010220 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015010225 1.5 4 2.3 60 0~-0.012 h5 4 SEME65015010230 1.5 4 2.3 70 0~-0.012 h5 4 SEME65015010240 1.5 6 2.3 80 0~-0.012 h5 4 SEME65015010250 1.5 6 2.3 90 0~-0.012 h5 4 SEME65015020108 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020110 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020112 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020116 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020120 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020125 1.5 4 2.3 60 0~-0.012 h5 4 SEME65015020130 1.5 4 2.3 70 0~-0.012 h5 4 SEME65015020140 1.5 4 2.3 80 0~-0.012 h5 4 SEME65015020150 1.5 4 2.3 90 0~-0.012 h5 4 SEME65015020208 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020210 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020212 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020216 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020220 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015020225 1.5 4 2.3 60 0~-0.012 h5 4 SEME65015020230 1.5 4 2.3 70 0~-0.012 h5 4 SEME65015020240 1.5 6 2.3 80 0~-0.012 h5 4 SEME65015020250 1.5 6 2.3 90 0~-0.012 h5 4 SEME65015030108 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030110 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030112 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030116 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030120 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030125 1.5 4 2.3 60 0~-0.012 h5 4 SEME65015030130 1.5 4 2.3 70 0~-0.012 h5 4 SEME65015030140 1.5 4 2.3 80 0~-0.012 h5 4 SEME65015030150 1.5 4 2.3 90 0~-0.012 h5 4 SEME65015030208 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030210 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030212 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030216 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030220 1.5 4 2.3 50 0~-0.012 h5 4 SEME65015030225 1.5 4 2.3 60 0~-0.012 h5 4 SEME65015030230 1.5 4 2.3 70 0~-0.012 h5 4 SEME65015030240 1.5 6 2.3 80 0~-0.012 h5 4 SEME65015030250 1.5 6 2.3 90 0~-0.012 h5 4 SEME65020010110 2 4 2 50 0~-0.012 h5 4 SEME65020010112 2 4 2 50 0~-0.012 h5 4 SEME65020010116 2 4 2 50 0~-0.012 h5 4 SEME65020010120 2 4 2 50 0~-0.012 h5 4 SEME65020010125 2 4 2 60 0~-0.012 h5 4 SEME65020010130 2 4 2 70 0~-0.012 h5 4 SEME65020010140 2 6 2 80 0~-0.012 h5 4 SEME65020010150 2 6 2 100 0~-0.012 h5 4 SEME65020010160 2 6 2 100 0~-0.012 h5 4 SEME65020010180 2 6 2 140 0~-0.012 h5 4 SEME65020010210 2 4 2 50 0~-0.012 h5 4 SEME65020010212 2 4 2 50 0~-0.012 h5 4 SEME65020010216 2 4 2 50 0~-0.012 h5 4 SEME65020010220 2 4 2 50 0~-0.012 h5 4 SEME65020010225 2 4 2 60 0~-0.012 h5 4 SEME65020010230 2 4 2 70 0~-0.012 h5 4 SEME65020010240 2 6 2 80 0~-0.012 h5 4 SEME65020010250 2 6 2 100 0~-0.012 h5 4 SEME65020010260 2 6 2 100 0~-0.012 h5 4 SEME65020010280 2 8 2 140 0~-0.012 h5 4 SEME65020020110 2 4 2 50 0~-0.012 h5 4 SEME65020020112 2 4 2 50 0~-0.012 h5 4 SEME65020020116 2 4 2 50 0~-0.012 h5 4 SEME65020020120 2 4 2 50 0~-0.012 h5 4 SEME65020020125 2 4 2 60 0~-0.012 h5 4 SEME65020020130 2 4 2 70 0~-0.012 h5 4 SEME65020020140 2 6 2 80 0~-0.012 h5 4 SEME65020020150 2 6 2 100 0~-0.012 h5 4 SEME65020020160 2 6 2 100 0~-0.012 h5 4 SEME65020020180 2 6 2 140 0~-0.012 h5 4 SEME65020020210 2 4 2 50 0~-0.012 h5 4 SEME65020020212 2 4 2 50 0~-0.012 h5 4 SEME65020020216 2 4 2 50 0~-0.012 h5 4 SEME65020020220 2 4 2 50 0~-0.012 h5 4 SEME65020020225 2 4 2 60 0~-0.012 h5 4 SEME65020020230 2 4 2 70 0~-0.012 h5 4 SEME65020020240 2 6 2 80 0~-0.012 h5 4 SEME65020020250 2 6 2 100 0~-0.012 h5 4 SEME65020020260 2 6 2 100 0~-0.012 h5 4 SEME65020020280 2 8 2 140 0~-0.012 h5 4 SEME65020030110 2 4 2 50 0~-0.012 h5 4 SEME65020030112 2 4 2 50 0~-0.012 h5 4 SEME65020030116 2 4 2 50 0~-0.012 h5 4 SEME65020030120 2 4 2 50 0~-0.012 h5 4 SEME65020030125 2 4 2 60 0~-0.012 h5 4 SEME65020030130 2 4 2 70 0~-0.012 h5 4 SEME65020030140 2 6 2 80 0~-0.012 h5 4 SEME65020030150 2 6 2 100 0~-0.012 h5 4 SEME65020030160 2 6 2 100 0~-0.012 h5 4 SEME65020030180 2 6 2 140 0~-0.012 h5 4 SEME65020030210 2 4 2 50 0~-0.012 h5 4 SEME65020030212 2 4 2 50 0~-0.012 h5 4 SEME65020030216 2 4 2 50 0~-0.012 h5 4 SEME65020030220 2 4 2 50 0~-0.012 h5 4 SEME65020030225 2 4 2 60 0~-0.012 h5 4 SEME65020030230 2 4 2 70 0~-0.012 h5 4 SEME65020030240 2 6 2 80 0~-0.012 h5 4 SEME65020030250 2 6 2 100 0~-0.012 h5 4 SEME65020030260 2 6 2 100 0~-0.012 h5 4 SEME65020030280 2 8 2 140 0~-0.012 h5 4 SEME65020050110 2 4 2 50 0~-0.012 h5 4 SEME65020050112 2 4 2 50 0~-0.012 h5 4 SEME65020050116 2 4 2 50 0~-0.012 h5 4 SEME65020050120 2 4 2 50 0~-0.012 h5 4 SEME65020050125 2 4 2 60 0~-0.012 h5 4 SEME65020050130 2 4 2 70 0~-0.012 h5 4 SEME65020050140 2 6 2 80 0~-0.012 h5 4 SEME65020050150 2 6 2 100 0~-0.012 h5 4 SEME65020050160 2 6 2 100 0~-0.012 h5 4 SEME65020050180 2 6 2 140 0~-0.012 h5 4 SEME65020050210 2 4 2 50 0~-0.012 h5 4 SEME65020050212 2 4 2 50 0~-0.012 h5 4 SEME65020050216 2 4 2 50 0~-0.012 h5 4 SEME65020050220 2 4 2 50 0~-0.012 h5 4 SEME65020050225 2 4 2 60 0~-0.012 h5 4 SEME65020050230 2 4 2 70 0~-0.012 h5 4 SEME65020050240 2 6 2 80 0~-0.012 h5 4 SEME65020050250 2 6 2 100 0~-0.012 h5 4 SEME65020050260 2 6 2 100 0~-0.012 h5 4 SEME65020050280 2 8 2 140 0~-0.012 h5 4 SEME65030020116 3 6 4.5 60 0~-0.012 h5 4 SEME65030020120 3 6 4.5 65 0~-0.012 h5 4 SEME65030020130 3 6 4.5 70 0~-0.012 h5 4 SEME65030020140 3 6 4.5 80 0~-0.012 h5 4 SEME65030020150 3 6 4.5 90 0~-0.012 h5 4 SEME65030020160 3 6 4.5 100 0~-0.012 h5 4 SEME65030020216 3 6 4.5 60 0~-0.012 h5 4 SEME65030020220 3 6 4.5 65 0~-0.012 h5 4 SEME65030020230 3 6 4.5 70 0~-0.012 h5 4 SEME65030020240 3 6 4.5 80 0~-0.012 h5 4 SEME65030020250 3 8 4.5 90 0~-0.012 h5 4 SEME65030020260 3 8 4.5 100 0~-0.012 h5 4 SEME65030020270 3 8 4.5 120 0~-0.012 h5 4 SEME65030030116 3 6 4.5 60 0~-0.012 h5 4 SEME65030030120 3 6 4.5 65 0~-0.012 h5 4 SEME65030030130 3 6 4.5 70 0~-0.012 h5 4 SEME65030030140 3 6 4.5 80 0~-0.012 h5 4 SEME65030030150 3 6 4.5 90 0~-0.012 h5 4 SEME65030030160 3 6 4.5 100 0~-0.012 h5 4 SEME65030030216 3 6 4.5 60 0~-0.012 h5 4 SEME65030030220 3 6 4.5 65 0~-0.012 h5 4 SEME65030030230 3 6 4.5 70 0~-0.012 h5 4 SEME65030030240 3 6 4.5 80 0~-0.012 h5 4 SEME65030030250 3 8 4.5 90 0~-0.012 h5 4 SEME65030030260 3 8 4.5 100 0~-0.012 h5 4 SEME65030030270 3 8 4.5 120 0~-0.012 h5 4 SEME65030050116 3 6 4.5 60 0~-0.012 h5 4 SEME65030050120 3 6 4.5 65 0~-0.012 h5 4 SEME65030050130 3 6 4.5 70 0~-0.012 h5 4 SEME65030050140 3 6 4.5 80 0~-0.012 h5 4 SEME65030050150 3 6 4.5 90 0~-0.012 h5 4 SEME65030050160 3 6 4.5 100 0~-0.012 h5 4 SEME65030050216 3 6 4.5 60 0~-0.012 h5 4 SEME65030050220 3 6 4.5 65 0~-0.012 h5 4 SEME65030050230 3 6 4.5 70 0~-0.012 h5 4 SEME65030050240 3 6 4.5 80 0~-0.012 h5 4 SEME65030050250 3 8 4.5 90 0~-0.012 h5 4 SEME65030050260 3 8 4.5 100 0~-0.012 h5 4 SEME65030050270 3 8 4.5 120 0~-0.012 h5 4 SEME65040020140 4 6 6 90 0~-0.012 h5 4 SEME65040020150 4 6 6 100 0~-0.012 h5 4 SEME65040020160 4 6 6 110 0~-0.012 h5 4 SEME65040020170 4 8 6 120 0~-0.012 h5 4 SEME65040020240 4 8 6 90 0~-0.012 h5 4 SEME65040020250 4 8 6 100 0~-0.012 h5 4 SEME65040020260 4 8 6 110 0~-0.012 h5 4 SEME65040020270 4 10 6 120 0~-0.012 h5 4 SEME65040030140 4 6 6 90 0~-0.012 h5 4 SEME65040030150 4 6 6 100 0~-0.012 h5 4 SEME65040030160 4 6 6 110 0~-0.012 h5 4 SEME65040030170 4 8 6 120 0~-0.012 h5 4 SEME65040030240 4 8 6 90 0~-0.012 h5 4 SEME65040030250 4 8 6 100 0~-0.012 h5 4 SEME65040030260 4 8 6 110 0~-0.012 h5 4 SEME65040030270 4 10 6 120 0~-0.012 h5 4 SEME65040050140 4 6 6 90 0~-0.012 h5 4 SEME65040050150 4 6 6 100 0~-0.012 h5 4 SEME65040050160 4 6 6 110 0~-0.012 h5 4 SEME65040050170 4 8 6 120 0~-0.012 h5 4 SEME65040050240 4 8 6 90 0~-0.012 h5 4 SEME65040050250 4 8 6 100 0~-0.012 h5 4 SEME65040050260 4 8 6 110 0~-0.012 h5 4 SEME65040050270 4 10 6 120 0~-0.012 h5 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 4–5
GoodVDI 1–3
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

3 grades
Hardened steel
GoodVDI 38
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
