4G MILL 4 Flute 38°Helix Corner Radius End Mill (SEME67)

4G MILL 4 Flute 38°Helix Corner Radius End Mill (SEME67)
4G MILL 4 Flute 38°Helix Corner Radius End Mill (SEME67)
New

4G MILL 4 Flute 38°Helix Corner Radius End Mill (SEME67)

Product Code: SEME67-1

Corner Radius Tolerance: 0.02 No. Flutes: 4 YG-1 LEGEND Y COATING Surface Treatment: YG-1 Y Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent for cutting pre-hardened steels, carbon steels and alloy steels of molds and dies up to HRc55 and machine parts.
  • Increasing cutting ability and minimizing tool wear according to reduction of vibration due to broken index of end teeth.

Specifications

Flutes 4
Helix Angle 38°
Cutting Edge Shape Corner Radius
Size Min D0.1
Size Max D20.0
Length -
Coating Y-Coating
Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.02
Hardened Steels(HRc40~45) Great
No. Flutes 4
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL 4 Flute 38°Helix Corner Radius End Mill (SEME67) to comparison

View Comparison

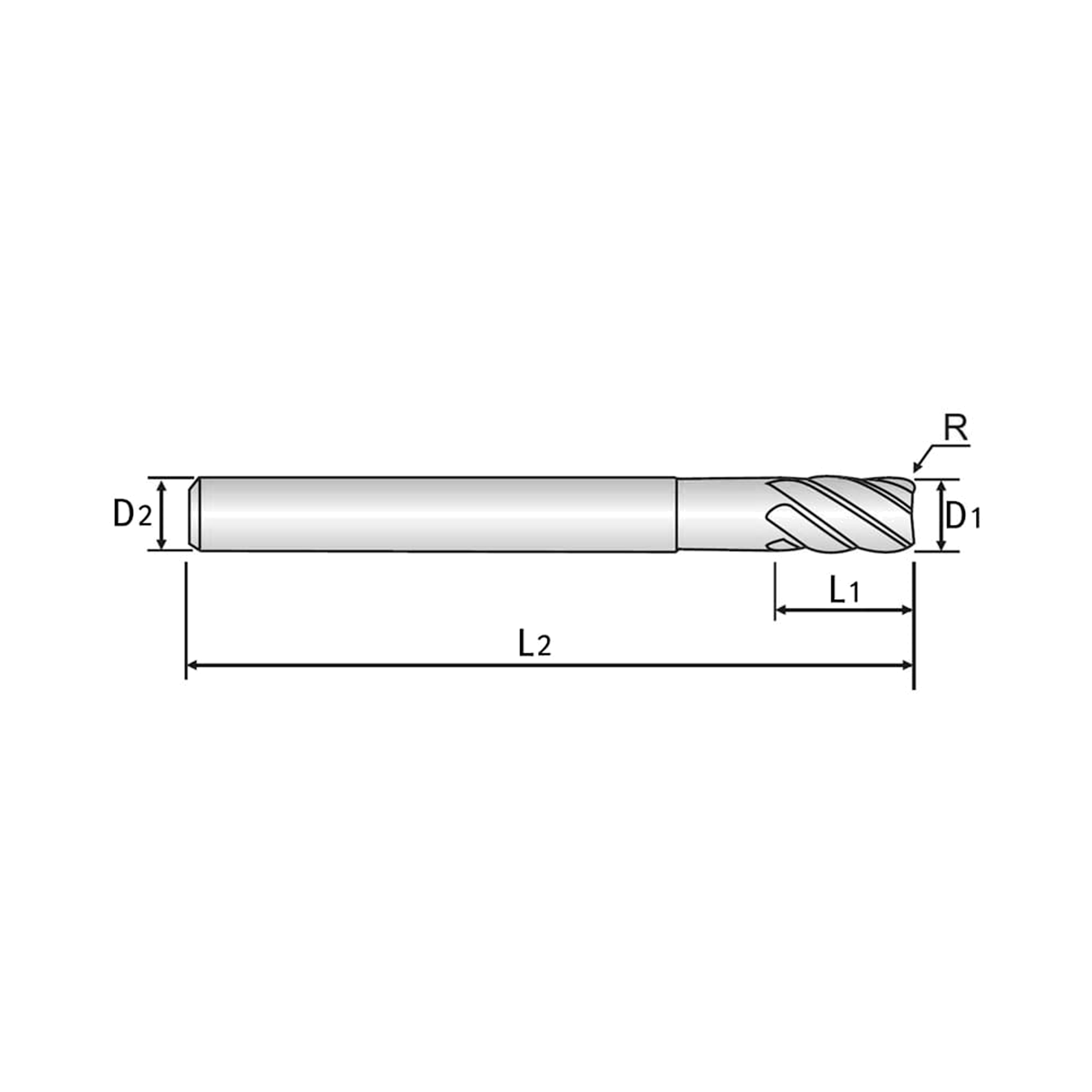

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEME6703003 3 6 8 60 0~-0.030 h5 4 SEME6703005 3 6 8 60 0~-0.030 h5 4 SEME6704002 4 6 10 70 0~-0.030 h5 4 SEME6704005 4 6 10 70 0~-0.030 h5 4 SEME6704010 4 6 10 70 0~-0.030 h5 4 SEME6705003 5 6 13 90 0~-0.030 h5 4 SEME6706003 6 6 15 90 0~-0.030 h5 4 SEME6706005 6 6 15 90 0~-0.030 h5 4 SEME6706010 6 6 15 90 0~-0.030 h5 4 SEME6708003 8 8 20 100 0~-0.030 h5 4 SEME6708005 8 8 20 100 0~-0.030 h5 4 SEME6708010 8 8 20 100 0~-0.030 h5 4 SEME6710003 10 10 25 100 0~-0.030 h5 4 SEME6710005 10 10 25 100 0~-0.030 h5 4 SEME6710010 10 10 25 100 0~-0.030 h5 4 SEME6712005 12 12 30 110 0~-0.030 h5 4 SEME6716010 16 16 32 150 0~-0.030 h5 4 SEME6716020 16 16 32 150 0~-0.030 h5 4 SEME6720005 20 20 38 150 0~-0.030 h5 4 SEME6720020 20 20 38 150 0~-0.030 h5 4 SEME670600530 6 6 10 90 0~-0.030 h5 4 SEME670801035 8 8 12 100 0~-0.030 h5 4 SEME671000540 10 10 15 100 0~-0.030 h5 4 SEME671001040 10 10 15 100 0~-0.030 h5 4 SEME671201045 12 12 20 110 0~-0.030 h5 4 SEME6705003060 5 6 13 60 0~-0.030 h5 4 SEME6705005060 5 6 13 60 0~-0.030 h5 4 SEME6706003060 6 6 15 60 0~-0.030 h5 4 SEME6706005060 6 6 15 60 0~-0.030 h5 4 SEME6706010060 6 6 15 60 0~-0.030 h5 4 SEME6708003070 8 8 20 70 0~-0.030 h5 4 SEME6708005070 8 8 20 70 0~-0.030 h5 4 SEME6708010070 8 8 20 70 0~-0.030 h5 4 SEME6710003075 10 10 25 75 0~-0.030 h5 4 SEME6710005075 10 10 25 75 0~-0.030 h5 4 SEME6710010075 10 10 25 75 0~-0.030 h5 4 SEME6712010080 12 12 30 80 0~-0.030 h5 4 SEME6716005100 16 16 32 100 0~-0.030 h5 4 SEME6716015100 16 16 32 100 0~-0.030 h5 4 SEME6716020100 16 16 32 100 0~-0.030 h5 4 SEME6720005100 20 20 38 100 0~-0.030 h5 4 SEME6720015100 20 20 38 100 0~-0.030 h5 4 SEME6720020100 20 20 38 100 0~-0.030 h5 4

Video

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work Material

P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
