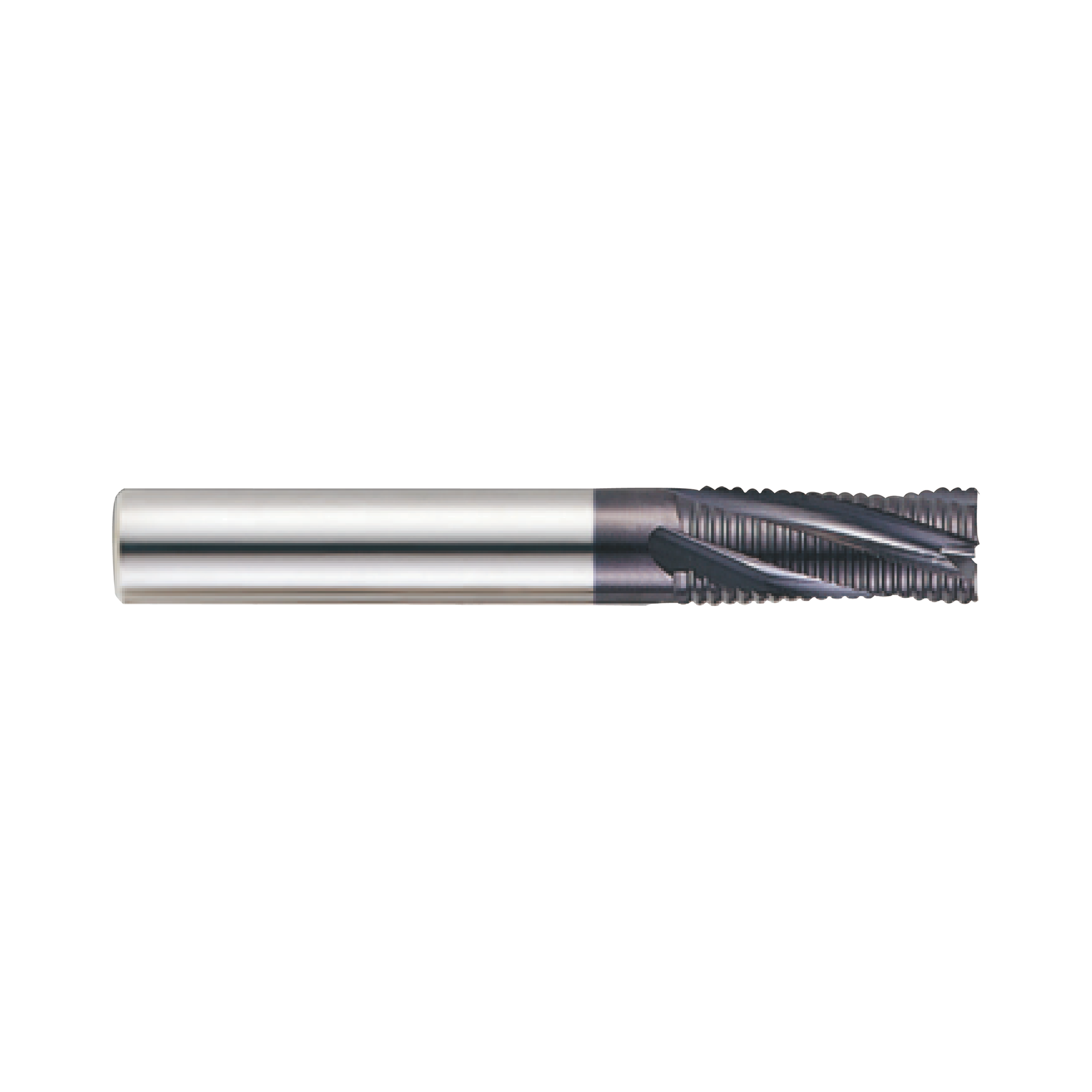

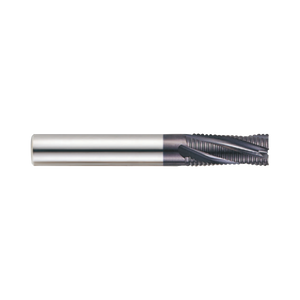

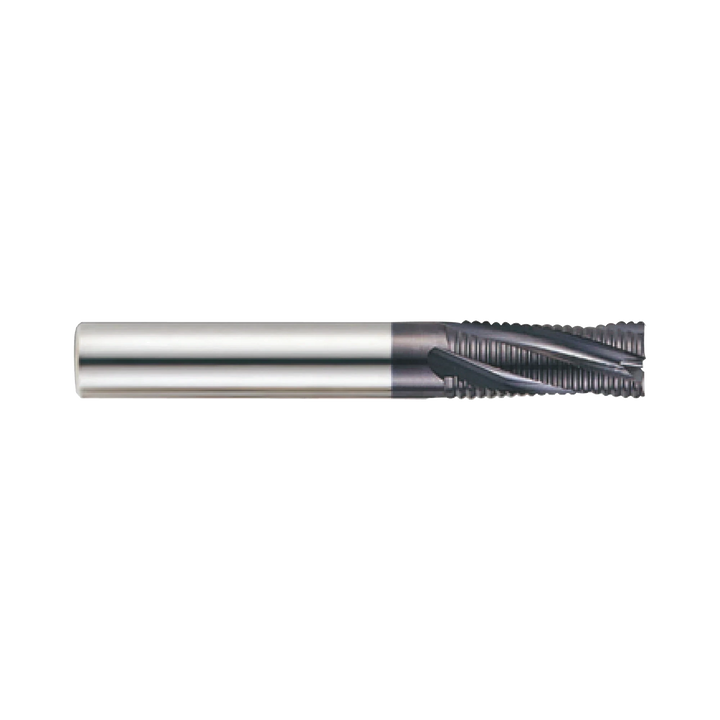

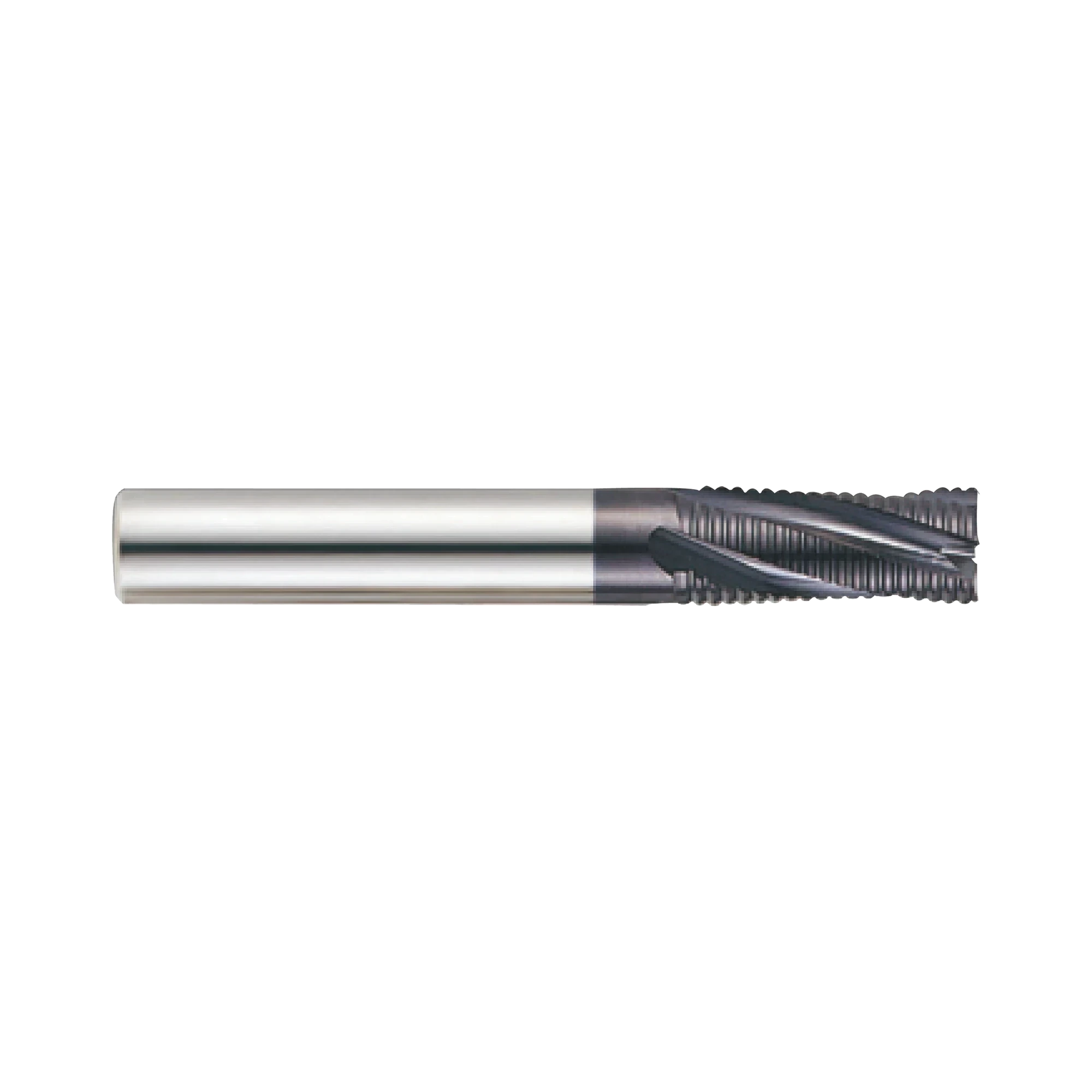

4G MILL Multi Flute 20°Helix Roughing End Mill (SG9E76)

4G MILL Multi Flute 20°Helix Roughing End Mill (SG9E76)
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SG9E76
P K H
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add 4G MILL Multi Flute 20°Helix Roughing End Mill (SG9E76) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Due to new coating and geometry, outstanding cutting ability and wear-resistance.
  • Excellent for cutting pre-hardened steels, carbon steels, alloy steels of molds and dies up to HRc55 and machine parts.
  • Reinfored tool's rigidity using 20° low helix angle. (Same as standard X-POWER S)
  • Reduced chipping by decreasing cutting force when rough milling due to applying chamfers to cutting edges.

Specifications

Flutes 3-5
Helix Angle 20°
Cutting Edge Shape -
Size Min D1.0
Size Max D12.0
Length -
Coating X-Coating
Product Data
Workpiece Material P K H
Chamfer Angle 45
Finish Type Fine
Hardened Steels(HRc40~45) Excellent
Helix Angle Square 20
No. Flutes 3-5
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 X Coating
Tool Material Carbide

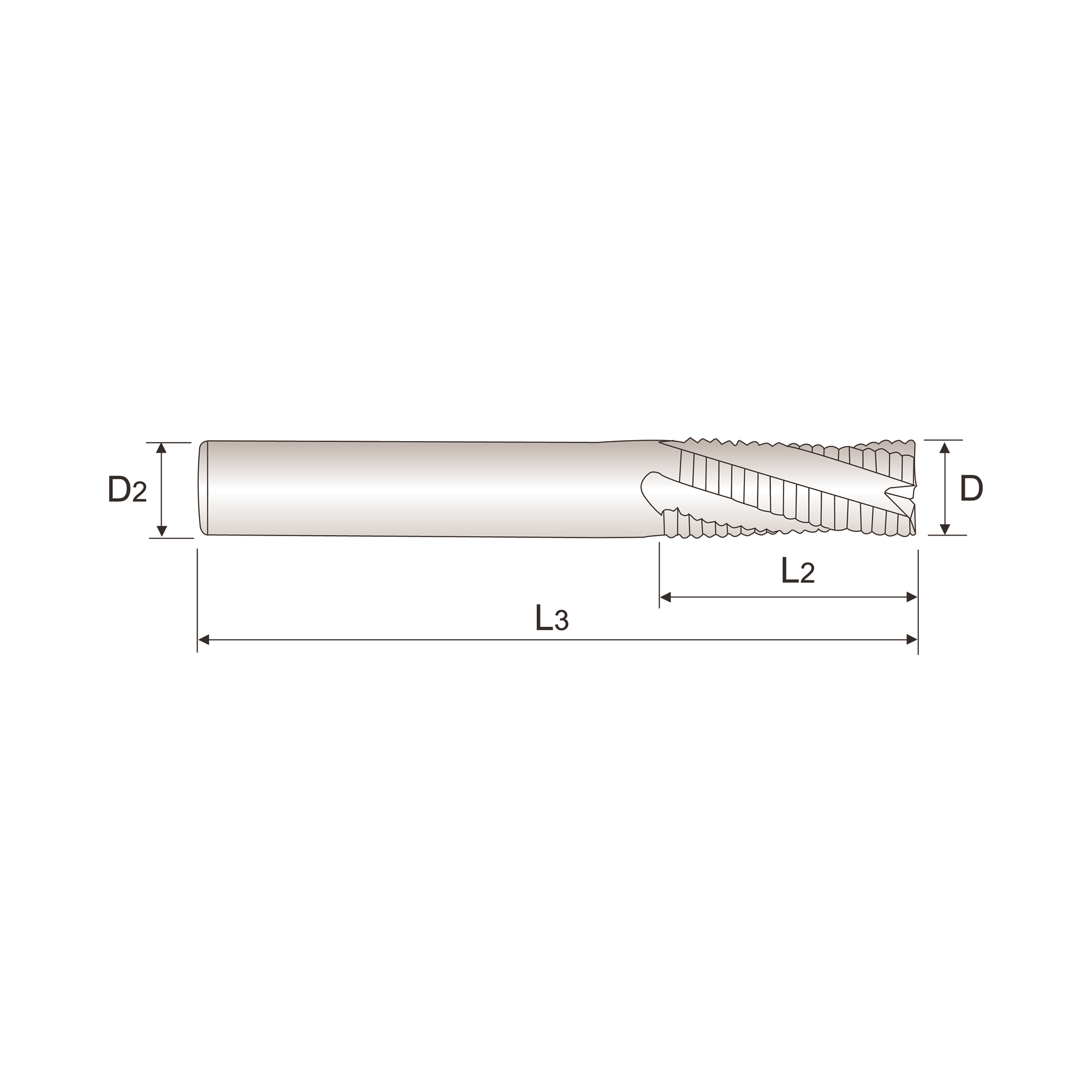

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SG9E76030 3 6 8 50 h10 h5 3 SG9E76040 4 6 10 50 h10 h5 3 SG9E76050 5 6 13 50 h10 h5 3 SG9E76060 6 6 15 60 h10 h5 3 SG9E76070 7 8 18 70 h10 h5 3 SG9E76080 8 8 20 70 h10 h5 3 SG9E76090 9 10 22 75 h10 h5 4 SG9E76100 10 10 25 75 h10 h5 4 SG9E76110 11 12 27 80 h10 h5 4 SG9E76120 12 12 30 80 h10 h5 4 SG9E76130 13 12 35 100 h10 h5 4 SG9E76140 14 16 35 100 h10 h5 4 SG9E76160 16 16 40 100 h10 h5 4 SG9E76180 18 18 40 100 h10 h5 4 SG9E76200 20 20 50 100 h10 h5 4 SG9E76250 25 25 50 100 h10 h5 5 SG9E7606020 6 6 20 60 h10 h5 3 SG9E7608025 8 8 25 70 h10 h5 3 SG9E7610030 10 10 30 75 h10 h5 4 SG9E7612035 12 12 35 80 h10 h5 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
P

Non-alloy steel

Excellent Excellent
HRc
13252832
HB
125190250270300
P

Low alloy steel

Excellent Excellent
HRc
10293238
HB
180275300350
P

High alloy & tool steel

Excellent Excellent
HRc
1535
HB
200325
K

Grey cast iron

Good Good
HRc
1026
HB
180260
K

Nodular cast iron

Good Good
HRc
325
HB
160250
K

Malleable cast iron

Good Good
HRc
21
HB
130230
H

Hardened steels & cast irons

Excellent Excellent
HRc
384041
HB
400630
