ADKT15

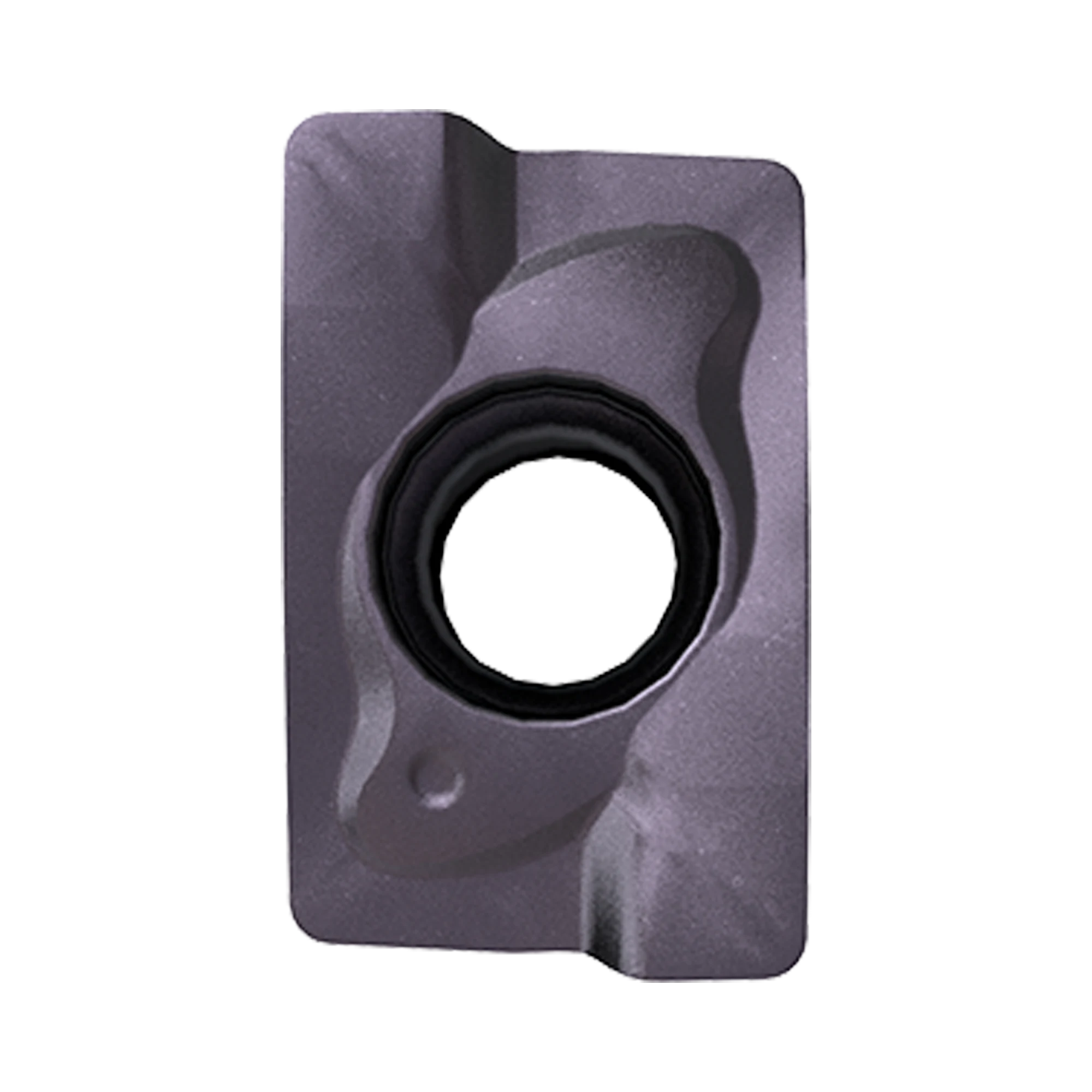

YG-1 ADKT15 ISO Milling Inserts

ADKT15
$0.00 INC GST $0.00 EX GST Price available on request
SKU
ADKT15

Key features

  • YG-1 ADKT15 ISO milling insert series
  • Designed for use with Korloy ISO milling bodies
  • Suitable for steel and stainless steel machining
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Compatible milling format

Designed for use with Korloy ISO milling bodies.

Material versatility

Suitable for steel, stainless steel, cast iron and exotic materials.

Grade selection

YG602 and YG612 grades provide material-focused insert options.

Add ADKT15 to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

YG-1 ADKT15 ISO milling inserts are indexable inserts designed for use with Korloy ISO milling bodies. They support milling applications in steel, stainless steel, cast iron and exotic materials. The ADKT15 series is available in YG602 and YG612 grades for material-specific selection. Its ISO milling insert format supports practical replacement and consistent identification within compatible tooling systems. The series is suited to workshops requiring insert options for common ferrous and exotic material machining. Select the appropriate ADKT15 grade and geometry to suit the workpiece material and milling body.

  • YG-1 ADKT15 ISO milling insert series
  • Designed for use with Korloy ISO milling bodies
  • Suitable for steel and stainless steel machining
  • Suitable for cast iron and exotic materials
  • Available in YG602 and YG612 grades
  • Verified SKU 12001053 has a 15 mm insert size and 0.8 mm radius
Product Data

No specifications available.

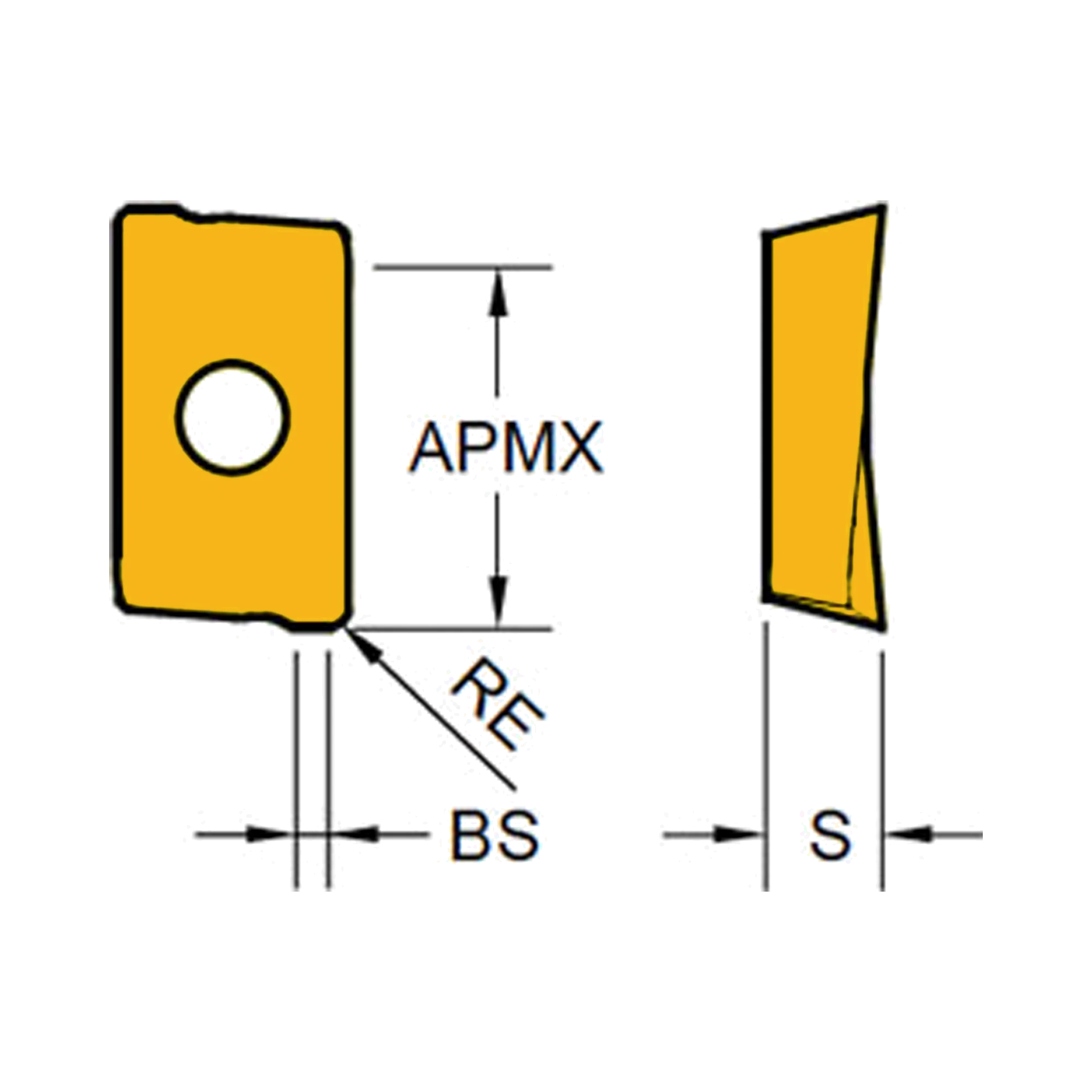

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000220 ADKT150508PDTR 0.8 1.87 14 90° 9.7 5.8 General YG602 12000755 ADKT150516PDTR 1.6 1.73 14 90° 9.7 5.8 General YG602 12000756 ADKT150524PDTR 2.4 1.2 14 90° 9.7 5.8 General YG602 12000757 ADKT150532PDTR 3.2 0.3 14 90° 9.7 5.8 General YG602 12000913 ADKT150508PDTR 0.8 1.87 14 90˚ 9.7 5.8 GENERAL YG012 12000916 ADKT150516PDTR 1.6 1.73 14 90˚ 9.7 5.8 GENERAL YG012 12000917 ADKT150524PDTR 2.4 1.2 14 90˚ 9.7 5.8 GENERAL YG012 12000918 ADKT150532PDTR 3.2 0.3 14 90˚ 9.7 5.8 GENERAL YG012 12001053 ADKT150508PDTR 0.8 1.87 14 90˚ 9.7 5.8 GENERAL YG612
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000220 ADKT150508PDTR 0.8 1.87 14 90° 9.7 5.8 General YG602 12000755 ADKT150516PDTR 1.6 1.73 14 90° 9.7 5.8 General YG602 12000756 ADKT150524PDTR 2.4 1.2 14 90° 9.7 5.8 General YG602 12000757 ADKT150532PDTR 3.2 0.3 14 90° 9.7 5.8 General YG602 12000913 ADKT150508PDTR 0.8 1.87 14 90˚ 9.7 5.8 GENERAL YG012 12000916 ADKT150516PDTR 1.6 1.73 14 90˚ 9.7 5.8 GENERAL YG012 12000917 ADKT150524PDTR 2.4 1.2 14 90˚ 9.7 5.8 GENERAL YG012 12000918 ADKT150532PDTR 3.2 0.3 14 90˚ 9.7 5.8 GENERAL YG012 12001053 ADKT150508PDTR 0.8 1.87 14 90˚ 9.7 5.8 GENERAL YG612
