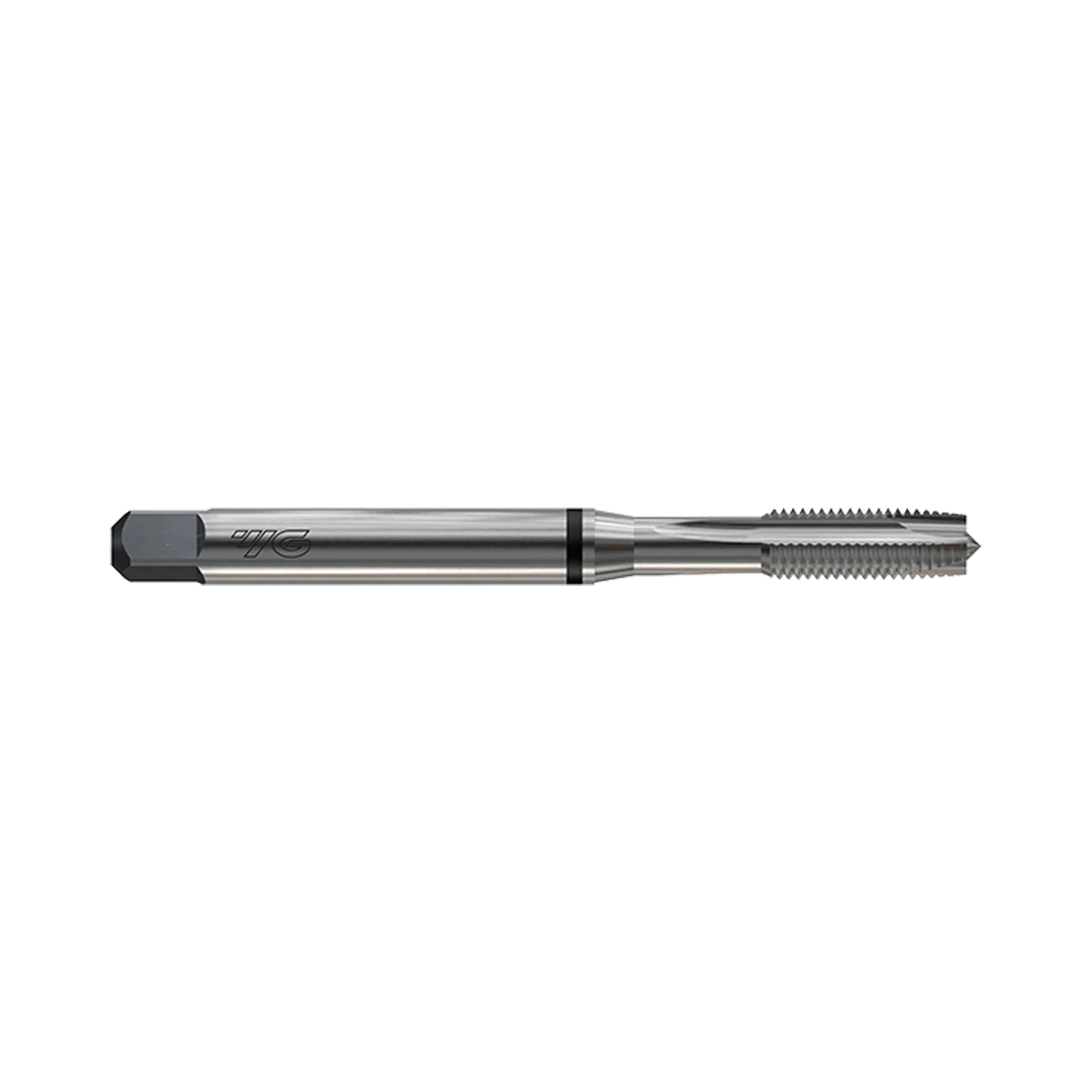

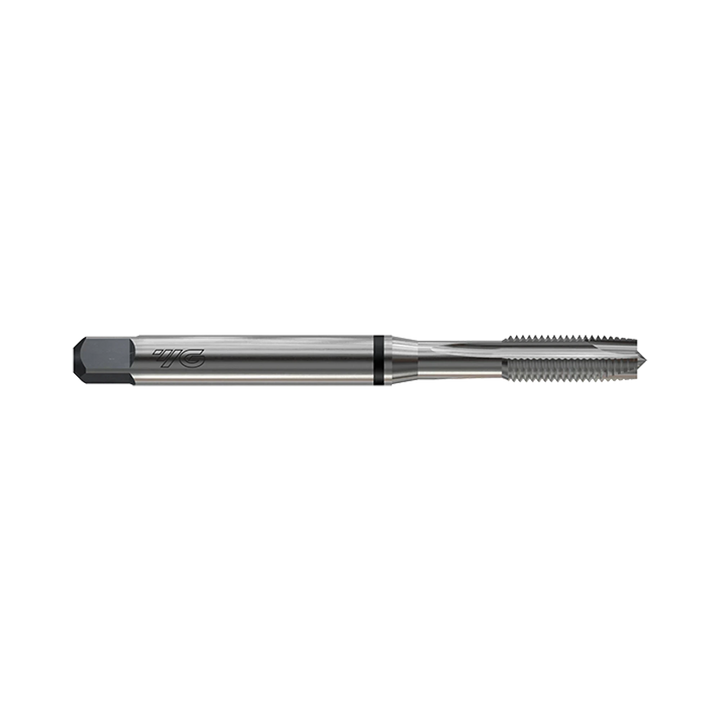

(TC127) HSS-E (M35) Metric Gun Point for General Purpose

HSS-E Bright-Finish Through-Hole Machine Taps

$29.92 INC GST $27.20 EX GST
Unit price per
SKU
TC127136
Work materials

Key features

  • HSS-E DIN 371 machine taps for through holes
  • Bright finish and 6H thread tolerance
  • Thick web supports higher cutting speeds
Tool material HSS-E
Surface treatment Bright
Size
Pitch (mm)
Loading stock…


South Korea Made in South Korea

Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for through holes

Gun point geometry and a thick web suit through-hole tapping applications.

Metric thread control

DIN 13 ISO metric coarse threads are produced to a 6H tolerance.

Practical size coverage

The range covers common metric sizes from M2 through M12.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TC127136M20.48.045.013.02.82.15.031.6STEPDXF In stock $27.20
TC127156M2.20.458.045.013.02.82.15.031.75STEPDXF 1-2 Weeks $32.20
TC127196M2.30.48.045.013.02.82.15.031.9STEPDXF In stock $36.40
TC127176M2.50.459.050.015.02.82.15.032.05STEPDXF In stock $27.60
TC127496M2.60.459.050.015.02.82.15.032.1STEPDXF Restocking $20.30
TC127206M30.511.056.018.03.52.76.032.5STEPDXF In stock $16.30
TC127226M3.50.612.056.020.04.03.06.032.9STEPDXF In stock $19.40
TC127246M40.713.063.021.04.53.46.033.3STEPDXF In stock $19.40
TC127266M4.50.7514.070.025.06.04.98.033.7STEPDXF In stock $16.70
TC127286M50.815.070.025.06.04.98.034.2STEPDXF In stock $16.70
TC127316M61.017.080.030.06.04.98.035.0STEPDXF In stock $16.70
TC127366M81.2520.090.035.08.06.29.036.8STEPDXF In stock $23.30
TC127426M101.522.0100.039.010.08.011.038.5STEPDXF Low stock $28.50
TC127466M111.522.0100.039.011.09.012.039.5STEPDXF Low stock $33.50
TC127506M121.7524.0110.044.012.09.012.0310.2STEPDXF In stock $33.50

Add (TC127) HSS-E (M35) Metric Gun Point for General Purpose to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 TC127 HSS-E metric gun point machine taps provide bright-finish threading for through holes. Designed for general-purpose production, their thick-web construction supports higher cutting speeds than other taps. Each tap produces ISO metric coarse threads to DIN 13 with a 6H tolerance. TC127 tools use HSS-E construction and a DIN 371 machine-tap form. Choose from M2 × 0.4 through M12 × 1.75 sizes for common metric threading requirements. The series is specified for thread depths up to 3.0×D. Listed variants have three flutes and include recommended tapping-drill diameters from 1.6 to 10.2 mm. The bright finish provides a clear, uncoated tool surface.

  • HSS-E DIN 371 machine taps for through holes
  • Bright finish and 6H thread tolerance
  • Thick web supports higher cutting speeds
  • ISO metric coarse threads to DIN 13
  • Thread depth capability up to 3.0×D
  • M2 × 0.4 to M12 × 1.75 size range
Product Data
Hole Type Through
Surface Treatment Bright
Thread Angle 60°
Thread Class 6H
Thread Form B
Thread Shape M
Tool Material HSS-E

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

8 grades
Non-alloy steel
ExcellentVDI 2–4
GoodVDI 1, 5
Low-alloy steel
ExcellentVDI 6–7
GoodVDI 8

Cast iron

2 grades
Nodular cast iron
ExcellentVDI 17–18

Stainless steel

2 grades
Stainless steel
GoodVDI 12–13

Non-ferrous materials

6 grades
Wrought aluminium
GoodVDI 21
Cast aluminium
ExcellentVDI 25
GoodVDI 23–24
Copper, bronze and brass
ExcellentVDI 28
GoodVDI 26
VDI grade reference18 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelGood30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelGood30032
12MStainless steelGood20015
13MStainless steelGood24023
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
21NWrought aluminiumGood60-
23NCast aluminiumGood75-
24NCast aluminiumGood90-
25NCast aluminiumExcellent130-
26NCopper, bronze and brassGood110-
28NCopper, bronze and brassExcellent100-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
