APKT10

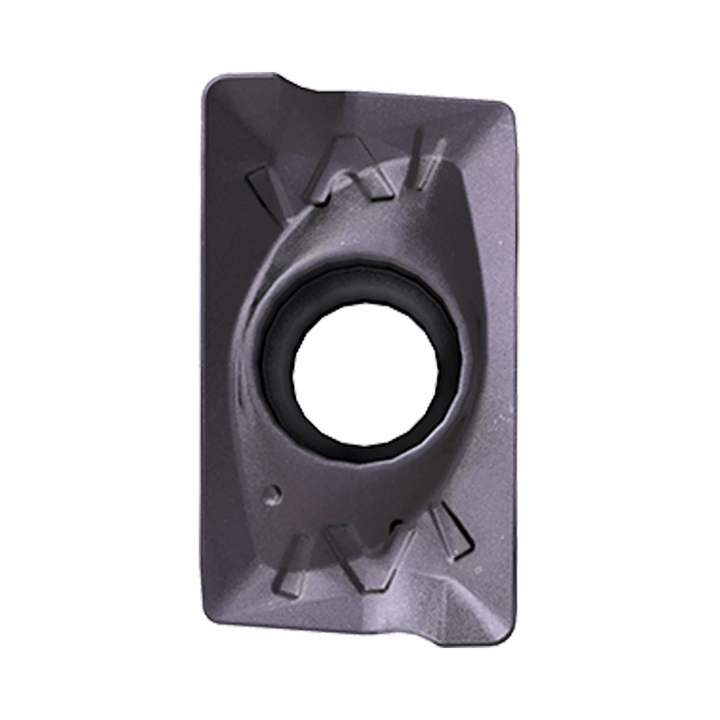

YG-1 APKT10 Indexable Milling Inserts

APKT10
$0.00 INC GST $0.00 EX GST Price available on request
SKU
APKT10

Key features

  • YG MILL APKT10 indexable milling insert family
  • Designed for compatible APKT10 cutter bodies
  • Supports 90-degree shoulder milling systems
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

APKT10 System Fit

Designed for use with compatible YG-1 APKT10 cutter bodies.

Targeted Geometry Choice

PDTR and ST geometries support general-purpose or stainless steel machining requirements.

Shoulder Milling Capability

Works within APKT10 cutter systems configured for 90-degree shoulder milling.

Add APKT10 to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

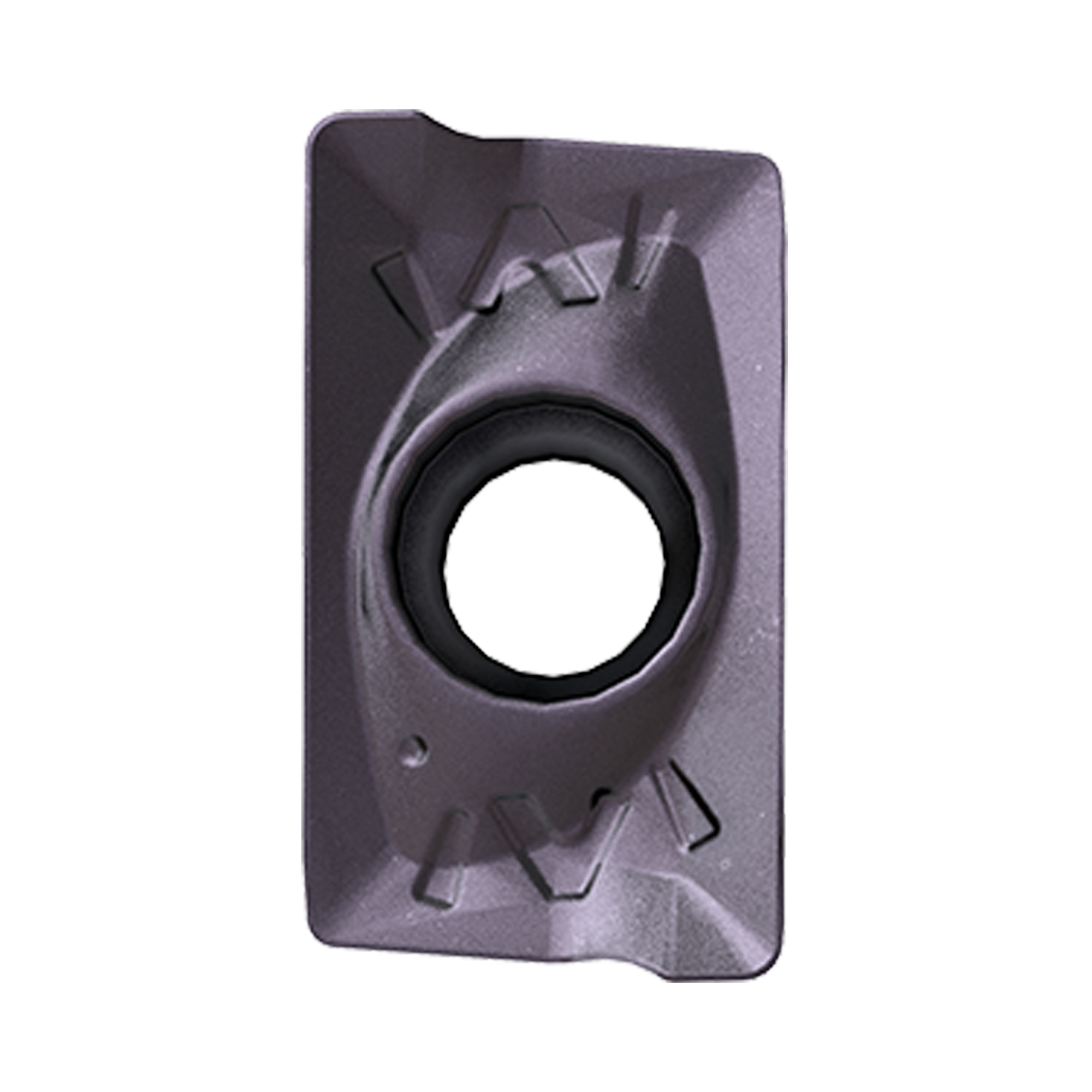

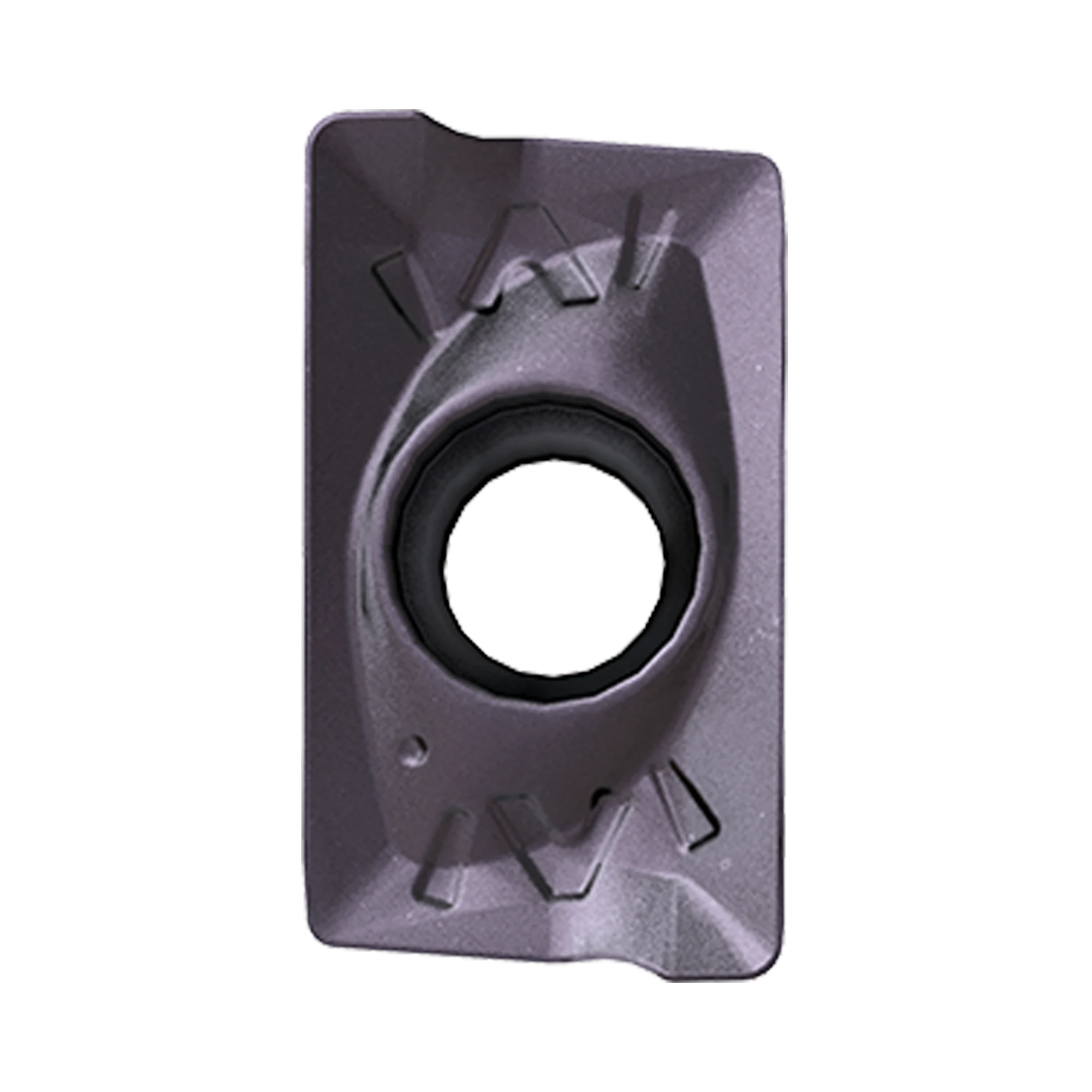

YG-1 APKT10 milling inserts are indexable inserts designed for compatible APKT10 cutter bodies. The family supports 90-degree shoulder milling through APKT10 cutter systems. APKT1003 PDTR variants are identified for general-purpose milling applications. APKT1003-ST variants are identified for stainless steel machining applications. Available product designations include 100305, 100308, 100312 and 100316 configurations. Selected variants use YG602, YG613 or YG622 grades for application-specific selection. Choose matching insert designations for cutter compatibility and required milling application.

  • YG MILL APKT10 indexable milling insert family
  • Designed for compatible APKT10 cutter bodies
  • Supports 90-degree shoulder milling systems
  • PDTR geometry for general-purpose milling
  • ST geometry for stainless steel machining
  • APKT1003 configurations from 100305 to 100316
Product Data

No specifications available.

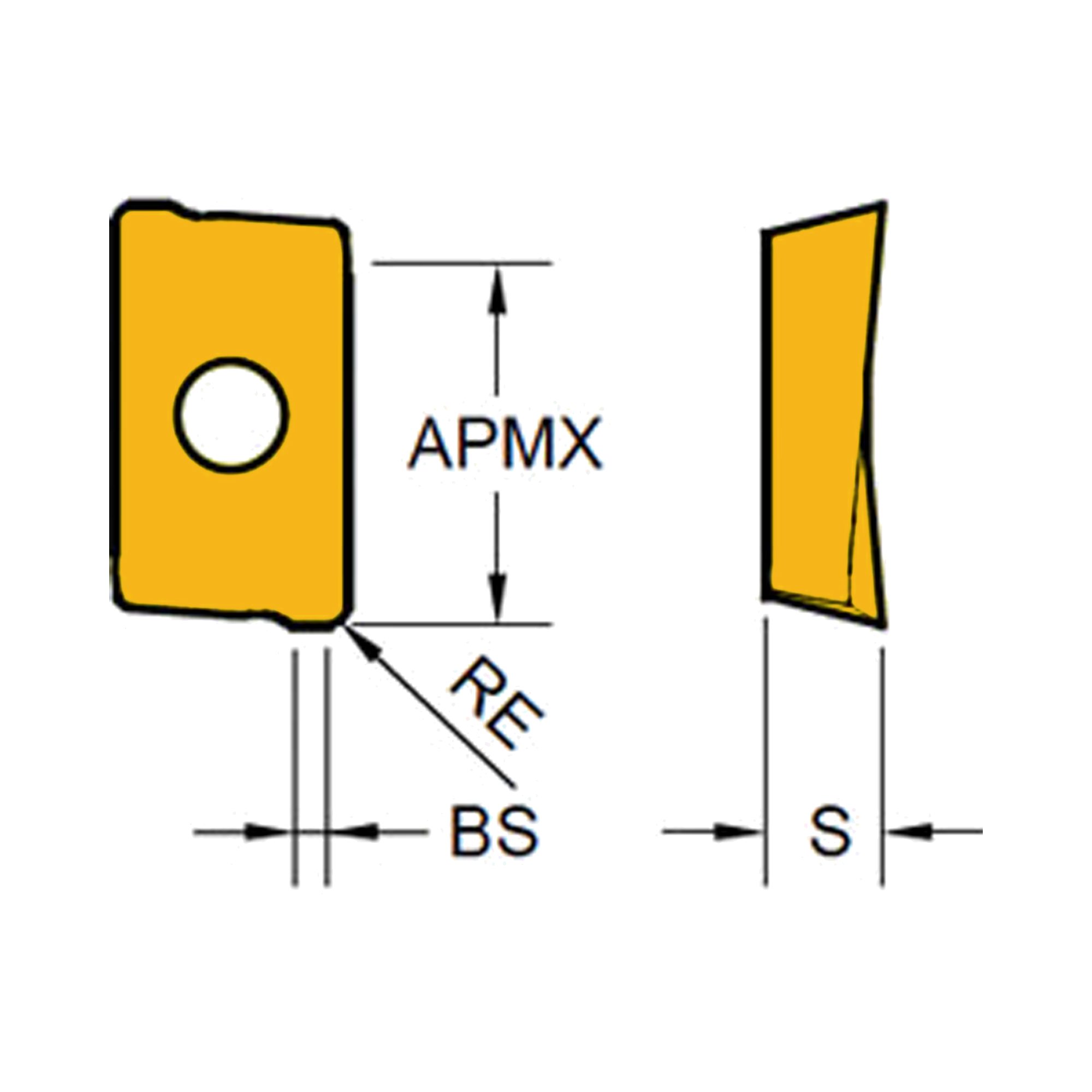

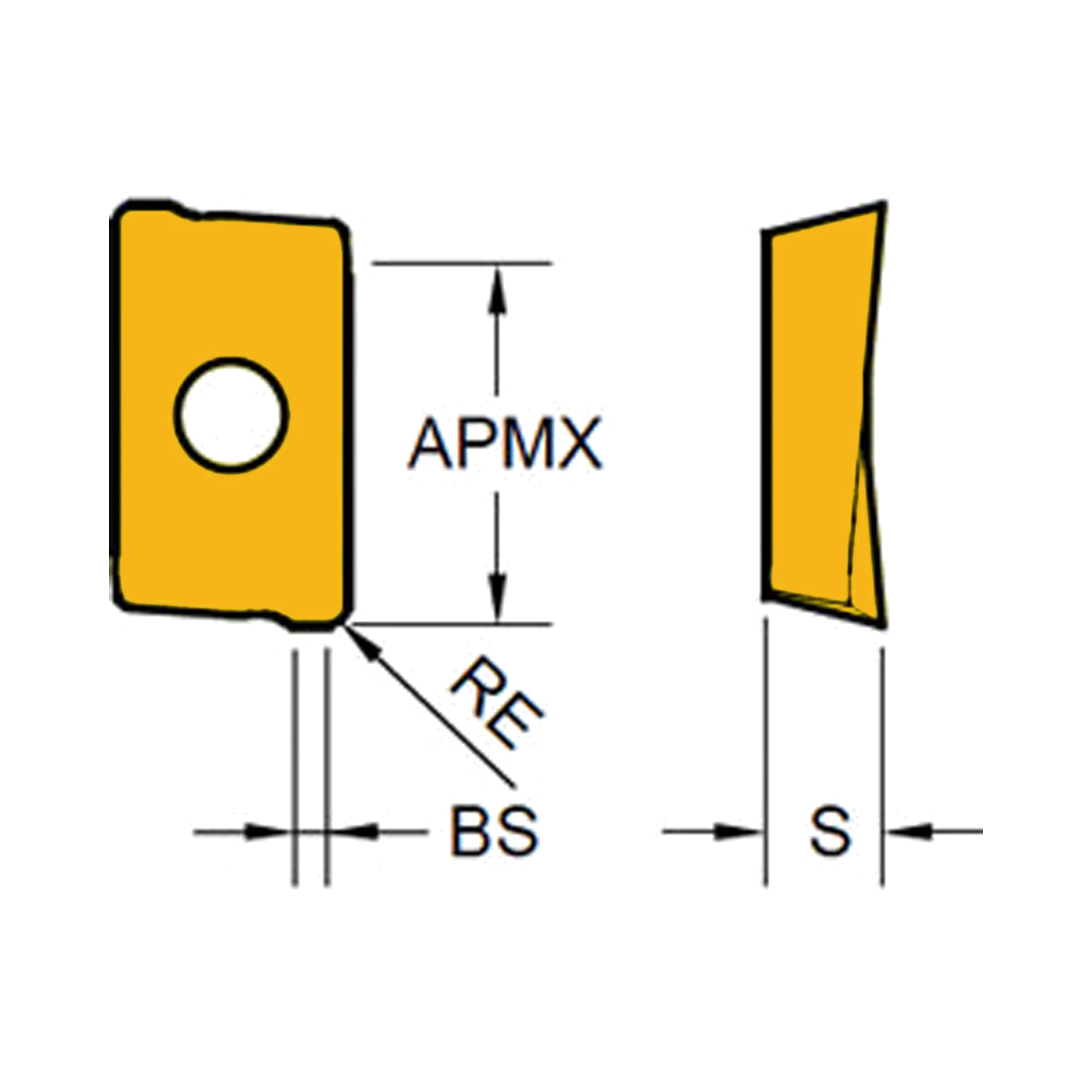

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000004 APKT100308PDTR 0.8 0.9 9 90° 6.7 3.6 General YG602 12000005 APKT100305PDTR 0.5 0.86 9 90° 6.7 3.6 General YG602 12000278 APKT100305-ST 0.5 0.86 9 90° 6.7 3.6 -ST YG602 12000610 APKT100308PDTR 0.8 0.9 9 90˚ 6.7 3.6 GENERAL YG613 12000618 APKT100305-ST 0.5 0.86 9 90˚ 6.7 3.6 -ST YG613 12000672 APKT100305PDTR 0.5 0.86 9 90˚ 6.7 3.6 GENERAL YG613 12000714 APKT100316PDTR 1.6 1.03 9 90˚ 6.7 3.6 GENERAL YG613 12000719 APKT100316-ST 1.6 1.03 9 90˚ 6.7 3.6 -ST YG613 12000749 APKT100305PDTR 0.5 0.86 9 90° 6.7 3.6 General YG012 12000750 APKT100308PDTR 0.8 0.9 9 90° 6.7 3.6 General YG012 12000776 APKT100312-ST 1.2 1.32 9 90° 6.7 3.6 -ST YG613 12000800 APKT100316PDTR 1.6 1.03 9 90˚ 6.7 3.6 GENERAL YG712 12000818 APKT100305PDTR 0.5 0.86 9 90° 6.7 3.6 General YG612 12000819 APKT100308PDTR 0.8 0.9 9 90° 6.7 3.6 General YG612 12000834 APKT100305-ST 0.5 0.86 9 90° 6.7 3.6 -ST YG612 12000872 APKT100320PDTR 2 0.41 9 90˚ 6.7 3.6 GENERAL YG012 12000873 APKT100330PDTR 3 9 90˚ 6.7 3.6 GENERAL YG012 12000975 APKT100316PDTR 1.6 1.03 9 90° 6.7 3.6 General YG612 12000981 APKT100312-ST 1.2 1.32 9 90° 6.7 3.6 -ST YG612 12000982 APKT100316-ST 1.6 1.03 9 90° 6.7 3.6 -ST YG612
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000004 APKT100308PDTR 0.8 0.9 9 90° 6.7 3.6 General YG602 12000005 APKT100305PDTR 0.5 0.86 9 90° 6.7 3.6 General YG602 12000278 APKT100305-ST 0.5 0.86 9 90° 6.7 3.6 -ST YG602 12000610 APKT100308PDTR 0.8 0.9 9 90˚ 6.7 3.6 GENERAL YG613 12000618 APKT100305-ST 0.5 0.86 9 90˚ 6.7 3.6 -ST YG613 12000672 APKT100305PDTR 0.5 0.86 9 90˚ 6.7 3.6 GENERAL YG613 12000714 APKT100316PDTR 1.6 1.03 9 90˚ 6.7 3.6 GENERAL YG613 12000719 APKT100316-ST 1.6 1.03 9 90˚ 6.7 3.6 -ST YG613 12000749 APKT100305PDTR 0.5 0.86 9 90° 6.7 3.6 General YG012 12000750 APKT100308PDTR 0.8 0.9 9 90° 6.7 3.6 General YG012 12000776 APKT100312-ST 1.2 1.32 9 90° 6.7 3.6 -ST YG613 12000800 APKT100316PDTR 1.6 1.03 9 90˚ 6.7 3.6 GENERAL YG712 12000818 APKT100305PDTR 0.5 0.86 9 90° 6.7 3.6 General YG612 12000819 APKT100308PDTR 0.8 0.9 9 90° 6.7 3.6 General YG612 12000834 APKT100305-ST 0.5 0.86 9 90° 6.7 3.6 -ST YG612 12000872 APKT100320PDTR 2 0.41 9 90˚ 6.7 3.6 GENERAL YG012 12000873 APKT100330PDTR 3 9 90˚ 6.7 3.6 GENERAL YG012 12000975 APKT100316PDTR 1.6 1.03 9 90° 6.7 3.6 General YG612 12000981 APKT100312-ST 1.2 1.32 9 90° 6.7 3.6 -ST YG612 12000982 APKT100316-ST 1.6 1.03 9 90° 6.7 3.6 -ST YG612
