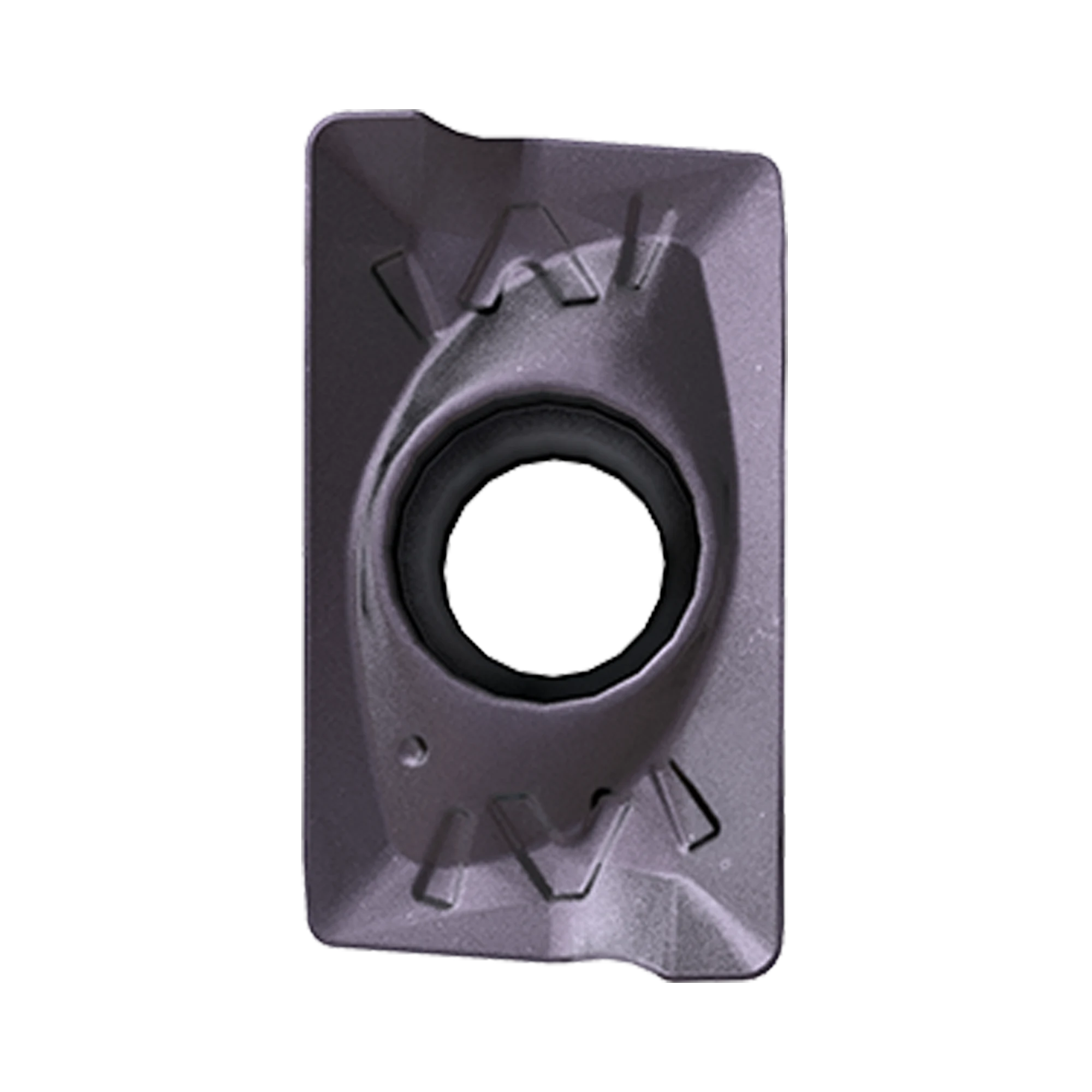

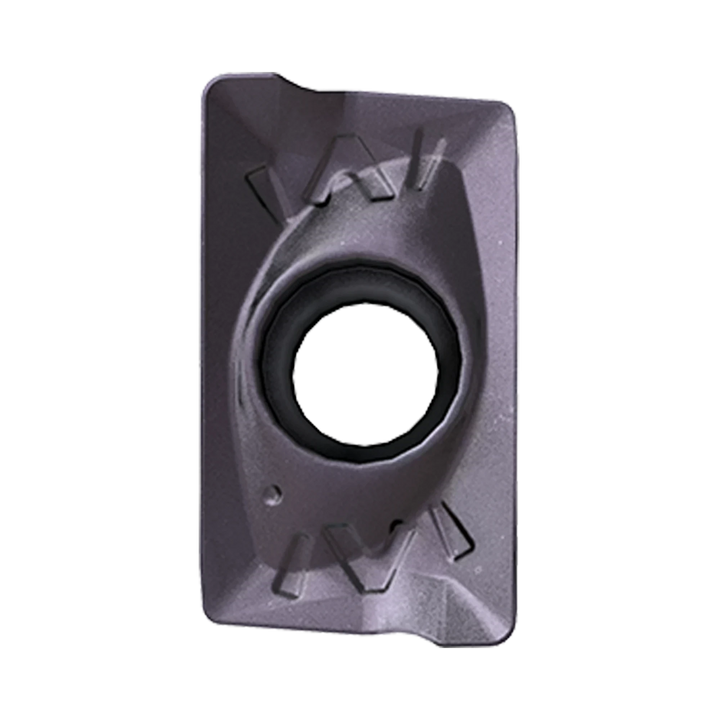

APKT16

Two-Corner Positive Shoulder Milling Inserts

APKT16
$0.00 INC GST $0.00 EX GST Price available on request
SKU
APKT16

Key features

  • Two-corner positive APKT16 milling insert design
  • Designed for 90-degree square shoulder milling
  • YG602 PDTR grades for general machining
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Positive two-corner design

Two usable cutting corners provide a practical insert format for shoulder milling operations.

Material-specific choices

Choose PDTR, ST, TR or AL variants according to the intended workpiece material.

Square shoulder capability

APKT16 inserts suit compatible YG-1 cutters for 90-degree square shoulder applications.

Add APKT16 to comparison

View Comparison
  • Overview
  • Specifications
  • Reviews
Product Description

YG-1 APKT16 milling inserts are two-corner positive inserts designed for 90-degree shoulder milling. Compatible APKT16 cutter bodies support square shoulder applications in steel, stainless steel, cast iron and aluminium. YG602 PDTR variants cover general machining, while ST variants are specified for stainless steel. TR variants are designated for hardened steel, while AL variants use YG2002 for aluminium. The range includes 1604 forms with 04, 08, 12, 16 and 24 depth designations. Each insert has two usable cutting corners for practical square shoulder milling workflows. Select the insert geometry and grade to suit the workpiece material and application.

  • Two-corner positive APKT16 milling insert design
  • Designed for 90-degree square shoulder milling
  • YG602 PDTR grades for general machining
  • ST geometries specified for stainless steel
  • TR geometries designated for hardened steel
  • YG2002 AL geometry for aluminium
Product Data

No specifications available.

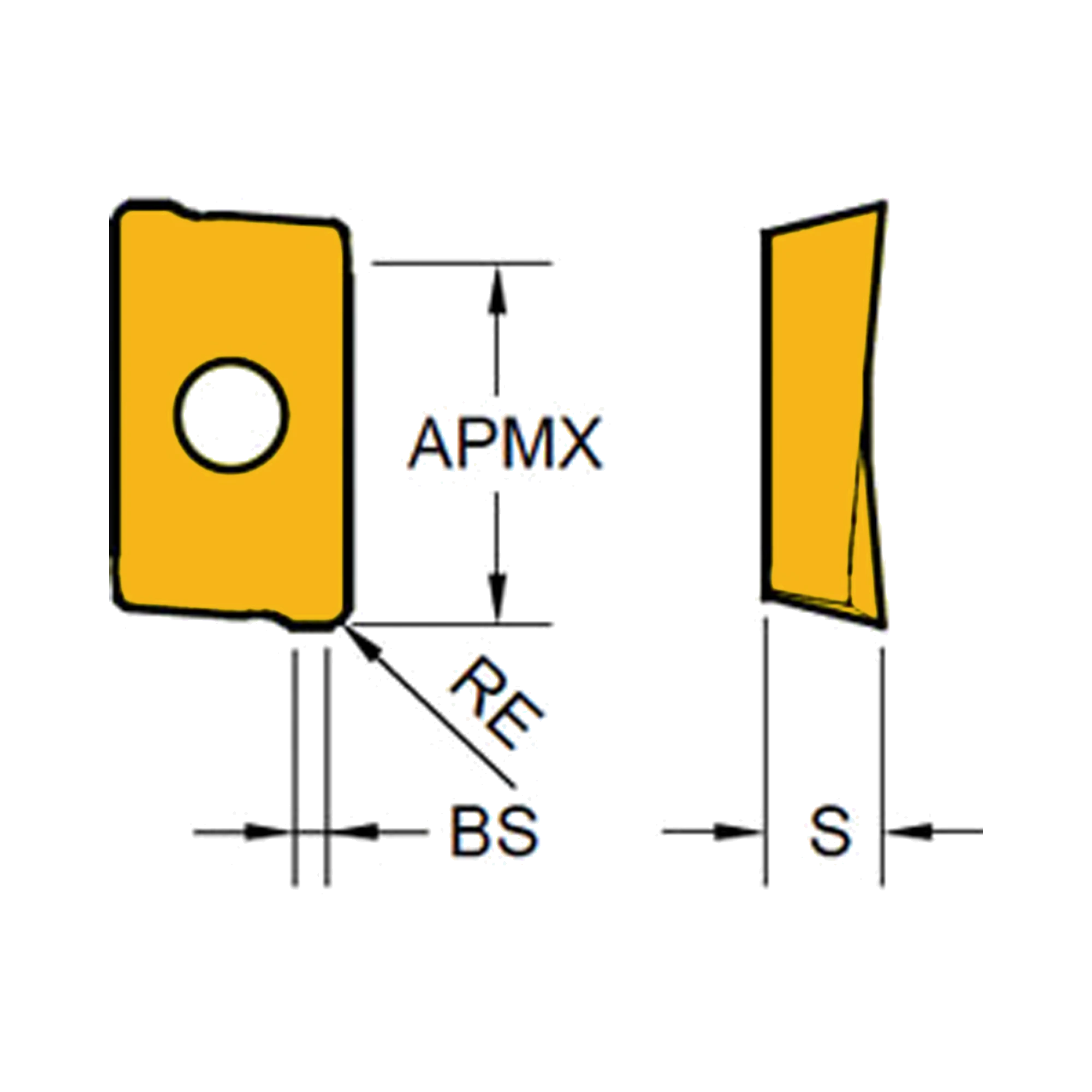

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000001 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG602 12000002 APKT160412PDTR 1.2 1.13 14 90° 9.4 5.3 General YG602 12000003 APKT160404PDTR 0.4 1.11 14 90° 9.4 5.3 General YG602 12000006 APKT160416PDTR 1.6 1.13 14 90° 9.4 5.3 General YG602 12000255 APKT160424PDTR 2.4 1.2 14 90° 9.4 5.3 General YG602 12000256 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 -TR YG602 12000270 APKT160408-ST 0.8 1.32 14 90° 9.4 5.3 -ST YG602 12000337 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 -TR YG622 12000469 APKT160408-TR 0.8 1.32 14 90˚ 9.4 5.3 -TR YG501 12000471 APKT160408-TR 0.8 1.32 14 90˚ 9.4 5.3 -TR YG712 12000472 APKT160416-TR 1.6 2.40 14 90° 9.4 5.3 -TR YG602 12000492 APKT160404-TR 0.4 2.12 14 90° 9.4 5.3 -TR YG602 12000493 APKT160412-TR 1.2 2.40 14 90° 9.4 5.3 -TR YG602 12000494 APKT160424-TR 2.4 1.50 14 90° 9.4 5.3 -TR YG602 12000607 APKT160408PDTR 0.8 1.32 14 90˚ 9.4 5.3 GENERAL YG613 12000617 APKT160408-ST 0.8 1.32 14 90˚ 9.4 5.3 -ST YG613 12000673 APKT160404PDTR 0.4 1.11 14 90˚ 9.4 5.3 GENERAL YG613 12000738 APKT160432PDTR 3.2 0.4 14 90° 9.4 5.3 General YG602 12000746 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 -TR YG012 12000747 APKT160416-TR 1.6 2.4 14 90° 9.4 5.3 -TR YG012 12000748 APKT160424-TR 2.4 1.5 14 90° 9.4 5.3 -TR YG012 12000796 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG501 12000797 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG012 12000820 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG612 12000821 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 General YG612 12000828 APKT160404PDTR 0.4 1.11 14 90° 9.4 5.3 General YG612 12000829 APKT160412-TR 1.2 2.4 14 90° 9.4 5.3 General YG612 12000835 APKT160408-ST 0.8 1.32 14 90° 9.4 5.3 -ST YG612 12000836 APKT160424PDTR 2.4 1.2 14 90° 9.4 5.3 General YG612 12000870 APKT160432PDTR 3.2 0.4 14 90˚ 9.4 5.3 GENERAL YG012 12000914 APKT160412-TR 1.2 2.4 14 90˚ 9.4 5.3 -TR YG012 12000969 APKT160416-TR 1.6 2.4 14 90° 9.4 5.3 -TR YG612 12000970 APKT160404-TR 0.4 2.12 14 90° 9.4 5.3 -TR YG612 12000971 APKT160424-TR 2.4 1.5 14 90° 9.4 5.3 -TR YG612 12000977 APKT160432PDTR 3.2 0.4 14 90° 9.4 5.3 General YG612 12000979 APKT160416PDTR 1.6 1.13 14 90° 9.4 5.3 General YG612 12000980 APKT160412PDTR 1.2 1.13 14 90° 9.4 5.3 General YG612 12001013 APKT160416PDTR 1.6 1.13 14 90˚ 9.4 5.3 GENERAL YG613 12001014 APKT160424PDTR 2.4 1.2 14 90˚ 9.4 5.3 GENERAL YG613
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000001 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG602 12000002 APKT160412PDTR 1.2 1.13 14 90° 9.4 5.3 General YG602 12000003 APKT160404PDTR 0.4 1.11 14 90° 9.4 5.3 General YG602 12000006 APKT160416PDTR 1.6 1.13 14 90° 9.4 5.3 General YG602 12000255 APKT160424PDTR 2.4 1.2 14 90° 9.4 5.3 General YG602 12000256 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 -TR YG602 12000270 APKT160408-ST 0.8 1.32 14 90° 9.4 5.3 -ST YG602 12000337 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 -TR YG622 12000469 APKT160408-TR 0.8 1.32 14 90˚ 9.4 5.3 -TR YG501 12000471 APKT160408-TR 0.8 1.32 14 90˚ 9.4 5.3 -TR YG712 12000472 APKT160416-TR 1.6 2.40 14 90° 9.4 5.3 -TR YG602 12000492 APKT160404-TR 0.4 2.12 14 90° 9.4 5.3 -TR YG602 12000493 APKT160412-TR 1.2 2.40 14 90° 9.4 5.3 -TR YG602 12000494 APKT160424-TR 2.4 1.50 14 90° 9.4 5.3 -TR YG602 12000607 APKT160408PDTR 0.8 1.32 14 90˚ 9.4 5.3 GENERAL YG613 12000617 APKT160408-ST 0.8 1.32 14 90˚ 9.4 5.3 -ST YG613 12000673 APKT160404PDTR 0.4 1.11 14 90˚ 9.4 5.3 GENERAL YG613 12000738 APKT160432PDTR 3.2 0.4 14 90° 9.4 5.3 General YG602 12000746 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 -TR YG012 12000747 APKT160416-TR 1.6 2.4 14 90° 9.4 5.3 -TR YG012 12000748 APKT160424-TR 2.4 1.5 14 90° 9.4 5.3 -TR YG012 12000796 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG501 12000797 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG012 12000820 APKT160408PDTR 0.8 1.32 14 90° 9.4 5.3 General YG612 12000821 APKT160408-TR 0.8 1.32 14 90° 9.4 5.3 General YG612 12000828 APKT160404PDTR 0.4 1.11 14 90° 9.4 5.3 General YG612 12000829 APKT160412-TR 1.2 2.4 14 90° 9.4 5.3 General YG612 12000835 APKT160408-ST 0.8 1.32 14 90° 9.4 5.3 -ST YG612 12000836 APKT160424PDTR 2.4 1.2 14 90° 9.4 5.3 General YG612 12000870 APKT160432PDTR 3.2 0.4 14 90˚ 9.4 5.3 GENERAL YG012 12000914 APKT160412-TR 1.2 2.4 14 90˚ 9.4 5.3 -TR YG012 12000969 APKT160416-TR 1.6 2.4 14 90° 9.4 5.3 -TR YG612 12000970 APKT160404-TR 0.4 2.12 14 90° 9.4 5.3 -TR YG612 12000971 APKT160424-TR 2.4 1.5 14 90° 9.4 5.3 -TR YG612 12000977 APKT160432PDTR 3.2 0.4 14 90° 9.4 5.3 General YG612 12000979 APKT160416PDTR 1.6 1.13 14 90° 9.4 5.3 General YG612 12000980 APKT160412PDTR 1.2 1.13 14 90° 9.4 5.3 General YG612 12001013 APKT160416PDTR 1.6 1.13 14 90˚ 9.4 5.3 GENERAL YG613 12001014 APKT160424PDTR 2.4 1.2 14 90˚ 9.4 5.3 GENERAL YG613
