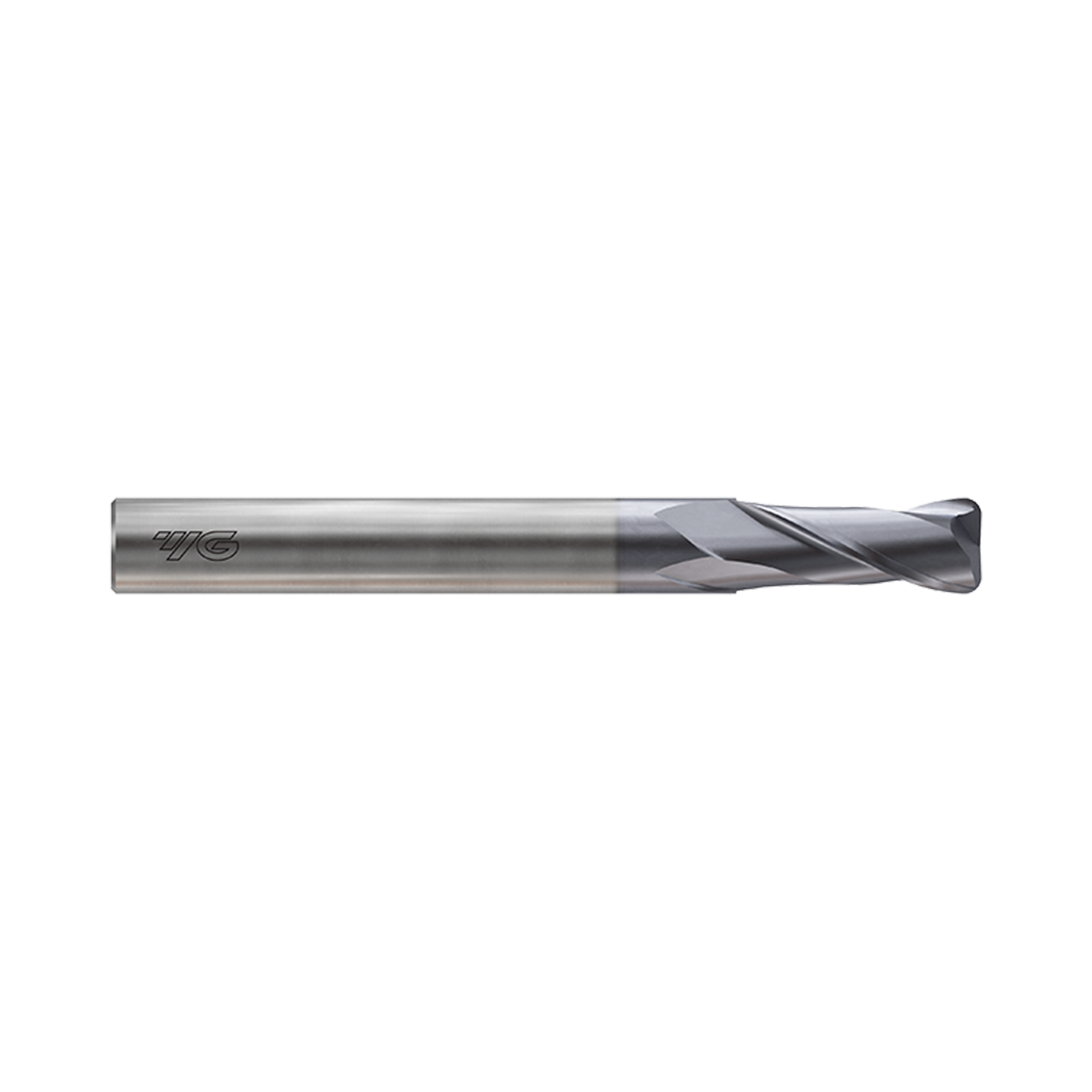

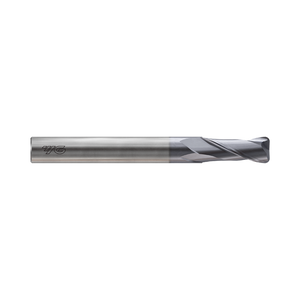

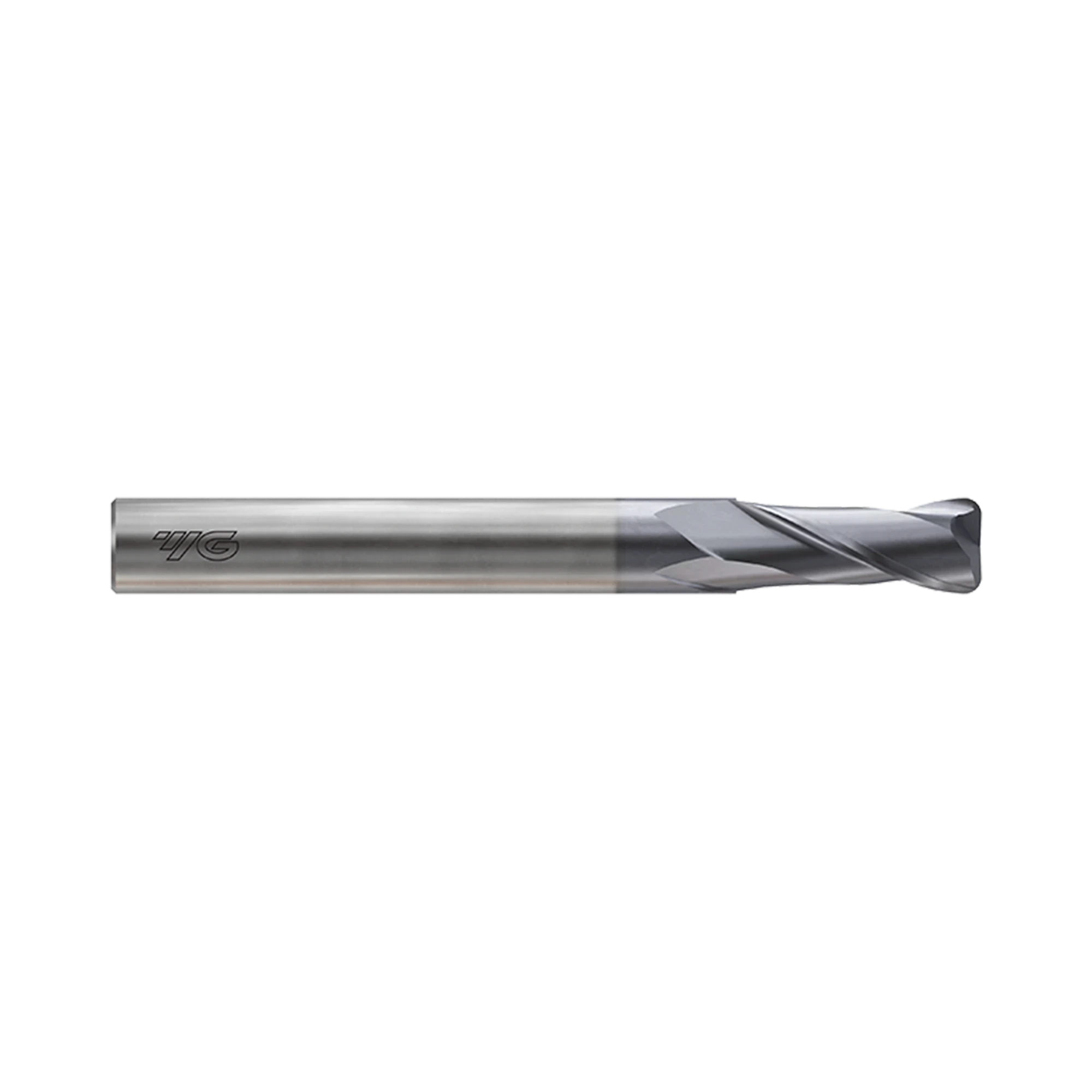

CARBIDE, 2 FLUTE CORNER RADIUS (SEMD99)

CARBIDE, 2 FLUTE CORNER RADIUS (SEMD99)
$98.34 INC GST $89.40 EX GST
SKU
SEMD99002002E
Work materials
PKH
Tool material Carbide
Surface treatment YG-1 Y Coating
Mill Diameter (mm)
Corner Radius (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Corner Radius (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)Stock Price Qty Add
SEMD99002002E0.2R0.0240.04.00.4 1-2 Weeks $89.40
SEMD99003002E0.3R0.0240.04.00.6 1-2 Weeks $77.20
SEMD99004005E0.4R0.0540.04.00.8 1-2 Weeks $77.20
SEMD9900501E0.5R0.140.04.01.0 1-2 Weeks $63.10
SEMD99006005E0.6R0.0540.04.01.2 1-2 Weeks $63.10
SEMD9900701E0.7R0.140.04.01.4 1-2 Weeks $63.10
SEMD99008005E0.8R0.0540.04.01.6 1-2 Weeks $63.10
SEMD99009005E0.9R0.0540.04.01.8 1-2 Weeks $63.10
SEMD99012005E1.2R0.0550.06.03.0 1-2 Weeks $59.50
SEMD9901501E1.5R0.150.06.04.0 1-2 Weeks $70.30
SEMD9902001E2.0R0.150.06.06.0 1-2 Weeks $59.50
SEMD9902502E2.5R0.260.06.07.0 1-2 Weeks $62.00
SEMD9903002E3.0R0.260.06.08.0 1-2 Weeks $62.00
SEMD9903501E3.5R0.170.06.010.0 1-2 Weeks $64.20
SEMD99040014SE4.0R0.170.04.010.0 1-2 Weeks $63.10
SEMD9904501E4.5R0.180.06.011.0 1-2 Weeks $66.70
SEMD9905002E5.0R0.290.06.013.0 1-2 Weeks $69.70
SEMD9905501E5.5R0.190.06.013.0 1-2 Weeks $69.70
SEMD9906002060E6.0R0.260.06.015.0 1-2 Weeks $62.00
SEMD9907002E7.0R0.290.08.016.0 1-2 Weeks $107.40
SEMD9908003070E8.0R0.370.08.020.0 1-2 Weeks $99.30
SEMD9910005075E10.0R0.575.010.025.0 1-2 Weeks $130.60
SEMD9911002E11.0R0.2110.012.025.0 1-2 Weeks $198.20
SEMD9912005080E12.0R0.580.012.030.0 1-2 Weeks $176.50
SEMD9914005E14.0R0.5150.016.035.0 1-2 Weeks $404.50
SEMD9916005E16.0R0.5150.016.032.0 1-2 Weeks $476.90
SEMD9920005E20.0R0.5150.020.038.0 1-2 Weeks $612.30

Add CARBIDE, 2 FLUTE CORNER RADIUS (SEMD99) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Speeds & Feeds
  • Reviews
Application
Product Description

The SEMD99 series 2 flute slot drill range is available in diameters ranging from 0.2-20mm with a huge range of lengths and corner radii. The 4G Mill range from YG-1 offers unbeatable performance and accuracy in high speed machining of all carbon or alloy steels, pre-hardened steels (up to HRc55), stainless steel and cast iron. The micrograin carbide substrate and Y1200 coating offers extreme cutting life in temperatures up to 1,200°C.

  • Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
  • YG-1's Y1200 coating & premium micrograin carbide substrate
  • HSC - High speed cutting
  • Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
  • Available with various corner radius from R0.02mm to R5.0mm

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min D0.2
Size Max D20.0
Length -
Coating Y-Coating



Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.01, 0.015, ±0.01
Cutting Shape Corner Radius
Hardened Steels(HRc40~45) Great
Helix Angle 30°, Square 30
Length Regular
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material Carbide

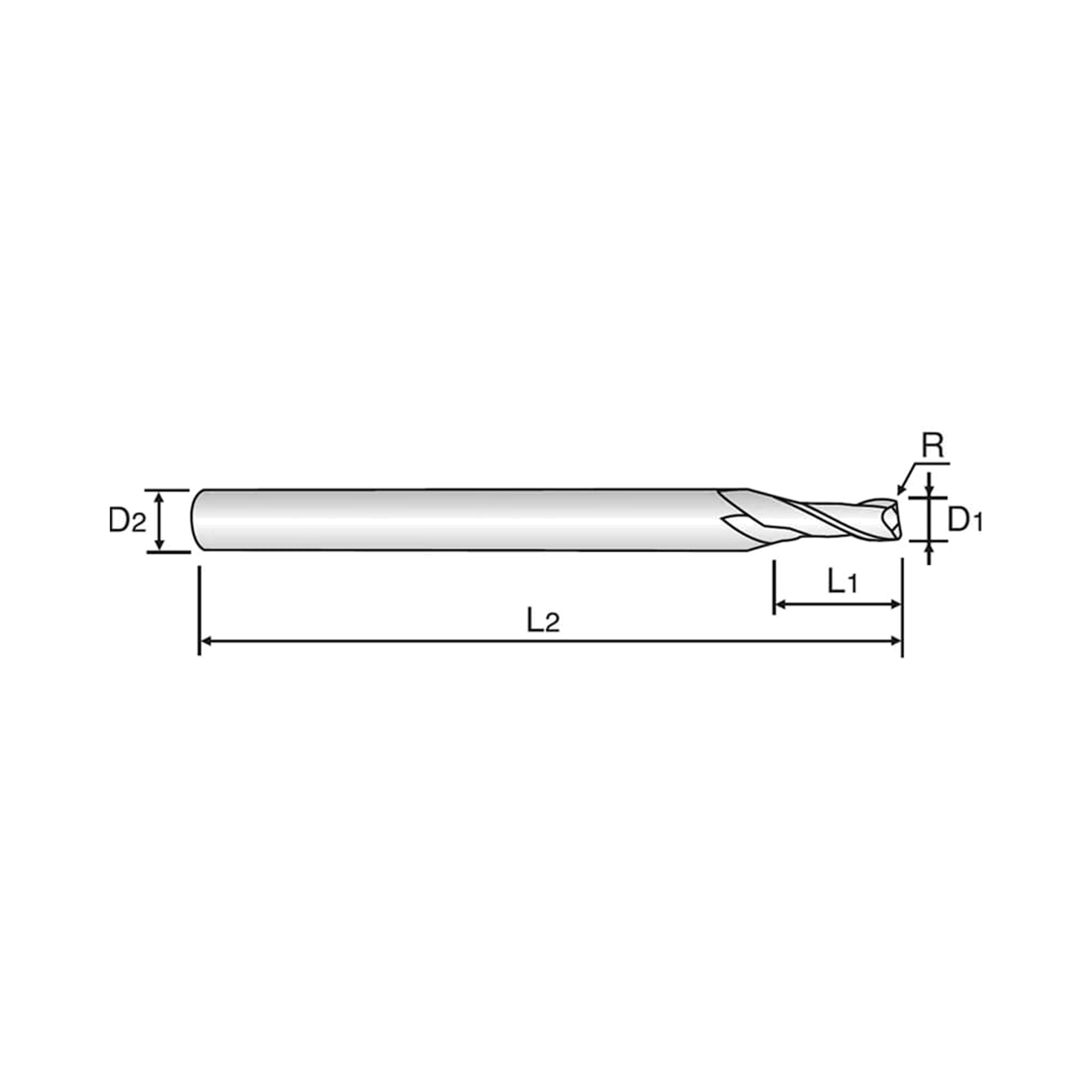

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEMD9907020E 7 8 16 90 0~-0.015 h5 2 SEMD9908002 8 8 20 100 0~-0.015 h5 2 SEMD9908025E 8 8 20 100 0~-0.015 h5 2 SEMD9910002 10 10 25 100 0~-0.015 h5 2 SEMD9910040E 10 10 25 100 0~-0.015 h5 2 SEMD9911020E 11 12 25 110 0~-0.015 h5 2 SEMD9912003 12 12 30 110 0~-0.015 h5 2 SEMD9912003E 12 12 30 110 0~-0.015 h5 2 SEMD9912010E 12 12 30 110 0~-0.015 h5 2 SEMD9912015E 12 12 30 110 0~-0.015 h5 2 SEMD9912030E 12 12 30 110 0~-0.015 h5 2 SEMD9912050E 12 12 30 110 0~-0.015 h5 2 SEMD9914020E 14 16 35 150 0~-0.015 h5 2 SEMD9916020E 16 16 32 150 0~-0.015 h5 2 SEMD9920015 20 20 38 150 0~-0.015 h5 2 SEMD99040024SE 4 4 10 70 0~-0.012 h5 2 SEMD99040034SE 4 4 10 70 0~-0.012 h5 2 SEMD99040054S 4 4 10 70 0~-0.012 h5 2 SEMD9908005070E 8 8 20 70 0~-0.015 h5 2 SEMD9912003080 12 12 30 80 0~-0.015 h5 2
Side Milling
Small Part
Slotting
Die Sinking
Facing

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 4–5
GoodVDI 1–3
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Hardened materials

3 grades
Hardened steel
GoodVDI 38
Chilled cast iron
ExcellentVDI 40
Hardened cast iron
GoodVDI 41

Cast iron

6 grades
Grey cast iron
GoodVDI 15–16
Nodular cast iron
GoodVDI 17–18
Malleable cast iron
GoodVDI 19–20
VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
15KGrey cast ironGood18010
16KGrey cast ironGood26026
17KNodular cast ironGood1603
18KNodular cast ironGood25025
19KMalleable cast ironGood130-
20KMalleable cast ironGood23021
38HHardened steelGood55055
40HChilled cast ironExcellent40042
41HHardened cast ironGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Machining calculator

Cutting speeds and feeds for CARBIDE, 2 FLUTE CORNER RADIUS (SEMD99)

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

Recommended parameters

Parameter Value Unit
Spindle speed – rev/min
Feed rate – mm/min
Cutting speed (Vc) – m/min
Feed per tooth (fz) – mm/tooth

Choose your options and calculate the recommended parameters.

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SEMD9907020E 7 8 16 90 0~-0.015 h5 2 SEMD9908002 8 8 20 100 0~-0.015 h5 2 SEMD9908025E 8 8 20 100 0~-0.015 h5 2 SEMD9910002 10 10 25 100 0~-0.015 h5 2 SEMD9910040E 10 10 25 100 0~-0.015 h5 2 SEMD9911020E 11 12 25 110 0~-0.015 h5 2 SEMD9912003 12 12 30 110 0~-0.015 h5 2 SEMD9912003E 12 12 30 110 0~-0.015 h5 2 SEMD9912010E 12 12 30 110 0~-0.015 h5 2 SEMD9912015E 12 12 30 110 0~-0.015 h5 2 SEMD9912030E 12 12 30 110 0~-0.015 h5 2 SEMD9912050E 12 12 30 110 0~-0.015 h5 2 SEMD9914020E 14 16 35 150 0~-0.015 h5 2 SEMD9916020E 16 16 32 150 0~-0.015 h5 2 SEMD9920015 20 20 38 150 0~-0.015 h5 2 SEMD99040024SE 4 4 10 70 0~-0.012 h5 2 SEMD99040034SE 4 4 10 70 0~-0.012 h5 2 SEMD99040054S 4 4 10 70 0~-0.012 h5 2 SEMD9908005070E 8 8 20 70 0~-0.015 h5 2 SEMD9912003080 12 12 30 80 0~-0.015 h5 2

Video

Corner Radius End Mills

You Might Also Like

Resources

Understanding the Basics of Endmills

Understanding the Basics of Endmills

Endmills are indispensable tools in machining, renowned for their versatility and precision. Whether you’re a seasoned operator or new to machining, understanding...
Connor Urquhart Connor Urquhart

Article
