(EI450) D-Power Carbide 2Flute Ball Nose End Mill, Long Reach Neck for Graphite (Diamond Coated)
Diamond-coated long-reach ball nose end mill for graphite
- SKU
- EI450020
Key features
- Diamond-coated carbide ball nose end mill for graphite machining
- Two-flute design with long-reach neck
- Ultra-fine diamond film supports smooth workpiece surfaces
Made in South Korea
Graphite machining focus
Diamond-coated ball nose geometry is designed for graphite machining.
Long-reach access
The long-reach neck helps reach machining areas beyond the shank profile.
Controlled ball radius
R1.0 to R6.0 ball radii are specified with ±0.01 mm radius tolerance.

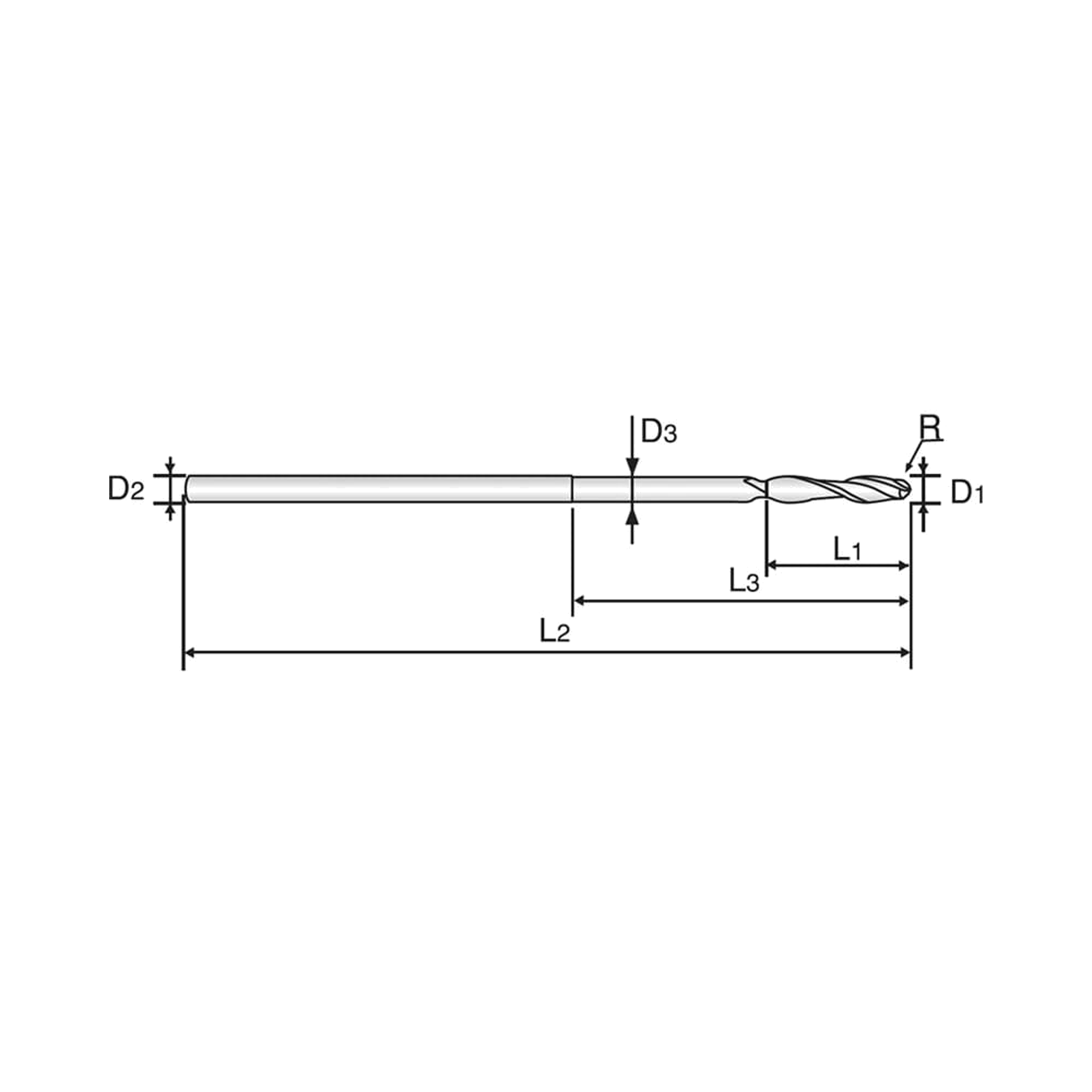

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI450020 | 2 | R1.0 | 100.0 | 4.0 | 10.0 | 20.0 | 1.95 | 1-2 Weeks | $154.80 | ||
| EI450030 | 3 | R1.5 | 100.0 | 4.0 | 15.0 | 25.0 | 2.9 | 1-2 Weeks | $145.40 | ||
| EI450040 | 4 | R2.0 | 100.0 | 4.0 | 20.0 | 30.0 | 3.9 | 1-2 Weeks | $145.40 | ||
| EI450050 | 5 | R2.5 | 120.0 | 6.0 | 30.0 | 50.0 | 4.9 | 1-2 Weeks | $192.80 | ||
| EI450060 | 6 | R3.0 | 150.0 | 6.0 | 30.0 | 50.0 | 5.5 | Low stock | $192.80 | ||
| EI450080 | 8 | R4.0 | 150.0 | 8.0 | 40.0 | 60.0 | 7.5 | 1-2 Weeks | $242.50 | ||
| EI450100 | 10 | R5.0 | 180.0 | 10.0 | 50.0 | 70.0 | 9.5 | 1-2 Weeks | $355.50 | ||
| EI450120 | 12 | R6.0 | 200.0 | 12.0 | 55.0 | 75.0 | 11.5 | 1-2 Weeks | $499.70 |
Add (EI450) D-Power Carbide 2Flute Ball Nose End Mill, Long Reach Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 EI450 D-Power is a diamond-coated carbide two-flute ball nose end mill with a long-reach neck. It is designed for graphite machining and uses a ball nose geometry with a long-reach neck. An ultra-fine diamond film is specified to support smooth, excellent workpiece surface quality. Harder coating film and excellent wear resistance are stated to increase tool life.
Plain-shank variants cover 2.0 to 12.0 mm mill diameters and R1.0 to R6.0 ball radii. The series specifies a ±0.01 mm tolerance for the ball nose radius. YG-1 also identifies wrought aluminium, Bakelite, plastics, wood and brass as suitable materials. They are also indicated for non-ferrous metals and non-metallic materials.
- Diamond-coated carbide ball nose end mill for graphite machining
- Two-flute design with long-reach neck
- Ultra-fine diamond film supports smooth workpiece surfaces
- Harder coating film and excellent wear resistance support longer tool life
- Plain-shank diameters from 2.0 to 12.0 mm
- Ball nose radii from R1.0 to R6.0 with ±0.01 mm tolerance
No specifications available.
