ENMX09 Cutter

ENMX09 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
ENMX09
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ENMX09 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

ENMX milling inserts for the YG-1 HF4 ENMX high feed milling system. The HF4 High feed mill will improve productivity, slash cycle with increased depth of cut. ENMX inserts have a high cost efficiency with 4 cutting edges. Dedicated grades and chipbreakers available for steel, stainless steel, HRSA's & cast iron.

  • High Feed Milling Cutter for ENMX (4 Corners Negative)
Product Data
Operation Facing, Helical-Interpol, Side Milling, Slotting, Trochoidal

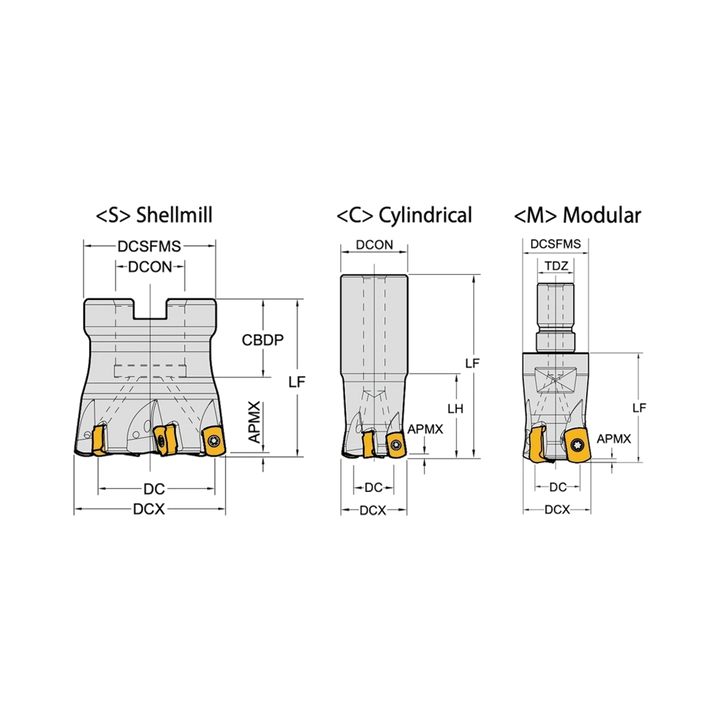

EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Maximum Cutting Depth Connection Type 17000745 EHF-ENMX09-D25Z2C25-L150 O 2 20 25 150 25 1.5 Cylindrical 17000746 EHF-ENMX09-D26Z2C25-L200 O 2 21 26 200 25 1.5 Cylindrical 17000747 EHF-ENMX09-D26Z3C25-L200 O 3 21 26 200 25 1.5 Cylindrical 17000748 EHF-ENMX09-D32Z3C32-L160 O 3 27 32 160 32 1.5 Cylindrical 17000749 EHF-ENMX09-D33Z3C32-L200 O 3 28 33 200 32 1.5 Cylindrical 17000750 EHF-ENMX09-D33Z4C32-L200 O 4 28 33 200 32 1.5 Cylindrical 17000751 EHF-ENMX09-D40Z5C32-L180 O 5 35 40 180 32 1.5 Cylindrical 17000752 FHF-ENMX09-D50Z5S22 O 5 45 50 50 22 1.5 Shell Mill 17000753 FHF-ENMX09-D63Z6S22 O 6 58 63 50 22 1.5 Shell Mill 17000754 FHF-ENMX09-D63Z7S22 O 7 58 63 50 22 1.5 Shell Mill 17000755 FHF-ENMX09-D80Z8S27 O 8 75 80 50 27 1.5 Shell Mill 17000811 MHF-ENMX09-D25Z2M12 O 2 20 25 35 M12 1.5 Modular 17000812 MHF-ENMX09-D25Z3M12 O 3 20 25 35 M12 1.5 Modular 17000813 MHF-ENMX09-D26Z2M12 O 2 21 26 35 M12 1.5 Modular 17000814 MHF-ENMX09-D26Z3M12 O 3 21 26 35 M12 1.5 Modular 17000815 MHF-ENMX09-D32Z3M16 O 3 27 32 42 M16 1.5 Modular 17000816 MHF-ENMX09-D32Z4M16 O 4 27 32 42 M16 1.5 Modular 17000817 MHF-ENMX09-D33Z2M16 O 2 28 33 42 M16 1.5 Modular 17000818 MHF-ENMX09-D33Z3M16 O 3 28 33 42 M16 1.5 Modular 17000819 MHF-ENMX09-D33Z4M16 O 4 28 33 42 M16 1.5 Modular 17000820 FHF-ENMX09-D50Z3S22 O 3 45 50 50 22 1.5 Shell Mill 17000821 FHF-ENMX09-D50Z4S22 O 4 45 50 50 22 1.5 Shell Mill 17000822 FHF-ENMX09-D63Z4S22 O 4 58 63 50 22 1.5 Shell Mill 17000823 FHF-ENMX09-D63Z5S22 O 5 58 63 50 22 1.5 Shell Mill 17000824 FHF-ENMX09-D100Z10S32 O 10 95 100 63 32 1.5 Shell Mill 17000825 FHF-ENMX09-D125Z12S40 O 12 120 125 63 40 1.5 Shell Mill
Side Milling
Slotting
Facing
Helical Interpol
Trochoidal
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Maximum Cutting Depth Connection Type 17000745 EHF-ENMX09-D25Z2C25-L150 O 2 20 25 150 25 1.5 Cylindrical 17000746 EHF-ENMX09-D26Z2C25-L200 O 2 21 26 200 25 1.5 Cylindrical 17000747 EHF-ENMX09-D26Z3C25-L200 O 3 21 26 200 25 1.5 Cylindrical 17000748 EHF-ENMX09-D32Z3C32-L160 O 3 27 32 160 32 1.5 Cylindrical 17000749 EHF-ENMX09-D33Z3C32-L200 O 3 28 33 200 32 1.5 Cylindrical 17000750 EHF-ENMX09-D33Z4C32-L200 O 4 28 33 200 32 1.5 Cylindrical 17000751 EHF-ENMX09-D40Z5C32-L180 O 5 35 40 180 32 1.5 Cylindrical 17000752 FHF-ENMX09-D50Z5S22 O 5 45 50 50 22 1.5 Shell Mill 17000753 FHF-ENMX09-D63Z6S22 O 6 58 63 50 22 1.5 Shell Mill 17000754 FHF-ENMX09-D63Z7S22 O 7 58 63 50 22 1.5 Shell Mill 17000755 FHF-ENMX09-D80Z8S27 O 8 75 80 50 27 1.5 Shell Mill 17000811 MHF-ENMX09-D25Z2M12 O 2 20 25 35 M12 1.5 Modular 17000812 MHF-ENMX09-D25Z3M12 O 3 20 25 35 M12 1.5 Modular 17000813 MHF-ENMX09-D26Z2M12 O 2 21 26 35 M12 1.5 Modular 17000814 MHF-ENMX09-D26Z3M12 O 3 21 26 35 M12 1.5 Modular 17000815 MHF-ENMX09-D32Z3M16 O 3 27 32 42 M16 1.5 Modular 17000816 MHF-ENMX09-D32Z4M16 O 4 27 32 42 M16 1.5 Modular 17000817 MHF-ENMX09-D33Z2M16 O 2 28 33 42 M16 1.5 Modular 17000818 MHF-ENMX09-D33Z3M16 O 3 28 33 42 M16 1.5 Modular 17000819 MHF-ENMX09-D33Z4M16 O 4 28 33 42 M16 1.5 Modular 17000820 FHF-ENMX09-D50Z3S22 O 3 45 50 50 22 1.5 Shell Mill 17000821 FHF-ENMX09-D50Z4S22 O 4 45 50 50 22 1.5 Shell Mill 17000822 FHF-ENMX09-D63Z4S22 O 4 58 63 50 22 1.5 Shell Mill 17000823 FHF-ENMX09-D63Z5S22 O 5 58 63 50 22 1.5 Shell Mill 17000824 FHF-ENMX09-D100Z10S32 O 10 95 100 63 32 1.5 Shell Mill 17000825 FHF-ENMX09-D125Z12S40 O 12 120 125 63 40 1.5 Shell Mill

Video

YG HF4 Mill
