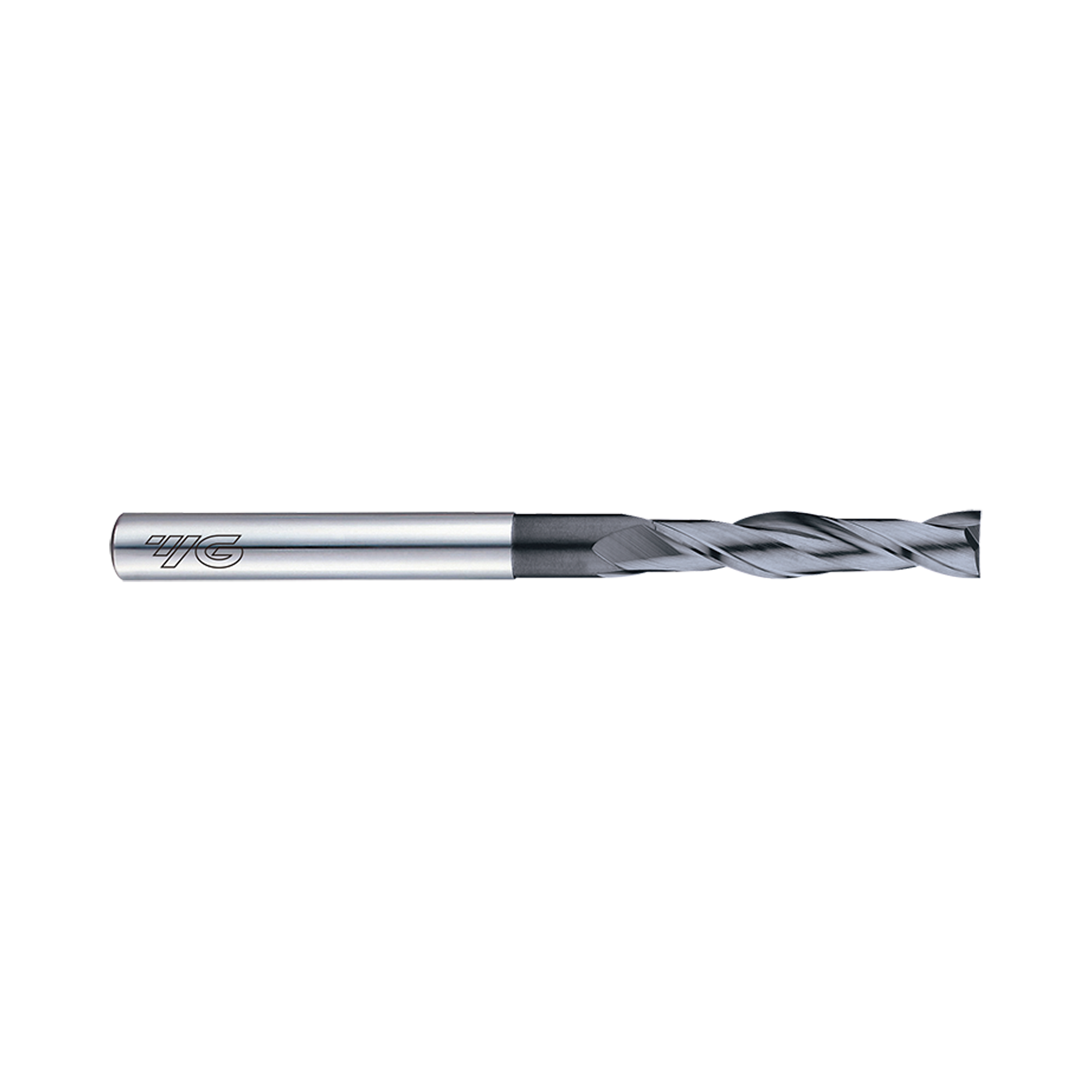

(EIB04) D-Power Carbide 2Flute End Mill, Long Length Neck for Graphite (Diamond Coated)
Diamond-Coated Two-Flute Graphite End Mill
- SKU
- EIB0400502040
Key features
- Diamond-coated carbide construction
- Two-flute long-length neck end mill
- Plain shank design
Made in South Korea
Built for graphite
Designed for high-performance graphite machining with capability for selected non-ferrous and non-metallic materials.
Diamond-coated wear resistance
High coating hardness and wear resistance support longer tool life in suitable machining applications.
Long-neck configuration
The long-length neck and plain-shank format provide the specified EIB04 tool geometry.

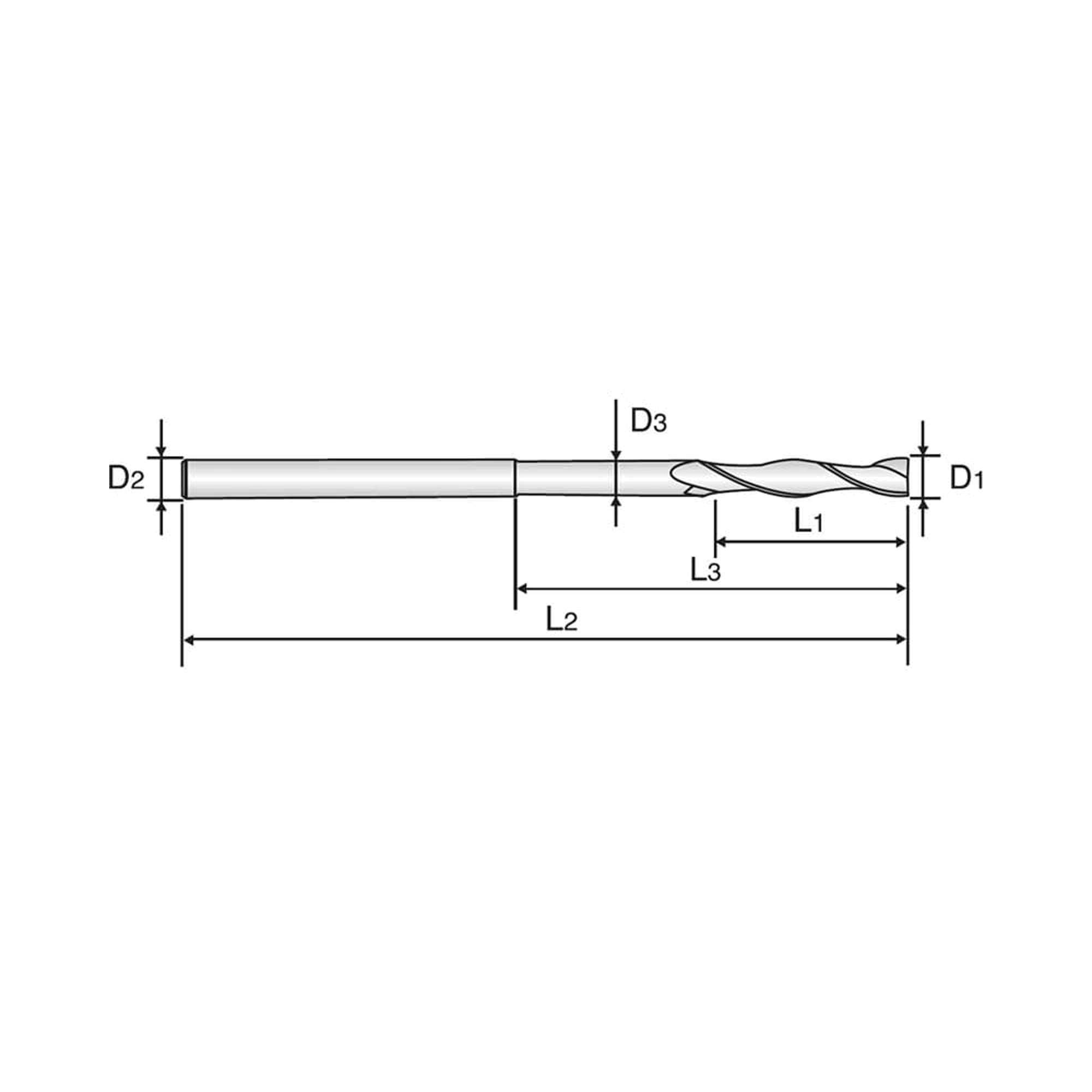

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EIB0400502040 | 0.5 | 40.0 | 3.0 | 1.0 | 2.0 | 1-2 Weeks | $91.90 | ||
| EIB0400603040 | 0.6 | 40.0 | 3.0 | 2.0 | 3.0 | 1-2 Weeks | $91.90 | ||
| EIB0400704040 | 0.7 | 40.0 | 3.0 | 2.0 | 4.0 | 1-2 Weeks | $86.30 | ||
| EIB0400805040 | 0.8 | 40.0 | 3.0 | 2.0 | 5.0 | 1-2 Weeks | $86.30 | ||
| EIB0401008075 | 1 | 75.0 | 4.0 | 3.0 | 8.0 | 1-2 Weeks | $126.90 | ||
| EIB0401510075 | 1.5 | 75.0 | 4.0 | 4.0 | 10.0 | 1-2 Weeks | $133.30 | ||
| EIB0402016100 | 2 | 100.0 | 4.0 | 6.0 | 16.0 | 1-2 Weeks | $132.70 | ||
| EIB0402520100 | 2.5 | 100.0 | 4.0 | 8.0 | 20.0 | 1-2 Weeks | $139.30 | ||
| EIB0403030100 | 3 | 100.0 | 6.0 | 8.0 | 30.0 | 1-2 Weeks | $154.00 | ||
| EIB0403535100 | 3.5 | 100.0 | 6.0 | 10.0 | 35.0 | 1-2 Weeks | $154.00 | ||
| EIB0404040100 | 4 | 100.0 | 6.0 | 20.0 | 40.0 | 1-2 Weeks | $164.70 | ||
| EIB0405050125 | 5 | 125.0 | 6.0 | 25.0 | 50.0 | 1-2 Weeks | $245.10 | ||
| EIB0406060140 | 6 | 140.0 | 6.0 | 30.0 | 60.0 | 1-2 Weeks | $270.20 | ||
| EIB0408080150 | 8 | 150.0 | 8.0 | 40.0 | 80.0 | 1-2 Weeks | $450.20 | ||
| EIB0410080150 | 10 | 150.0 | 10.0 | 50.0 | 80.0 | 1-2 Weeks | $512.80 | ||
| EIB0411000150 | 11 | 150.0 | 10.0 | 50.0 | - | 1-2 Weeks | $607.10 |
Add (EIB04) D-Power Carbide 2Flute End Mill, Long Length Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 EIB04 D-Power is a diamond-coated carbide two-flute end mill with a long-length neck. It is intended for high-performance machining of graphite and selected non-ferrous or non-metallic materials. The coating’s high hardness and wear resistance support extended tool life. Its ultra-fine diamond film helps produce smooth, excellent surfaces on work materials. Available mill diameters run from 0.5 to 11 mm in the listed EIB04 range. Long overall lengths range from 40 to 150 mm among the listed variants. Suitable material examples include wrought aluminium, bakelite, plastics, wood and brass. A plain shank is specified throughout this long-length EIB04 milling tool series.
- Diamond-coated carbide construction
- Two-flute long-length neck end mill
- Plain shank design
- 0.5 to 11 mm mill diameter range
- 40 to 150 mm overall length range
- For graphite and selected non-ferrous or non-metallic materials
No specifications available.
