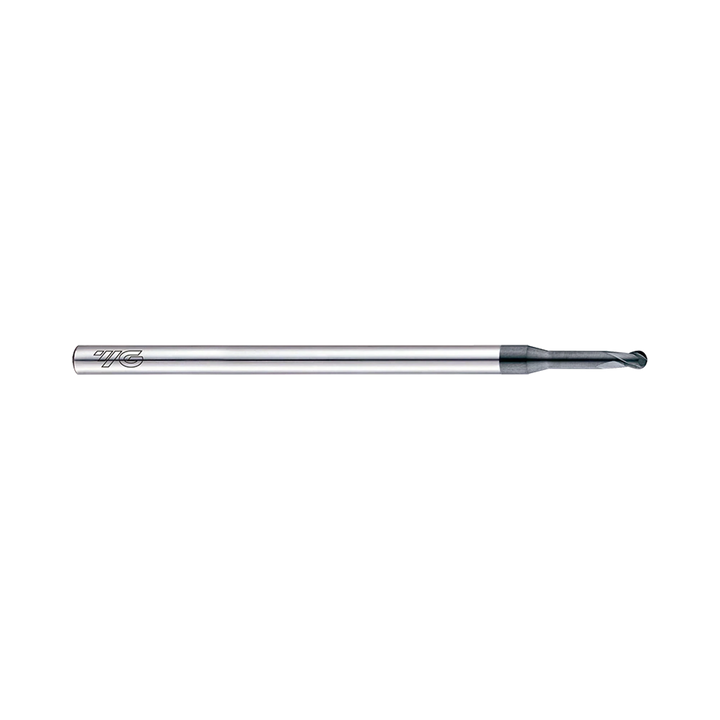

(EIB93) D-Power Carbide 2Flute Ball Nose End Mill, Miniature Neck for Graphite (Diamond Coated)
Diamond-coated miniature ball nose end mill for graphite
- SKU
- EIB93004040
Key features
- Uses a diamond-coated carbide cutting body
- Includes two flutes and a miniature ball nose profile
- Features a necked geometry for detailed profiling
Made in South Korea
Graphite-focused cutting
Diamond-coated carbide construction is specified for high performance in graphite machining.
Detailed profile access
The miniature ball nose and necked form support precision work around formed surfaces.
Smooth surface capability
An ultra-fine diamond film is specified to support smooth, excellent workpiece surfaces.

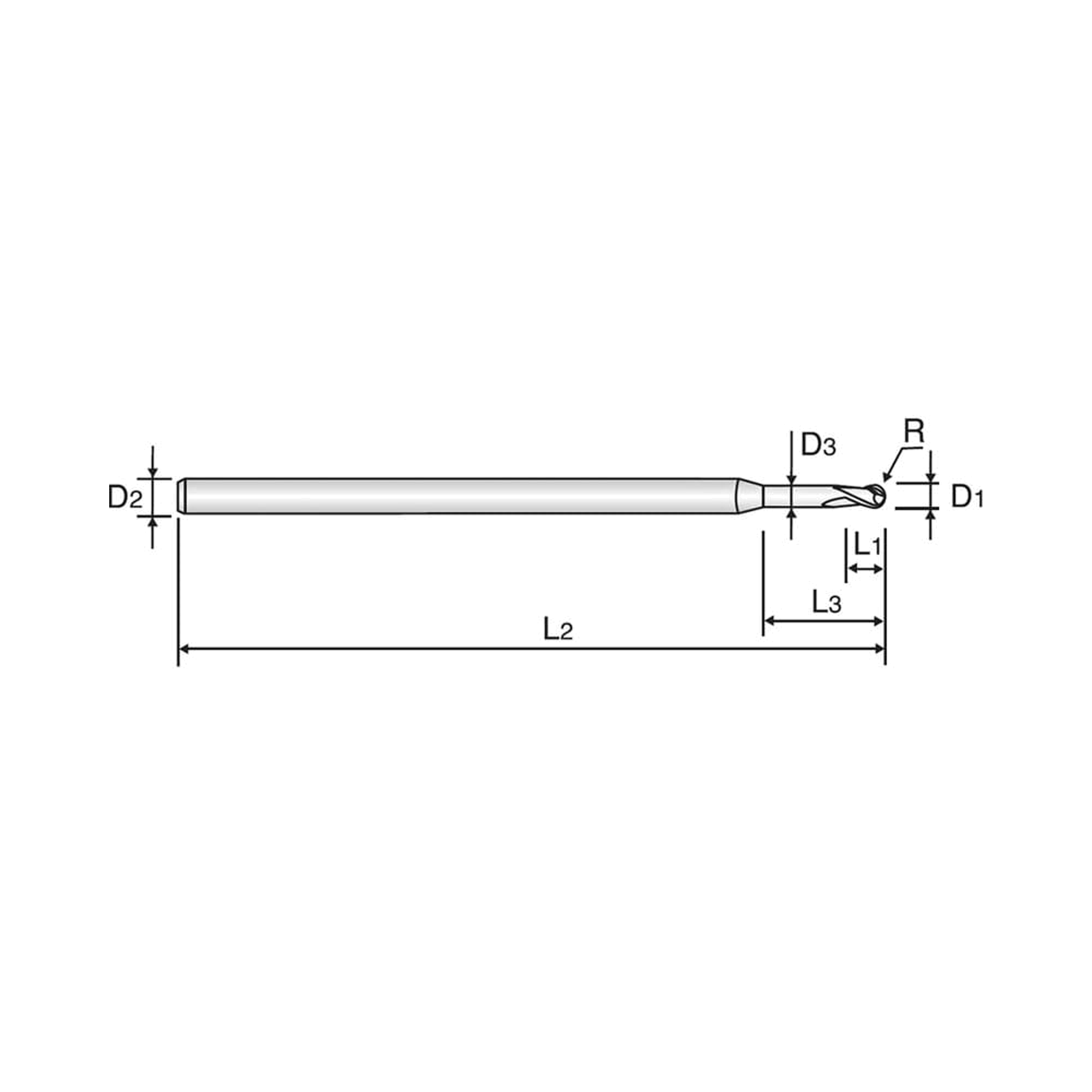

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EIB93004040 | 0.4 | R0.2 | 45.0 | 4.0 | 0.6 | 4.0 | 0.36 | 1-2 Weeks | $158.20 | ||
| EIB93006040 | 0.6 | R0.3 | 45.0 | 4.0 | 1.0 | 4.0 | 0.56 | 1-2 Weeks | $151.70 | ||
| EIB93010060 | 1 | R0.5 | 45.0 | 4.0 | 1.5 | 6.0 | 0.95 | 1-2 Weeks | $143.40 | ||
| EIB93015120 | 1.5 | R0.75 | 45.0 | 4.0 | 1.75 | 12.0 | 1.45 | 1-2 Weeks | $133.30 | ||
| EIB93020080 | 2 | R1.0 | 60.0 | 4.0 | 3.0 | 8.0 | 1.95 | 1-2 Weeks | $113.20 | ||
| EIB93040160 | 4 | R2.0 | 60.0 | 4.0 | 6.0 | 16.0 | 3.9 | 1-2 Weeks | $116.60 |
Add (EIB93) D-Power Carbide 2Flute Ball Nose End Mill, Miniature Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews

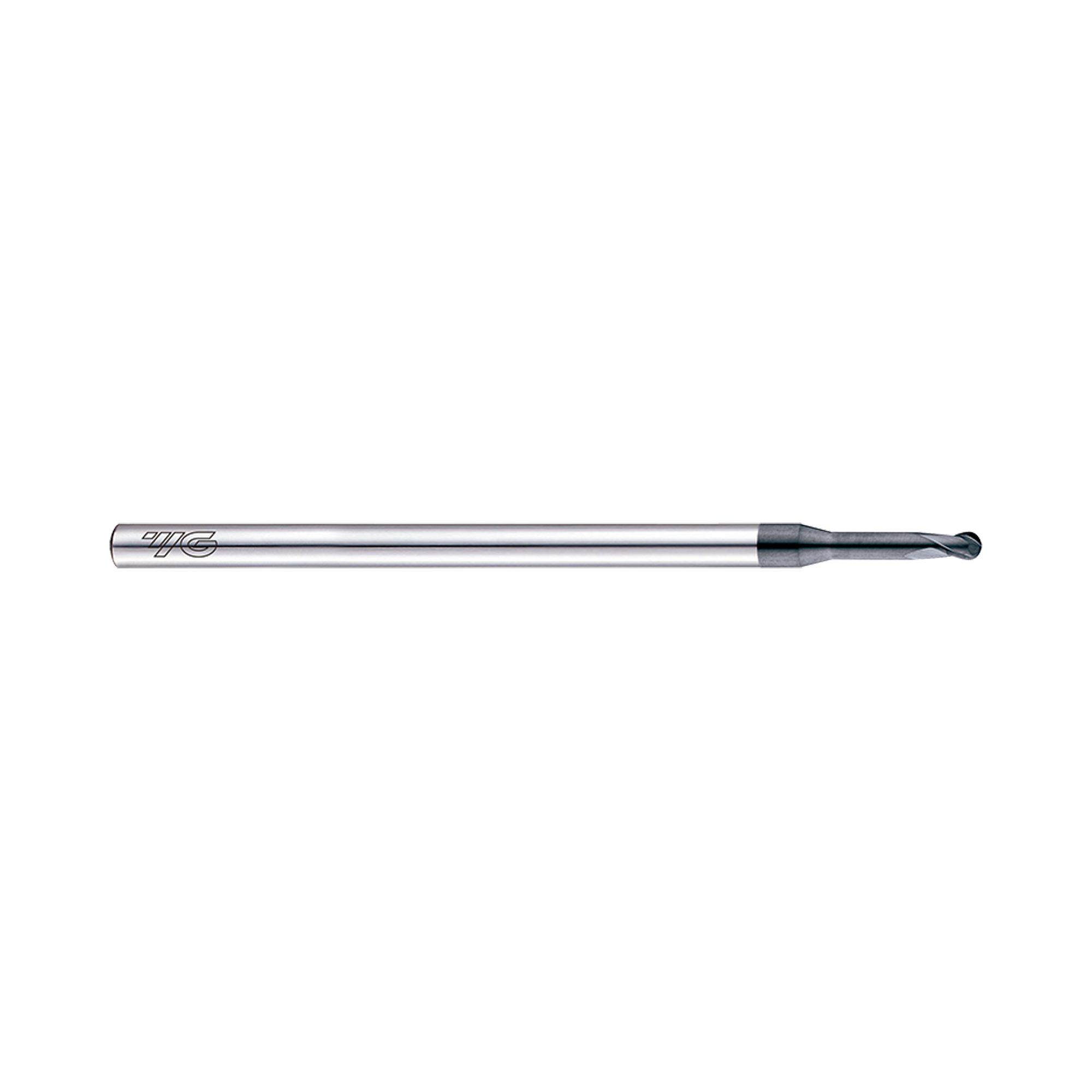

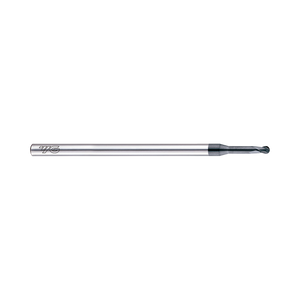

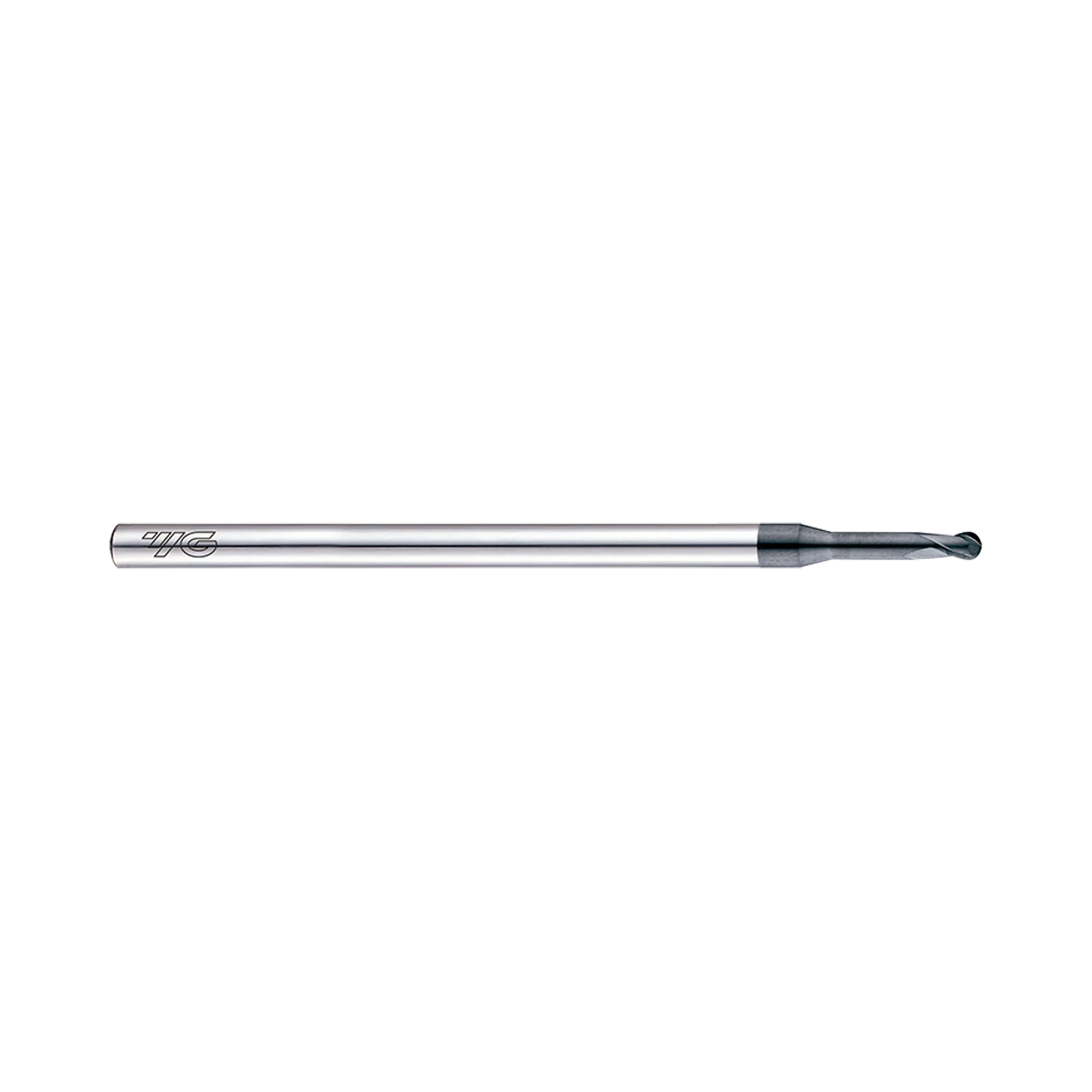

YG-1 EIB93 D-Power is a diamond-coated carbide two-flute miniature ball nose end mill with neck. It is designed for graphite machining and detailed ball-nose profiling of formed component surfaces. YG-1 states its ultra-fine diamond film supports smooth, excellent surface results on work materials. High coating hardness and excellent wear resistance are specified to increase tool life significantly. The series also suits wrought aluminium, bakelite, plastics, wood and brass machining applications. Necked geometry provides clearance for precision work where access around formed surfaces is restricted. Selected variants cover 0.4 to 4.0 mm diameters, R0.2 to R2.0 radii, and 4 mm shanks.
- Uses a diamond-coated carbide cutting body
- Includes two flutes and a miniature ball nose profile
- Features a necked geometry for detailed profiling
- Designed for graphite machining
- Supports wrought aluminium bakelite plastics wood and brass
- Provides 0.4 to 4.0 mm cutting diameters with 4 mm shanks
No specifications available.
