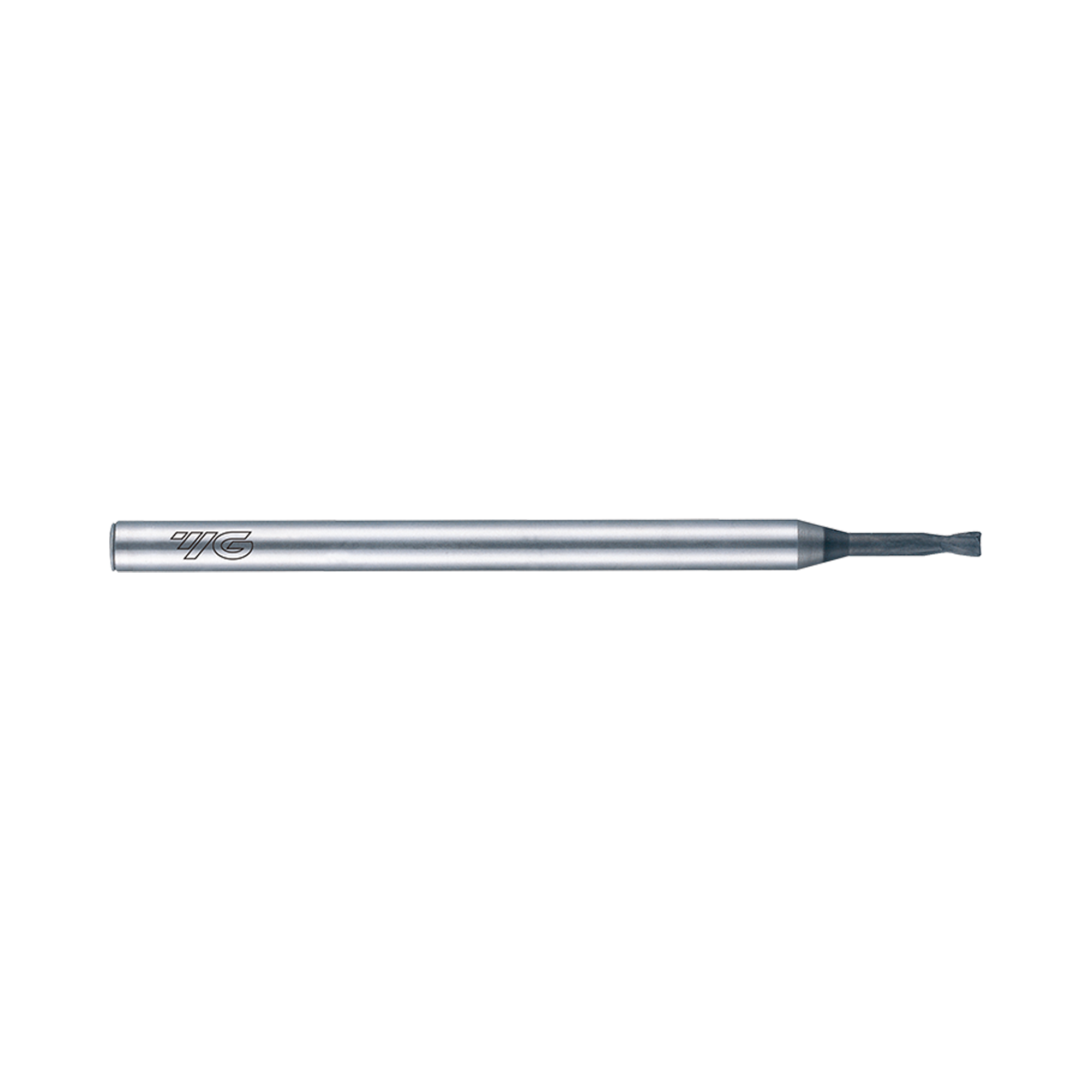

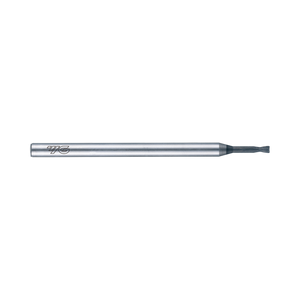

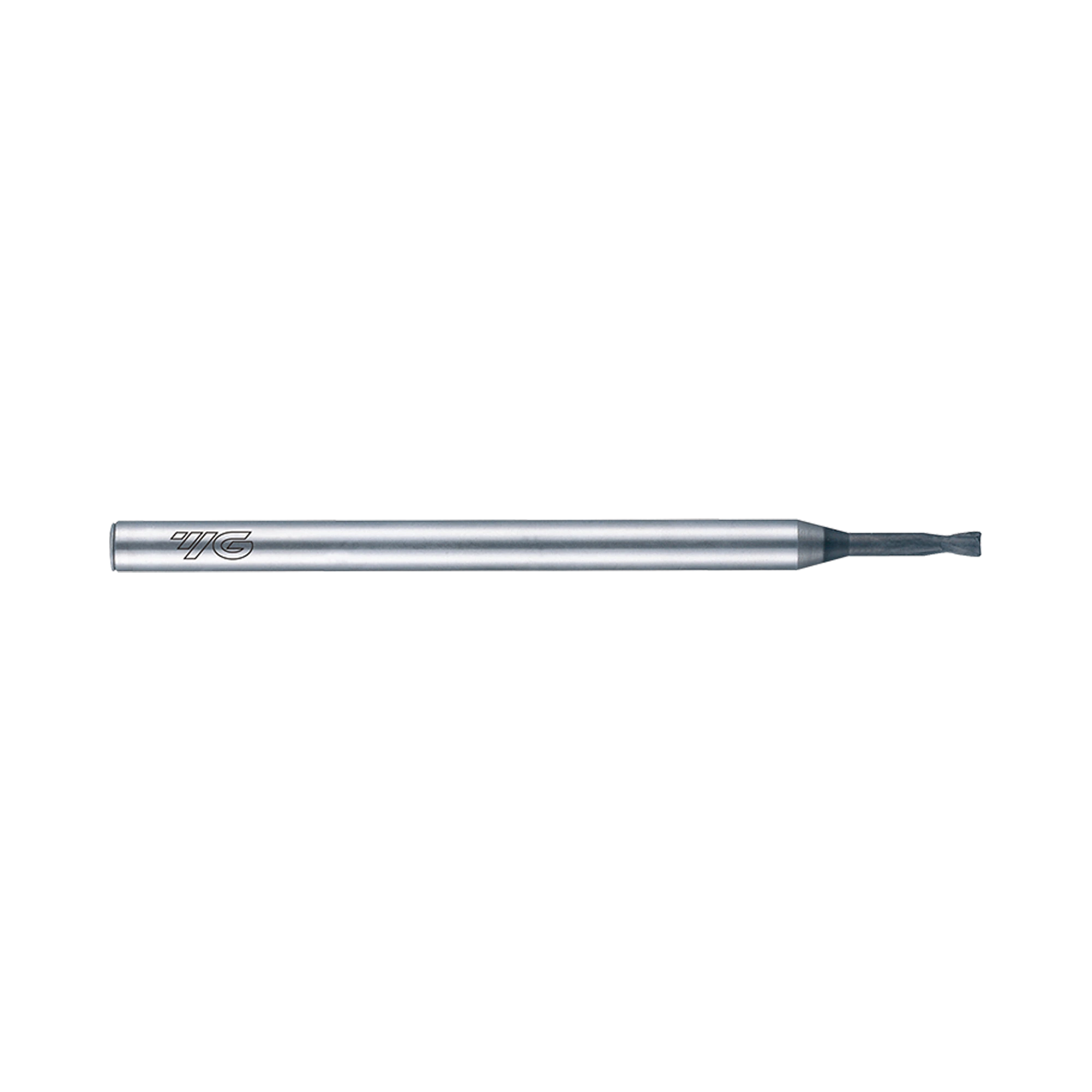

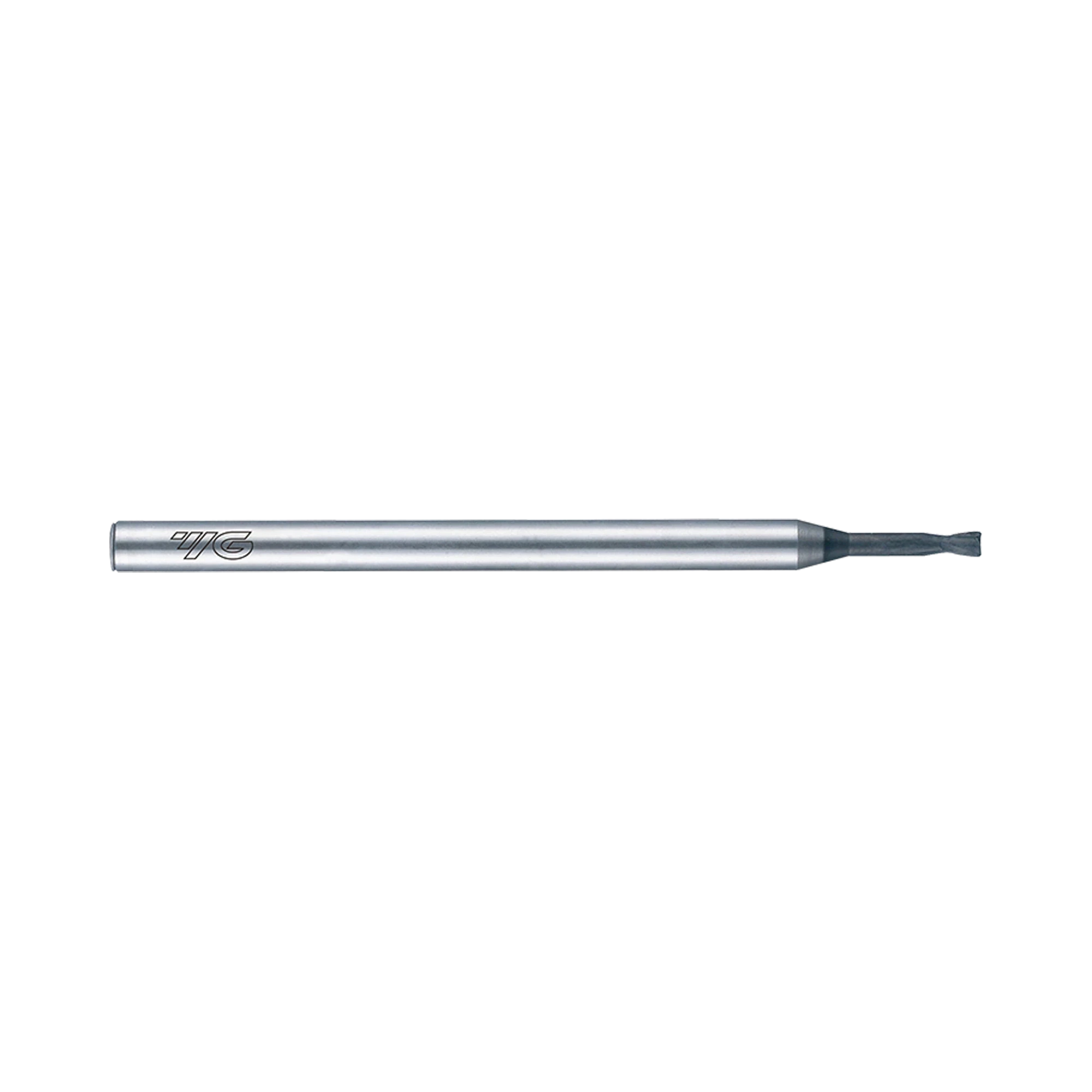

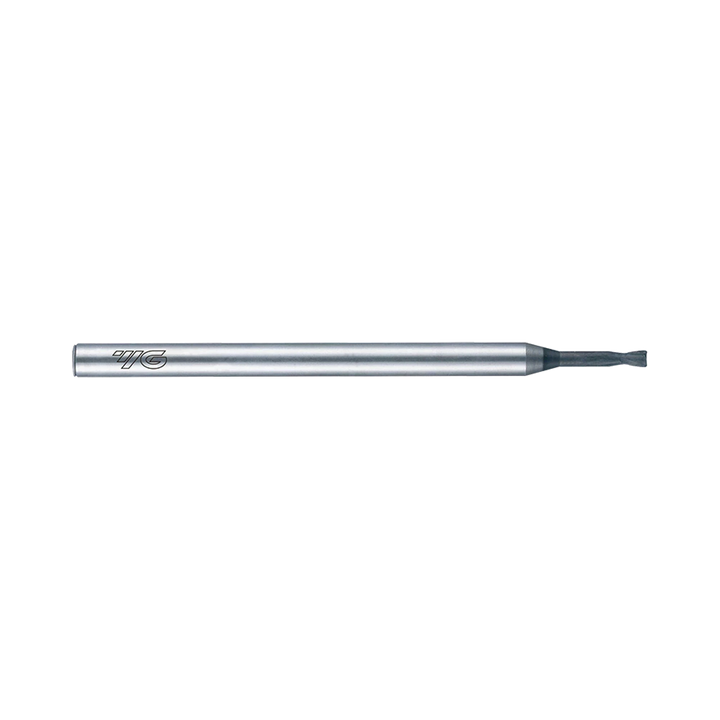

(EI996) D-Power Carbide 2Flute Corner Radius End Mill, Miniature Neck for Graphite (Diamond Coated)
Diamond-coated miniature corner-radius end mill for graphite
- SKU
- EI99600200000
Key features
- Diamond-coated carbide construction for graphite and non-ferrous material machining
- Two-flute miniature corner-radius geometry with neck
- High film hardness and excellent wear resistance
Made in South Korea
Diamond-coated for abrasive materials
High film hardness and excellent wear resistance support reliable machining of graphite and other compatible materials.
Compact miniature geometry
The two-flute corner-radius profile with neck suits detailed milling applications where a compact tool form is required.
Useful size selection
The EI996 range covers 0.2 to 6 mm cutting diameters with selected corner radii from R0.05 to R0.3.

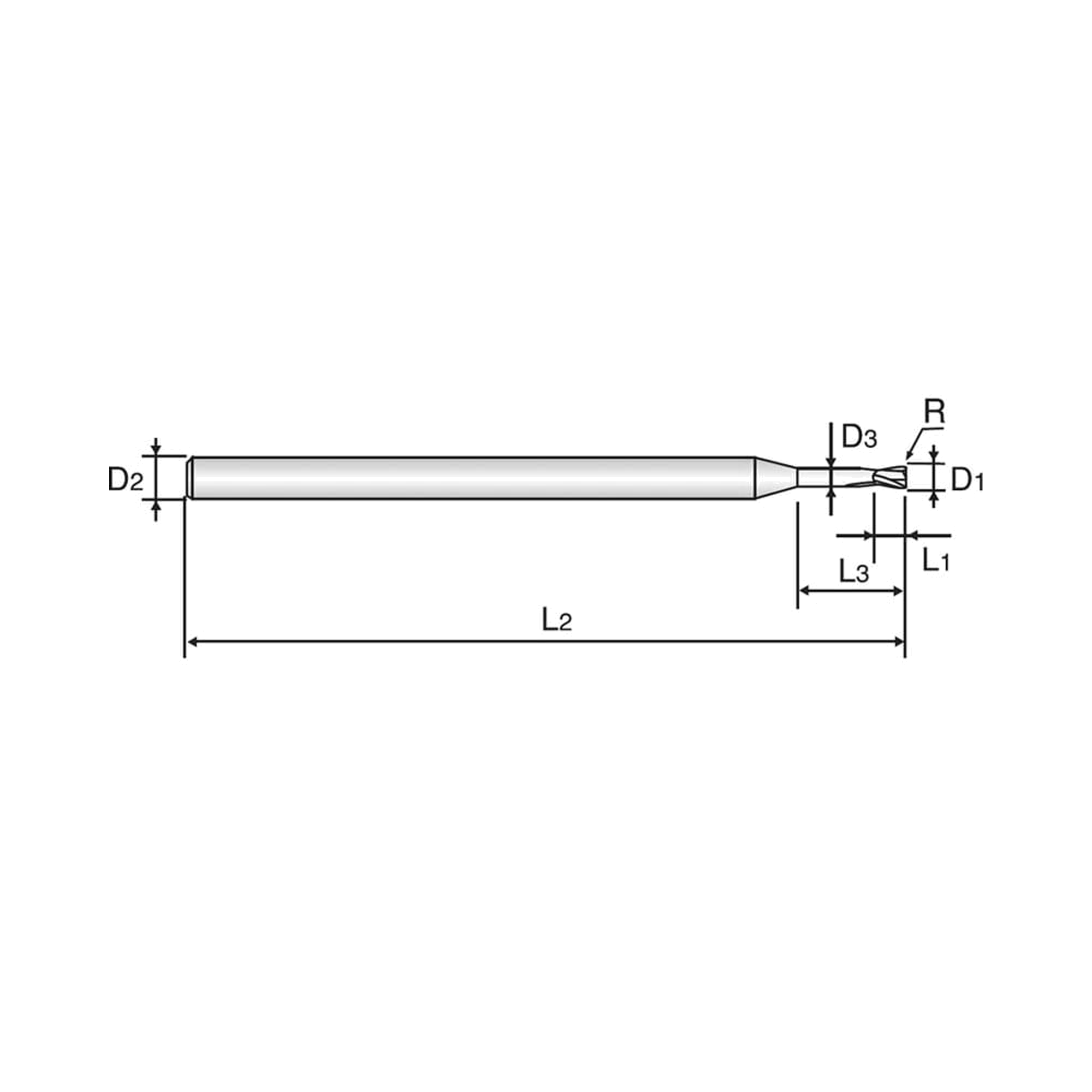

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI99600200000 | 0.2 | - | 40.0 | 3.0 | 0.3 | - | - | 1-2 Weeks | $140.80 | ||
| EI99600300000 | 0.3 | - | 40.0 | 3.0 | 0.5 | - | - | 1-2 Weeks | $121.40 | ||
| EI99600400000 | 0.4 | - | 40.0 | 3.0 | 0.6 | - | - | 1-2 Weeks | $112.50 | ||
| EI99600505025 | 0.5 | R0.05 | 40.0 | 3.0 | 0.7 | 2.5 | 0.45 | 1-2 Weeks | $118.10 | ||
| EI99600605050 | 0.6 | R0.05 | 40.0 | 3.0 | 0.9 | 5.0 | 0.55 | 1-2 Weeks | $112.50 | ||
| EI99600805070 | 0.8 | R0.05 | 40.0 | 3.0 | 1.2 | 7.0 | 0.75 | 1-2 Weeks | $107.30 | ||
| EI99601010120 | 1 | R0.1 | 40.0 | 3.0 | 1.5 | 12.0 | 0.95 | 1-2 Weeks | $100.50 | ||
| EI99601210100 | 1.2 | R0.1 | 50.0 | 3.0 | 1.8 | 10.0 | 1.15 | 1-2 Weeks | $100.90 | ||
| EI99601515180 | 1.5 | R0.15 | 50.0 | 3.0 | 2.2 | 18.0 | 1.4 | 1-2 Weeks | $105.80 | ||
| EI99602015250 | 2 | R0.15 | 60.0 | 3.0 | 2.2 | 25.0 | 1.9 | 1-2 Weeks | $111.10 | ||
| EI99603020100 | 3 | R0.2 | 65.0 | 4.0 | 3.0 | 10.0 | 2.9 | 1-2 Weeks | $126.30 | ||
| EI99604020200 | 4 | R0.2 | 65.0 | 6.0 | 4.0 | 20.0 | 3.9 | 1-2 Weeks | $155.90 | ||
| EI99605030200 | 5 | R0.3 | 75.0 | 6.0 | 5.0 | 20.0 | 4.9 | 1-2 Weeks | $155.90 | ||
| EI99606030300 | 6 | R0.3 | 75.0 | 6.0 | 6.0 | 30.0 | 5.9 | 1-2 Weeks | $167.10 |
Add (EI996) D-Power Carbide 2Flute Corner Radius End Mill, Miniature Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 D-Power EI996 is a diamond-coated carbide two-flute miniature corner-radius end mill with neck. Designed for graphite machining, it also suits wrought aluminium, bakelite, plastics, wood, brass, and non-ferrous materials. The diamond coating has high film hardness and excellent wear resistance, supporting extended tool life. Its ultra-fine film is intended to produce smooth, excellent surfaces on compatible work materials. The miniature neck profile supports detailed milling work requiring a compact corner-radius cutting geometry. Available sizes cover 0.2 to 6 mm diameters and R0.05 to R0.3 corner radii. Choose this series for detailed graphite work requiring a compact cutting profile and diamond coating.
- Diamond-coated carbide construction for graphite and non-ferrous material machining
- Two-flute miniature corner-radius geometry with neck
- High film hardness and excellent wear resistance
- Ultra-fine coating film for smooth workpiece surfaces
- Suitable for graphite wrought aluminium bakelite plastics wood and brass
- Diameter range from 0.2 to 6 mm with R0.05 to R0.3 radii
