N
Aluminium. wrought
HRc
HB
60100
N
Aluminium. cast
HRc
HB
7590130
N
Non-metallics
HRc
HB

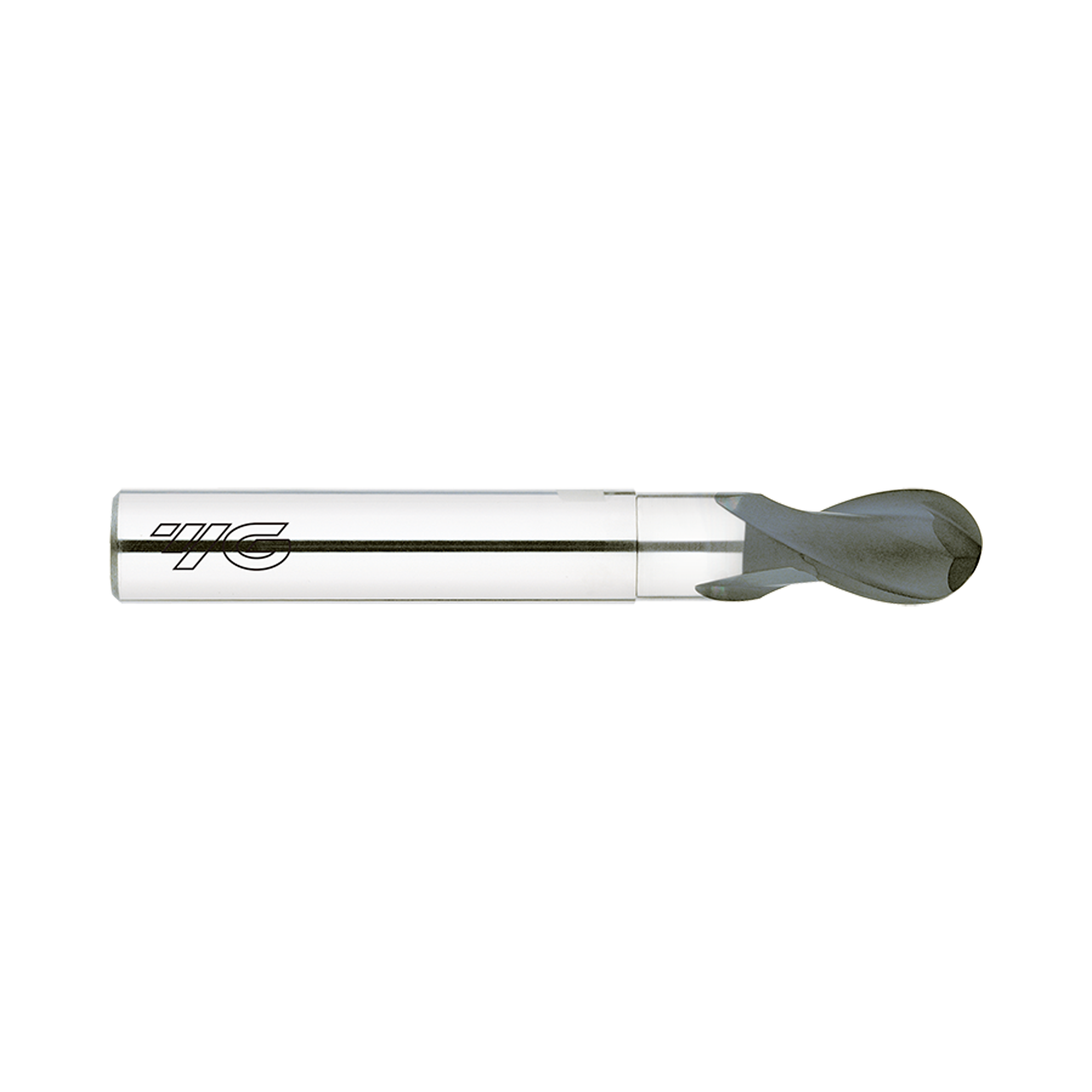

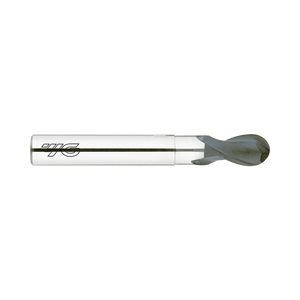

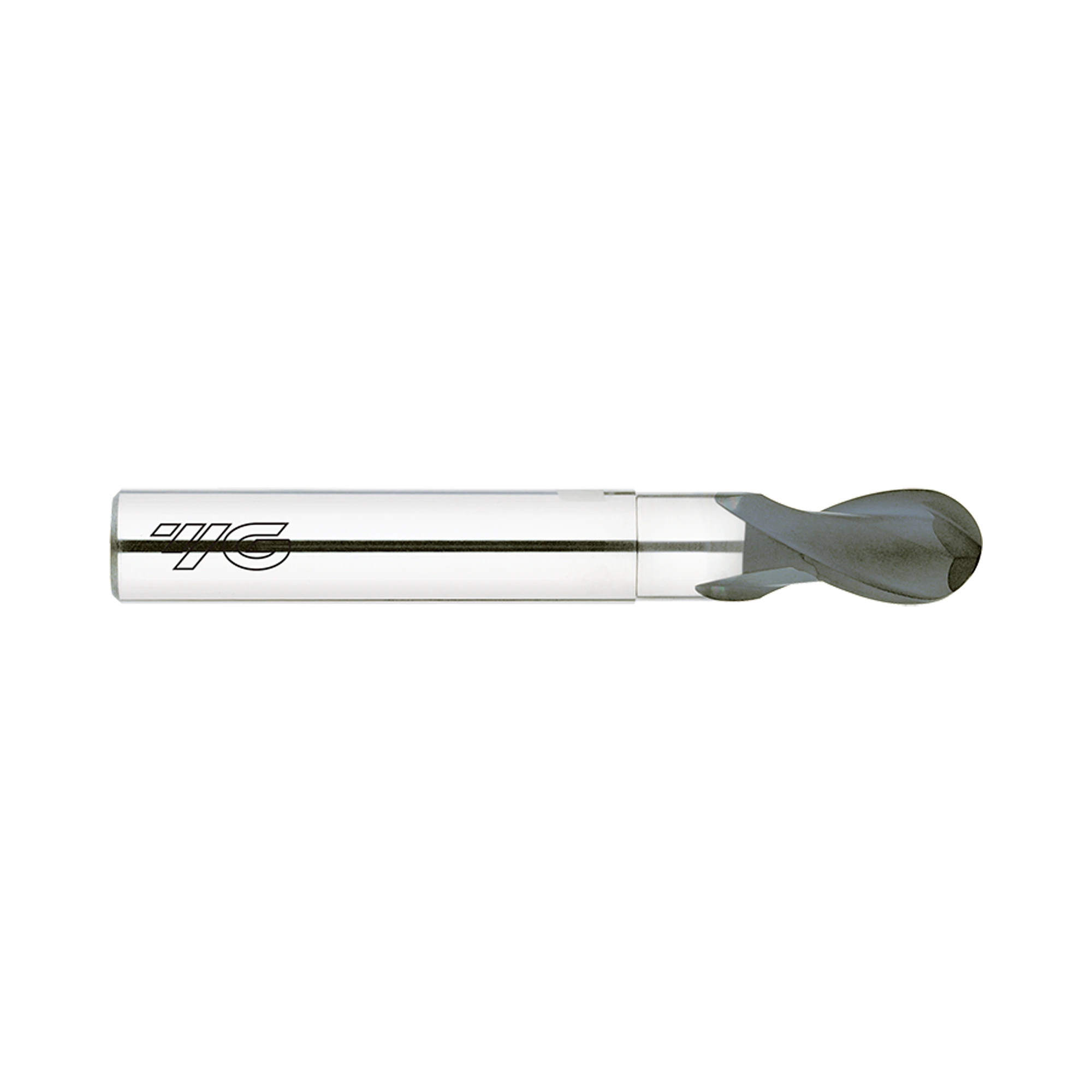

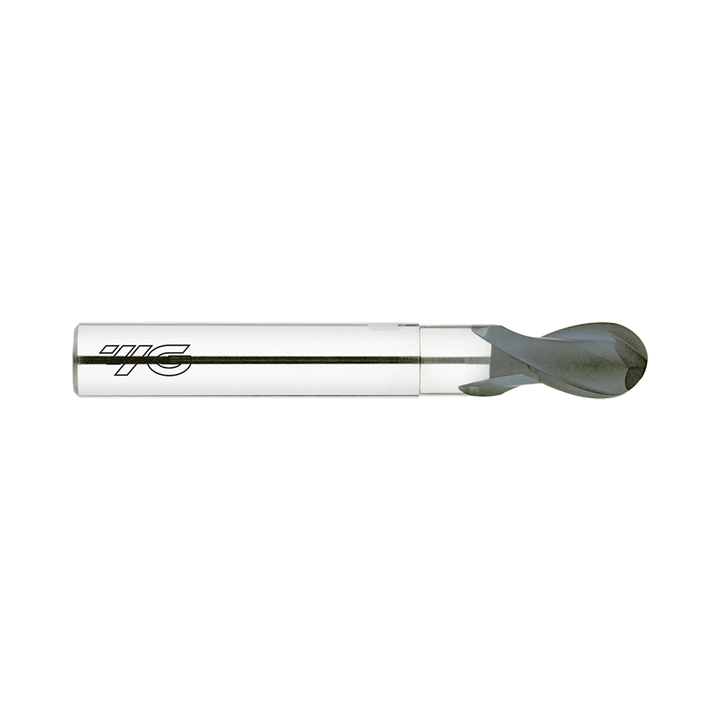

(EI880) D-Power Carbide 2Flute Ball Nose End Mill, Short Length Neck for Graphite (Diamond Coated)
Code: EI880020
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

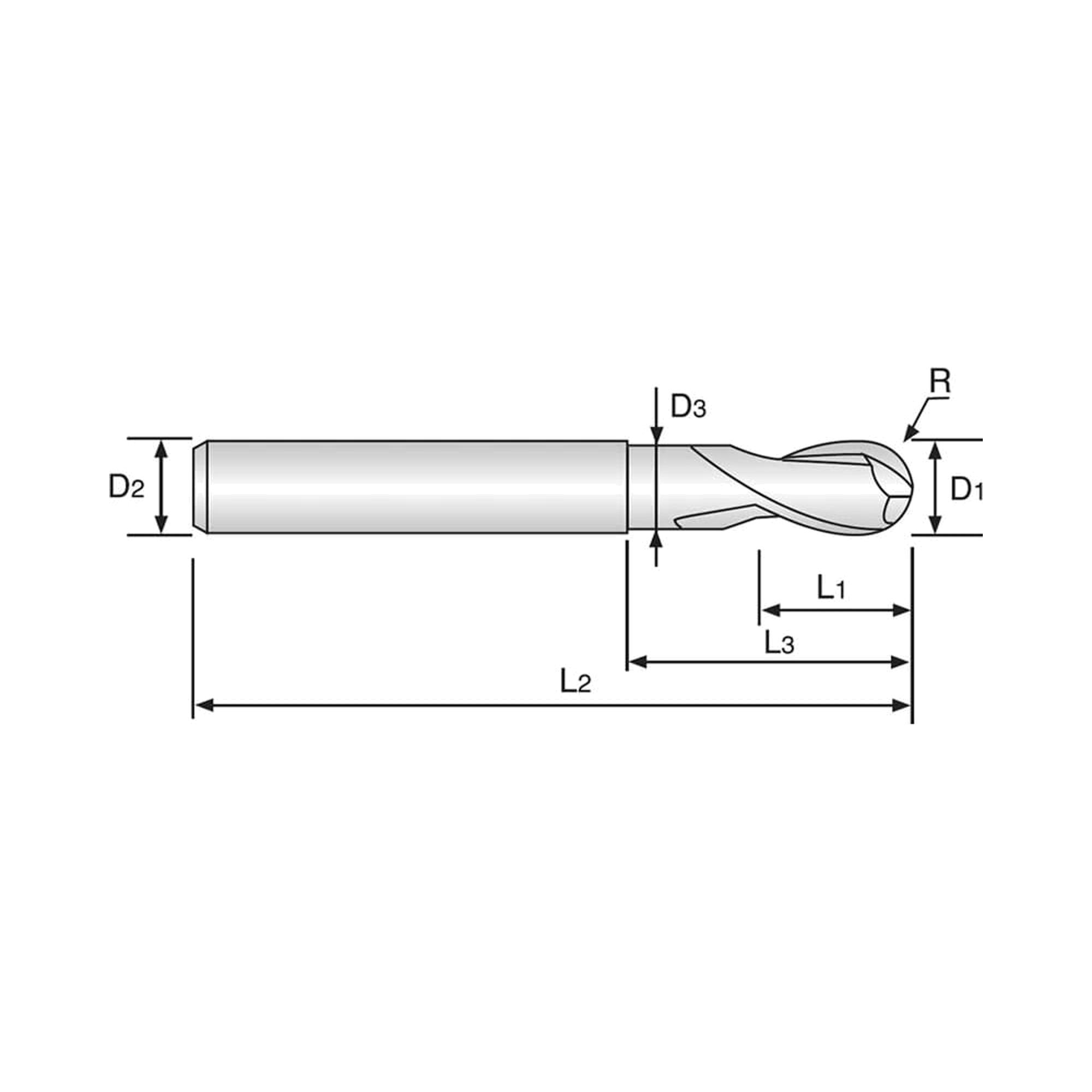

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EI880020 | 2 | R1.0 | 60.0 | 6.0 | 3.0 | 5.0 | 1.9 | 5 days | $156.70 | ||
| EI880025 | 2.5 | R1.25 | 60.0 | 6.0 | 4.0 | 6.0 | 2.4 | 5 days | $156.70 | ||
| EI880030 | 3 | R1.5 | 60.0 | 6.0 | 4.5 | 6.5 | 2.8 | 5 days | $156.70 | ||
| EI880035 | 3.5 | R1.75 | 65.0 | 6.0 | 5.0 | 7.0 | 3.2 | 5 days | $163.90 | ||
| EI880040 | 4 | R2.0 | 65.0 | 6.0 | 6.0 | 8.0 | 3.7 | 5 days | $163.90 | ||
| EI880050 | 5 | R2.5 | 65.0 | 6.0 | 7.5 | 10.0 | 4.6 | 5 days | $163.90 | ||
| EI880060 | 6 | R3.0 | 75.0 | 6.0 | 9.0 | 12.0 | 5.6 | 5 days | $171.10 | ||
| EI880080 | 8 | R4.0 | 75.0 | 8.0 | 12.0 | 25.0 | 7.4 | 5 days | $204.70 | ||
| EI880100 | 10 | R5.0 | 80.0 | 10.0 | 15.0 | 30.0 | 9.4 | 5 days | $267.40 | ||
| EI880120 | 12 | R6.0 | 90.0 | 12.0 | 18.0 | 36.0 | 11.4 | 5 days | $330.90 |
Add (EI880) D-Power Carbide 2Flute Ball Nose End Mill, Short Length Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description
The YG-1 EI880 series D-Power diamond coated micrograin carbide cutters has 2 flutes and a plain shank. These short length end mills have a reduced neck and a ball nosed end for machining radii. These range in diameter from 6mm-12mm. The D-Power range is the first choice for the high performance machining of graphite. It is also suitable for machining abrasive aluminium, plastics, brass, copper, CFRP and GFRP composites.
- First choice for high performance machining of graphite with extreme wear resistance.
- Excellent performance in abrasive non-ferrous materials.
- Diamond coating has high lubricity and low coefficient of friction, preventing the tool from fast wear common in abrasive material machining.
- Ball nosed gemoetry.
- Reduced neck for deep pocket machining.
- Suitable for high accuracy machining.
- Smooth and excellent surface finish on graphite.
- Also suitable for high speed machining of Wrought Aluminium, Bakelite, Plastics, Wood, Brass and non-ferrous metals.
Product Data
| Workpiece Material | N |
| Ball Radius Tolerance | 0.01 |
| Cutting Shape | Ball Nose |
| Graphite | Excellent |
| Helix Angle | Ball Nose 30 |
| Length | Short |
| No. Flutes | 2 |
| Operation | Profiling, Side Milling, Small Part |
| Shank Type | Plain |
| Surface Treatment | Diamond Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R1.0 |
| Size Max | R6.0 |
| Length |
SHORT LENGTH NECK |
| Coating | Diamond |
Profiling
Side Milling
Small Part
Aluminium
Great
Good
Great
Excellent
Copper
Great
Good
Great
Excellent
CFRP
Great
Good
Great
Excellent
Non-ferrous
Great
Good
Great
Excellent
