N
Aluminium. wrought
HRc
HB
60100
N
Aluminium. cast
HRc
HB
7590130
N
Non-metallics
HRc
HB
(EIB87) D-Power Carbide 2Flute Ball Nose End Mill, Taper Neck for Graphite (Diamond Coated)
Code: EIB87010
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

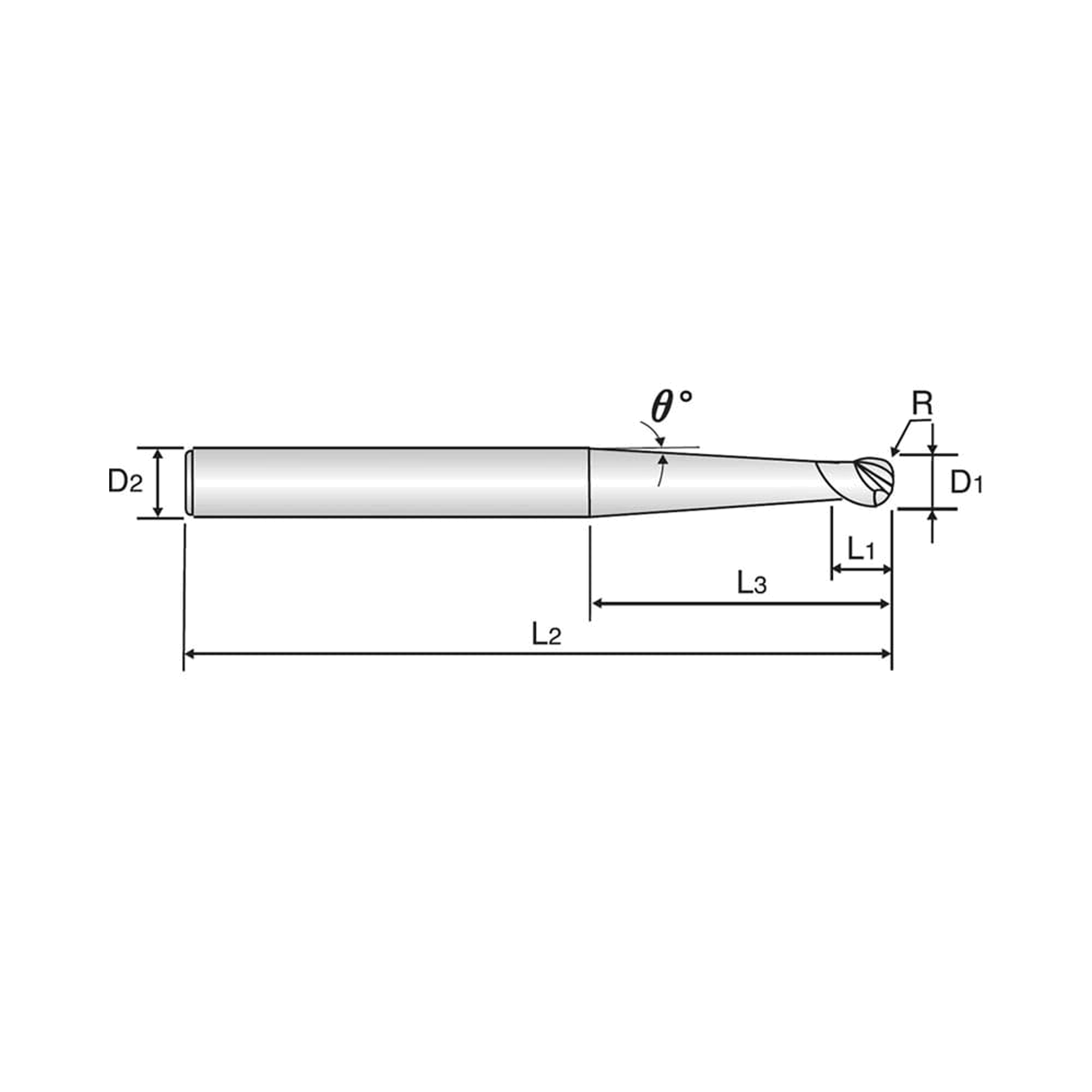

| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| EIB87010 | 1 | R0.5 | 40.0 | 3.0 | 2.0 | 5 days | $98.70 | ||
| EIB87015 | 1.5 | R0.75 | 40.0 | 3.0 | 3.0 | 5 days | $98.80 | ||
| EIB87020 | 2 | R1.0 | 40.0 | 3.0 | 4.0 | 5 days | $99.10 |
Add (EIB87) D-Power Carbide 2Flute Ball Nose End Mill, Taper Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description

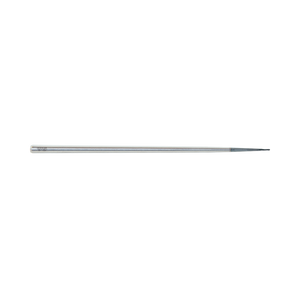

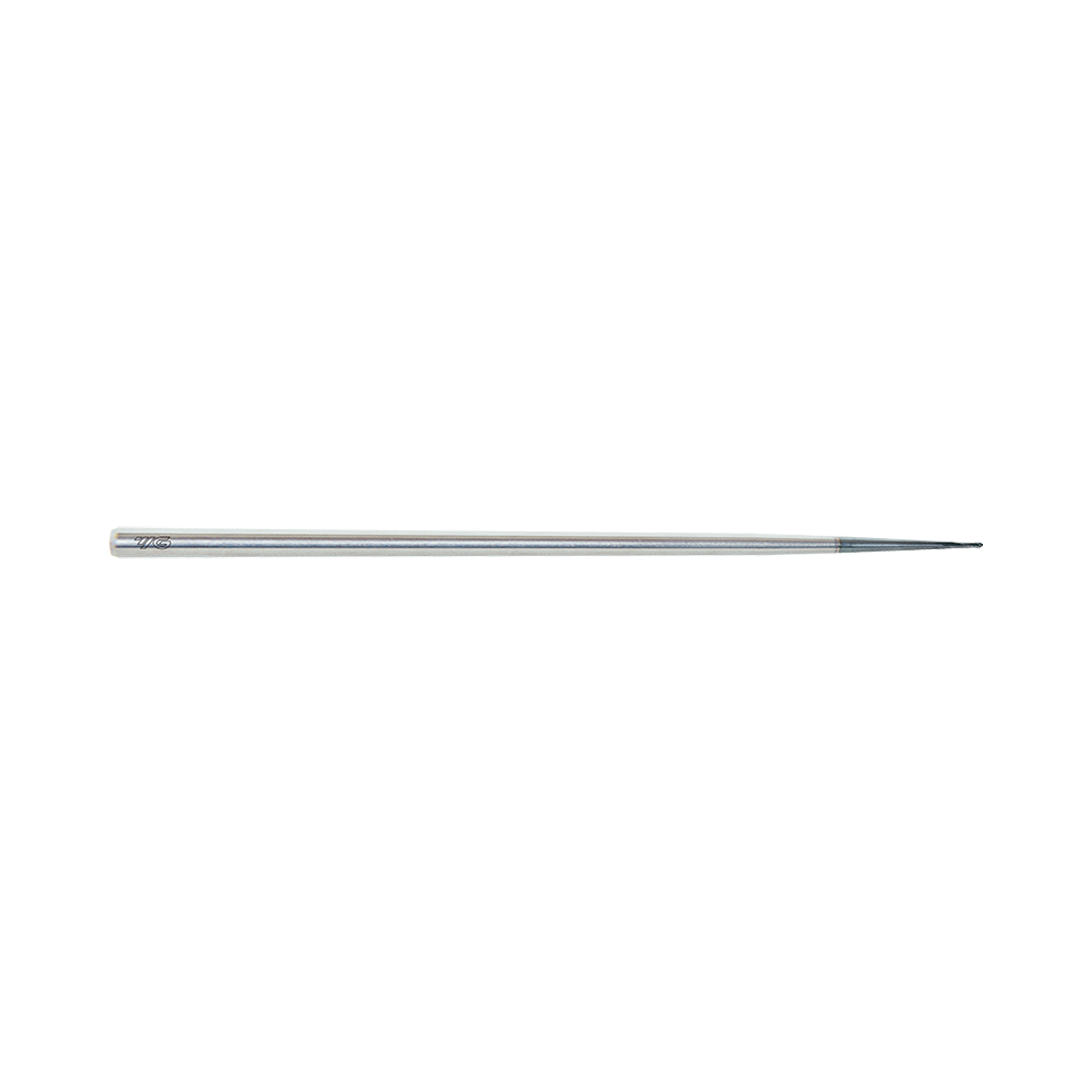

The YG-1 EIB87 series D-Power diamond coated micrograin carbide cutters has 2 flutes and a plain shank. These minature slot drills have a reduced neck and a ball nosed end for machining radii. These range in diameter from 0.4mm-4mm. The D-Power range is the first choice for the high performance machining of graphite. It is also suitable for machining abrasive aluminium, plastics, brass, copper, CFRP and GFRP composites.
- First choice for high performance machining of graphite with extreme wear resistance.
- Excellent performance in abrasive non-ferrous materials.
- Diamond coating has high lubricity and low coefficient of friction, preventing the tool from fast wear common in abrasive material machining.
- Ball Nosed Geometry - radius tolerance ± 0.01mm.
- Tapered neck.
- Suitable for high accuracy machining.
- Smooth and excellent surface finish on graphite.
- Also suitable for high speed machining of Wrought Aluminium, Bakelite, Plastics, Wood, Brass and non-ferrous metals.
Product Data
| Workpiece Material | N |
| Ball Radius Tolerance | 0.01 |
| Cutting Shape | Ball Nose |
| Graphite | Excellent |
| Helix Angle | Ball Nose 30 |
| No. Flutes | 2 |
| Operation | Profiling, Side Milling, Small Part |
| Shank Type | Plain |
| Surface Treatment | Diamond Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R0.5 |
| Size Max | R1.0 |
| Length |
TAPER NECK |
| Coating | Diamond |
Profiling
Side Milling
Small Part
Aluminium
Great
Good
Great
Excellent
CFRP
Great
Good
Great
Excellent
