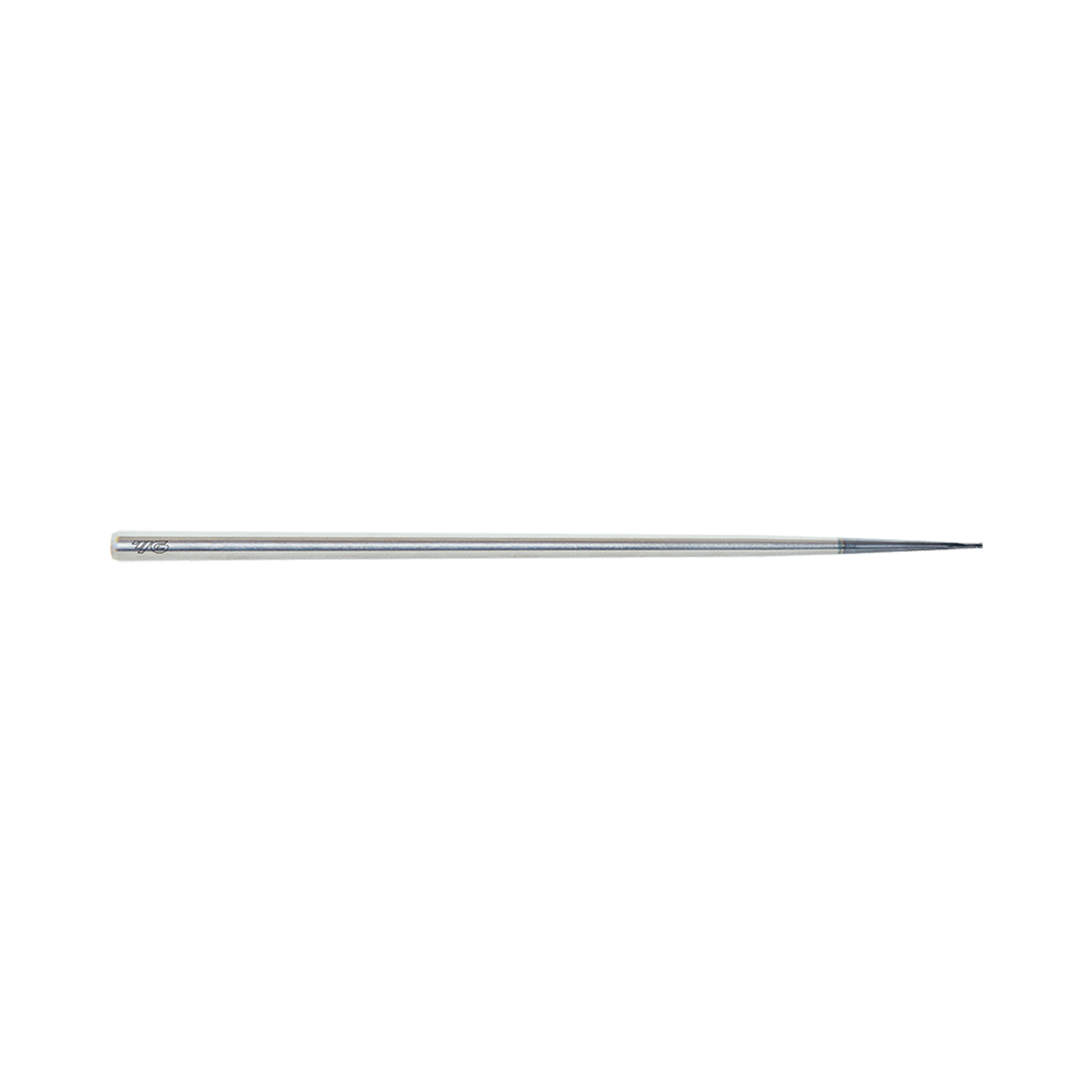

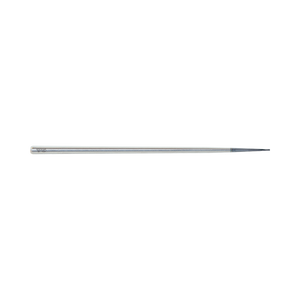

(EIB86) D-Power Carbide 2Flute Corner Radius End Mill, Taper Neck for Graphite (Diamond Coated)
Diamond-coated taper neck corner radius end mill for graphite
- SKU
- EIB86010
Key features
- Diamond-coated carbide construction for graphite machining
- Two-flute corner radius geometry for detailed milling
- Taper neck design provides additional clearance
Made in South Korea
Graphite-focused cutting
Diamond coating is recommended for graphite machining in the EIB86 series.
Clearance for detailed profiles
The taper neck supports access around compact profiling toolpaths.
Small-radius tool options
Choose 1.0 mm or 1.5 mm diameters with fine corner radii.

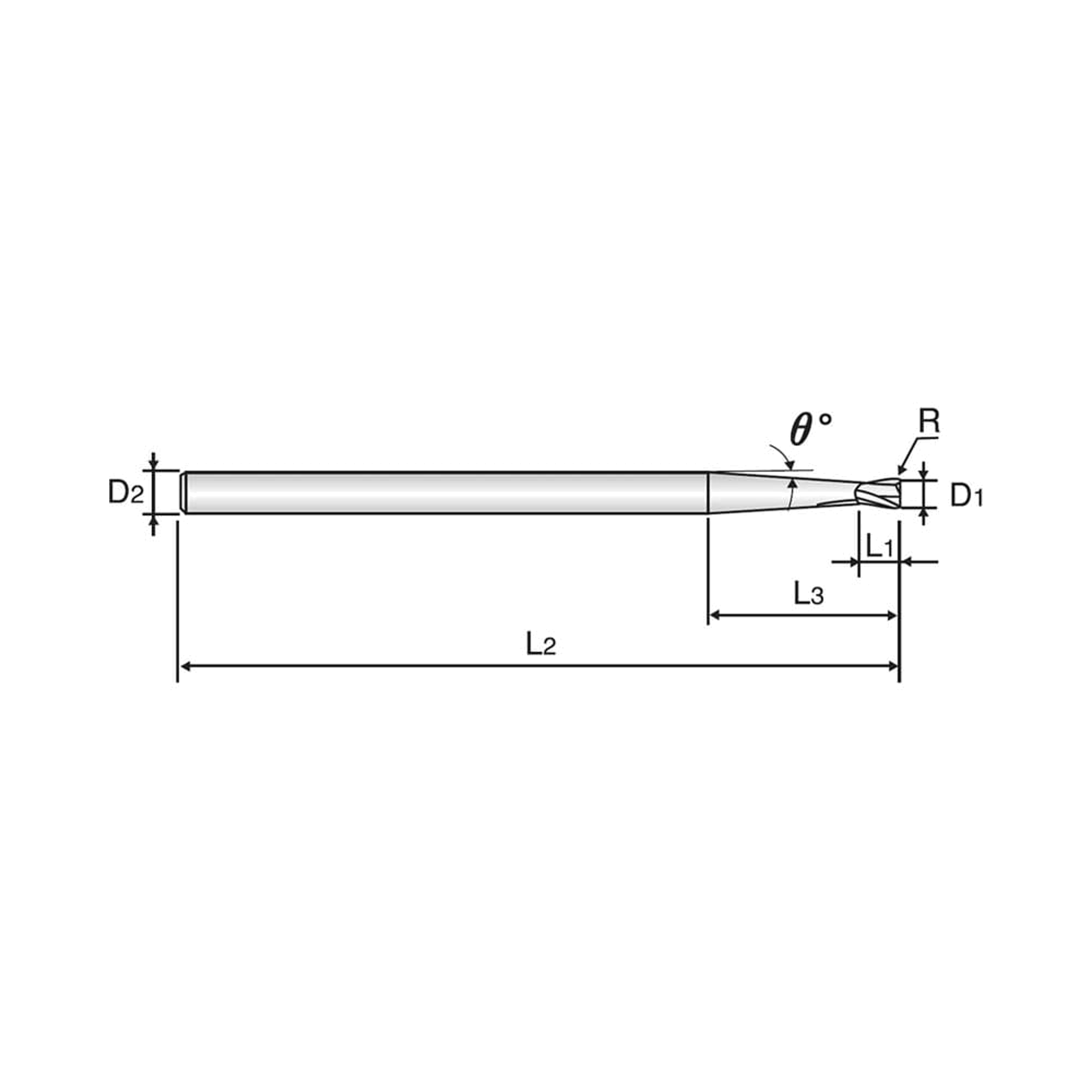

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| EIB86010 | 1 | R0.1 | 60.0 | 3.0 | 2.0 | 30.0 | 1-2 Weeks | $108.50 | ||
| EIB86902 | 1.5 | R0.15 | 100.0 | 3.0 | 3.0 | 50.0 | 1-2 Weeks | $122.70 |
Add (EIB86) D-Power Carbide 2Flute Corner Radius End Mill, Taper Neck for Graphite (Diamond Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 EIB86 D-Power is a diamond-coated carbide two-flute corner radius end mill with a taper neck. Designed for graphite machining, it combines small corner radii and neck clearance for detailed milling. The diamond-coated EIB86 series carries an excellent recommendation for graphite machining applications. The range includes 1.0 mm and 1.5 mm mill diameters, both with 3 mm plain shanks.
Available corner radii are R0.1 and R0.15 for precise profiling in compact toolpaths. EIB86010 has a 2 mm length of cut, 30 mm below-shank length and 60 mm overall length. EIB86902 has a 3 mm length of cut, 50 mm below-shank length and 100 mm overall length. Taper angles are 2° for EIB86010 and 1° for EIB86902.
- Diamond-coated carbide construction for graphite machining
- Two-flute corner radius geometry for detailed milling
- Taper neck design provides additional clearance
- 1.0 mm and 1.5 mm mill diameter options
- R0.1 and R0.15 corner radius options
- 3 mm plain shank across the available range
No specifications available.
