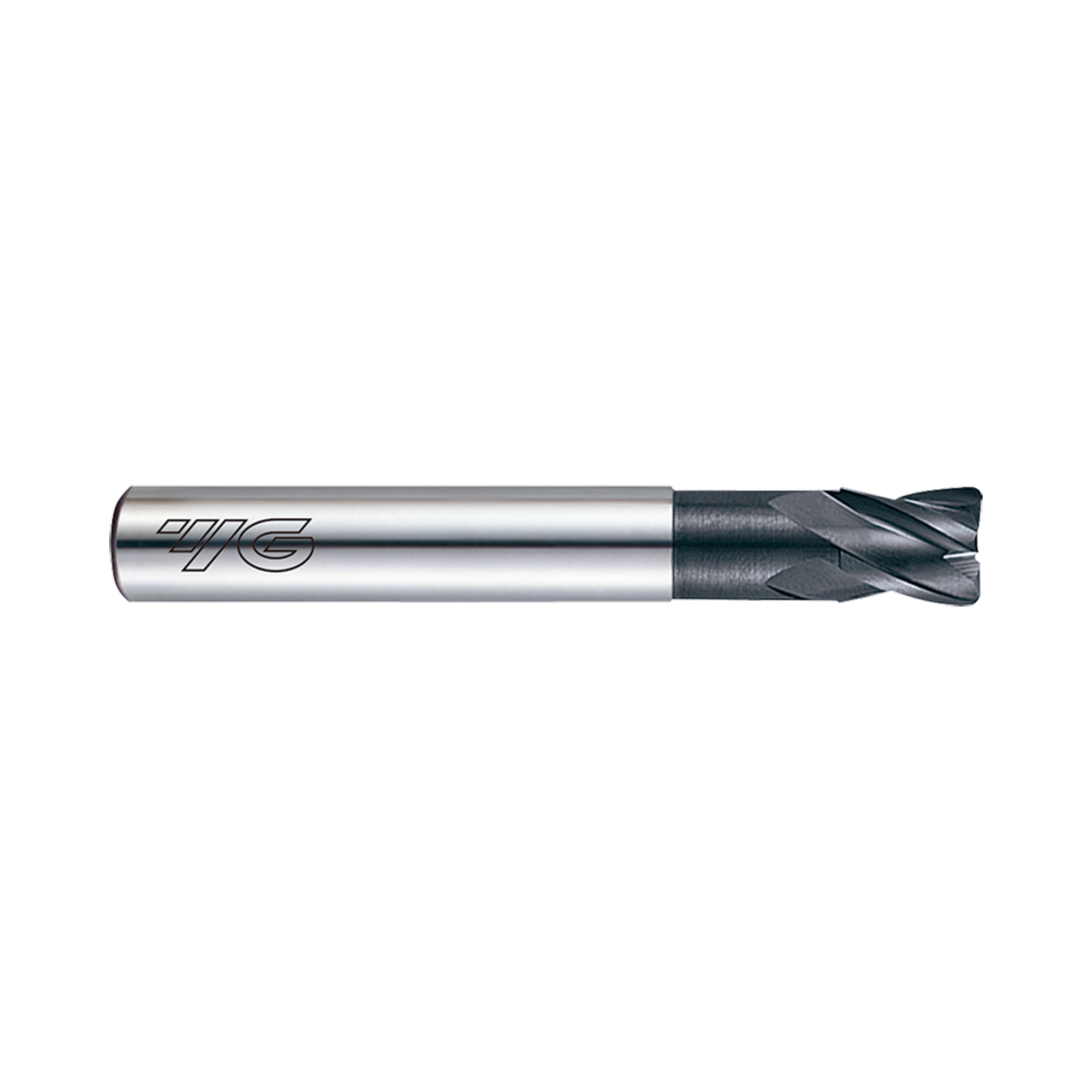

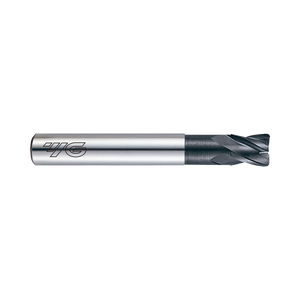

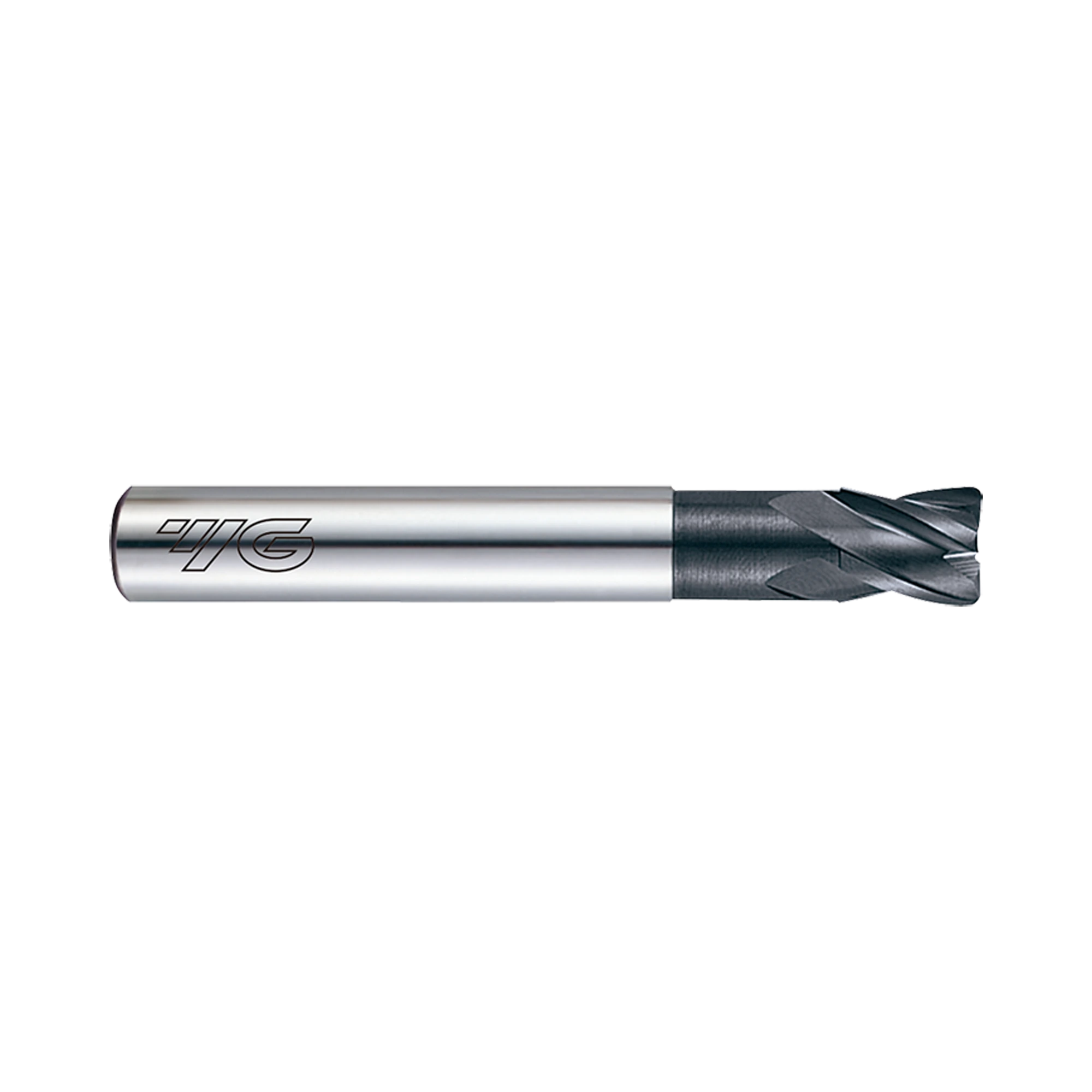

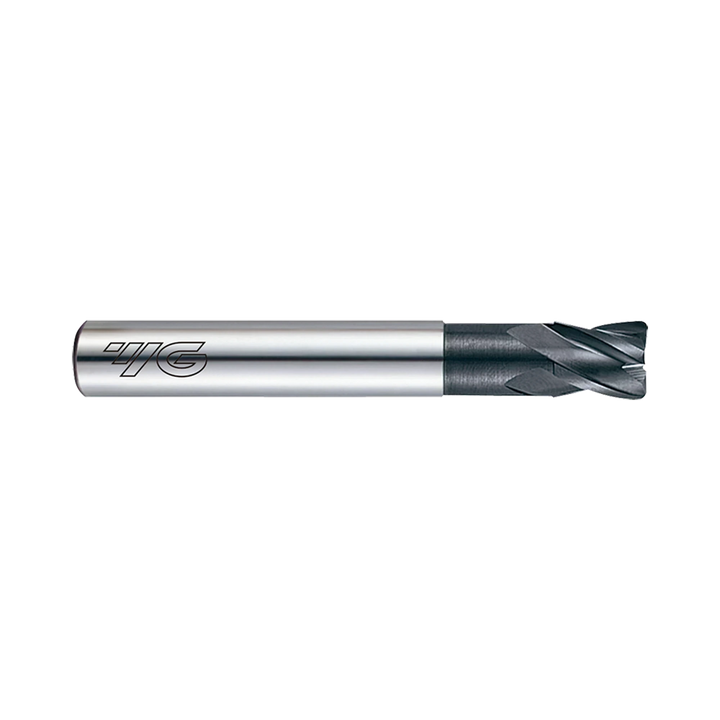

D-POWER 4 Flute 30°Helix Corner Radius End mill With Neck (EIB88)
Product Code: EIB88
No. Flutes: 4
Surface Treatment: Diamond Coating
Tool Material: Carbide
Helix Angle: Square 30°
Shank Type: Plain
The YG-1 EIB88 series D-Power diamond coated micrograin carbide cutters has 4 flutes and a plain shank. These end mills have a reduced neck and corner radius for increased wear resistance. These range in diameter from 6mm-12mm. The D-Power range is the first choice for the high-performance machining of graphite. It is also suitable for machining abrasive aluminium, plastics, brass, copper, CFRP and GFRP composites.
- First choice for high performance machining of graphite with extreme wear resistance.
- Excellent performance in abrasive non-ferrous materials.
- Diamond coating has high lubricity and low coefficient of friction, preventing the tool from fast wear common in abrasive material machining.
- Corner radius to protect cutting edge.
- Reduced neck for deep pocket machining.
- Suitable for high accuracy machining.
- Smooth and excellent surface finish on graphite.
- Also suitable for high speed machining of Wrought Aluminium, Bakelite, Plastics, Wood, Brass and non-ferrous metals.
Specifications
| Flutes | 4 |
| Helix Angle | 30° |
| Cutting Edge Shape | CORNER RADIUS |
| Size Min | D6.0 |
| Size Max | D12.0 |
| Length |
NECK |
| Coating | Diamond |
| Workpiece Material | N |
| Graphite | Excellent |
| Helix Angle | Square 30 |
| No. Flutes | 4 |
| Operation | Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | Diamond Coating |
| Tool Material | Carbide |
Made in South Korea
