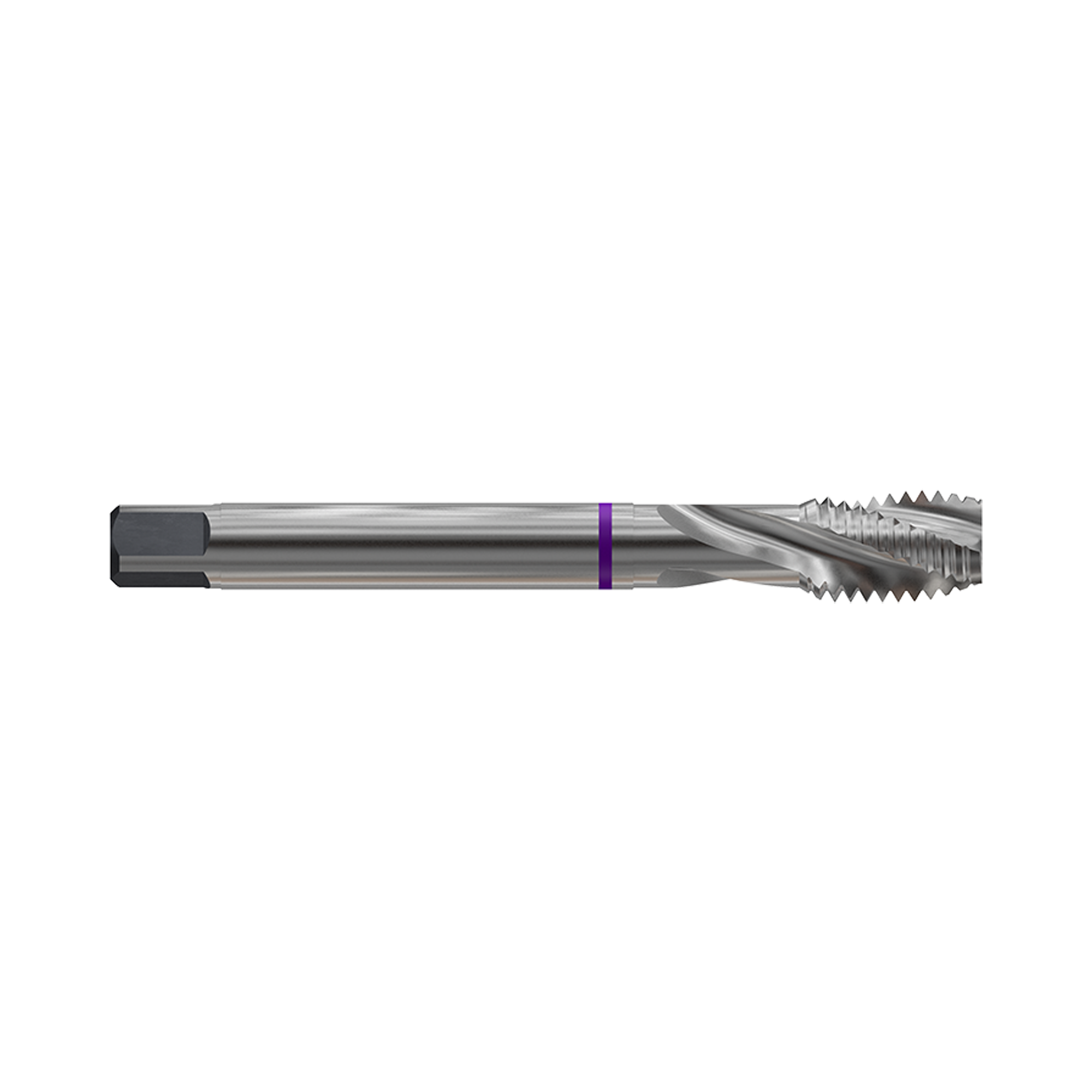

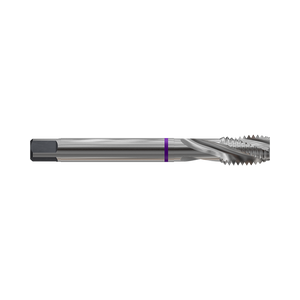

(TM903) HSS-PM, Metric Spiral Flute for Ti
HSS-PM spiral flute taps for titanium alloys
- SKU
- TM903136
Key features
- HSS-PM powder metal substrate
- Spiral flute geometry for blind holes
- Bright finish helps prevent swarf sticking
Made in South Korea
Blind-hole threading
Spiral flute geometry is designed for blind holes and supports effective chip evacuation
Titanium-focused design
The TM903 series is specified for tapping titanium and titanium alloys
Reduced tapping torque
Interrupted flutes reduce contact area while supporting improved chip flow
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TM903136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | 1-2 Weeks | $43.60 | ||
| TM903156 | M2.2 | 0.45 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.75 | No stock | $48.70 | ||
| TM903196 | M2.3 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.9 | No stock | $56.70 | ||
| TM903176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | 1-2 Weeks | $36.20 | ||
| TM903496 | M2.6 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.1 | 1-2 Weeks | $36.20 | ||
| TM903206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | In stock | $65.20 | ||
| TM903226 | M3.5 | 0.6 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | 1-2 Weeks | $32.90 | ||
| TM903246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | 1-2 Weeks | $66.90 | ||
| TM903266 | M4.5 | 0.75 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 3.8 | No stock | $31.50 | ||
| TM903286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | 1-2 Weeks | $31.50 | ||
| TM903316 | M6 | 1.0 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | 1-2 Weeks | $31.70 | ||
| TM903346 | M7 | 1.0 | 10.0 | 80.0 | 30.0 | 7.0 | 5.5 | 8.0 | 3 | 6.0 | No stock | $40.60 | ||
| TM903366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | 1-2 Weeks | $42.00 | ||
| TM903396 | M9 | 1.25 | 13.0 | 90.0 | 35.0 | 9.0 | 7.0 | 10.0 | 3 | 7.8 | No stock | $52.60 | ||
| TM903426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | 1-2 Weeks | $52.60 | ||
| TM903466 | M11 | 1.5 | 17.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.5 | No stock | $71.00 | ||
| TM903506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | 1-2 Weeks | $71.00 | ||
| TM903546 | M14 | 2.0 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | No stock | $90.60 | ||
| TM903606 | M16 | 2.0 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | 1-2 Weeks | $113.90 | ||
| TM903656 | M18 | 2.5 | 25.0 | 125.0 | 50.0 | 14.0 | 11.0 | 14.0 | 4 | 15.5 | No stock | $153.20 | ||
| TM903706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | No stock | $220.80 | ||
| TM903746 | M22 | 2.5 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 19.5 | No stock | $231.40 | ||
| TM903786 | M24 | 3.0 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | No stock | $264.00 | ||
| TM903866 | M27 | 3.0 | 30.0 | 160.0 | 60.0 | 20.0 | 16.0 | 19.0 | 4 | 24.0 | No stock | $368.00 | ||
| TM903946 | M30 | 3.5 | 35.0 | 180.0 | 70.0 | 22.0 | 18.0 | 21.0 | 4 | 26.5 | No stock | $478.70 |
Add (TM903) HSS-PM, Metric Spiral Flute for Ti to comparison
View Comparison- Overview
- Work Material
- Reviews
YG-1 TM903 HSS-PM metric coarse spiral flute machine taps are bright-finish tools for titanium alloys. They cut metric coarse internal threads and use spiral flutes for blind-hole tapping. Interrupted flutes reduce contact area and tapping torque while supporting improved chip flow. The bright finish helps prevent swarf sticking to flutes in unalloyed titanium. Available sizes span M2 to M16, with pitches from 0.4 to 2.0 mm. A 6H thread tolerance and 2.5×D tapping depth complete the TM903 configuration. Powder metal substrate provides the HSS-PM construction specified for this specialist tap series. Choose the required listed metric coarse thread size for titanium and titanium alloy machining.
- HSS-PM powder metal substrate
- Spiral flute geometry for blind holes
- Bright finish helps prevent swarf sticking
- Interrupted flutes support chip flow and reduce tapping torque
- Metric coarse thread sizes from M2 to M16
- 6H tolerance with 2.5×D tapping depth
| Tool Material | HSS PM |
Work materials
VDI 3323 recommendations for this tool.
Steel
3 gradesSuperalloys & titanium
3 gradesVDI grade reference6 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 7 | PLow-alloy steel | Good | 275 | 29 |
| 8 | PLow-alloy steel | Good | 300 | 32 |
| 9 | PLow-alloy steel | Good | 350 | 38 |
| 31 | SHeat-resistant superalloys | Good | 200 | 15 |
| 36 | STitanium alloys | Good | - | - |
| 37 | STitanium alloys | Excellent | - | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
