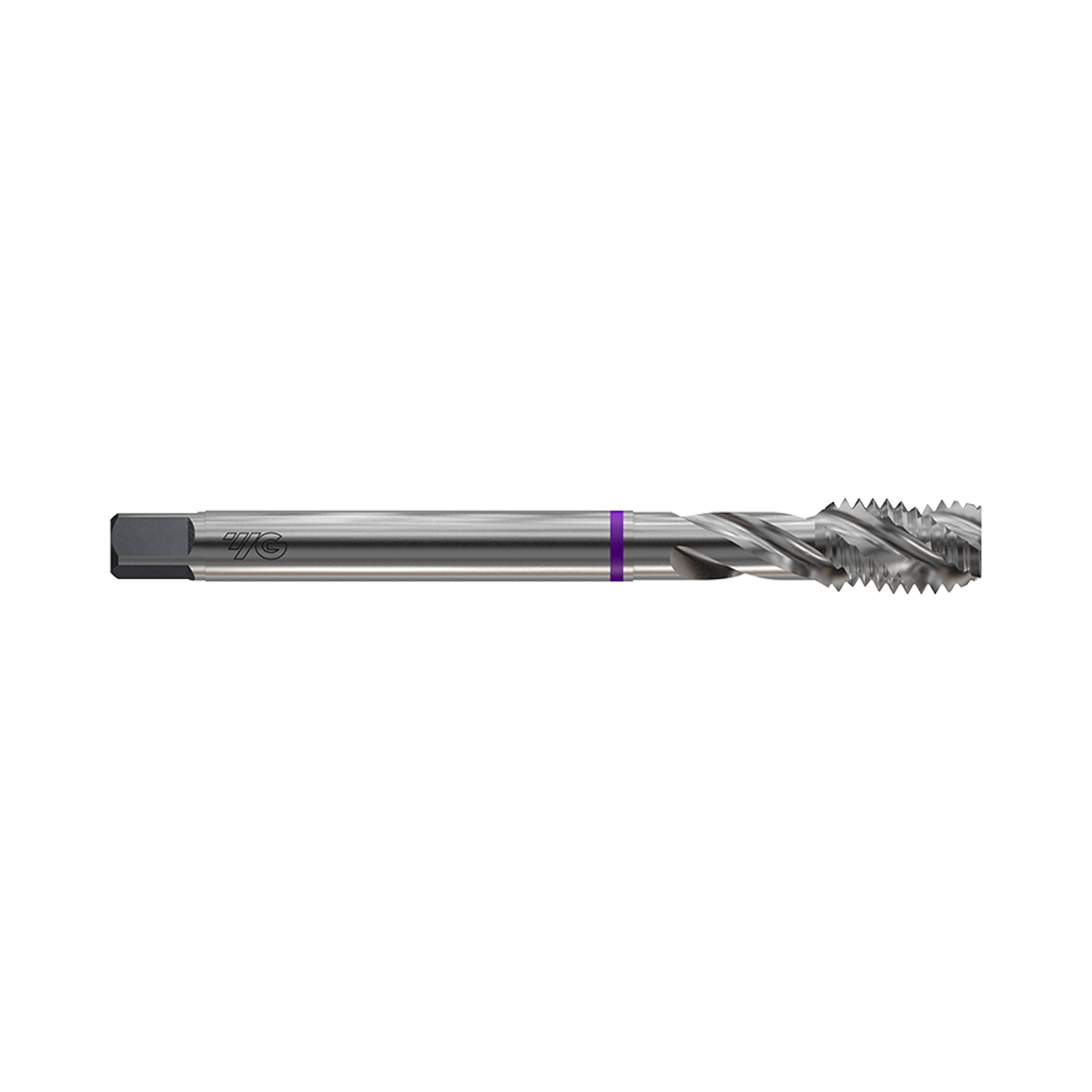

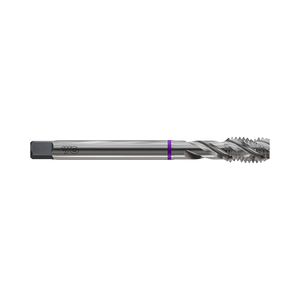

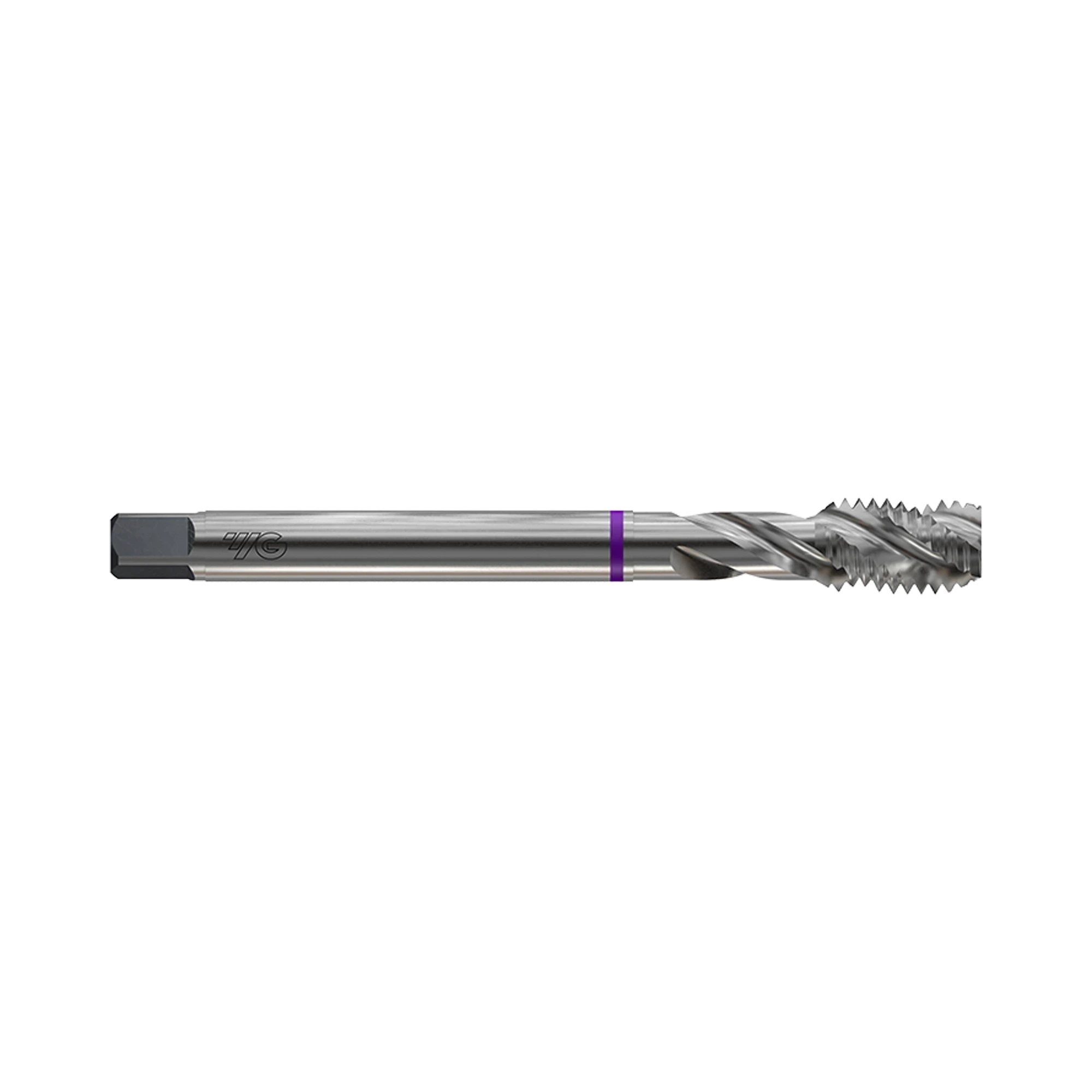

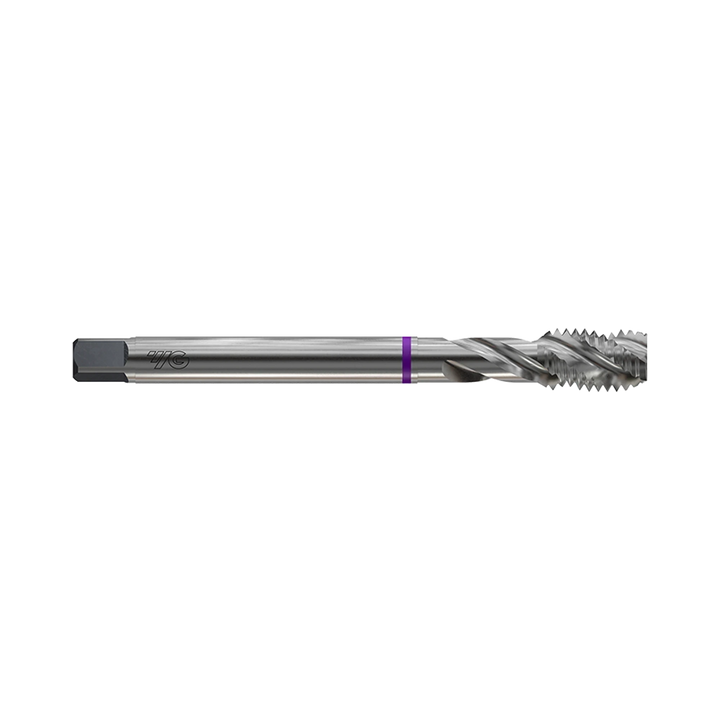

(TM933) HSS-PM, Metric Spiral Flute for Ni

Bright metric taps for nickel alloys

(TM933) HSS-PM, Metric Spiral Flute for Ni
$47.96 INC GST $43.60 EX GST
SKU
TM933136
Work materials
PS

Key features

  • Bright finish for nickel alloys and heat-resistant alloy steels
  • ISO metric coarse thread form to DIN 13
  • Metric sizes from M2 × 0.4 to M20 × 2.5
Tool material HSS PM
Surface treatment Bright
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Nickel alloy application

Specified for tapping nickel alloys and heat-resistant alloy steels used in aerospace and chemical industry work.

Metric coarse coverage

Covers common ISO metric coarse threads from M2 × 0.4 through M20 × 2.5.

Series-specific formats

DIN 371 covers M2 to M10, with DIN 376 formats supplied in larger listed sizes.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TM933136M20.48.045.013.02.82.15.031.6 1-2 Weeks $43.60
TM933156M2.20.458.045.013.02.82.15.031.75 No stock $48.70
TM933196M2.30.48.045.013.02.82.15.031.9 No stock $56.70
TM933176M2.50.459.050.015.02.82.15.032.05 1-2 Weeks $36.20
TM933496M2.60.459.050.015.02.82.15.032.1 No stock $36.20
TM933206M30.56.056.018.03.52.76.032.5 1-2 Weeks $29.10
TM933226M3.50.67.056.020.04.03.06.032.9 No stock $32.90
TM933246M40.77.063.021.04.53.46.033.3 1-2 Weeks $29.90
TM933266M4.50.758.070.025.06.04.98.033.7 No stock $31.50
TM933286M50.88.070.025.06.04.98.034.2 1-2 Weeks $31.50
TM933316M61.010.080.030.06.04.98.035.0 1-2 Weeks $31.70
TM933346M71.010.080.030.07.05.58.036.0 No stock $40.60
TM933366M81.2513.090.035.08.06.29.036.8 1-2 Weeks $42.00
TM933396M91.2513.090.035.09.07.010.037.8 No stock $52.60
TM933426M101.515.0100.039.010.08.011.038.5 1-2 Weeks $52.60
TM933466M111.517.0100.040.08.06.29.039.5 No stock $71.00
TM933506M121.7518.0110.044.09.07.010.0310.2 1-2 Weeks $71.00
TM933546M142.020.0110.044.011.09.012.0312.0 1-2 Weeks $90.60
TM933606M162.020.0110.044.012.09.012.0314.0 1-2 Weeks $113.90
TM933656M182.525.0125.050.014.011.014.0415.5 No stock $153.20
TM933706M202.525.0140.054.016.012.015.0417.5 1-2 Weeks $187.80
TM933746M222.525.0140.054.018.014.517.0419.5 No stock $231.40
TM933786M243.030.0160.060.018.014.517.0421.0 No stock $264.00
TM933866M273.030.0160.060.020.016.019.0424.0 No stock $368.00

Add (TM933) HSS-PM, Metric Spiral Flute for Ni to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 TM933 is a bright metric spiral flute machine tap for nickel-alloy threading. Designed for internal ISO metric coarse threads, it taps nickel alloys and heat-resistant alloy steels. These materials are used in aerospace and chemical industry applications. The bright-finish range covers M2 × 0.4 through M20 × 2.5 metric coarse sizes. Sizes M2 to M10 use DIN 371, while supplied larger sizes use DIN 376. Each listed tap provides three flutes, except the M20 × 2.5 variant, which has four. The series supports machining where nickel alloy and heat-resistant alloy steel threads are required. Select the appropriate tap size and tapping drill diameter for the required thread.

  • Bright finish for nickel alloys and heat-resistant alloy steels
  • ISO metric coarse thread form to DIN 13
  • Metric sizes from M2 × 0.4 to M20 × 2.5
  • DIN 371 sizes from M2 to M10
  • DIN 376 sizes from M12 to M20
  • Three flutes on most sizes with four flutes on M20 × 2.5
Product Data
Surface Treatment Bright
Tool Material HSS PM
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TM933136 M2 0.4 8 45 13 2.8 2.1 5 3 TM933156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TM933176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TM933196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TM933206 M3 0.5 6 56 18 3.5 2.7 6 3 TM933226 M3.5 0.6 7 56 20 4 3 6 3 TM933246 M4 0.7 7 63 21 4.5 3.4 6 3 TM933266 M4.5 0.75 8 70 25 6 4.9 8 3 TM933286 M5 0.8 8 70 25 6 4.9 8 3 TM933316 M6 1 10 80 30 6 4.9 8 3 TM933346 M7 1 10 80 30 7 5.5 8 3 TM933366 M8 1.25 13 90 35 8 6.2 9 3 TM933396 M9 1.25 13 90 35 9 7 10 3 TM933426 M10 1.5 15 100 39 10 8 11 3 TM933466 M11 1.5 17 100 40 8 6.2 9 3 TM933496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TM933506 M12 1.75 18 110 44 9 7 10 3 TM933546 M14 2 20 110 44 11 9 12 3 TM933606 M16 2 20 110 44 12 9 12 3 TM933656 M18 2.5 25 125 50 14 11 14 4 TM933706 M20 2.5 25 140 54 16 12 15 4 TM933746 M22 2.5 25 140 54 18 14.5 17 4 TM933786 M24 3 30 160 60 18 14.5 17 4 TM933866 M27 3 30 160 60 20 16 19 4 TM933946 M30 3.5 35 180 70 22 18 21 4

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades
Low-alloy steel
ExcellentVDI 6–9

Superalloys & titanium

6 grades
Heat-resistant superalloys
ExcellentVDI 31–35
Titanium alloys
GoodVDI 37
VDI grade reference10 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
31SHeat-resistant superalloysExcellent20015
32SHeat-resistant superalloysExcellent28030
33SHeat-resistant superalloysExcellent25025
34SHeat-resistant superalloysExcellent35038
35SHeat-resistant superalloysExcellent32034
37STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
