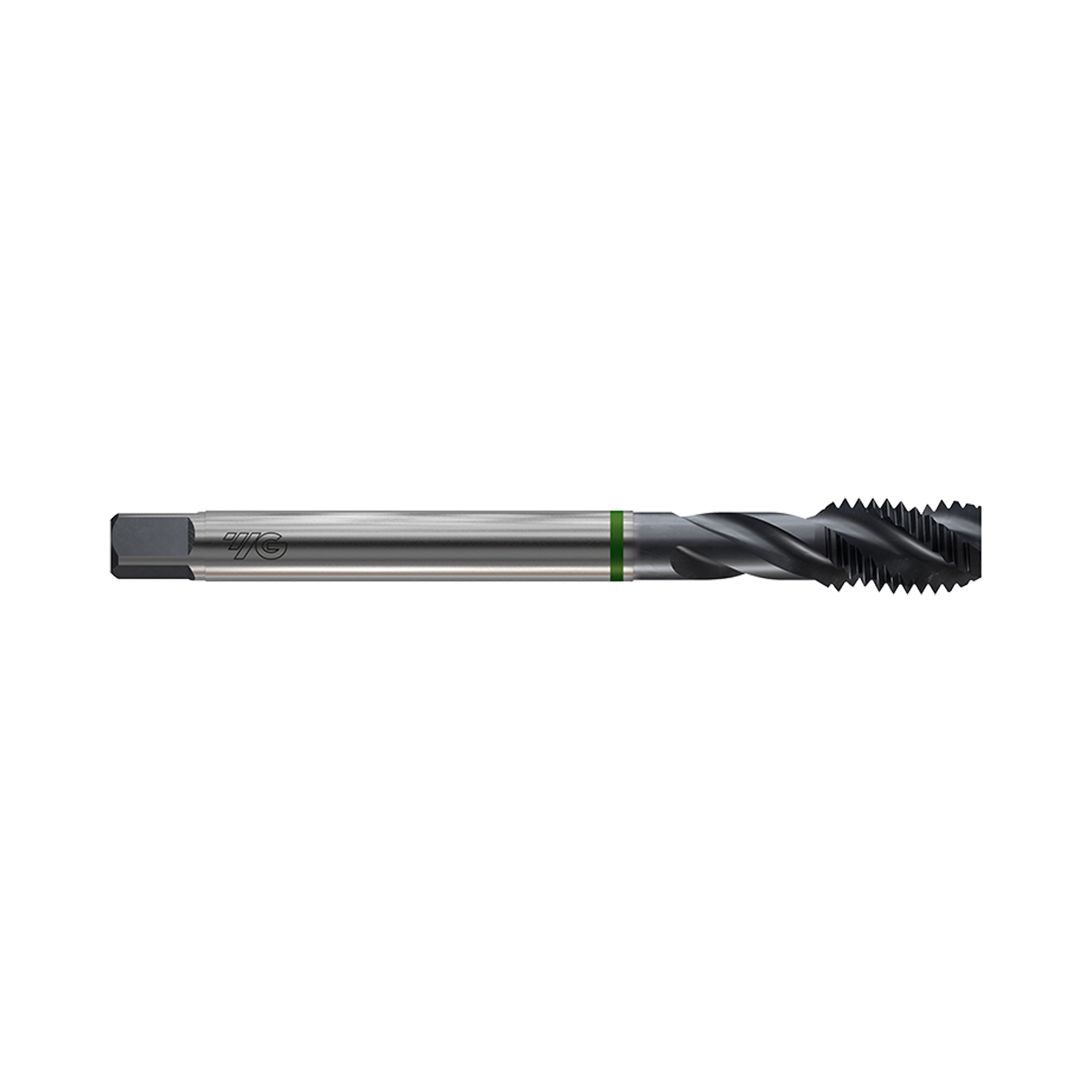

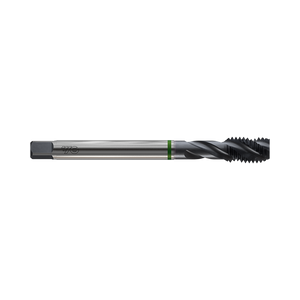

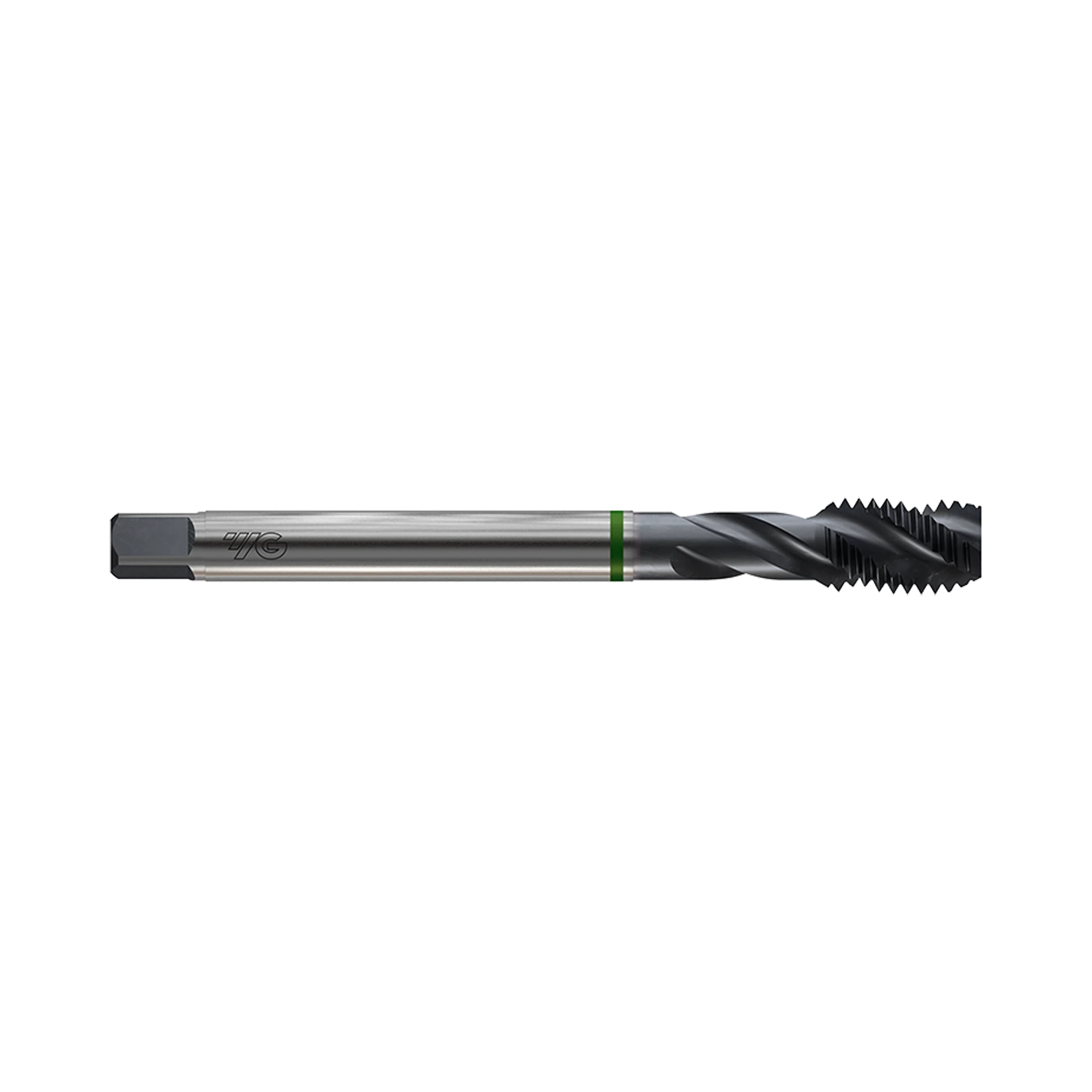

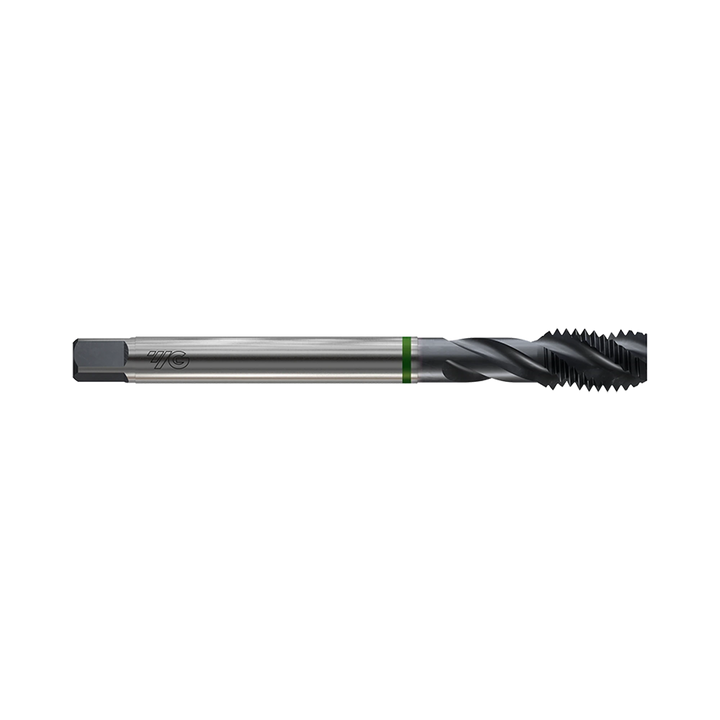

DIN371/DIN376 Spiral Flute Steam Homo (TB904)

DIN371/DIN376 Spiral Flute Steam Homo (TB904)
DIN371/DIN376 Spiral Flute Steam Homo (TB904)
New

DIN371/DIN376 Spiral Flute Steam Homo (TB904)

Product Code: TB904

Thread Class: 2B YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND UNC Thread Shape: UNC YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND STEAM HOMO Surface Treatment: Steam Oxide Coating YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376 YG-1 LEGEND HELIX SQUARE 40 Helix Angle: Square 40°
Buy Local
  • Suitable for tapping blind holes due to special flute geometry and excellent chip evacuation.
Product Data
Workpiece Material P M
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Steam Oxide Coating
Thread Angle 60
Thread Class 2B
Thread Form C
Thread Shape UNC
Tool Material HSS-E
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 Spiral Flute Steam Homo (TB904) to comparison

View Comparison
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB904162 #4 40 6 56 18 3.5 2.7 6 3 TB904202 #5 40 7 56 18 3.5 2.7 6 3 TB904242 #6 32 7 56 20 4 3 6 3 TB904282 #8 32 8 63 21 4.5 3.4 6 3 TB904322 #10 24 10 70 25 6 4.9 8 3 TB904362 #12 24 10 80 30 6 4.9 8 3 TB904402 1/4 20 13 80 30 7 5.5 8 3 TB904442 5/16 18 14 90 35 8 6.2 9 3 TB904482 3/8 16 16 100 39 9 7 10 3 TB904522 7/16 14 17 100 40 8 6.2 9 3 TB904562 1/2 13 20 110 44 9 7 10 3 TB904602 9/16 12 20 110 44 11 9 12 3 TB904642 5/8 11 22 110 44 11 9 12 3 TB904702 3/4 10 25 125 50 14 11 14 4 TB904742 7/8 9 27 140 54 18 14.5 17 4 TB904782 1" 8 35 180 60 22 18 21 4 TB904822 1-1/8 7 35 180 65 22 18 21 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
