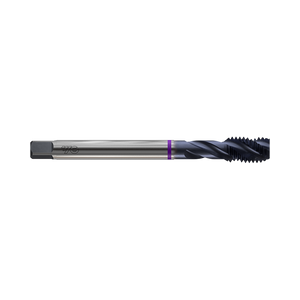

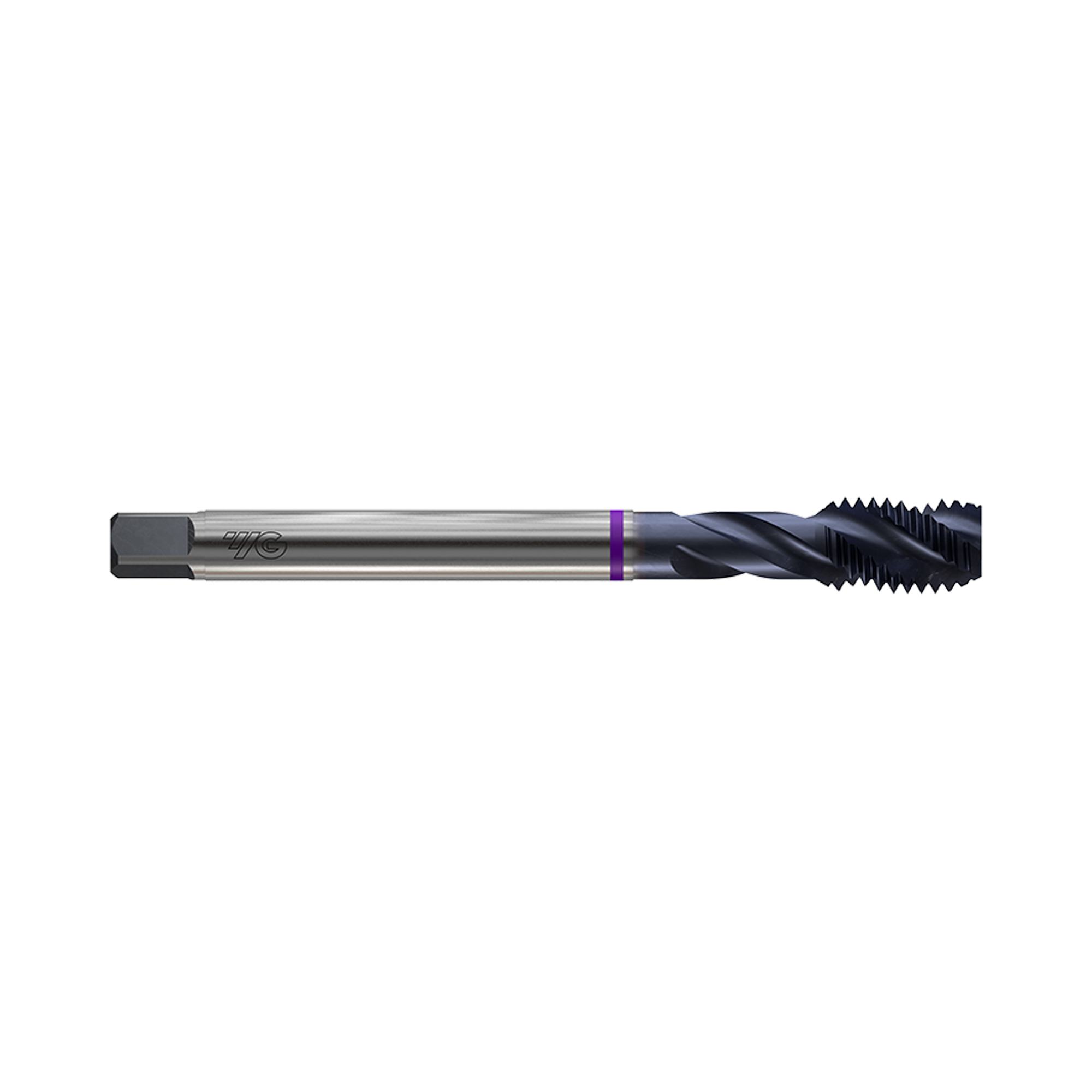

(TZ933) HSS-PM, Metric Spiral Flute for Ni (TiAlN Coated)

TiAlN-Coated Spiral Flute for Nickel Alloys
  • $63.58INC GST $57.80 EX GST
(TZ933) HSS-PM, Metric Spiral Flute for Ni (TiAlN Coated)
(TZ933) HSS-PM, Metric Spiral Flute for Ni (TiAlN Coated)

(TZ933) HSS-PM, Metric Spiral Flute for Ni (TiAlN Coated)

TiAlN-Coated Spiral Flute for Nickel Alloys
  • $63.58INC GST $57.80 EX GST

Code: TZ933136

P S H
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TZ933136M20.48.045.013.02.82.15.031.6 5 days $57.80
TZ933176M2.50.459.050.015.02.82.15.032.05 5 days $50.30
TZ933496M2.60.459.050.015.02.82.15.032.1 5 days $50.30
TZ933206M30.56.056.018.03.52.76.032.5 5 days $43.40
TZ933246M40.77.063.021.04.53.46.033.3 5 days $44.00
TZ933286M50.88.070.025.06.04.98.034.2 5 days $45.60
TZ933316M6110.080.030.06.04.98.035.0 5 days $48.10
TZ933366M81.2513.090.035.08.06.29.036.8 5 days $68.40
TZ933426M101.515.0100.039.010.08.011.038.5 5 days $115.00
TZ933506M121.7518.0110.044.09.07.010.0310.2 5 days $104.00
TZ933546M14220.0110.044.011.09.012.0312.0 5 days $125.40
TZ933606M16220.0110.044.012.09.012.0314.0 5 days $202.90
TZ933656M182.525.0125.050.014.011.014.0415.5 5 days $204.30
TZ933706M202.525.0140.054.016.012.015.0417.5 5 days $228.60
TZ933746M222.525.0140.054.018.014.517.0419.5 5 days $313.40
TZ933786M24330.0160.060.018.014.517.0421.0 5 days $313.10
TZ933866M27330.0160.060.020.016.019.0424.0 5 days $485.20
TZ933946M303.535.0180.070.022.018.021.0426.5 5 days $647.70

Add (TZ933) HSS-PM, Metric Spiral Flute for Ni (TiAlN Coated) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • For tapping Nickel alloys and heat resistant alloy steels which are used in aerospace and checmical industries.
Product Data
Workpiece Material P S H
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Class 6H
Thread Form C
Thread Shape M
Tool Material HSS PM
Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TZ933136 M2 0.4 8 45 13 2.8 2.1 5 3 TZ933156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TZ933176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TZ933196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TZ933206 M3 0.5 6 56 18 3.5 2.7 6 3 TZ933226 M3.5 0.6 7 56 20 4 3 6 3 TZ933246 M4 0.7 7 63 21 4.5 3.4 6 3 TZ933266 M4.5 0.75 8 70 25 6 4.9 8 3 TZ933286 M5 0.8 8 70 25 6 4.9 8 3 TZ933316 M6 1 10 80 30 6 4.9 8 3 TZ933346 M7 1 10 80 30 7 5.5 8 3 TZ933366 M8 1.25 13 90 35 8 6.2 9 3 TZ933396 M9 1.25 13 90 35 9 7 10 3 TZ933426 M10 1.5 15 100 39 10 8 11 3 TZ933466 M11 1.5 17 100 40 8 6.2 9 3 TZ933496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TZ933506 M12 1.75 18 110 44 9 7 10 3 TZ933546 M14 2 20 110 44 11 9 12 3 TZ933606 M16 2 20 110 44 12 9 12 3 TZ933656 M18 2.5 25 125 50 14 11 14 4 TZ933706 M20 2.5 25 140 54 16 12 15 4 TZ933746 M22 2.5 25 140 54 18 14.5 17 4 TZ933786 M24 3 30 160 60 18 14.5 17 4 TZ933866 M27 3 30 160 60 20 16 19 4 TZ933946 M30 3.5 35 180 70 22 18 21 4
Blind Drilling
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Great

Good Great Excellent
S Titanium

Excellent

Good Great Excellent
S Nickel

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TZ933136 M2 0.4 8 45 13 2.8 2.1 5 3 TZ933156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TZ933176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TZ933196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TZ933206 M3 0.5 6 56 18 3.5 2.7 6 3 TZ933226 M3.5 0.6 7 56 20 4 3 6 3 TZ933246 M4 0.7 7 63 21 4.5 3.4 6 3 TZ933266 M4.5 0.75 8 70 25 6 4.9 8 3 TZ933286 M5 0.8 8 70 25 6 4.9 8 3 TZ933316 M6 1 10 80 30 6 4.9 8 3 TZ933346 M7 1 10 80 30 7 5.5 8 3 TZ933366 M8 1.25 13 90 35 8 6.2 9 3 TZ933396 M9 1.25 13 90 35 9 7 10 3 TZ933426 M10 1.5 15 100 39 10 8 11 3 TZ933466 M11 1.5 17 100 40 8 6.2 9 3 TZ933496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TZ933506 M12 1.75 18 110 44 9 7 10 3 TZ933546 M14 2 20 110 44 11 9 12 3 TZ933606 M16 2 20 110 44 12 9 12 3 TZ933656 M18 2.5 25 125 50 14 11 14 4 TZ933706 M20 2.5 25 140 54 16 12 15 4 TZ933746 M22 2.5 25 140 54 18 14.5 17 4 TZ933786 M24 3 30 160 60 18 14.5 17 4 TZ933866 M27 3 30 160 60 20 16 19 4 TZ933946 M30 3.5 35 180 70 22 18 21 4
