(TB623) HSS-E (M35) Metric Gun Point for Stainless Steel

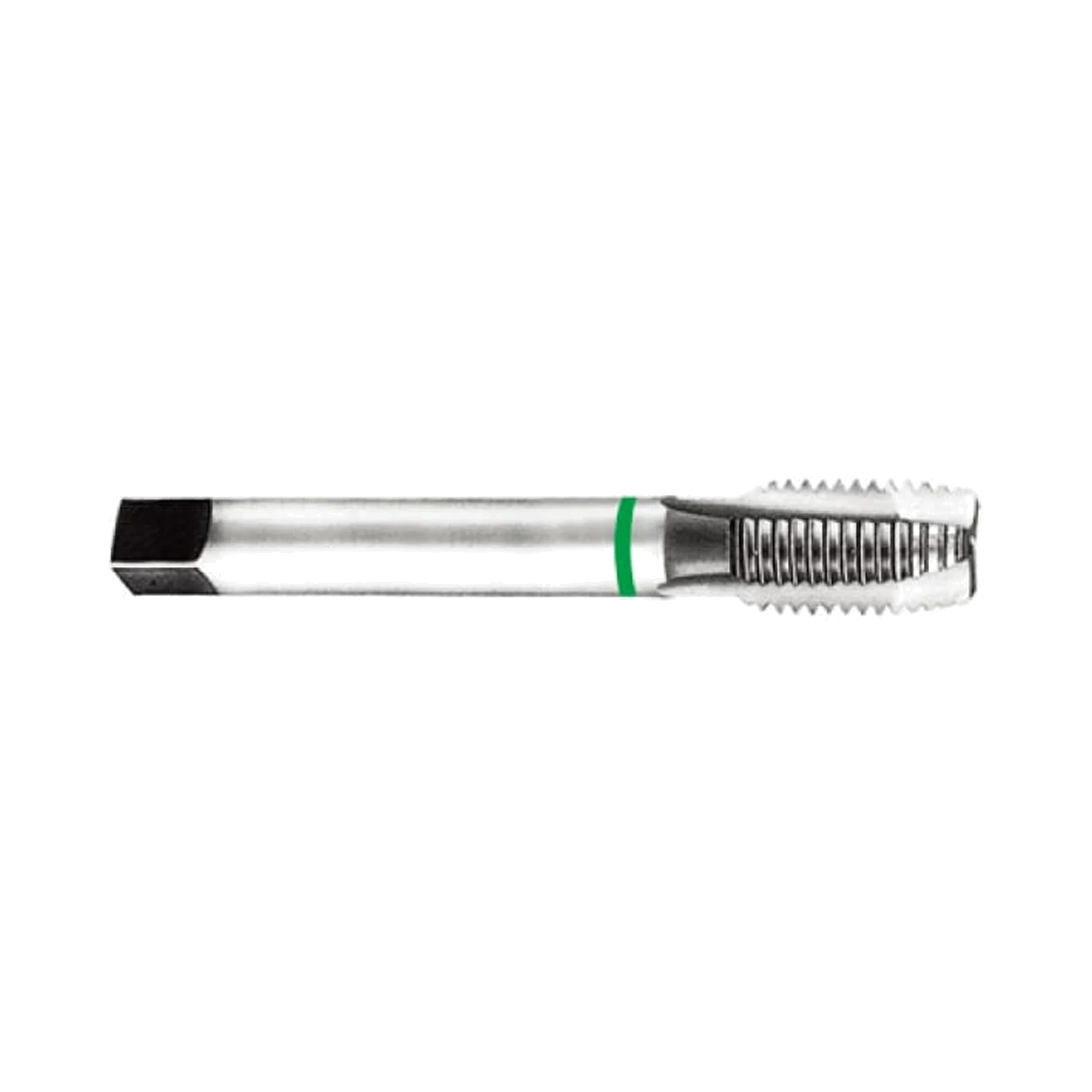

HSS-E spiral point machine tap for stainless steel

(TB623) HSS-E (M35) Metric Gun Point for Stainless Steel
$31.13 INC GST $28.30 EX GST
SKU
TB623136
Work materials
PMS

Key features

  • HSS-E 5% cobalt substrate
  • Spiral point design for through-hole tapping
  • Steam-tempered surface treatment
Tool material HSS-E
Surface treatment Steam Homo
Size
Pitch (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for stainless steel

YG TAP INOX geometry is specified for stainless steel machining applications.

Efficient through-hole tapping

Spiral point geometry suits through holes and supports higher cutting speeds.

Broad metric coverage

Metric coarse sizes from M2 to M30 cover common machine-tapping requirements.

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)CAD filesStock Price Qty Add
TB623136M20.48.045.013.02.82.15.031.6STEPDXF Low stock $28.30
TB623156M2.20.458.045.013.02.82.15.031.75– 1-2 Weeks $28.30
TB623196M2.30.48.045.013.02.82.15.031.9– 1-2 Weeks $28.30
TB623176M2.50.459.050.015.02.82.15.032.05STEPDXF 1-2 Weeks $40.63
TB623206M2.60.459.050.015.02.82.15.032.5– In stock $15.80
TB623206M30.511.056.018.03.52.76.032.1– In stock $15.80
TB623246M3.50.612.056.020.04.03.06.032.9STEPDXF In stock $15.80
TB623266M40.713.063.021.04.53.46.033.3STEPDXF Low stock $17.10
TB623286M4.50.7514.070.025.06.04.98.033.7STEPDXF In stock $15.80
TB623316M50.815.070.025.06.04.98.034.2– In stock $15.80
TB623316M61.017.080.030.06.04.98.035.0– In stock $15.80
TB623366M71.017.080.030.07.05.58.036.0– In stock $21.10
TB623366M81.2520.090.035.08.06.29.036.8– In stock $21.10
TB623426M91.2520.090.035.09.07.010.037.8– In stock $25.40
TB623426M101.522.0100.039.010.08.011.038.5– In stock $25.40
TB623466M111.522.0100.040.08.06.29.039.2– 1-2 Weeks $28.30
TB623506M121.7524.0110.044.09.07.010.0410.2STEPDXF In stock $33.80
TB623546M142.026.0110.044.011.09.012.0412.0STEPDXF In stock $47.30
TB623606M162.027.0110.044.012.09.012.0414.0STEPDXF Restocking $59.40
TB623656M182.530.0125.050.014.011.014.0415.5STEPDXF Low stock $77.70
TB623706M202.532.0140.054.016.012.015.0417.5STEPDXF In stock $95.10
TB623746M222.532.0140.054.018.014.517.0419.5STEPDXF Low stock $111.80
TB623786M243.034.0160.060.018.014.517.0421.0STEPDXF In stock $126.90
TB623866M273.036.0160.060.020.016.019.0424.0STEPDXF Low stock $182.30
TB623946M303.540.0180.070.022.018.021.0426.5STEPDXF Low stock $284.00

Add (TB623) HSS-E (M35) Metric Gun Point for Stainless Steel to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 TB623 is an HSS-E 5% cobalt spiral point INOX machine tap for stainless steel. The steam-tempered Form B design supports through-hole tapping at higher cutting speeds. This metric coarse tap range creates 60-degree internal threads with 6HX tolerance. It is also rated suitable for steel, extending use across common ferrous machining jobs. Metric sizes span M2 to M30 with matching coarse pitches for varied thread requirements. DIN 371 applies from M2 to M10, while DIN 376 covers M11 to M30. Choose this machine tap where reliable through-hole threading in stainless steel is required.

  • HSS-E 5% cobalt substrate
  • Spiral point design for through-hole tapping
  • Steam-tempered surface treatment
  • Form B 60-degree metric coarse thread form
  • 6HX thread tolerance
  • M2 to M30 metric size range
Product Data
Hole Type Through
Standard DIN 371 / 376
Surface Treatment Steam Homo
Thread Angle 60°
Thread Class 6HX
Thread Form B
Thread Shape M
Tool Material HSS-E
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB623136 M2 0.4 8 45 13 2.8 2.1 5 3 TB623156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TB623176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TB623196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TB623206 M3 0.5 11 56 18 3.5 2.7 6 3 TB623226 M3.5 0.6 12 56 20 4 3 6 3 TB623246 M4 0.7 13 63 21 4.5 3.4 6 3 TB623266 M4.5 0.75 14 70 25 6 4.9 8 3 TB623286 M5 0.8 15 70 25 6 4.9 8 3 TB623316 M6 1 17 80 30 6 4.9 8 3 TB623346 M7 1 17 80 30 7 5.5 8 3 TB623366 M8 1.25 20 90 35 8 6.2 9 3 TB623396 M9 1.25 20 90 35 9 7 10 3 TB623426 M10 1.5 22 100 39 10 8 11 3 TB623466 M11 1.5 22 100 39 8 6.2 9 3 TB623496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TB623506 M12 1.75 24 110 44 9 7 10 4 TB623546 M14 2 26 110 44 11 9 12 4 TB623606 M16 2 27 110 44 12 9 12 4 TB623656 M18 2.5 30 125 50 14 11 14 4 TB623706 M20 2.5 32 140 54 16 12 15 4 TB623746 M22 2.5 32 140 54 18 14.5 17 4 TB623786 M24 3 34 160 60 18 14.5 17 4 TB623866 M27 3 36 160 60 20 16 19 4 TB623946 M30 3.5 40 180 70 22 18 21 3

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

5 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3–4
Low-alloy steel
GoodVDI 6

Superalloys & titanium

2 grades
Heat-resistant superalloys
GoodVDI 31
Titanium alloys
GoodVDI 36

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14
VDI grade reference10 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
4PNon-alloy steelGood27028
6PLow-alloy steelGood18010
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
36STitanium alloysGood--

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TB623136 M2 0.4 8 45 13 2.8 2.1 5 3 TB623156 M2.2 0.45 8 45 13 2.8 2.1 5 3 TB623176 M2.5 0.45 9 50 15 2.8 2.1 5 3 TB623196 M2.3 0.4 8 45 13 2.8 2.1 5 3 TB623206 M3 0.5 11 56 18 3.5 2.7 6 3 TB623226 M3.5 0.6 12 56 20 4 3 6 3 TB623246 M4 0.7 13 63 21 4.5 3.4 6 3 TB623266 M4.5 0.75 14 70 25 6 4.9 8 3 TB623286 M5 0.8 15 70 25 6 4.9 8 3 TB623316 M6 1 17 80 30 6 4.9 8 3 TB623346 M7 1 17 80 30 7 5.5 8 3 TB623366 M8 1.25 20 90 35 8 6.2 9 3 TB623396 M9 1.25 20 90 35 9 7 10 3 TB623426 M10 1.5 22 100 39 10 8 11 3 TB623466 M11 1.5 22 100 39 8 6.2 9 3 TB623496 M2.6 0.45 9 50 15 2.8 2.1 5 3 TB623506 M12 1.75 24 110 44 9 7 10 4 TB623546 M14 2 26 110 44 11 9 12 4 TB623606 M16 2 27 110 44 12 9 12 4 TB623656 M18 2.5 30 125 50 14 11 14 4 TB623706 M20 2.5 32 140 54 16 12 15 4 TB623746 M22 2.5 32 140 54 18 14.5 17 4 TB623786 M24 3 34 160 60 18 14.5 17 4 TB623866 M27 3 36 160 60 20 16 19 4 TB623946 M30 3.5 40 180 70 22 18 21 3
