(DH404) Dream Drill 3XD without Coolant Hole, Straight Shank

TiAlN-Coated 3×D Stub Drill Without Coolant Holes

(DH404) Dream Drill 3XD without Coolant Hole, Straight Shank
$27.61 INC GST $25.10 EX GST
SKU
DH404030
Work materials
PMKH

Key features

  • TiAlN-coated solid carbide construction
  • 3×D drilling depth in an extra-short stub format
  • Without coolant holes for general drilling applications
Tool material Carbide
Surface treatment Titanium Aluminium Nitride
Drill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Controlled drill entry

R-thinning supports self-centring action and chip breaking at the point.

Stable cutting action

Wave-shaped cutting edges and negative lands are designed for low thrust and stable torque.

Compact 3×D format

The extra-short straight-shank design provides a compact tool for 3×D drilling depths.

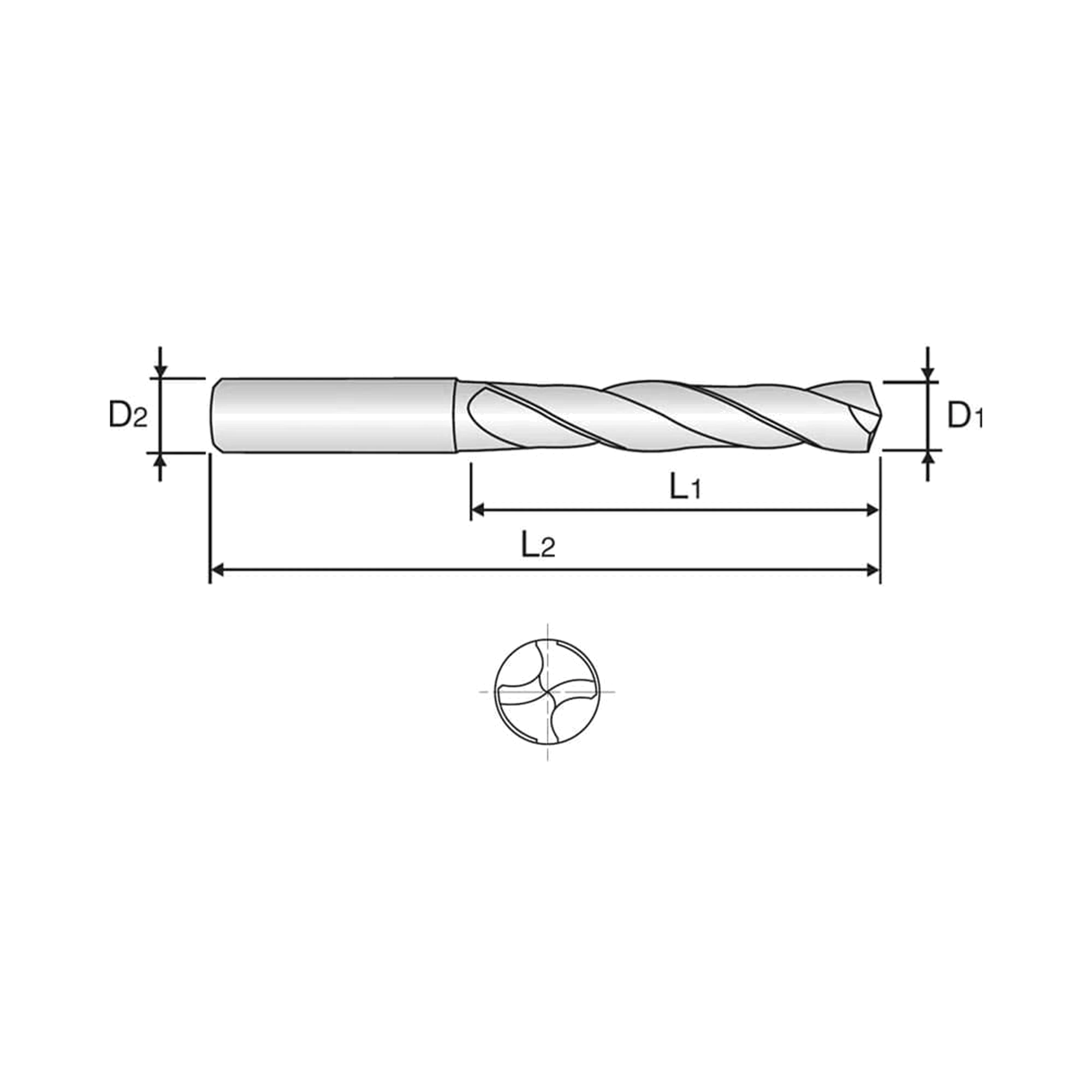

SKUDrill Diameter (mm)Overall length (mm)Flute length (mm)CAD filesStock Price Qty Add
DH4040303.046.016.0STEPDXF In stock $25.10
DH4040313.149.018.0STEPDXF 1-2 Weeks $25.30
DH4040323.249.018.0STEPDXF In stock $25.30
DH4040333.349.018.0STEPDXF In stock $25.30
DH4040343.452.020.0STEPDXF In stock $26.40
DH4040353.552.020.0STEPDXF Low stock $26.40
DH4040363.652.020.0STEPDXF 1-2 Weeks $28.90
DH4040373.752.020.0STEPDXF 1-2 Weeks $28.90
DH4040383.855.022.0STEPDXF 1-2 Weeks $29.30
DH4040393.955.022.0STEPDXF 1-2 Weeks $29.30
DH4040404.055.022.0STEPDXF In stock $29.30
DH4040414.155.022.0STEPDXF 1-2 Weeks $30.30
DH4040424.255.022.0STEPDXF In stock $30.30
DH4040434.358.024.0STEPDXF In stock $31.70
DH4040444.458.024.0STEPDXF 1-2 Weeks $31.70
DH4040454.558.024.0STEPDXF 1-2 Weeks $31.70
DH4040464.658.024.0STEPDXF Low stock $31.70
DH4040474.758.024.0STEPDXF Low stock $33.20
DH4040484.862.026.0STEPDXF In stock $33.20
DH4040494.962.026.0STEPDXF 1-2 Weeks $33.20
DH4040505.062.026.0STEPDXF In stock $33.20
DH4040515.162.026.0STEPDXF In stock $39.90
DH4040525.262.026.0STEPDXF In stock $39.90
DH4040535.362.026.0STEPDXF In stock $39.90
DH4040545.466.028.0STEPDXF 1-2 Weeks $39.90
DH4040555.566.028.0STEPDXF In stock $39.90
DH4040565.666.028.0STEPDXF In stock $41.80
DH4040575.766.028.0STEPDXF Low stock $41.80
DH4040585.866.028.0STEPDXF Low stock $41.80
DH4040595.966.028.0STEPDXF 1-2 Weeks $41.80
DH4040606.066.028.0STEPDXF In stock $41.80
DH4040616.170.031.0STEPDXF In stock $49.90
DH4040626.270.031.0STEPDXF Low stock $50.10
DH4040636.370.031.0STEPDXF 1-2 Weeks $49.90
DH4040646.470.031.0STEPDXF Low stock $49.90
DH4040656.570.031.0STEPDXF In stock $55.10
DH4040666.670.031.0STEPDXF Low stock $63.10
DH4040676.770.031.0STEPDXF 1-2 Weeks $63.10
DH4040686.874.034.0STEPDXF In stock $63.30
DH4040696.974.034.0STEPDXF Low stock $63.30
DH4040707.074.034.0STEPDXF Low stock $62.80
DH4040717.174.034.0STEPDXF In stock $72.40
DH4040727.274.034.0STEPDXF 1-2 Weeks $72.40
DH4040737.374.034.0STEPDXF 1-2 Weeks $72.40
DH4040747.474.034.0STEPDXF In stock $72.40
DH4040757.574.034.0STEPDXF In stock $72.40
DH4040767.679.037.0STEPDXF 1-2 Weeks $79.40
DH4040777.779.037.0STEPDXF 1-2 Weeks $111.40
DH4040787.879.037.0STEPDXF 1-2 Weeks $79.40
DH4040797.979.037.0STEPDXF 1-2 Weeks $79.40
DH4040808.079.037.0STEPDXF In stock $79.40
DH4040818.179.037.0STEPDXF Low stock $93.60
DH4040828.279.037.0STEPDXF Low stock $93.60
DH4040838.379.037.0STEPDXF 1-2 Weeks $93.60
DH4040848.479.037.0STEPDXF 1-2 Weeks $93.60
DH4040858.579.037.0STEPDXF In stock $96.10
DH4040868.684.040.0STEPDXF 1-2 Weeks $101.30
DH4040878.784.040.0STEPDXF In stock $101.30
DH4040888.884.040.0STEPDXF 1-2 Weeks $101.30
DH4040898.984.040.0STEPDXF 1-2 Weeks $101.30
DH4040909.084.040.0STEPDXF In stock $96.90
DH4040919.184.040.0STEPDXF 1-2 Weeks $109.00
DH4040929.284.040.0STEPDXF 1-2 Weeks $109.00
DH4040939.384.040.0STEPDXF 1-2 Weeks $109.00
DH4040949.484.040.0STEPDXF Low stock $109.00
DH4040959.584.040.0STEPDXF In stock $105.50
DH4040969.689.043.0STEPDXF Low stock $112.20
DH4040979.789.043.0STEPDXF Low stock $112.20
DH4040989.889.043.0STEPDXF 1-2 Weeks $112.20
DH4040999.989.043.0STEPDXF 1-2 Weeks $112.20
DH40410010.089.043.0STEPDXF In stock $108.00
DH40410210.289.043.0STEPDXF Low stock $124.90
DH40410510.589.043.0STEPDXF In stock $126.70
DH40410610.689.043.0STEPDXF 1-2 Weeks $138.30
DH40410810.895.047.0STEPDXF 1-2 Weeks $138.30
DH40411011.095.047.0STEPDXF In stock $138.30
DH40411511.595.047.0STEPDXF In stock $158.50
DH40412012.0102.051.0STEPDXF Low stock $177.20
DH40412512.5102.051.0STEPDXF Low stock $218.10
DH40412712.7102.051.0STEPDXF Low stock $229.00
DH40413013.0102.051.0STEPDXF Low stock $218.10
DH40413513.5107.054.0STEPDXF 1-2 Weeks $218.10
DH40414014.0107.054.0STEPDXF 1-2 Weeks $223.50
DH40414514.5111.056.0STEPDXF Low stock $230.40
DH40415015.0111.056.0STEPDXF 1-2 Weeks $235.80
DH40415515.5115.058.0STEPDXF 1-2 Weeks $243.40
DH40416016.0115.058.0STEPDXF 1-2 Weeks $248.80
DH40416516.5119.060.0STEPDXF Low stock $302.50
DH40417017.0119.060.0STEPDXF 1-2 Weeks $302.50
DH40417517.5123.062.0STEPDXF 1-2 Weeks $356.20
DH40418018.0123.062.0STEPDXF Low stock $356.20
DH40418518.5127.064.0STEPDXF 1-2 Weeks $500.80
DH40419019.0127.064.0STEPDXF 1-2 Weeks $403.60
DH40419519.5131.066.0STEPDXF 1-2 Weeks $537.20
DH40420020.0131.066.0STEPDXF Low stock $432.10

Add (DH404) Dream Drill 3XD without Coolant Hole, Straight Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

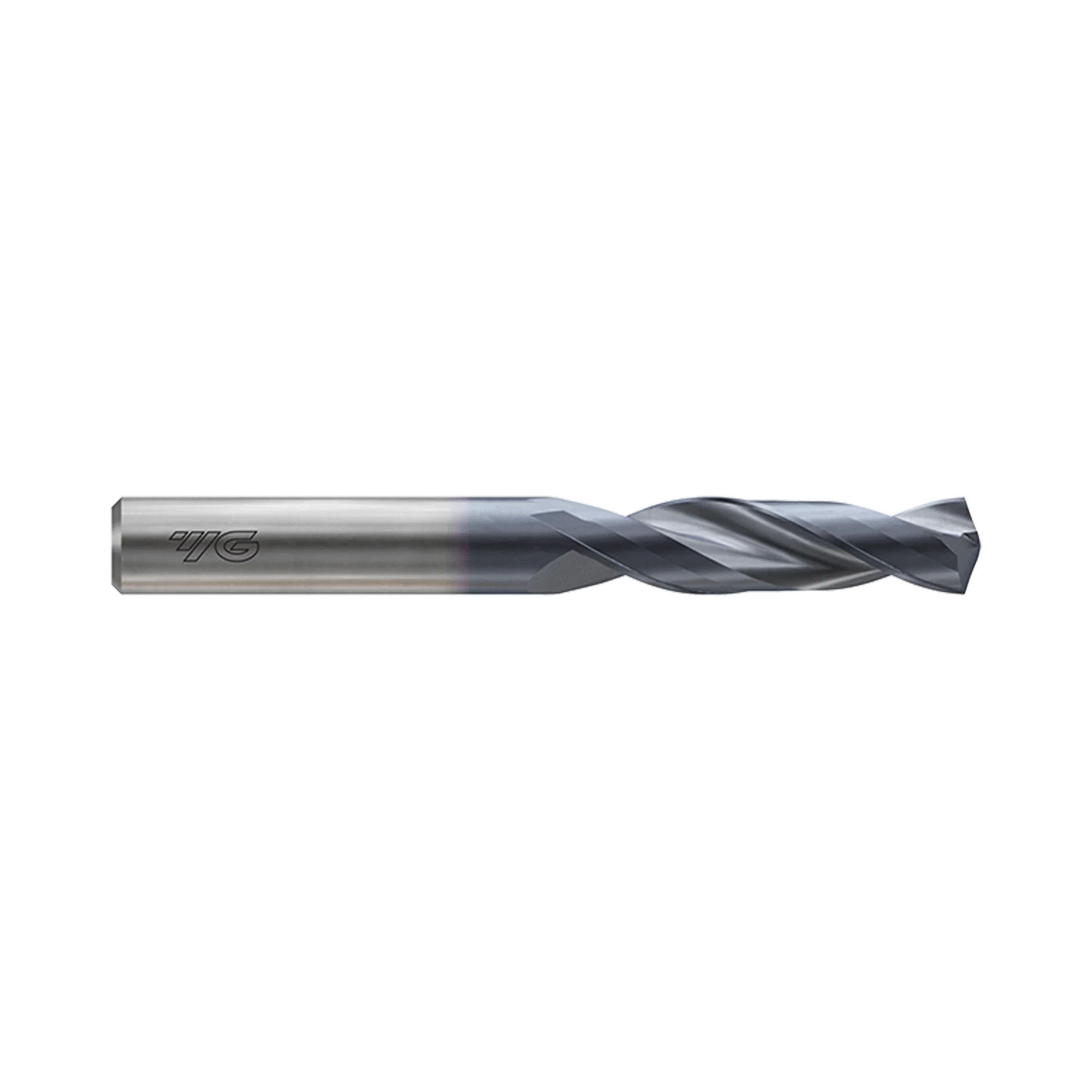

YG-1 DH404 Dream Drill is a TiAlN-coated solid carbide 3×D stub drill without coolant holes. It provides general drilling for steel, cast steel, cast iron and malleable cast iron. R-thinning supports self-centring action and chip breaking at the drill point. Wave-shaped cutting edges and negative lands are designed for low thrust and stable torque. An optimised flute profile supports drilling strength and smooth chip evacuation. The straight-shank extra-short format provides a compact solution for 3×D drilling depths. Metric diameters span 3.0 to 20.0 mm, including fine increments through 10.0 mm. The 140° point geometry is specified throughout the DH404 series.

  • TiAlN-coated solid carbide construction
  • 3×D drilling depth in an extra-short stub format
  • Without coolant holes for general drilling applications
  • R-thinning supports self-centring and chip breaking
  • Wave-shaped cutting edges support low thrust and stable torque
  • 3.0 to 20.0 mm metric diameter range
Product Data
Dimension Tolerance H7
Helix Angle 30­°
Hole Type Blind, Through
Point Angle 140°
Shank Diameter Tolerance
Surface Treatment Titanium Aluminium Nitride, Titanium Aluminium Nitride Coating
Tool Material Carbide
Tool Standard DIN 6539

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

10 grades
Non-alloy steel
ExcellentVDI 2–4
GoodVDI 5
Low-alloy steel
ExcellentVDI 6–7
GoodVDI 8–9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15
GoodVDI 16
Nodular cast iron
ExcellentVDI 17
GoodVDI 18
Malleable cast iron
ExcellentVDI 19
GoodVDI 20

Stainless steel

2 grades
Stainless steel
GoodVDI 12–13

Hardened materials

1 grade
Hardened steel
GoodVDI 38
VDI grade reference19 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelGood30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelGood20015
13MStainless steelGood24023
15KGrey cast ironExcellent18010
16KGrey cast ironGood26026
17KNodular cast ironExcellent1603
18KNodular cast ironGood25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironGood23021
38HHardened steelGood55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
