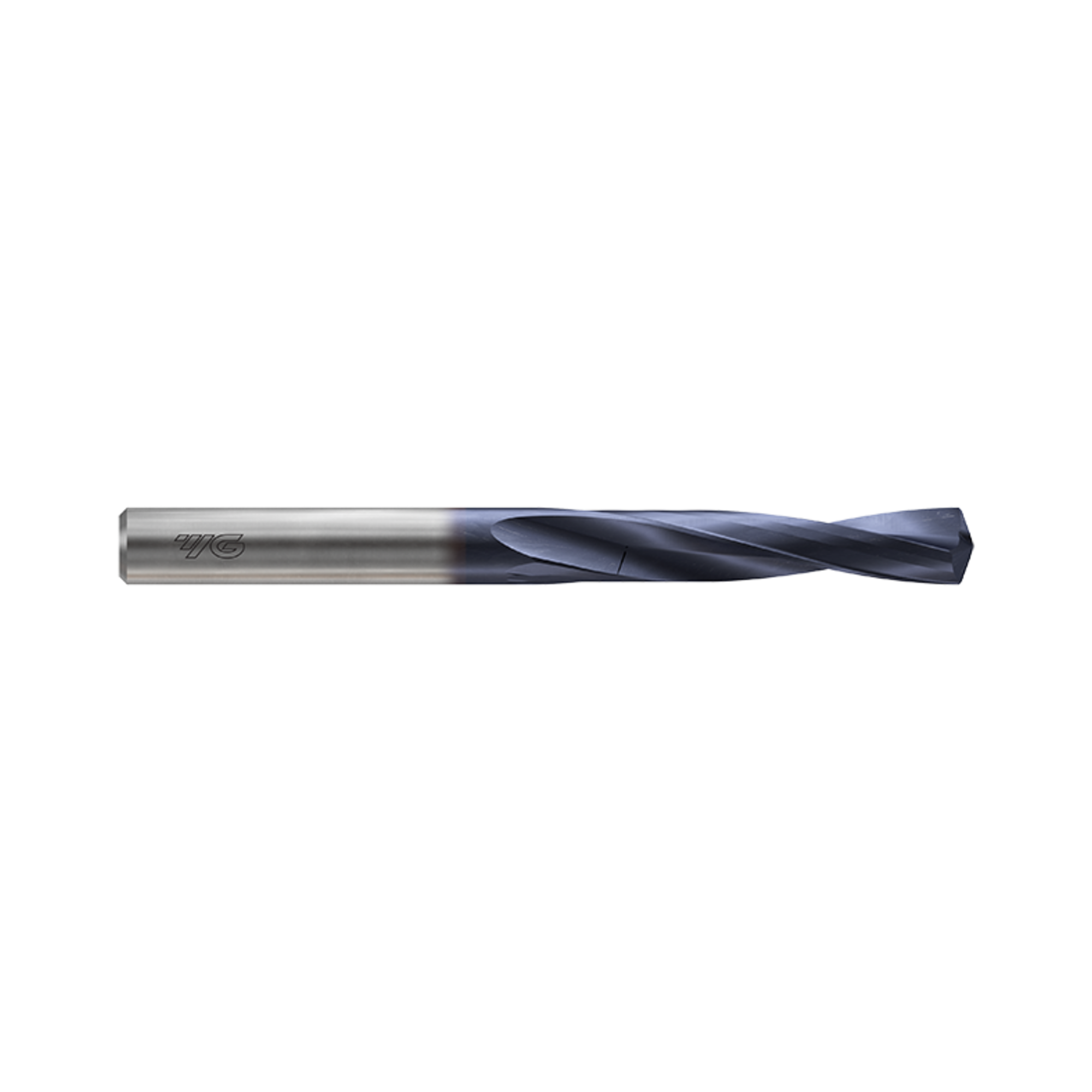

Dream Drill For High Hardened Steel (HRc50~HRc70) 3xD (DH500)

New

Dream Drill For High Hardened Steel (HRc50~HRc70) 3xD (DH500)

Product Code: DH500

YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND MG Tool Material: MG YG-1 LEGEND HELIX 15 Helix Angle: 15° YG-1 LEGEND OD_Tol_h7 Tolerance Grade: H7 YG-1 LEGEND SHANK H6 Shank Type: H6
Buy Local

The YG-1 DH500 Dream Drills are designed for high performance drilling of high hardened steels (HRc50-HRc70). These are self centering and can drill to a h7 tolerance which eliminates any reaming operations, whilst the low 15 degree helix angle maximises the rigidity which is required in hardened steel applications. Diameters range from 2.6-14mm and they are supplied with whole number shanks.

  • Micrograin Carbide Substrate
  • TiAlN Coated High Performance Drill
  • For High Performance Drilling on High Hardened Steel
  • 15 degree Helix to Maximise Rigidity
  • Self Centering with 140 degree Drill Point
  • Eliminates Reaming Operations

Specifications

Drilling Depth 3XD
Length

SHORT
Size Min D2.6
Size Max D14.0
Surface Treatment TiAIN
Product Data
Hardened Steels(HRc40~45) Excellent
Helix Angle 15
Operation Blind Drilling, Through Drilling
Shank Type Plain H6
Surface Treatment Titanium Aluminium Nitride Coating
Tolerance Grade H7
Tool Material MG
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add Dream Drill For High Hardened Steel (HRc50~HRc70) 3xD (DH500) to comparison

View Comparison
EDP No. OutsideDia Connection Size FluteLength OverAllLength DH500010 1 3 6 40 DH500011 1.1 3 6 40 DH500012 1.2 3 6 40 DH500013 1.3 3 8 40 DH500014 1.4 3 8 40 DH500015 1.5 3 8 40 DH500016 1.6 3 10 40 DH500017 1.7 3 10 40 DH500018 1.8 3 10 40 DH500019 1.9 3 10 40 DH500020 2 3 12 42 DH500021 2.1 3 12 42 DH500022 2.2 3 13 43 DH500023 2.3 3 13 43 DH500024 2.4 3 14 44 DH500025 2.5 3 14 44 DH500026 2.6 3 14 44 DH500027 2.7 3 16 46 DH500028 2.8 3 16 46 DH500029 2.9 3 16 46 DH500030 3 3 16 46 DH500031 3.1 4 16 48 DH500032 3.2 4 16 48 DH500033 3.3 4 18 48 DH500034 3.4 4 20 50 DH500035 3.5 4 20 50 DH500036 3.6 4 20 50 DH500037 3.7 4 20 50 DH500038 3.8 4 22 52 DH500039 3.9 4 22 52 DH500040 4 4 22 52 DH500041 4.1 6 25 65 DH500042 4.2 6 25 65 DH500043 4.3 6 28 68 DH500044 4.4 6 28 68 DH500045 4.5 6 28 68 DH500046 4.6 6 28 68 DH500047 4.7 6 28 68 DH500048 4.8 6 32 72 DH500049 4.9 6 32 72 DH500050 5 6 32 72 DH500051 5.1 6 32 72 DH500052 5.2 6 32 72 DH500053 5.3 6 32 72 DH500054 5.4 6 35 75 DH500055 5.5 6 35 75 DH500056 5.6 6 35 75 DH500057 5.7 6 35 75 DH500058 5.8 6 35 75 DH500059 5.9 6 35 75 DH500060 6 6 35 75 DH500061 6.1 8 40 80 DH500062 6.2 8 40 80 DH500063 6.3 8 40 80 DH500064 6.4 8 40 80 DH500065 6.5 8 40 80 DH500066 6.6 8 40 80 DH500067 6.7 8 40 80 DH500068 6.8 8 45 85 DH500069 6.9 8 45 85 DH500070 7 8 45 85 DH500071 7.1 8 45 85 DH500072 7.2 8 45 85 DH500073 7.3 8 45 85 DH500074 7.4 8 45 85 DH500075 7.5 8 45 85 DH500076 7.6 8 50 98 DH500077 7.7 8 50 98 DH500078 7.8 8 50 98 DH500079 7.9 8 50 98 DH500080 8 8 50 98 DH500081 8.1 10 50 98 DH500082 8.2 10 50 98 DH500083 8.3 10 50 98 DH500084 8.4 10 50 98 DH500085 8.5 10 50 98 DH500086 8.6 10 57 105 DH500087 8.7 10 57 105 DH500088 8.8 10 57 105 DH500088 8.8 10 57 105 DH500089 8.9 10 57 105 DH500090 9 10 57 105 DH500091 9.1 10 57 105 DH500092 9.2 10 57 105 DH500093 9.3 10 57 105 DH500094 9.4 10 57 105 DH500095 9.5 10 57 105 DH500096 9.6 10 63 111 DH500097 9.7 10 63 111 DH500098 9.8 10 63 111 DH500099 9.9 10 63 111 DH500100 10 10 63 111 DH500101 10.1 12 63 111 DH500102 10.2 12 63 111 DH500103 10.3 12 63 111 DH500104 10.4 12 63 111 DH500105 10.5 12 63 111 DH500106 10.6 12 63 111 DH500107 10.7 12 71 119 DH500108 10.8 12 71 119 DH500109 10.9 12 71 119 DH500110 11 12 71 119 DH500111 11.1 12 71 119 DH500112 11.2 12 71 119 DH500113 11.3 12 71 119 DH500114 11.4 12 71 119 DH500115 11.5 12 71 119 DH500116 11.5 12 71 119 DH500117 11.7 12 71 119 DH500118 11.8 12 71 119 DH500119 11.9 12 71 119 DH500120 12 12 71 119 DH500121 12.1 14 77 125 DH500122 12.2 14 77 125 DH500123 12.3 14 77 125 DH500124 12.4 14 77 125 DH500125 12.5 14 77 125 DH500126 12.6 14 77 125 DH500127 12.7 14 77 125 DH500128 12.8 14 77 125 DH500129 12.9 14 77 125 DH500130 13 14 77 125 DH500131 13.1 14 77 125 DH500132 13.2 14 77 125 DH500133 13.3 14 77 125 DH500134 13.4 14 77 125 DH500135 13.5 14 77 125 DH500136 13.6 14 77 125 DH500137 13.7 14 77 125 DH500138 13.8 14 77 125 DH500139 13.9 14 77 125 DH500140 14 14 77 125 DH500141 14.1 16 83 133 DH500142 14.2 16 83 133 DH500143 14.3 16 83 133 DH500144 14.4 16 83 133 DH500145 14.5 16 83 133 DH500146 14.6 16 83 133 DH500147 14.7 16 83 133 DH500148 14.8 16 83 133 DH500149 14.9 16 83 133 DH500150 15 16 83 133 DH500151 15.1 16 83 133 DH500152 15.2 16 83 133 DH500153 15.3 16 83 133 DH500154 15.4 16 83 133 DH500155 15.5 16 83 133 DH500156 15.6 16 83 133 DH500157 15.7 16 83 133 DH500158 15.8 16 83 133 DH500159 15.9 16 83 133 DH500160 16 16 83 133 DH500165 16.5 18 93 143 DH500170 17 18 93 143 DH500175 17.5 18 93 143 DH500180 18 18 93 143 DH500185 18.5 20 95 153 DH500190 19 20 95 153 DH500195 19.5 20 95 153 DH500200 20 20 95 153

Operation

Blind Drilling
Through Drilling

Work Material

H Hardened Steels (HRc40~45)

Excellent

Good Great Excellent
