(DH510) Dream Drill MQL Type With Coolant Hole 10XD

10×D MQL coolant-hole solid-carbide drills

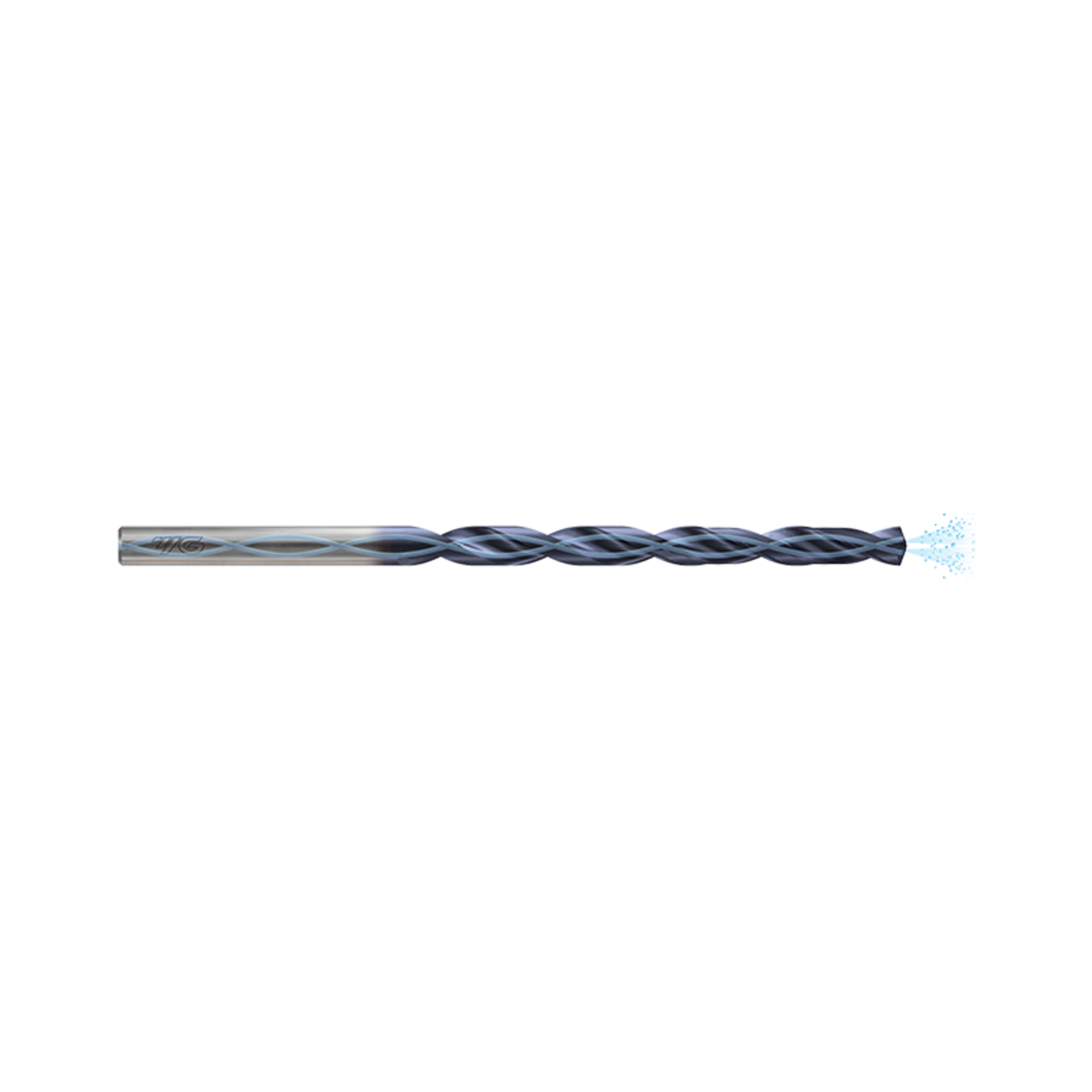

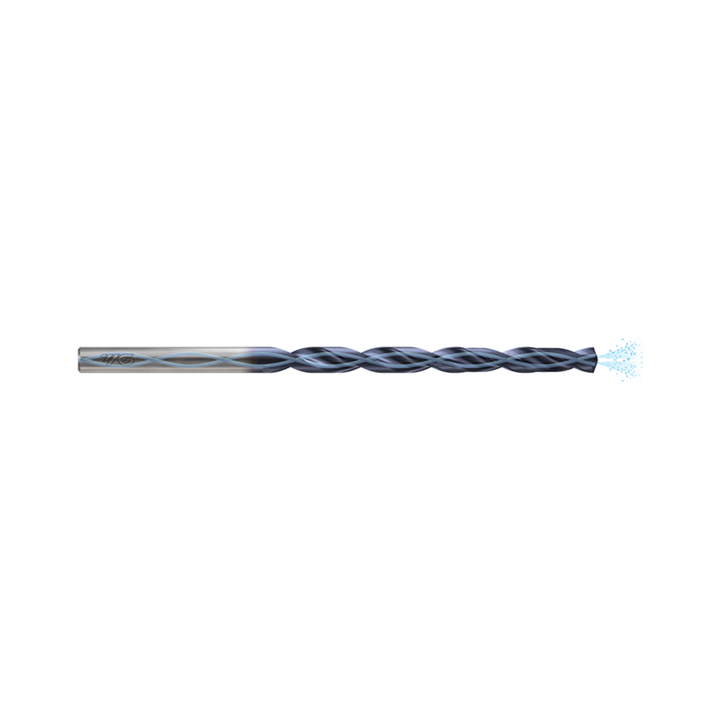

YG-1 DH510 official product photograph · transparent
$205.70 INC GST $187.00 EX GST
SKU
DH510030
Work materials
PK

Key features

  • 10×D TiAlN-coated solid-carbide drill design
  • MQL-compatible construction with coolant holes
  • 140-degree four-facet point for centring capability
Tool material Carbide
Surface treatment Titanium Aluminium Nitride
Drill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Built for MQL drilling

MQL compatibility and coolant holes support deep-hole drilling processes.

Improved chip flow

Polished special flutes help remove chips through long drilling depths.

Accurate hole starts

The 140-degree four-facet point supports good centring capability.

SKUDrill Diameter (mm)Overall length (mm)Shank dia. (mm)Flute length (mm)CAD filesStock Price Qty Add
DH5100303.090.03.039.0STEPDXF In stock $187.00
DH5100333.397.04.046.0STEPDXF 1-2 Weeks $187.00
DH5100353.597.04.046.0STEPDXF 1-2 Weeks $187.00
DH5100404.0103.04.052.0STEPDXF 1-2 Weeks $245.90
DH5100424.2112.05.059.0STEPDXF 1-2 Weeks $255.00
DH5100454.5112.05.059.0STEPDXF 1-2 Weeks $255.00
DH5100505.0118.05.065.0STEPDXF 1-2 Weeks $255.00
DH5100555.5127.06.072.0STEPDXF 1-2 Weeks $255.00
DH5100606.0133.06.078.0STEPDXF In stock $287.00
DH5100656.5141.07.085.0STEPDXF 1-2 Weeks $307.53
DH5100686.8147.07.091.0STEPDXF 1-2 Weeks $288.80
DH5100707.0147.07.091.0STEPDXF 1-2 Weeks $272.30
DH5100757.5155.08.098.0STEPDXF 1-2 Weeks $363.00
DH5100808.0161.08.0104.0STEPDXF Low stock $320.40
DH5100858.5169.09.0111.0STEPDXF Low stock $320.40
DH5100909.0175.09.0117.0STEPDXF Low stock $320.40
DH5100959.5182.010.0124.0STEPDXF 1-2 Weeks $320.40
DH51010010.0188.010.0130.0STEPDXF Low stock $338.90
DH51010510.5201.011.0137.0STEPDXF 1-2 Weeks $640.50
DH51011011.0207.011.0143.0STEPDXF 1-2 Weeks $598.71
DH51011511.5215.012.0150.0STEPDXF 1-2 Weeks $640.50
DH51012012.0221.012.0156.0STEPDXF Low stock $444.30
DH51012512.5229.013.0163.0STEPDXF 1-2 Weeks $513.90
DH51013013.0235.013.0169.0STEPDXF 1-2 Weeks $565.31
DH51013513.5243.014.0176.0STEPDXF 1-2 Weeks $867.40
DH51014014.0249.014.0182.0STEPDXF 1-2 Weeks $633.20

Add (DH510) Dream Drill MQL Type With Coolant Hole 10XD to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 DH510 Dream Drills are 10×D solid-carbide MQL coolant-hole drills with TiAlN coating. Designed for deep-hole drilling, they support MQL machining in ISO P, M and K materials. The 140-degree four-facet point promotes reliable centring when starting holes. Optimised special flutes assist chip removal during productive long-reach drilling operations. Polished flutes work with the TiAlN nano-layer full coating to enhance chip evacuation. Coolant holes provide the internal coolant feature specified for this MQL drill design. This extra-long drill family is intended for applications requiring a 10×D drilling depth. Available diameters run from 3.0 to 14.0 mm within the DH510 series.

  • 10×D TiAlN-coated solid-carbide drill design
  • MQL-compatible construction with coolant holes
  • 140-degree four-facet point for centring capability
  • Optimised special flutes for chip removal
  • Polished flutes enhance chip evacuation
  • 3.0 to 14.0 mm diameter range
Product Data
Coolant Supply Pressure 20 Bar
Dimension Tolerance H7
Helix Angle 30­°
Hole Type Blind, Through
Point Angle 140°
Shank Diameter Tolerance
Surface Treatment Titanium Aluminium Nitride, Titanium Aluminium Nitride Coating
Tool Material Carbide
EDP No. OutsideDia Connection Size FluteLength OverAllLength DH510008F 3.175 4 46 97 DH510016F 6.35 7 85 141 DH510017F 6.746 7 91 147 DH510018F 7.142 8 98 155 DH510019F 7.541 8 104 161 DH510020F 7.938 8 104 161 DH510021F 8.334 9 111 169 DH510022F 8.733 9 117 175 DH510023F 9.129 10 124 182 DH510024F 9.525 10 130 188 DH510025F 9.921 10 130 188 DH510026F 10.318 11 137 201 DH510027F 10.716 11 143 207 DH510028F 11.113 12 150 215 DH510029F 11.509 12 156 221 DH510030 3 3 39 90 DH510030F 11.908 12 156 221 DH510031 3.1 4 46 97 DH510031F 12.304 13 163 229 DH510032 3.2 4 46 97 DH510033 3.3 4 46 97 DH510034 3.4 4 46 97 DH510035 3.5 4 46 97 DH510036 3.6 4 52 103 DH510037 3.7 4 52 103 DH510038 3.8 4 52 103 DH510039 3.9 4 52 103 DH510040 4 4 52 103 DH510041 4.1 5 59 112 DH510042 4.2 5 59 112 DH510043 4.3 5 59 112 DH510044 4.4 5 59 112 DH510045 4.5 5 59 112 DH510046 4.6 5 65 118 DH510047 4.7 5 65 118 DH510048 4.8 5 65 118 DH510049 4.9 5 65 118 DH510050 5 5 65 118 DH510051 5.1 6 72 127 DH510052 5.2 6 72 127 DH510053 5.3 6 72 127 DH510054 5.4 6 72 127 DH510055 5.5 6 72 127 DH510056 5.6 6 78 133 DH510057 5.7 6 78 133 DH510058 5.8 6 78 133 DH510059 5.9 6 78 133 DH510060 6 6 78 133 DH510061 6.1 7 85 141 DH510062 6.2 7 85 141 DH510063 6.3 7 85 141 DH510064 6.4 7 85 141 DH510065 6.5 7 85 141 DH510066 6.6 7 91 147 DH510067 6.7 7 91 147 DH510068 6.8 7 91 147 DH510069 6.9 7 91 147 DH510070 7 7 91 147 DH510071 7.1 8 98 155 DH510072 7.2 8 98 155 DH510073 7.3 8 98 155 DH510074 7.4 8 98 155 DH510075 7.5 8 98 155 DH510076 7.6 8 104 161 DH510077 7.7 8 104 161 DH510078 7.8 8 104 161 DH510079 7.9 8 104 161 DH510080 8 8 104 161 DH510081 8.1 9 111 169 DH510082 8.2 9 111 169 DH510083 8.3 9 111 169 DH510084 8.4 9 111 169 DH510085 8.5 9 111 169 DH510086 8.6 9 117 175 DH510087 8.7 9 117 175 DH510088 8.8 9 117 175 DH510089 8.9 9 117 175 DH510090 9 9 117 175 DH510091 9.1 10 117 182 DH510092 9.2 10 124 182 DH510093 9.3 10 124 182 DH510094 9.4 10 124 182 DH510095 9.5 10 124 182 DH510096 9.6 10 130 188 DH510097 9.7 10 130 188 DH510098 9.8 10 130 188 DH510099 9.9 10 130 188 DH510100 10 10 130 188 DH510101 10.1 11 137 201 DH510102 10.2 11 137 201 DH510103 10.3 11 137 201 DH510104 10.4 11 137 201 DH510105 10.5 11 137 201 DH510106 10.6 11 143 207 DH510107 10.7 11 143 207 DH510108 10.8 11 143 207 DH510109 10.9 11 143 207 DH510110 11 11 143 207 DH510111 11.1 12 150 215 DH510112 11.2 12 150 215 DH510113 11.3 12 150 215 DH510114 11.4 12 150 215 DH510115 11.5 12 150 215 DH510116 11.6 12 156 221 DH510117 11.7 12 156 221 DH510118 11.8 12 156 221 DH510119 11.9 12 156 221 DH510120 12 12 156 221 DH510121 12.1 13 163 229 DH510122 12.2 13 163 229 DH510123 12.3 13 163 229 DH510124 12.4 13 163 229 DH510125 12.5 13 163 229 DH510126 12.6 13 169 235 DH510127 12.7 13 169 235 DH510128 12.8 13 169 235 DH510129 12.9 13 169 235 DH510130 13 13 169 235 DH510131 13.1 14 176 243 DH510132 13.2 14 176 243 DH510133 13.3 14 176 243 DH510134 13.4 14 176 243 DH510135 13.5 14 176 243 DH510136 13.6 14 182 249 DH510137 13.7 14 182 249 DH510138 13.8 14 182 249 DH510139 13.9 14 182 249 DH510140 14 14 182 249 DH510206L 6.528 7 91 147 DH510209L 6.909 7 91 147 DH510217L 8.433 9 111 169 DH510221L 9.347 10 124 182

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

8 grades
Non-alloy steel
ExcellentVDI 1–2
GoodVDI 3
Low-alloy steel
ExcellentVDI 6
GoodVDI 7–8
High-alloy and tool steel
GoodVDI 10–11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15
GoodVDI 16
Nodular cast iron
ExcellentVDI 17
GoodVDI 18
Malleable cast iron
ExcellentVDI 19
GoodVDI 20
VDI grade reference14 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelGood25025
6PLow-alloy steelExcellent18010
7PLow-alloy steelGood27529
8PLow-alloy steelGood30032
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelGood32535
15KGrey cast ironExcellent18010
16KGrey cast ironGood26026
17KNodular cast ironExcellent1603
18KNodular cast ironGood25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironGood23021

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
