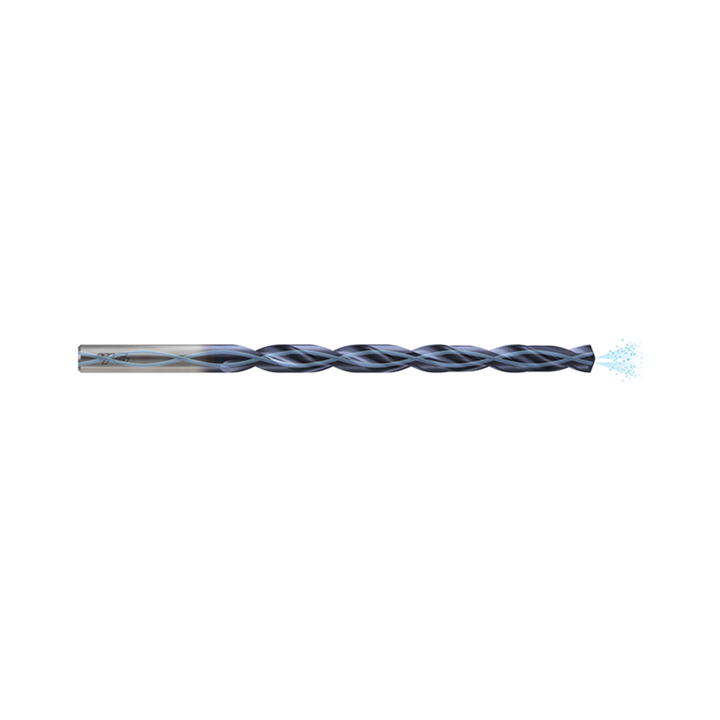

Dream DRILLS MQL Type End Mill Shank 10XD with Coolant Hole (DHM10)
TiAlN-Coated Deep Steel Drilling 10×DCode: DHM10030
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
Add Dream DRILLS MQL Type End Mill Shank 10XD with Coolant Hole (DHM10) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Reviews
Product Description
The YG-1 DHM10 MQL Type Carbide Dream Drills are designed for long length 15xD high performance drilling of Steel (also suitable for Cast Iron). These through coolant drills are self centering and can drill to a h7 tolerance which eliminates any reaming operations. Diameters range from 3-12mm and they are supplied with whole number shanks.
- Micrograin Carbide Substrate
- MQL Type 10xD Long Length Drill
- For deep hole drilling on steel
- Long tool life, high penetration rates and good chip removal
- Self centering with 140 degree drill point
- Through coolant
- Eliminates reaming operations
- Always use with a 5 Micron (or less) Run-Out Tool Holder
Specifications
| Drilling Depth | 10XD |
| Length |
EXTRA LONG |
| Size Min | D3.0 |
| Size Max | D14.0 |
| Surface Treatment | TiAIN |
Product Data
| Workpiece Material | P K |
| Helix Angle | 30 |
| Operation | Blind Drilling, Through Drilling |
| Shank Type | Plain H6 |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tolerance Grade | H7 |
| Tool Material | MG |
| Toolholder Coolant | 20-Bar |
Blind Drilling
Through Drilling
Carbon Steels
Excellent
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Structural Steels
Excellent
Good
Great
Excellent
Tool Steels
Great
Good
Great
Excellent
Cast Iron
Excellent
Good
Great
Excellent
