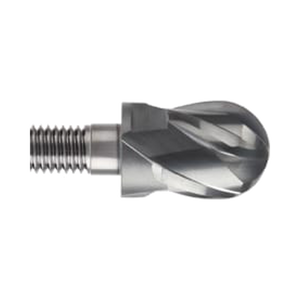

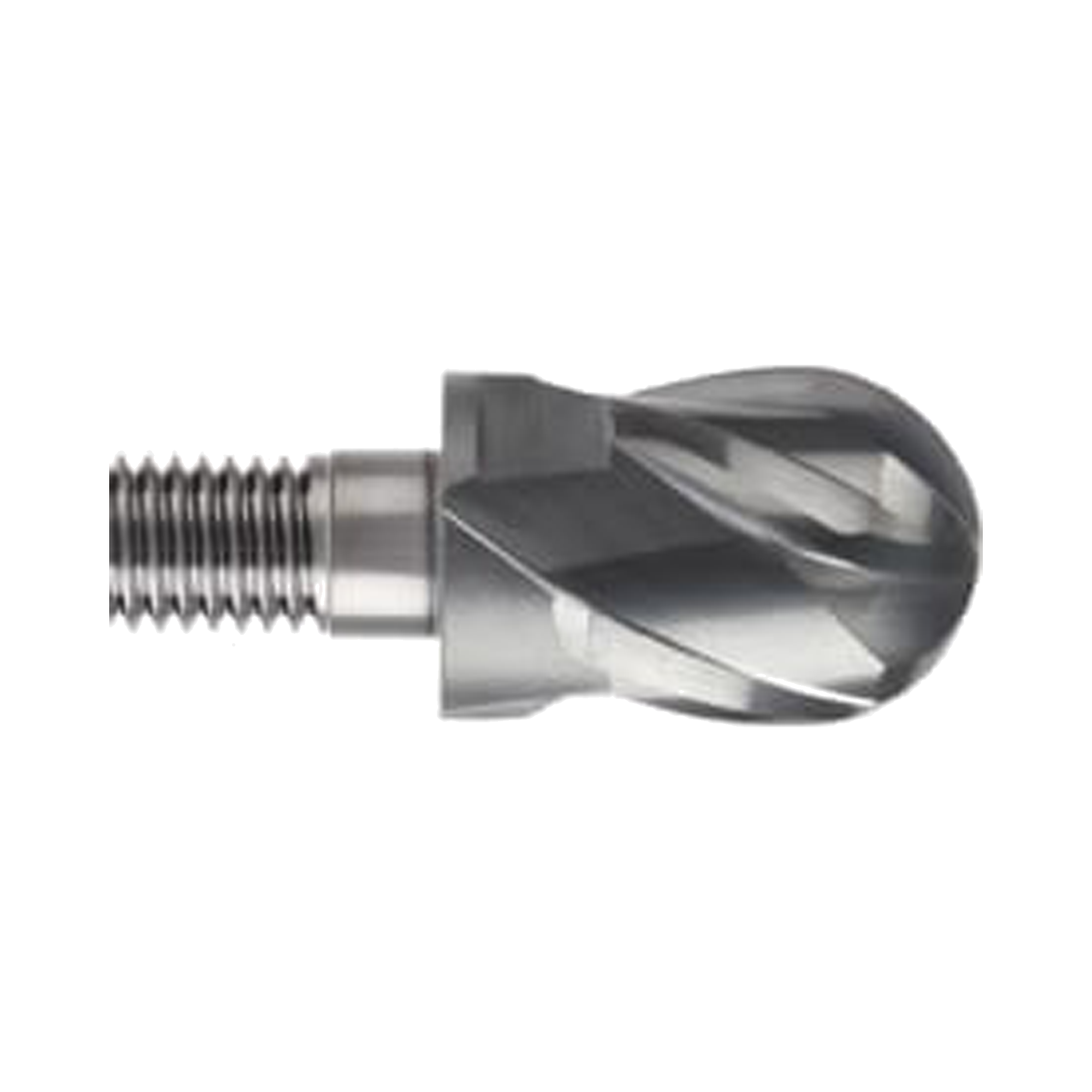

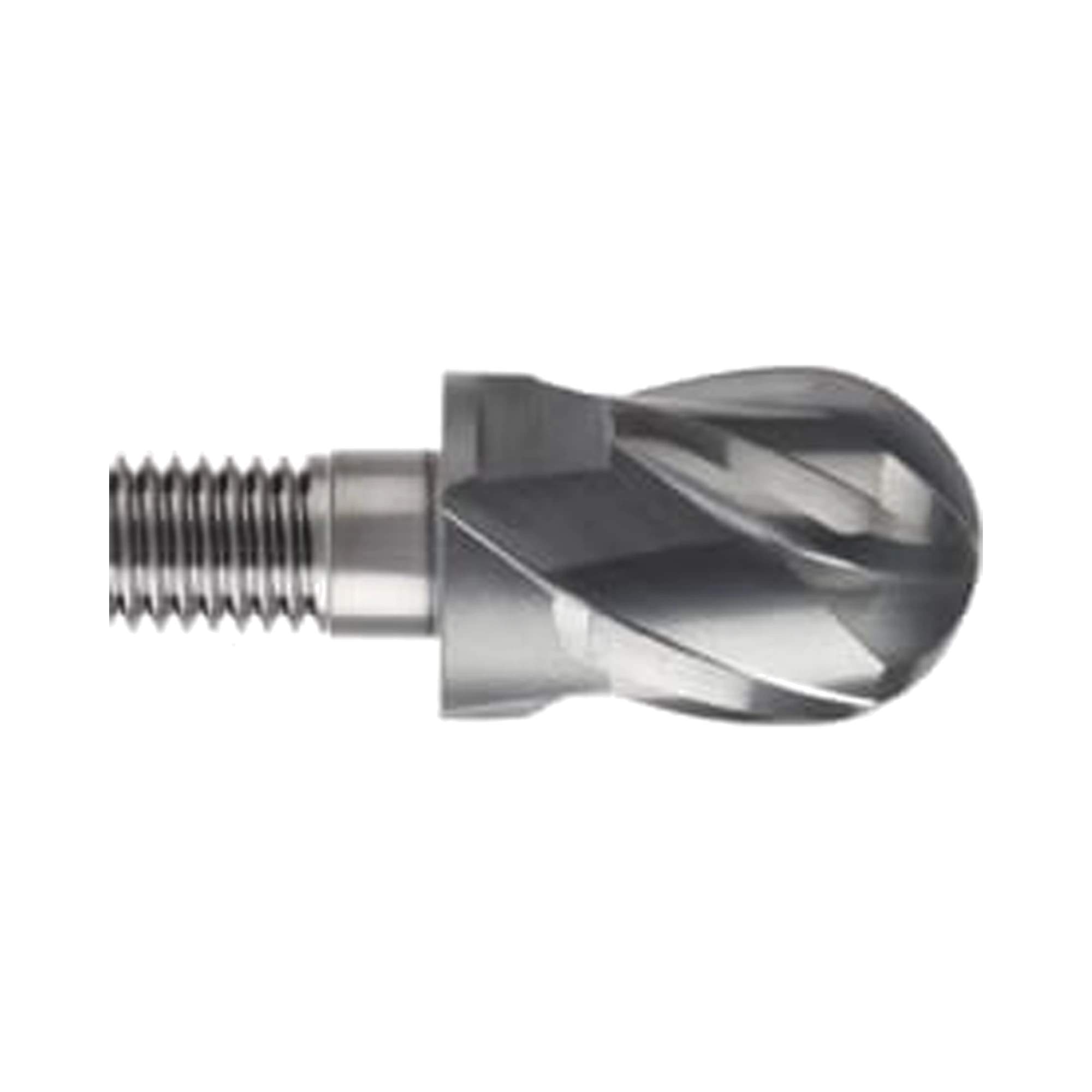

(XSEME60) i-Smart 4G Mill, Modular Head, 4Flute Ball Nose End Mill
Code: XSEME60100
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
Add (XSEME60) i-Smart 4G Mill, Modular Head, 4Flute Ball Nose End Mill to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description

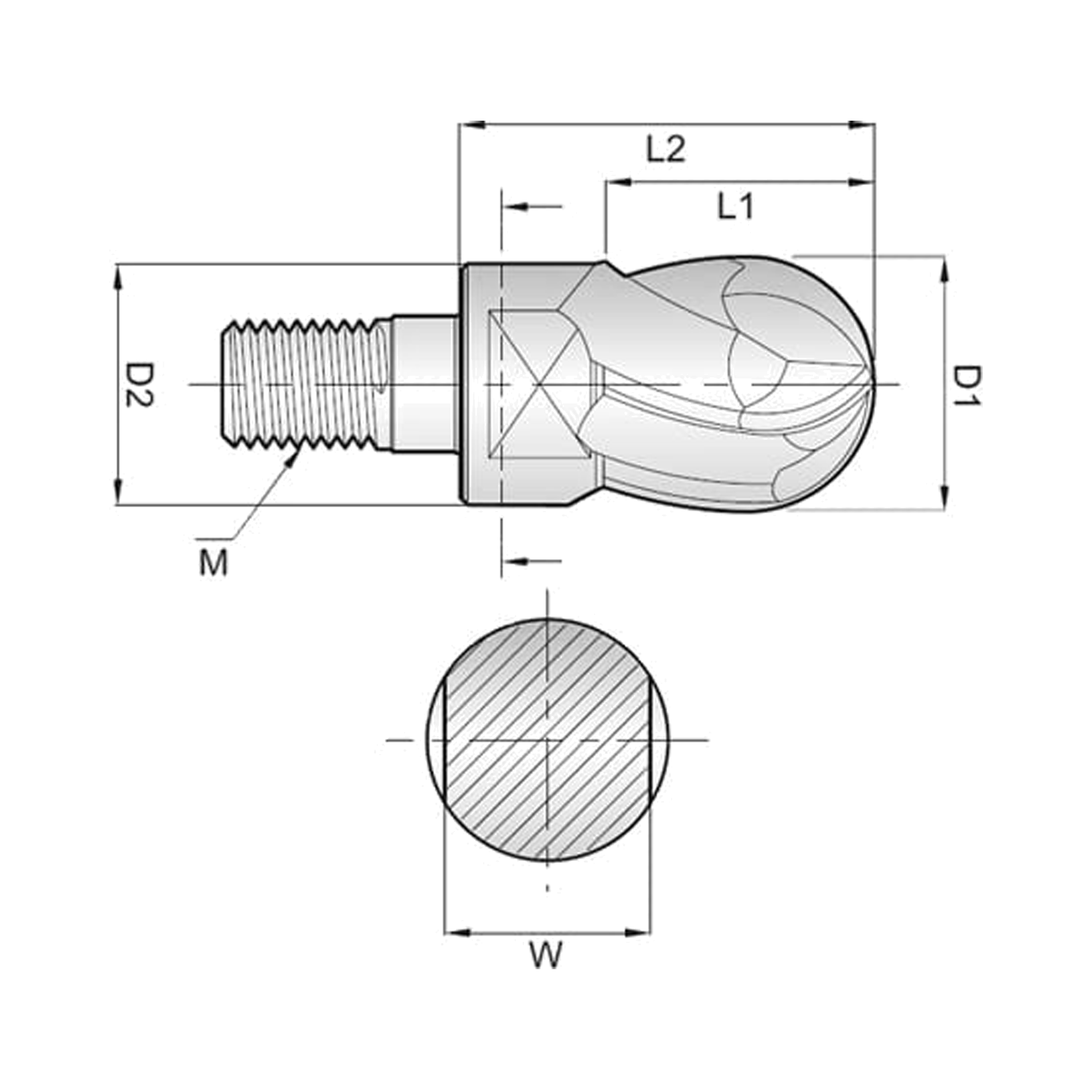

The XSEME60 series modular head is designed for ranges in diameter from 10-32mm, has a ball nose geometry with diameters from R5-R16mm and a 30° helix. The centre match geometry allows for high feed machining. These heads are suitable for use with i-Smart modular holders and high speed machining of steel
- 4 Flute 30° Helix.
- Ball nose geometry with radius from R5-R16.
- High feed machining with centre match geometry.
- Change the carbide head on the machine, no need to reset tool length.
- Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
- Quick change replaceable heads - multiple head size and styles with just 1 holder.
- High Speed Machining (HSC).
- High precision.
- Large cost savings compared to solid carbide tools.
- High precision head location.
- Reduced machine downtime.
- YG-1 provides high accuracy and performance at an economical price.
Product Data
| Workpiece Material | P K H |
| Ball Radius Tolerance | 0.01 |
| Cutting Shape | Ball Nose |
| Hardened Steels(HRc40~45) | Excellent |
| Helix Angle | Ball Nose 30 |
| No. Flutes | 4 |
| Operation | Profiling, Side Milling |
| Surface Treatment | YG-1 Y Coating |
| Tool Material | Carbide |
| Type | Center Match |
| Flutes | 4 |
| Helix Angle | 30° |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R5.0 |
| Size Max | R16.0 |
| Length | CENTER MATCH |
| Coating | Y-Coating |
Profiling
Side Milling
Carbon Steels
Great
Good
Great
Excellent
Alloy Steels
Excellent
Good
Great
Excellent
Prehardened Steels
Excellent
Good
Great
Excellent
Cast Iron
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Excellent
Good
Great
Excellent
Hardened Steels (HRc45~55)
Great
Good
Great
Excellent
High Hardened Steels (HRc55~70)
Great
Good
Great
Excellent
No VDI recommendations set for this product.
