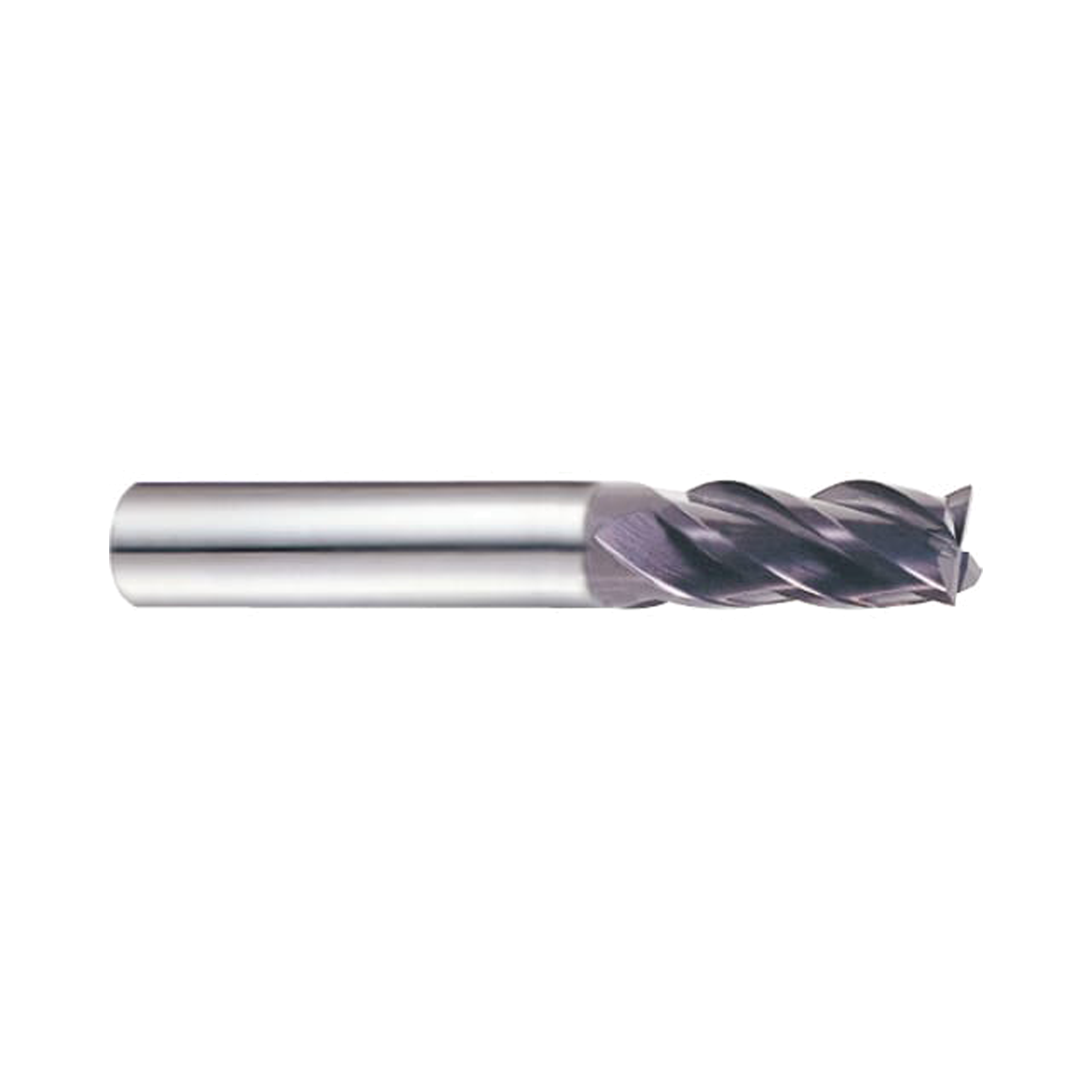

(EH913) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Plain Shank

Plain Shank 4 Flute for Stainless & Titanium

(EH913) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Plain Shank
$40.37 INC GST $36.70 EX GST
SKU
EH913020
Work materials
PMSH

Key features

  • Suited to Titanium Inconel Hastelloy Stainless Steel and steels under HRc45
  • Inox geometry with reinforced edges reduces corner chipping
  • TiALN coated ultrafine micrograin carbide for HSC
Tool material Carbide
Surface treatment Titanium Aluminium Nitride Coating
Mill Diameter (mm)
Shank Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

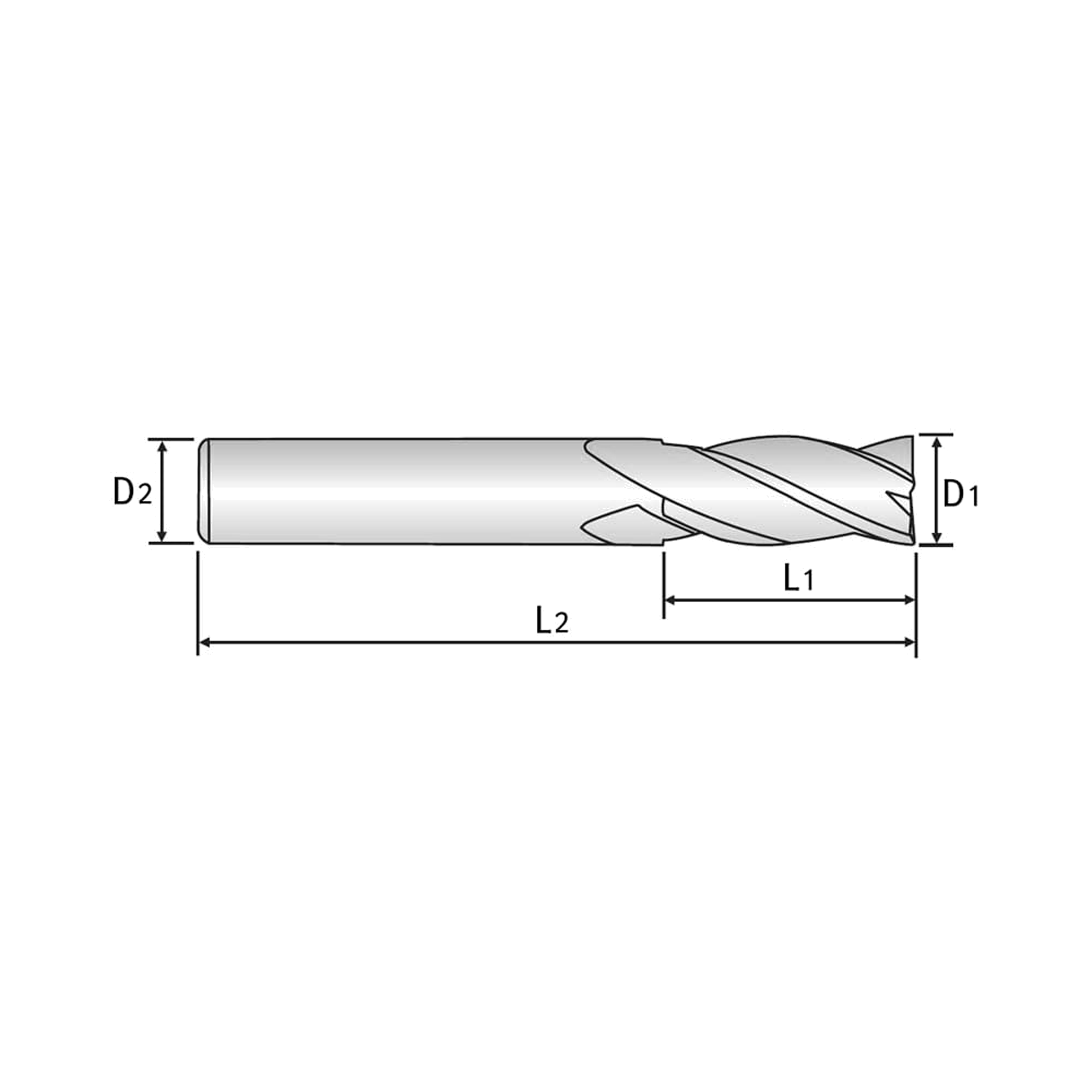

SKUMill Diameter (mm)Shank Diameter (mm)Overall length (mm)Length of cut (mm)CAD filesStock Price Qty Add
EH9130202.04.040.06.0STEPDXF Restocking $36.70
EH9139012.06.040.06.0STEPDXF In stock $53.00
EH9130252.54.040.08.0STEPDXF 1-2 Weeks $48.00
EH9139022.56.040.08.0STEPDXF In stock $53.00
EH9130303.06.045.08.0STEPDXF In stock $53.00
EH9130353.56.045.010.0STEPDXF 1-2 Weeks $69.40
EH9130404.06.045.011.0STEPDXF Low stock $53.00
EH9130454.56.045.011.0STEPDXF 1-2 Weeks $53.00
EH9130505.06.050.013.0STEPDXF Low stock $53.00
EH9130555.56.050.013.0STEPDXF 1-2 Weeks $69.40
EH9130606.06.050.013.0STEPDXF In stock $53.00
EH9130656.58.060.016.0STEPDXF 1-2 Weeks $88.80
EH9130707.08.060.016.0STEPDXF 1-2 Weeks $67.90
EH9130808.08.060.019.0STEPDXF In stock $67.90
EH9130858.510.070.019.0STEPDXF 1-2 Weeks $131.50
EH9130909.010.070.019.0STEPDXF 1-2 Weeks $100.50
EH9130959.510.070.019.0STEPDXF 1-2 Weeks $131.50
EH91310010.010.070.022.0STEPDXF Low stock $100.50
EH91311011.012.075.022.0STEPDXF 1-2 Weeks $137.80
EH91312012.012.075.026.0STEPDXF Low stock $137.80
EH91314014.016.085.026.0STEPDXF 1-2 Weeks $228.60
EH91316016.016.0100.032.0STEPDXF 1-2 Weeks $245.00
EH91318018.016.0100.032.0STEPDXF 1-2 Weeks $303.80
EH91320020.020.0105.038.0STEPDXF 1-2 Weeks $495.60

Add (EH913) Jet-Power Carbide 4Flute End Mill, Short Length for Stainless/Titanium, Plain Shank to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

EH913 JET-POWER 4 Flute 35° Helix Short End Mills span 2 to 25 mm. Four flutes with a plain shank and reinforced edges provide stable, chip-resistant roughing. TiALN coated ultrafine micrograin carbide and Inox geometry support HSC in stainless and superalloys. Suitable for Titanium, Inconel, Hastelloy, Stainless Steel and steels under HRc45 in short length.

  • Suited to Titanium Inconel Hastelloy Stainless Steel and steels under HRc45
  • Inox geometry with reinforced edges reduces corner chipping
  • TiALN coated ultrafine micrograin carbide for HSC
  • Plain shank for standard toolholding
  • 4 flutes with 35° helix short length design
  • Diameter range 2 to 25 mm
Product Data
Workpiece Material P M S
Cutting Shape Roughing, Square
Hardened Steels(HRc40~45) Great
Length Short
No. Flutes 4
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
Flutes 4
Helix Angle 35°
Cutting Edge Shape SQUARE
Size Min D2.0
Size Max D25.0
Length

Short Length
Coating TiAIN

Side Milling
Small Part
Slotting
Die Sinking
Facing

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Superalloys & titanium

2 grades
Titanium alloys
ExcellentVDI 36–37

Stainless steel

3 grades
Stainless steel
ExcellentVDI 14
GoodVDI 12–13

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40
VDI grade reference17 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelExcellent18010
36STitanium alloysExcellent--
37STitanium alloysExcellent--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
