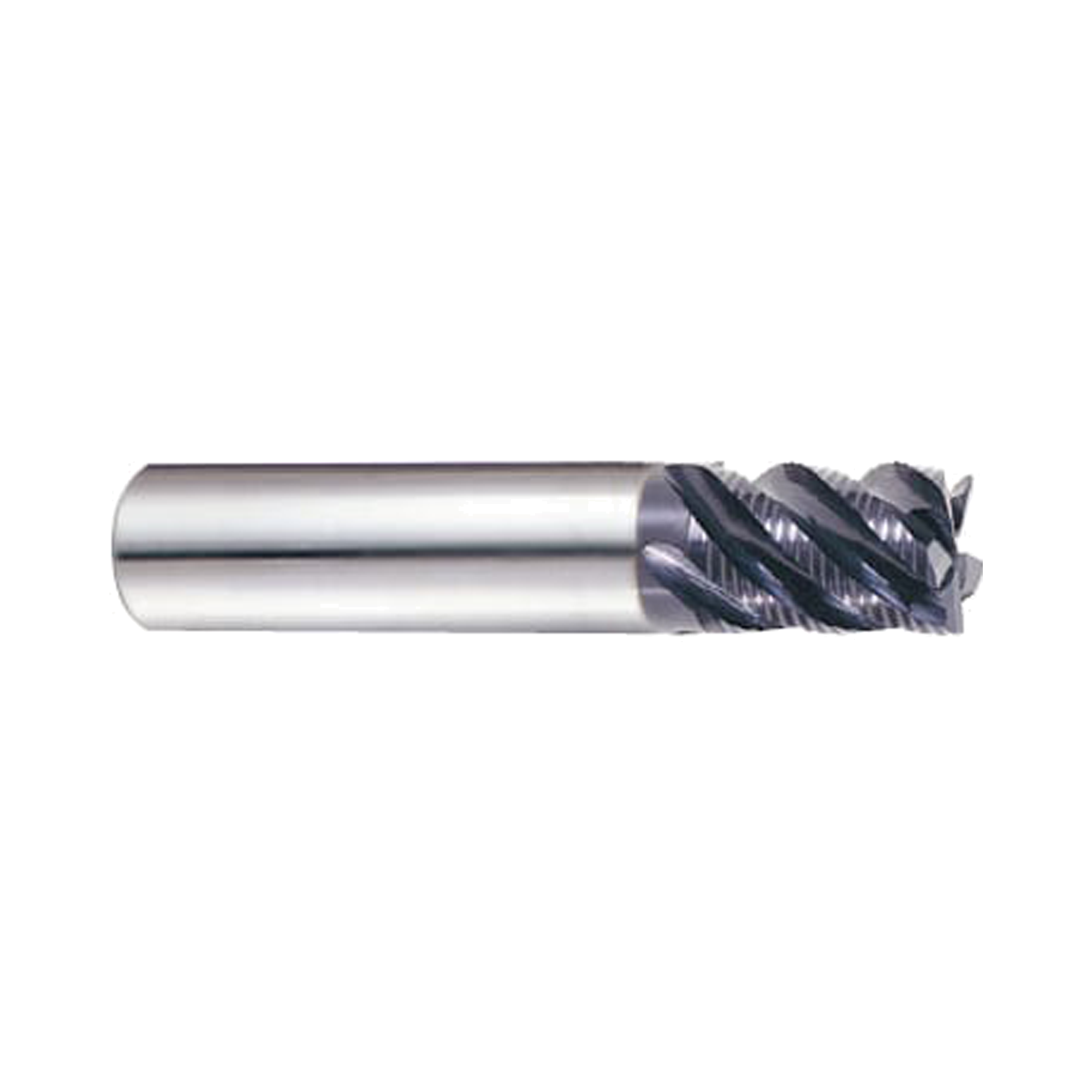

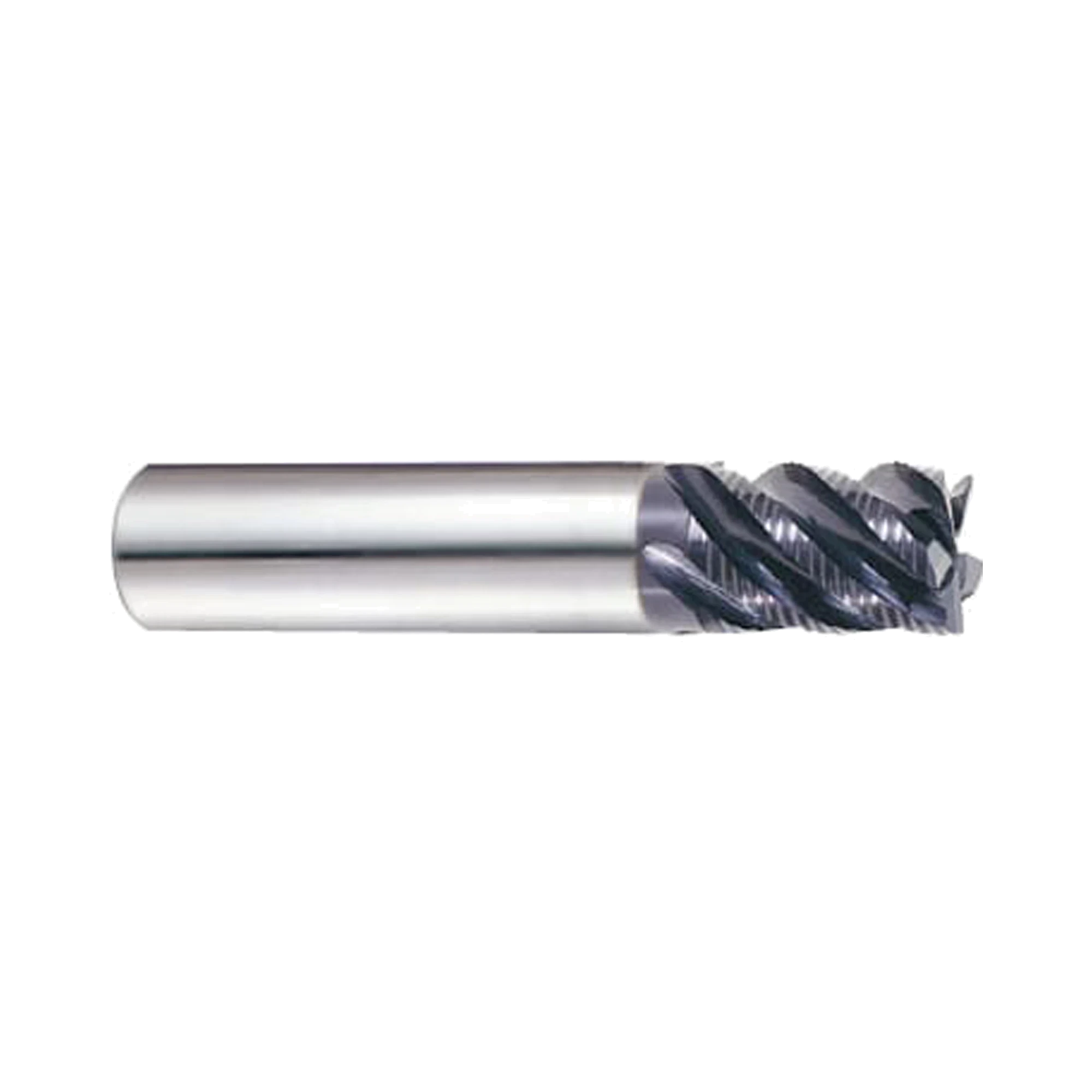

(EH918) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Flat Shank

Short-length 45° helix roughing-fine end mill

(EH918) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Flat Shank
$94.49 INC GST $85.90 EX GST
SKU
EH918060
Work materials
PMSH

Key features

  • Carbide roughing-fine end mill with 45° helix
  • TiAlN coating for the EH918 series
  • Recommended for materials up to 45 HRc
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Short-length milling geometry

Combines a 45° helix with a short-length roughing-fine end mill design

Material-focused selection

Recommended for stainless steels titanium alloys nickel alloys and materials up to 45 HRc

Useful diameter range

Offers five flat-shank diameters from 6 to 16 mm with defined chamfer sizes

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)CAD filesStock Price Qty Add
EH9180606.00.1554.06.047.0STEPDXF 1-2 Weeks $85.90
EH9180808.00.1858.08.049.0STEPDXF 1-2 Weeks $100.40
EH91810010.00.266.010.0414.0STEPDXF 1-2 Weeks $149.90
EH91812012.00.273.012.0416.0STEPDXF 1-2 Weeks $192.50
EH91816016.00.282.016.0522.0STEPDXF 1-2 Weeks $313.60

Add (EH918) Jet-Power Carbide Multi Flute Roughing End Mill, Short Length for Stainless/Titanium, Flat Shank to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 EH918 Jet-Power carbide roughing-fine end mills combine a 45° helix with a short-length design. They are flat-shank, multi-flute tools for milling stainless steels, titanium and nickel alloys in suitable grades. The TiAlN-coated series is recommended for materials up to 45 HRc, including stainless steels and titanium alloys.

Diameters range from 6 to 16 mm, with four flutes through 12 mm and five at 16 mm. Listed EH918 tools feature chamfers from 0.15 to 0.20 mm. Each size uses a flat shank matching its nominal mill diameter for straightforward toolholder selection. Cutting lengths increase from 7 mm at 6 mm diameter to 22 mm at 16 mm diameter.

  • Carbide roughing-fine end mill with 45° helix
  • TiAlN coating for the EH918 series
  • Recommended for materials up to 45 HRc
  • Suitable for stainless steels titanium and nickel alloys
  • Flat-shank diameters from 6 to 16 mm
  • Four flutes through 12 mm and five flutes at 16 mm
Product Data
Cutting Shape Rougher
Length Short

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 3–5
GoodVDI 1–2
Low-alloy steel
ExcellentVDI 7–9
GoodVDI 6
High-alloy and tool steel
ExcellentVDI 11
GoodVDI 10

Superalloys & titanium

7 grades
Heat-resistant superalloys
GoodVDI 31–35
Titanium alloys
ExcellentVDI 36–37

Stainless steel

3 grades
Stainless steel
ExcellentVDI 14
GoodVDI 12–13

Hardened materials

1 grade
Chilled cast iron
GoodVDI 40
VDI grade reference22 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelGood18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelExcellent35038
10PHigh-alloy and tool steelGood20015
11PHigh-alloy and tool steelExcellent32535
12MStainless steelGood20015
13MStainless steelGood24023
14MStainless steelExcellent18010
31SHeat-resistant superalloysGood20015
32SHeat-resistant superalloysGood28030
33SHeat-resistant superalloysGood25025
34SHeat-resistant superalloysGood35038
35SHeat-resistant superalloysGood32034
36STitanium alloysExcellent--
37STitanium alloysExcellent--
40HChilled cast ironGood40042

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
