Product Description

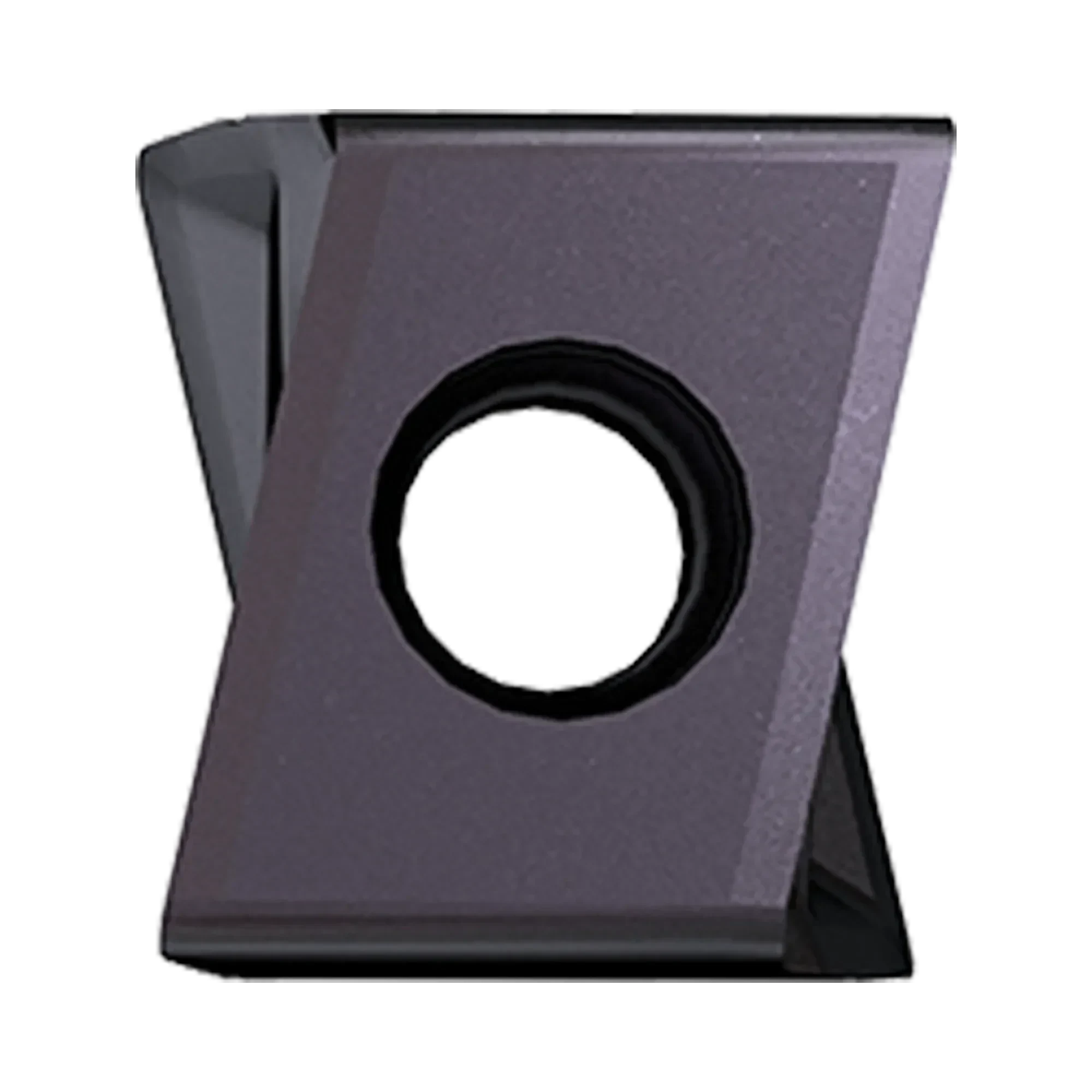

These LNHU inserts have 4 economical cutting edges and offer great tool life. With high helix cutting edge and high rake face, the wide wiper edge gives an incredible surface finish. These inserts are thicker providing higher rigidity for stable machining.

  • Four cutting edges provide exceptional performance for high productivity
  • High helix cutting edge - Smooth cutting and low cutting force
  • High positive rake angle chip breaker - Optimized chip curl and minimised burr
  • Wide wiper provides excellent surface quality
  • With a curved cutting edge - Minimised mismatch
Product Data
Operation Facing, Helical-Interpol, Side Milling, Slotting, Trochoidal

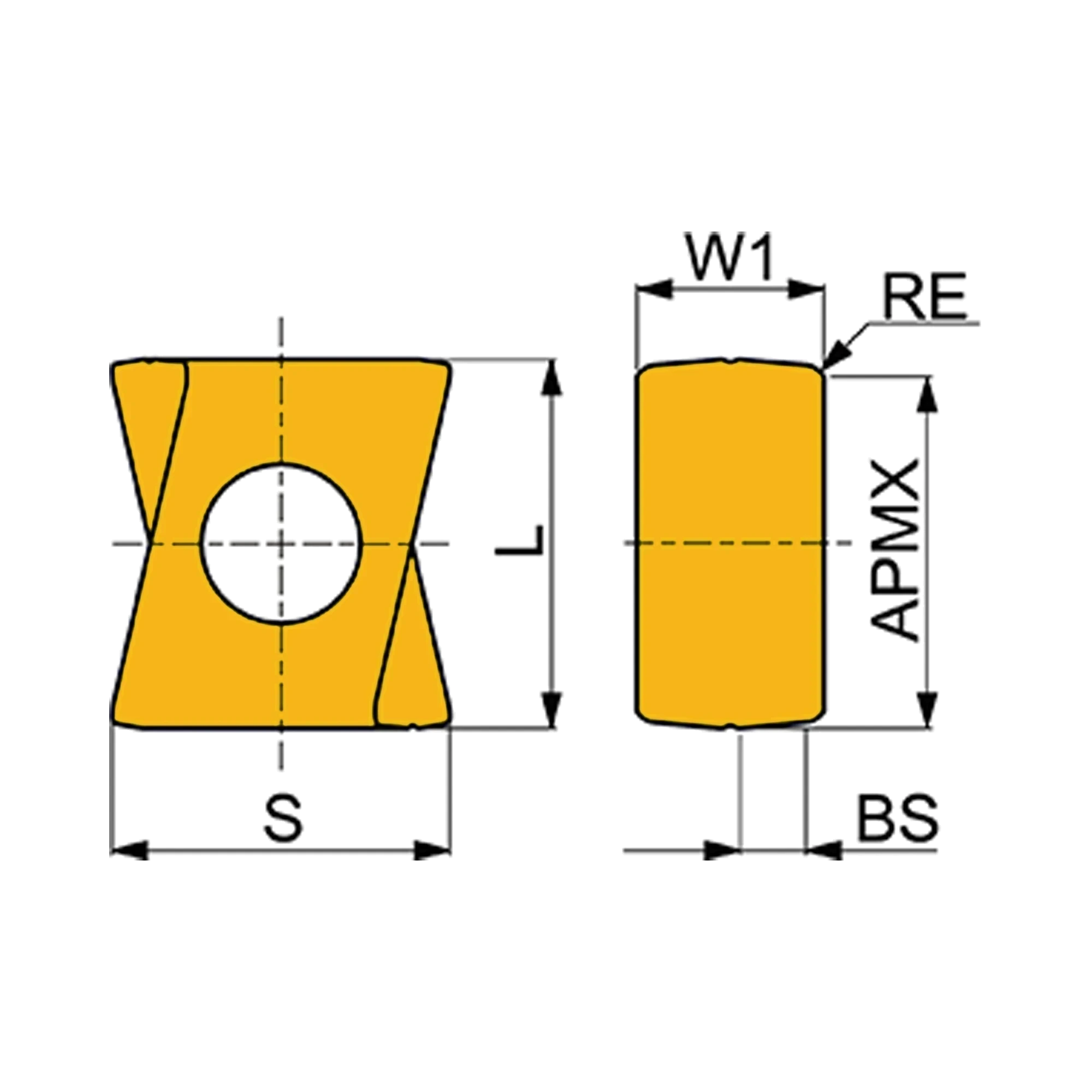

EDP No. Designation Corner Radius (R) Wiper Edge Length (BS) Maximum Cutting Depth (APMX) Cutting Edge Angle Major (KRINS) Inner Circle (IC) Thickness (S) Grade 12000723 LNHU130608R 0.8 2.09 11 90˚ 6.7 12.1 YG612 12000724 LNHU130608R 0.8 2.09 11 90˚ 6.7 12.1 YG613 12000725 LNHU130608R 0.8 2.09 11 90˚ 6.7 12.1 YG5020 12000905 LNHU130608R 0.8 2.09 11 90° 6.7 12.1 YG012 12001020 LNHU130608L 0.8 2.09 11 90˚ 6.7 12.1 YG012
Side Milling
Slotting
Facing
Helical Interpol
Trochoidal
EDP No. Designation Corner Radius (R) Wiper Edge Length (BS) Maximum Cutting Depth (APMX) Cutting Edge Angle Major (KRINS) Inner Circle (IC) Thickness (S) Grade 12000723 LNHU130608R 0.8 2.09 11 90˚ 6.7 12.1 YG612 12000724 LNHU130608R 0.8 2.09 11 90˚ 6.7 12.1 YG613 12000725 LNHU130608R 0.8 2.09 11 90˚ 6.7 12.1 YG5020 12000905 LNHU130608R 0.8 2.09 11 90° 6.7 12.1 YG012 12001020 LNHU130608L 0.8 2.09 11 90˚ 6.7 12.1 YG012

YG TM4 Mill
