ODMT06 Cutter

ODMT06 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
ODMT06
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ODMT06 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

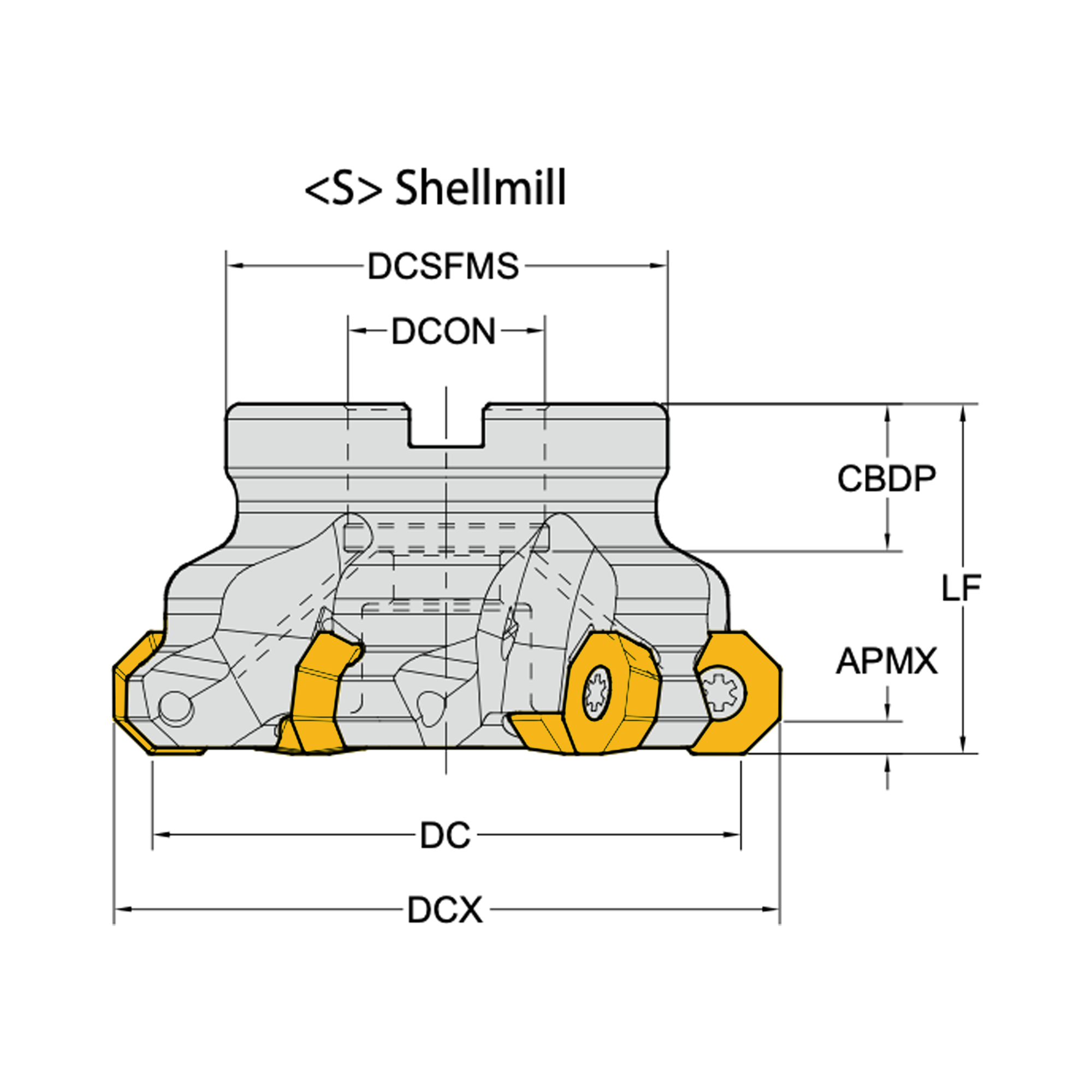

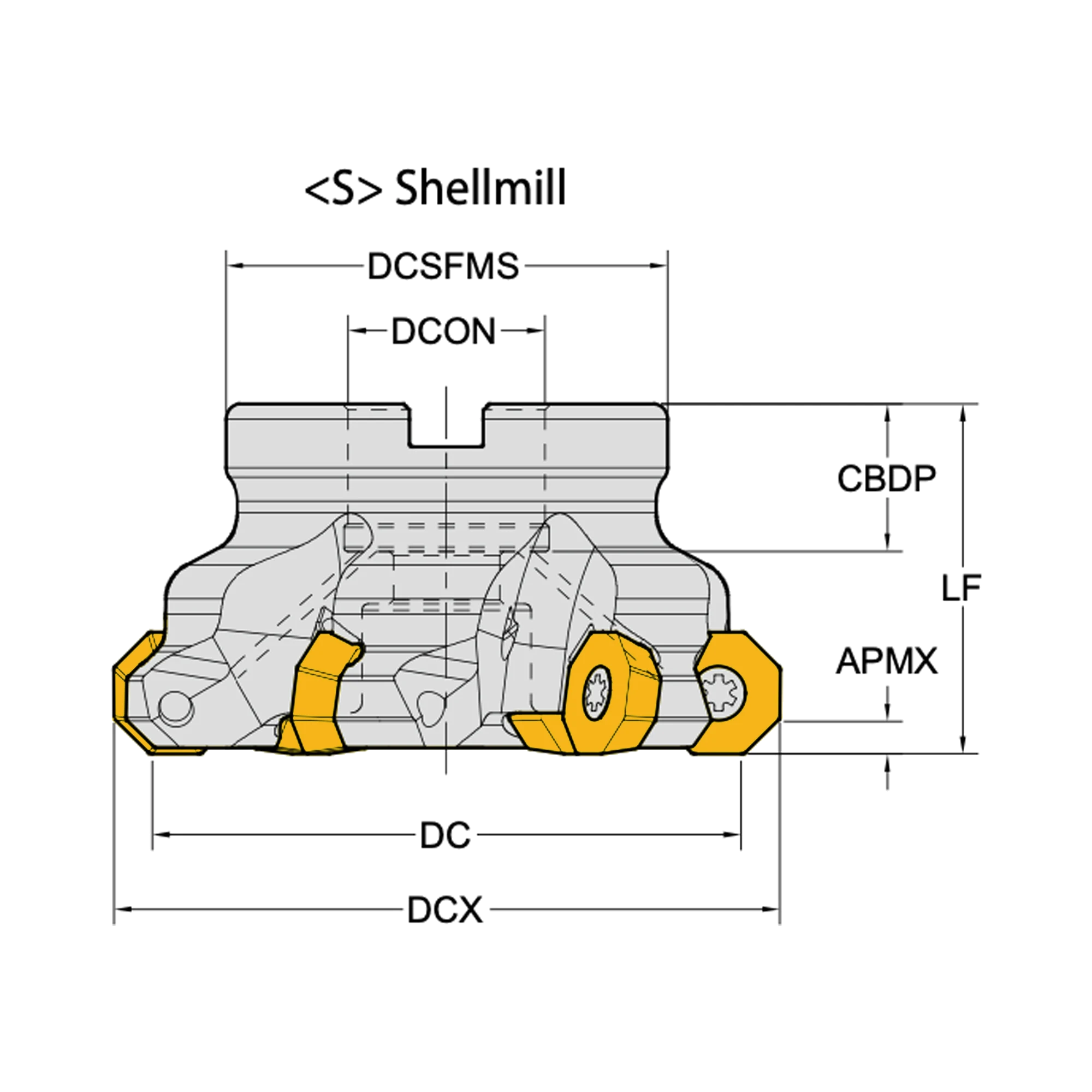

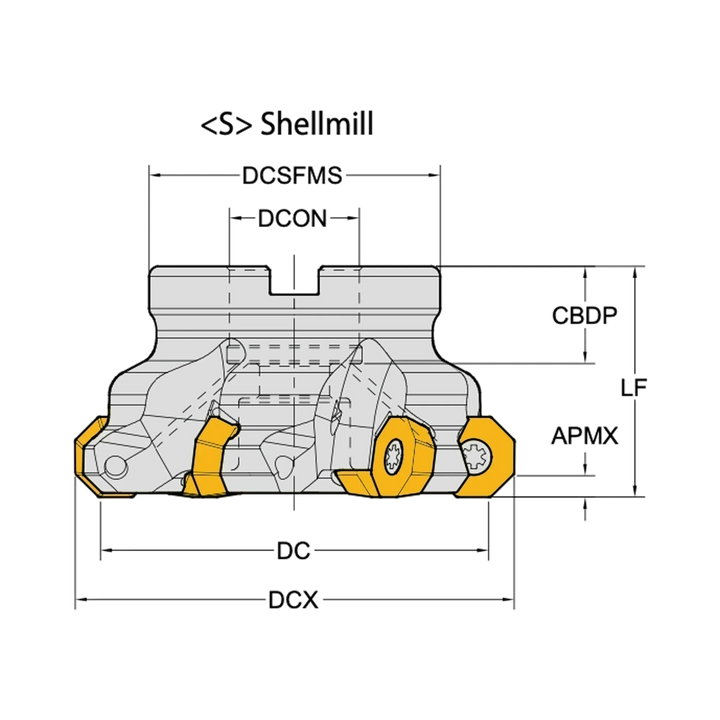

Face Milling Cutters for ODMT, ODMW (8 Corners Positive)

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Effective Length Connection Size Maximum Cutting Depth Connection Type 17000091 E90-APKT16-D25Z2C20-L100 O 2 25 100 20 16 Cylindrical 17000092 E90-APKT16-D25Z2W25-L110 O 2 25 110 25 16 Weldon 17000093 E90-APKT16-D32Z3W25-L110 O 3 32 110 25 16 Weldon 17000094 E90-APKT16-D32Z3C25-L110 O 3 32 110 25 16 Cylindrical 17000095 F90-APKT16-D50Z5S22 O 5 50 40 22 16 Shell Mill 17000096 F90-APKT16-D63Z6S22 O 6 63 40 22 16 Shell Mill 17000097 F90-APKT16-D80Z7S27 O 7 80 50 27 16 Shell Mill 17000181 F90-APKT16-D100Z8S32 O 8 100 50 32 16 Shell Mill 17000238 F90-APKT16-D125Z9S40-WOC X 9 125 63 40 16 Shell Mill 17000243 E90-APKT16-D25Z2C20-L100-WOC X 2 25 100 20 16 Cylindrical 17000250 E90-APKT16-D32Z3C32-L150-WOC X 3 32 150 32 16 Cylindrical 17000275 F90-APKT16-D40Z4S16 O 4 40 40 16 16 Shell Mill 17000557 E90-APKT16-D25Z2C25-L250-WOC X 2 25 250 25 16 Cylindrical 17000558 E90-APKT16-D32Z2C32-L250-WOC X 2 32 250 32 16 Cylindrical 17000559 E90-APKT16-D32Z3C25-L200 O 3 32 200 25 16 Cylindrical 17000560 E90-APKT16-D32Z3C32-L250-WOC X 3 32 250 32 16 Cylindrical 17000561 E90-APKT16-D40Z4C32-L150-WOC X 4 40 150 32 16 Cylindrical 17000562 E90-APKT16-D25Z2W25-L100 O 2 25 100 25 16 Weldon 17000563 E90-APKT16-D28Z3W25-L100 O 3 28 100 25 16 Weldon 17000564 E90-APKT16-D30Z3W25-L110 O 3 30 110 25 16 Weldon 17000565 E90-APKT16-D32Z3W32-L110 O 3 32 110 32 16 Weldon 17000566 E90-APKT16-D36Z3W32-L110 O 3 36 110 32 16 Weldon 17000567 F90-APKT16-D52Z5S22 O 5 52 40 22 16 Shell Mill 17000568 F90-APKT16-D160Z10S40-WOC X 10 160 63 40 16 Shell Mill 17000569 F90-APKT16-D200Z12S60-WOC X 12 200 63 60 16 Shell Mill 17000570 M90-APKT16-D25Z2M12 O 2 25 43 M12 16 Modular 17000571 M90-APKT16-D32Z3M16 O 3 32 43 M16 16 Modular 17000572 M90-APKT16-D42Z4M16 O 4 42 43 M16 16 Modular 17000630 F15-APKT16-D35AP8Z306S27 O 3 35 50 27 8 Shell Mill 17000631 F45-APKT16-D35AP21Z306S27 O 3 35 50 27 21.5 Shell Mill 17000632 F60-APKT16-D35AP26Z306S22 O 3 35 50 22 26.5 Shell Mill 17000633 F75-APKT16-D35AP29Z306S22 O 3 35 50 22 29.5 Shell Mill
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Effective Length Connection Size Maximum Cutting Depth Connection Type 17000091 E90-APKT16-D25Z2C20-L100 O 2 25 100 20 16 Cylindrical 17000092 E90-APKT16-D25Z2W25-L110 O 2 25 110 25 16 Weldon 17000093 E90-APKT16-D32Z3W25-L110 O 3 32 110 25 16 Weldon 17000094 E90-APKT16-D32Z3C25-L110 O 3 32 110 25 16 Cylindrical 17000095 F90-APKT16-D50Z5S22 O 5 50 40 22 16 Shell Mill 17000096 F90-APKT16-D63Z6S22 O 6 63 40 22 16 Shell Mill 17000097 F90-APKT16-D80Z7S27 O 7 80 50 27 16 Shell Mill 17000181 F90-APKT16-D100Z8S32 O 8 100 50 32 16 Shell Mill 17000238 F90-APKT16-D125Z9S40-WOC X 9 125 63 40 16 Shell Mill 17000243 E90-APKT16-D25Z2C20-L100-WOC X 2 25 100 20 16 Cylindrical 17000250 E90-APKT16-D32Z3C32-L150-WOC X 3 32 150 32 16 Cylindrical 17000275 F90-APKT16-D40Z4S16 O 4 40 40 16 16 Shell Mill 17000557 E90-APKT16-D25Z2C25-L250-WOC X 2 25 250 25 16 Cylindrical 17000558 E90-APKT16-D32Z2C32-L250-WOC X 2 32 250 32 16 Cylindrical 17000559 E90-APKT16-D32Z3C25-L200 O 3 32 200 25 16 Cylindrical 17000560 E90-APKT16-D32Z3C32-L250-WOC X 3 32 250 32 16 Cylindrical 17000561 E90-APKT16-D40Z4C32-L150-WOC X 4 40 150 32 16 Cylindrical 17000562 E90-APKT16-D25Z2W25-L100 O 2 25 100 25 16 Weldon 17000563 E90-APKT16-D28Z3W25-L100 O 3 28 100 25 16 Weldon 17000564 E90-APKT16-D30Z3W25-L110 O 3 30 110 25 16 Weldon 17000565 E90-APKT16-D32Z3W32-L110 O 3 32 110 32 16 Weldon 17000566 E90-APKT16-D36Z3W32-L110 O 3 36 110 32 16 Weldon 17000567 F90-APKT16-D52Z5S22 O 5 52 40 22 16 Shell Mill 17000568 F90-APKT16-D160Z10S40-WOC X 10 160 63 40 16 Shell Mill 17000569 F90-APKT16-D200Z12S60-WOC X 12 200 63 60 16 Shell Mill 17000570 M90-APKT16-D25Z2M12 O 2 25 43 M12 16 Modular 17000571 M90-APKT16-D32Z3M16 O 3 32 43 M16 16 Modular 17000572 M90-APKT16-D42Z4M16 O 4 42 43 M16 16 Modular 17000630 F15-APKT16-D35AP8Z306S27 O 3 35 50 27 8 Shell Mill 17000631 F45-APKT16-D35AP21Z306S27 O 3 35 50 27 21.5 Shell Mill 17000632 F60-APKT16-D35AP26Z306S22 O 3 35 50 22 26.5 Shell Mill 17000633 F75-APKT16-D35AP29Z306S22 O 3 35 50 22 29.5 Shell Mill
