OFER07 Cutter

OFER07 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
OFER07
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add OFER07 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

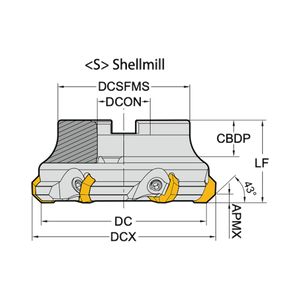

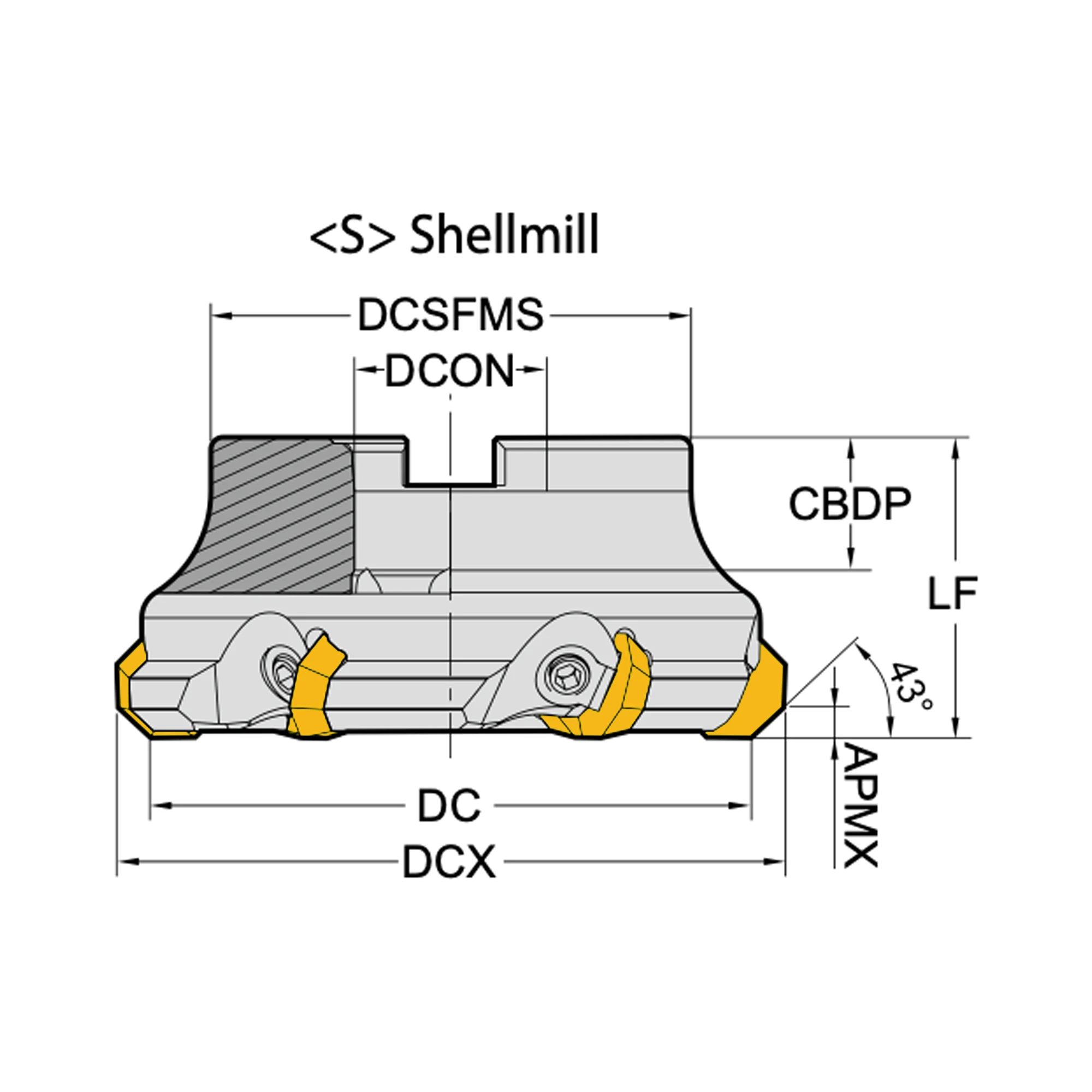

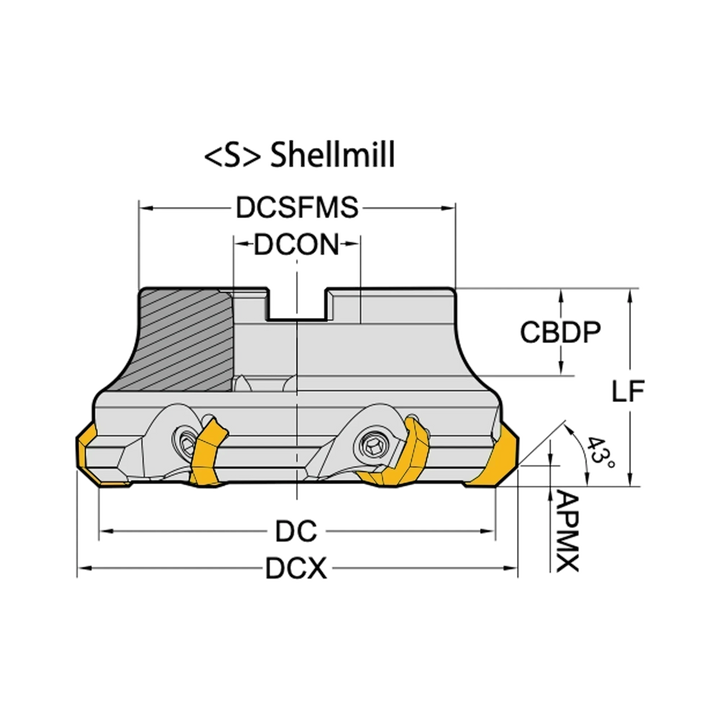

Face Milling Cutters for OFER (8 Corners Positive)

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000484 F43-OFER07-D63Z4S22-WOC X 4 63 75 45 22 22 48 5 Shell Mill 17000485 F43-OFER07-D80Z5S27-WOC X 5 80 92 50 27 25 58 5 Shell Mill 17000486 F43-OFER07-D100Z6S32-WOC X 6 100 112 50 32 26 80 5 Shell Mill 17000487 F43-OFER07-D125Z8S40-WOC X 8 125 137 63 40 32 85 5 Shell Mill 17000488 F43-OFER07-D160Z9S40-WOC X 9 160 172 63 40 32 110 5 Shell Mill
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000484 F43-OFER07-D63Z4S22-WOC X 4 63 75 45 22 22 48 5 Shell Mill 17000485 F43-OFER07-D80Z5S27-WOC X 5 80 92 50 27 25 58 5 Shell Mill 17000486 F43-OFER07-D100Z6S32-WOC X 6 100 112 50 32 26 80 5 Shell Mill 17000487 F43-OFER07-D125Z8S40-WOC X 8 125 137 63 40 32 85 5 Shell Mill 17000488 F43-OFER07-D160Z9S40-WOC X 9 160 172 63 40 32 110 5 Shell Mill

Video

YG Mill

You Might Also Like

K-2 Plus 2FL 35deg. Helix Long Endmill K-2 Plus 2FL 35deg. Helix Long Endmill

K-2 Plus 2FL 35deg. Helix Long Endmill

From $7.20INC GST
From $6.55 EX GST
Available in Mill Diameter (mm)
2 3 4 +5
In stock
YG-1 LEGEND AlTiN YG-1 LEGEND CARBIDE YG-1 LEGEND HELIX 30 YG-1 LEGEND SHANK PLAIN
Add to Cart
(G9432) K-2 Carbide, 4Flute End Mill, Short Length (G9432) K-2 Carbide, 4Flute End Mill, Short Length

(G9432) K-2 Carbide, 4Flute End Mill, Short Length

TiAlN-coated solid carbide four-flute short-length end mill
From $20.24INC GST
From $18.40 EX GST
Available in Mill Diameter (mm)
1 1.5 2 +16
In stock
Add to Cart
(GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank (GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank

(GMG12) V7 Plus Carbide, 6Flute End Mill, Long length, Plain Shank

YG-1 V7 Plus GMG12 Plain-Shank Six-Flute End Mill
From $57.06INC GST
From $51.88 EX GST
Available in Mill Diameter (mm)
6 8 10 +4
In stock
Add to Cart
Excision

(TCH23) HSS-E (M35) Metric Gun Point for Stainless Steel (Hardslick Coated)

HSS-E HardSlick Spiral-Point Machine Tap
From $26.95INC GST
From $24.50 EX GST
Available in Size
M2 M2.2 M2.5 +20
In stock
Add to Cart
Excision

(D1105) HSS (M2) Jobber Drill for Multi Purpose (Steam Tempered)

General-Purpose Steam-Tempered Jobber Drill
From $2.31INC GST
From $2.10 EX GST
Available in Drill Diameter (mm)
0.3 0.4 0.5 +139
In stock
Add to Cart
K-2 CARBIDE 4 Flute Multiple Helix Short End Mill (G9H73) 4 Piece Set K-2 CARBIDE 4 Flute Multiple Helix Short End Mill (G9H73) 4 Piece Set

K-2 CARBIDE 4 Flute Multiple Helix Short End Mill (G9H73) 4 Piece Set

$140.80INC GST
$128.00 EX GST
In stock
Add to Cart
Excision

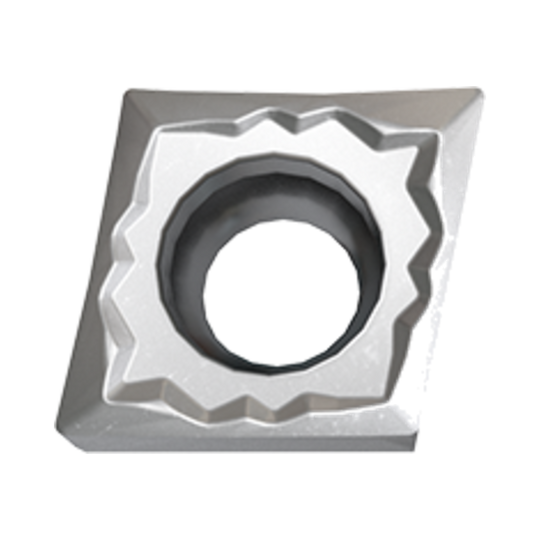

CCGT-AL Aluminium Turning Insert (80° Positive)
