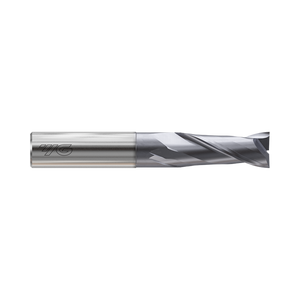

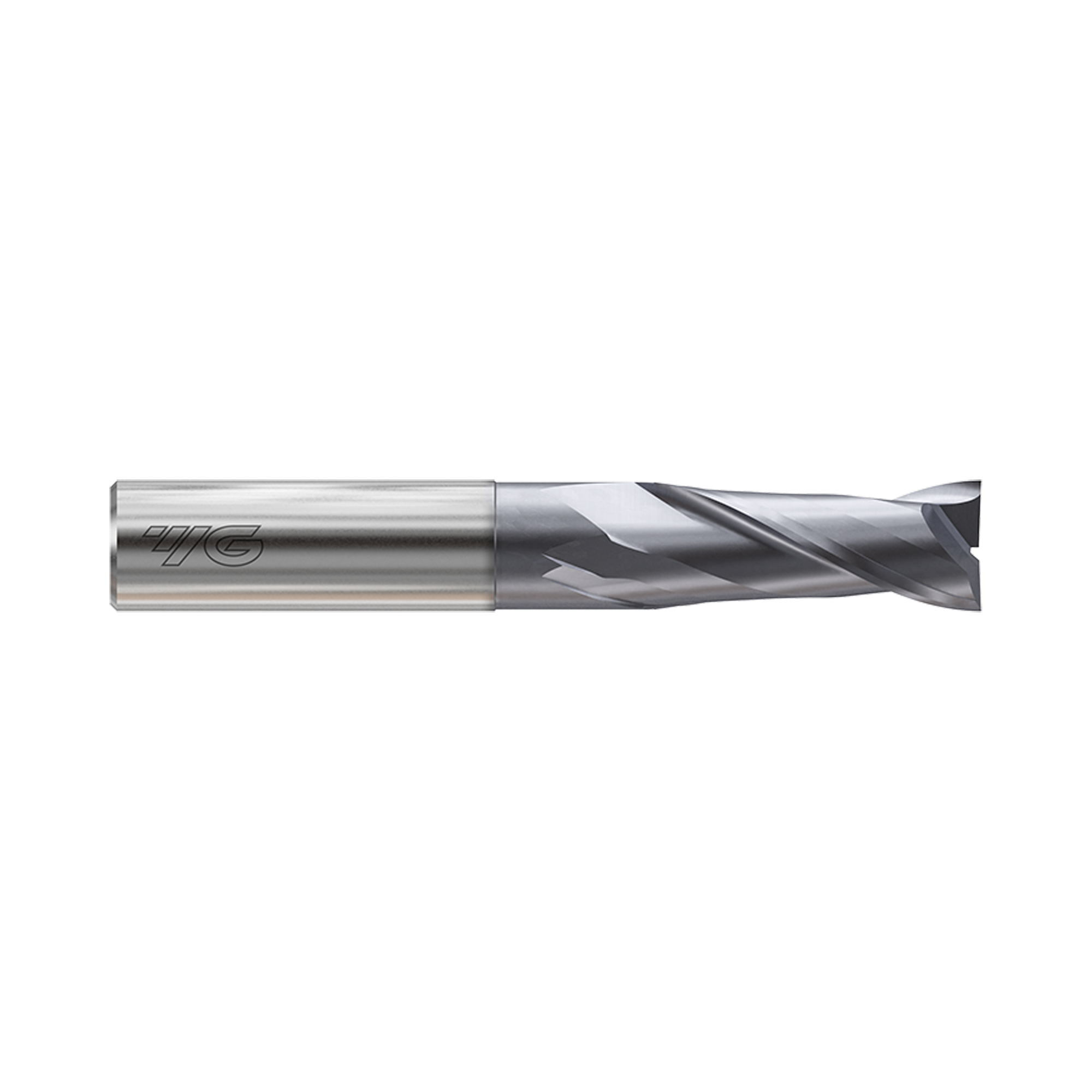

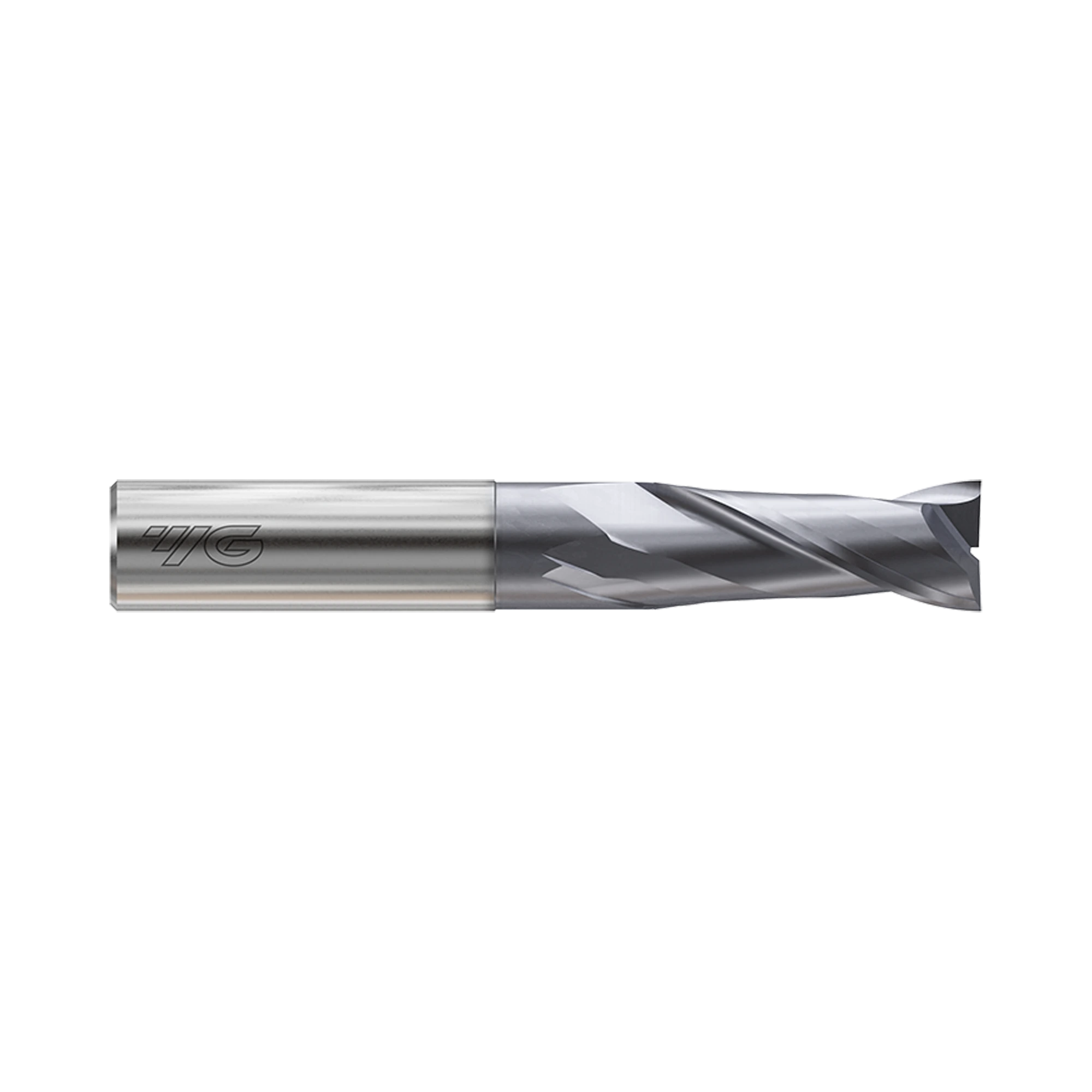

(GYF99) HSS-PM, Only One 2Flute Coated End Mill, Short Length, Flat Shank
Coated PM60 2 Flute Short-Length Centre-Cut End Mill
- SKU
- GYF99010
Key features
- PM60 two-flute short-length square end mill
- Y coated cutting tool with centre-cut geometry
- Flat shank design for the GYF99 series
Made in South Korea
Centre-cut capability
Supports centre-cut milling operations with a two-flute square-end geometry.
Coated PM60 construction
Combines PM60 construction with Y coating for coated end-milling applications.
Practical short lengths
Provides compact cutting lengths across the specified 1 to 22 mm diameter range.
| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GYF99010 | 1 | 47.0 | 6.0 | 2.5 | 1-2 Weeks | $19.50 | ||
| GYF99020 | 2 | 48.0 | 6.0 | 4.0 | 1-2 Weeks | $19.50 | ||
| GYF99030 | 3 | 49.0 | 6.0 | 5.0 | In stock | $20.40 | ||
| GYF99040 | 4 | 51.0 | 6.0 | 7.0 | Low stock | $20.40 | ||
| GYF99050 | 5 | 52.0 | 6.0 | 8.0 | In stock | $20.40 | ||
| GYF99060 | 6 | 52.0 | 6.0 | 8.0 | In stock | $20.40 | ||
| GYF99070 | 7 | 60.0 | 8.0 | 10.0 | In stock | $37.50 | ||
| GYF99080 | 8 | 61.0 | 8.0 | 11.0 | In stock | $37.50 | ||
| GYF99090 | 9 | 61.0 | 10.0 | 11.0 | In stock | $47.70 | ||
| GYF99100 | 10 | 63.0 | 10.0 | 13.0 | In stock | $47.70 | ||
| GYF99120 | 12 | 73.0 | 12.0 | 16.0 | In stock | $56.70 | ||
| GYF99140 | 14 | 73.0 | 12.0 | 16.0 | In stock | $64.00 | ||
| GYF99160 | 16 | 79.0 | 16.0 | 19.0 | In stock | $80.60 | ||
| GYF99180 | 18 | 79.0 | 16.0 | 19.0 | Restocking est 30 Sep 2026 | $89.80 | ||
| GYF99200 | 20 | 88.0 | 20.0 | 22.0 | Low stock | $104.30 | ||
| GYF99220 | 22 | 88.0 | 20.0 | 22.0 | 1-2 Weeks | $123.40 |
Add (GYF99) HSS-PM, Only One 2Flute Coated End Mill, Short Length, Flat Shank to comparison
View Comparison- Overview
- Specifications
- Reviews
The YG-1 GYF99 ONLY ONE coated PM60 end mill is a two-flute, short-length centre-cut square end mill. It combines PM60 construction, Y coating and a flat shank for general milling work. Centre-cut geometry supports milling operations in non-alloy, low-alloy and high-alloy steels, stainless steel, cast iron and copper. The specified collection covers cutting diameters from 1 to 22 mm. Short cutting lengths range from 2.5 to 22 mm, with overall lengths from 47 to 88 mm. Flat-shank diameters range from 6 to 20 mm across the specified sizes. Choose the required diameter where a coated two-flute square-end profile suits the operation.
- PM60 two-flute short-length square end mill
- Y coated cutting tool with centre-cut geometry
- Flat shank design for the GYF99 series
- Specified cutting diameters from 1 to 22 mm
- Suitable for listed steel stainless steel cast iron and copper applications
- Cutting lengths from 2.5 to 22 mm
No specifications available.
