SDMW12 Cutter

SDMW12 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SDMW12
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add SDMW12 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

Profiling Cutters for RPMT, RPMW (Round Positive)

Product Data
Operation Helical-Interpol, Profiling

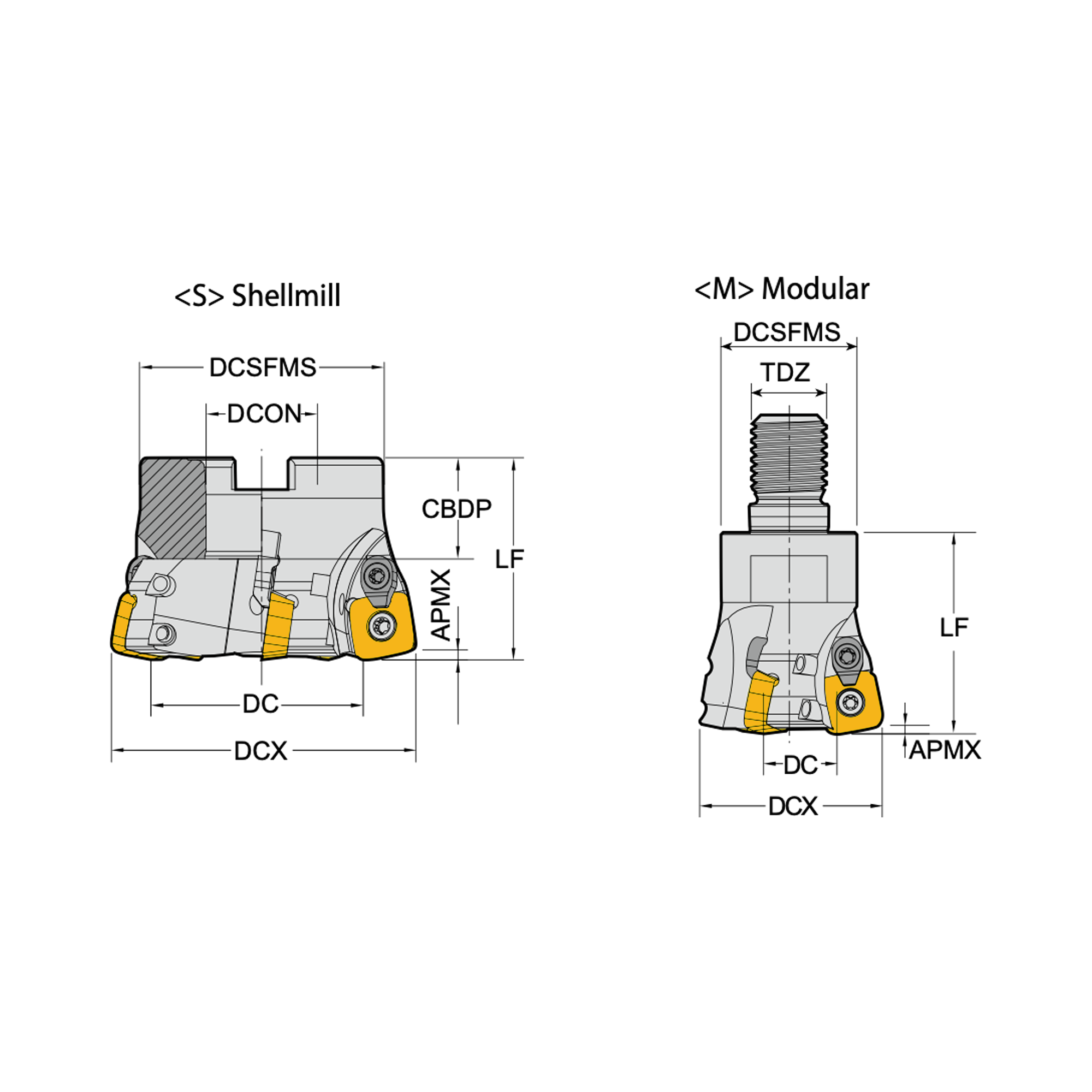

EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000604 FHF-SDMW12-D50Z4S22 O 4 32.4 50 40 22 22 42 1.8 Shell Mill 17000605 FHF-SDMW12-D63Z5S22 O 5 45.4 63 40 22 22 48 1.8 Shell Mill 17000606 FHF-SDMW12-D80Z6S27 O 6 62.4 80 50 27 25 58 1.8 Shell Mill 17000607 FHF-SDMW12-D100Z8S32 O 8 82.4 100 50 32 26 65 1.8 Shell Mill 17000608 MHF-SDMW12-D32Z2M16 O 2 14.4 32 43 M16 - 29 1.8 Modular 17000609 MHF-SDMW12-D40Z3M16 O 3 22.4 40 43 M16 - 29 1.8 Modular
Profiling
Helical Interpol
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000604 FHF-SDMW12-D50Z4S22 O 4 32.4 50 40 22 22 42 1.8 Shell Mill 17000605 FHF-SDMW12-D63Z5S22 O 5 45.4 63 40 22 22 48 1.8 Shell Mill 17000606 FHF-SDMW12-D80Z6S27 O 6 62.4 80 50 27 25 58 1.8 Shell Mill 17000607 FHF-SDMW12-D100Z8S32 O 8 82.4 100 50 32 26 65 1.8 Shell Mill 17000608 MHF-SDMW12-D32Z2M16 O 2 14.4 32 43 M16 - 29 1.8 Modular 17000609 MHF-SDMW12-D40Z3M16 O 3 22.4 40 43 M16 - 29 1.8 Modular

Video

YG Mill
