SEKT12

SEKT12
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SEKT12
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add SEKT12 to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

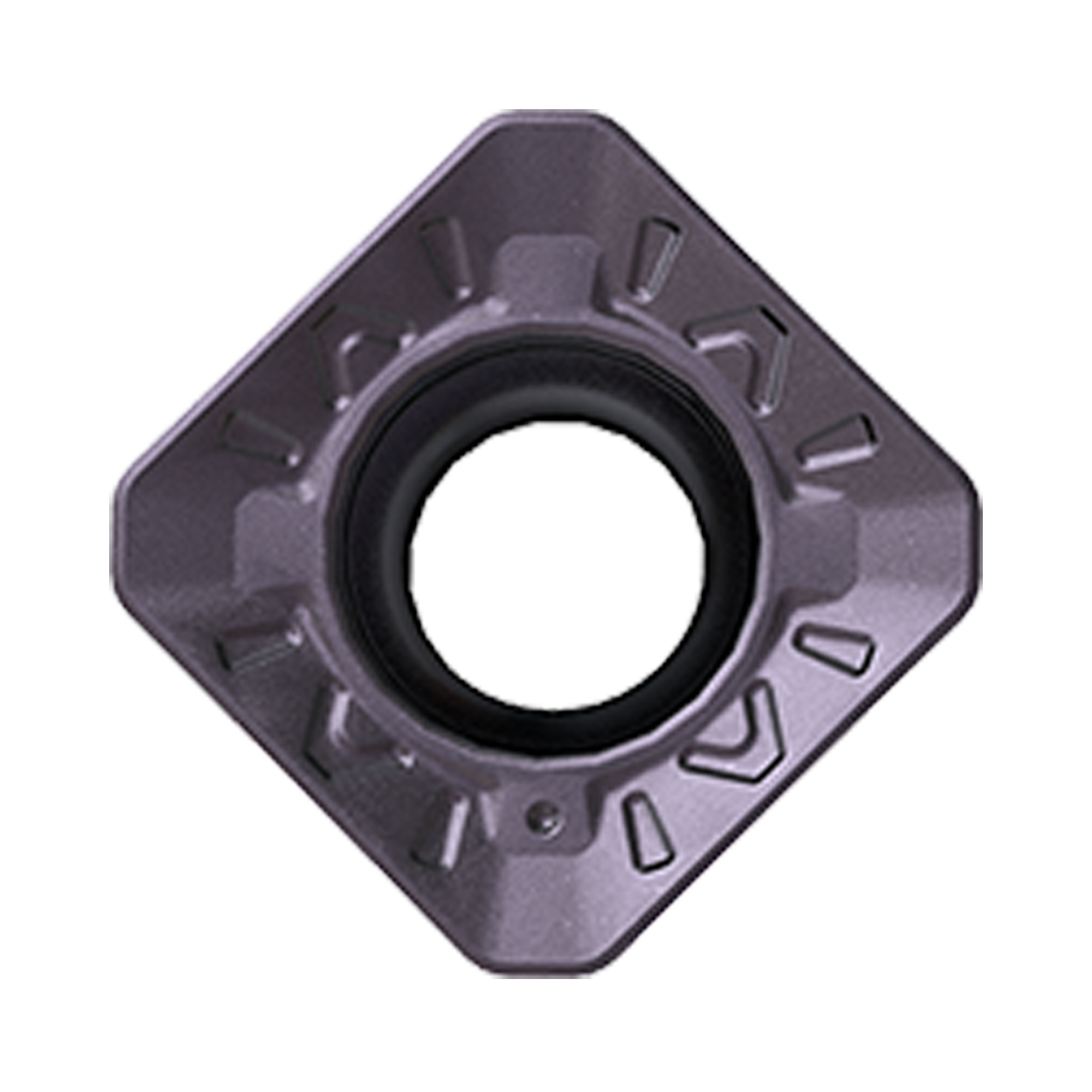

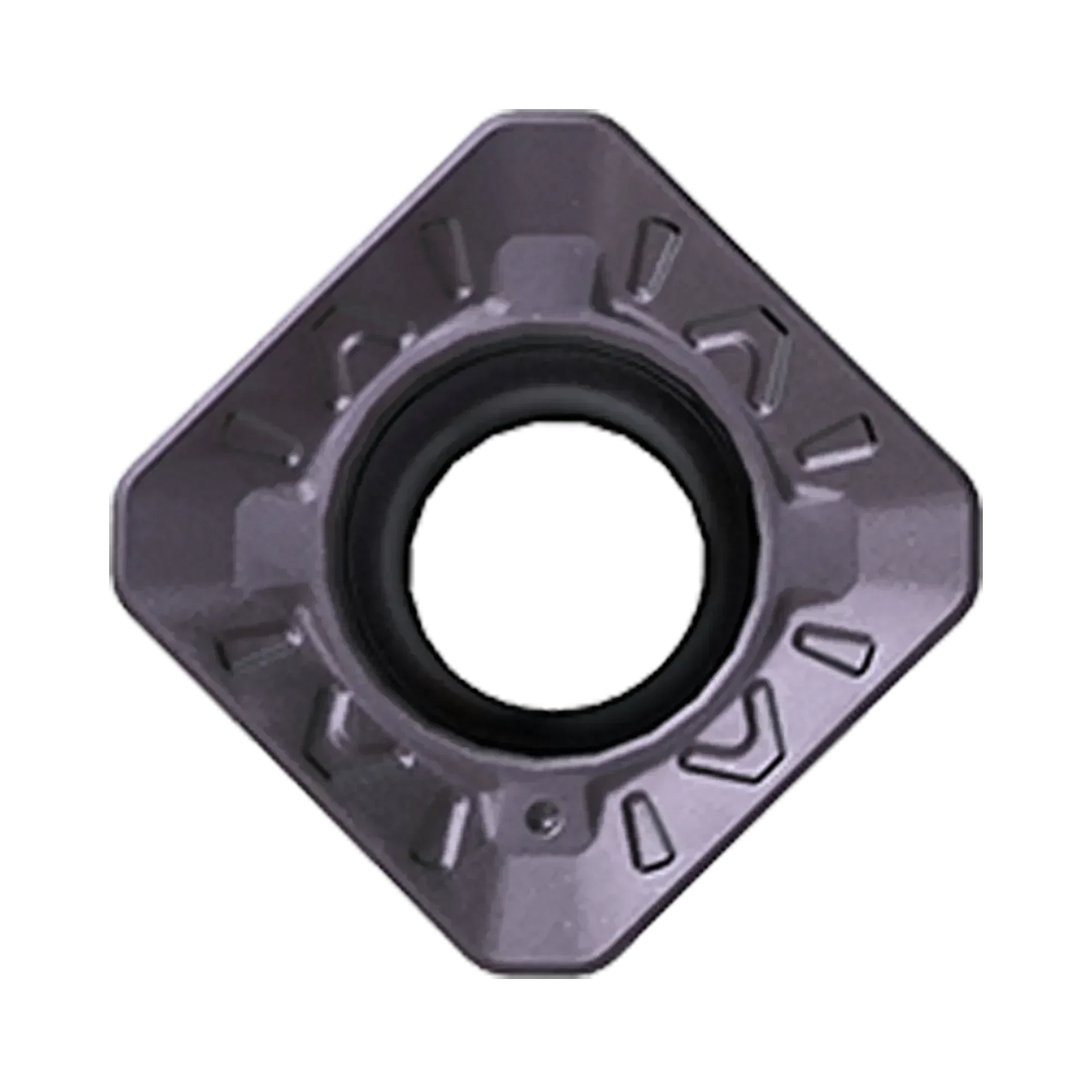

Face Milling Positive (4 Corners ISO)

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting

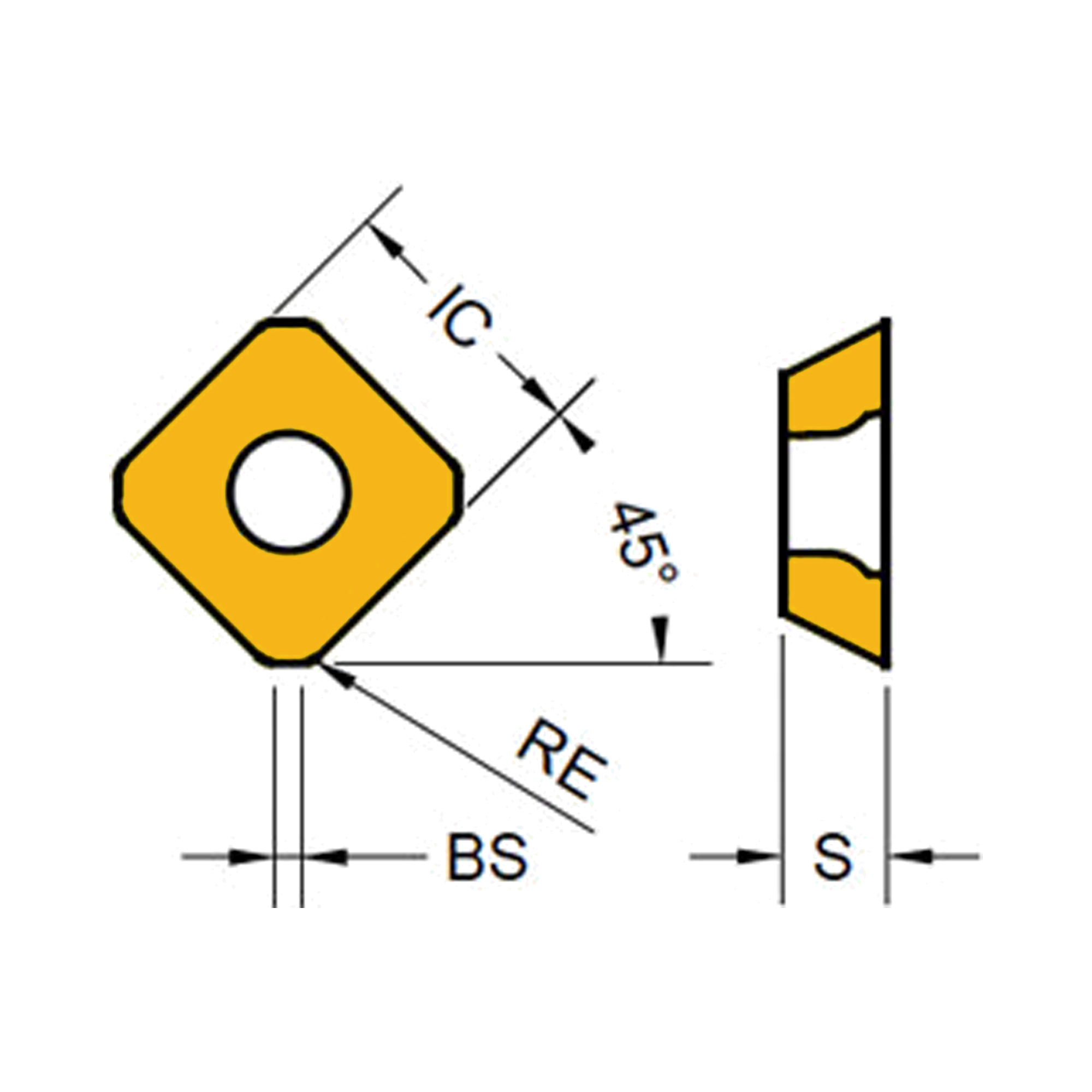

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000055 SEKT1204AFTN 1.1 1.18 6 45° 12.7 4.9 General YG602 12000056 SEKT12T3AGTN 1.5 1.3 6 45° 13.4 4 General YG602 12000257 SEKT1204-ST 1.1 1.18 6 45° 12.7 4.9 -ST YG602 12000271 SEKT12T3-ST 1.5 1.3 6 45° 13.4 4 -ST YG602 12000689 SEKT12T3-ST 1.5 2 6 45˚ 13.4 4 -ST YG613 12000722 SEKT1204-ST 1.1 2 6 45˚ 12.7 4.9 -ST YG613 12000833 SEKT1204AFTN 1.1 1.18 6 45° 12.7 4.9 General YG612 12000953 SEKT12T3AGTN 1.5 1.3 6 45° 12.7 4 General YG612 12000962 SEKT1204-ST 1.1 2 6 45° 12.7 4.9 -ST YG612 12000963 SEKT12T3-ST 1.5 2 6 45° 12.7 4 -ST YG612
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000055 SEKT1204AFTN 1.1 1.18 6 45° 12.7 4.9 General YG602 12000056 SEKT12T3AGTN 1.5 1.3 6 45° 13.4 4 General YG602 12000257 SEKT1204-ST 1.1 1.18 6 45° 12.7 4.9 -ST YG602 12000271 SEKT12T3-ST 1.5 1.3 6 45° 13.4 4 -ST YG602 12000689 SEKT12T3-ST 1.5 2 6 45˚ 13.4 4 -ST YG613 12000722 SEKT1204-ST 1.1 2 6 45˚ 12.7 4.9 -ST YG613 12000833 SEKT1204AFTN 1.1 1.18 6 45° 12.7 4.9 General YG612 12000953 SEKT12T3AGTN 1.5 1.3 6 45° 12.7 4 General YG612 12000962 SEKT1204-ST 1.1 2 6 45° 12.7 4.9 -ST YG612 12000963 SEKT12T3-ST 1.5 2 6 45° 12.7 4 -ST YG612
