SEKT12 Cutter

SEKT12 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SEKT12
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add SEKT12 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

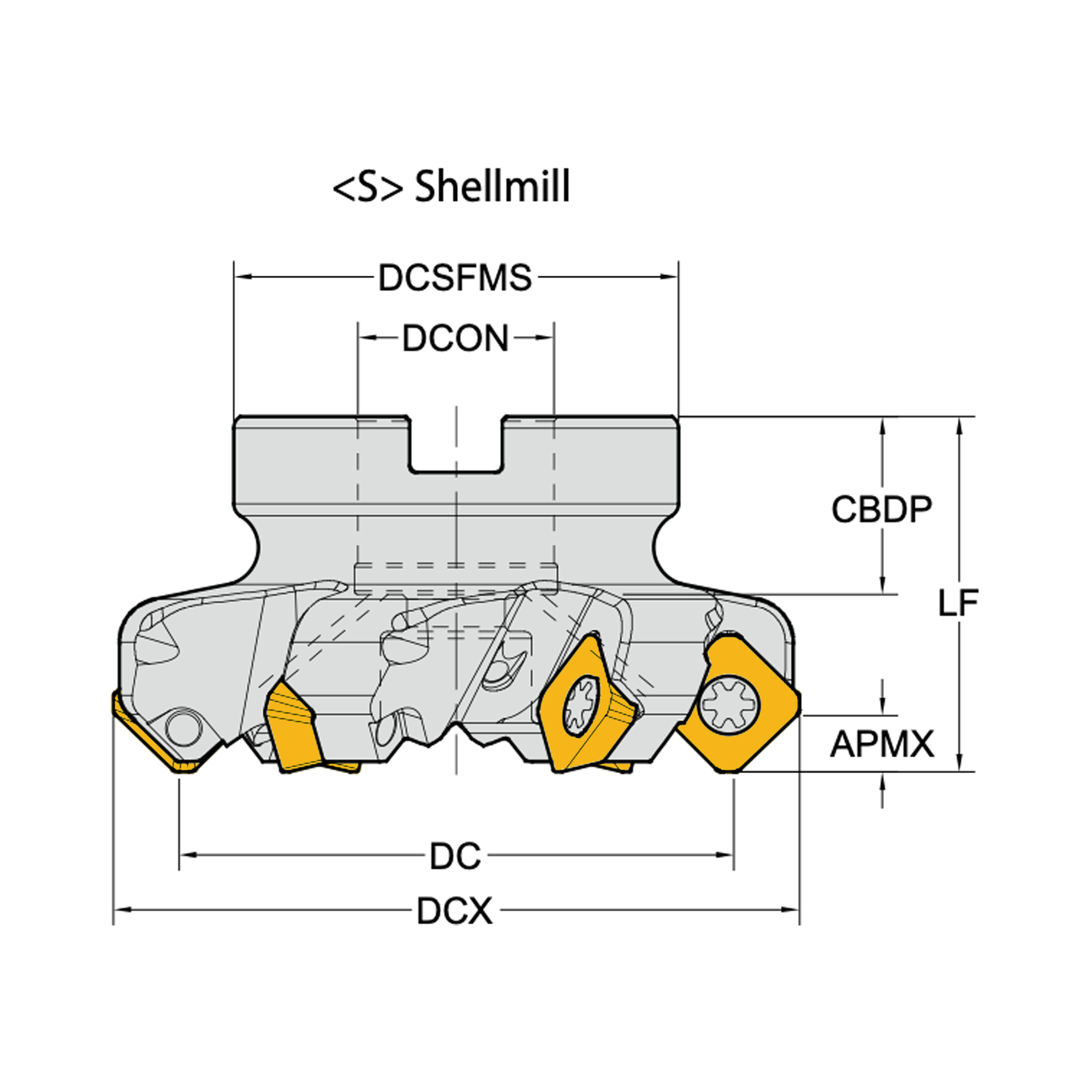

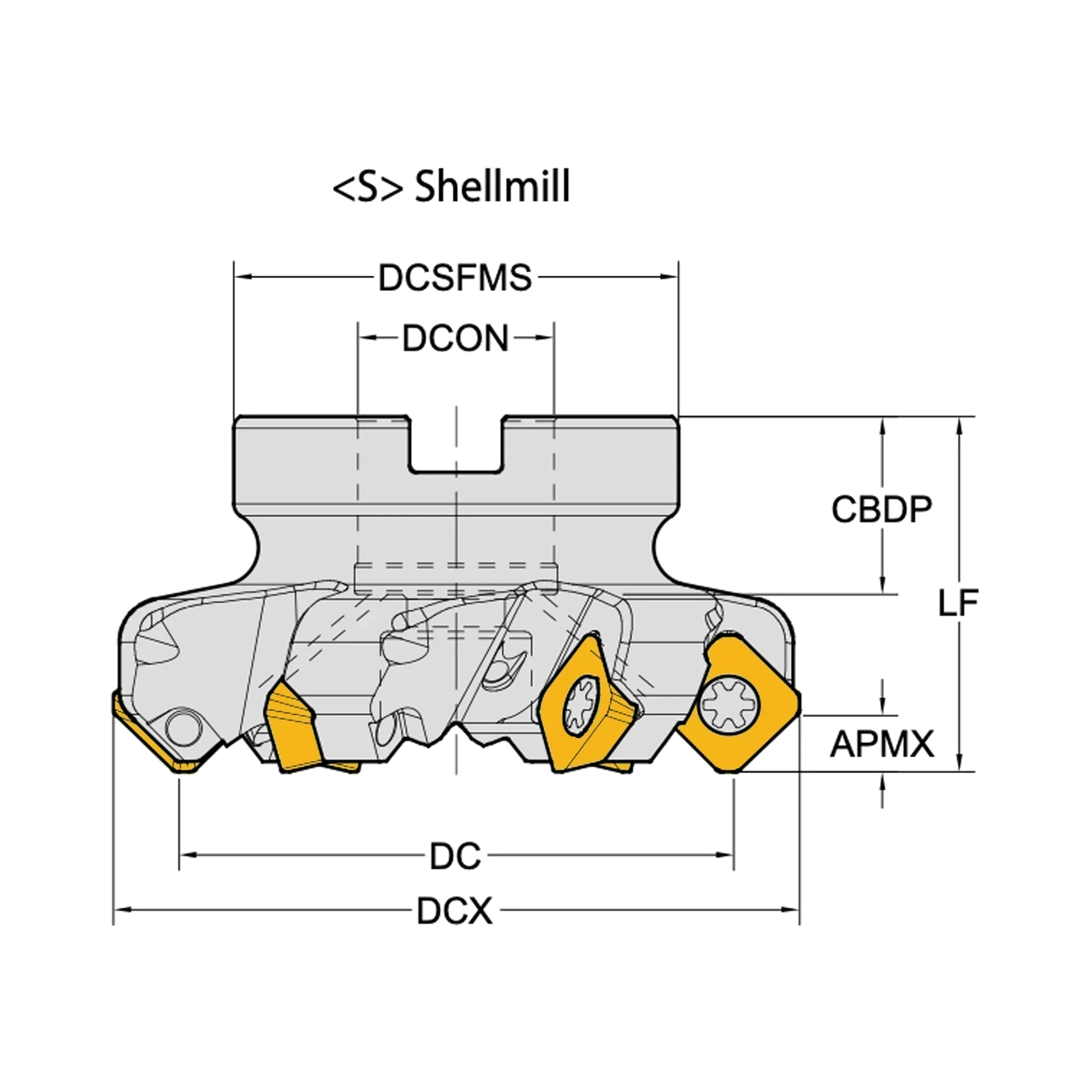

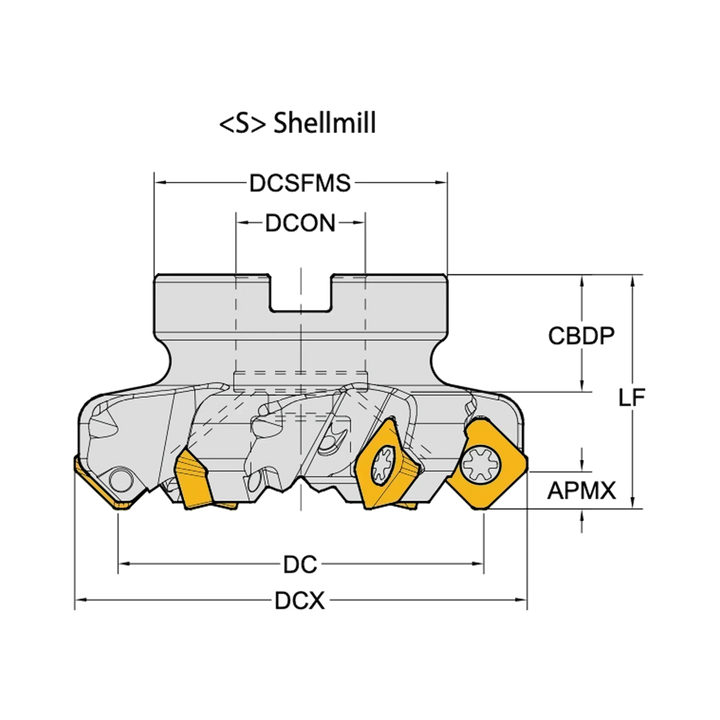

Face Milling Cutters for SEGT,SEKT (4 Corners Positive)

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000031 F45-SEKT12-D40Z4S16 O 4 40 54 40 16 18 32 6 Shell Mill 17000032 F45-SEKT12-D50Z5S22 O 5 50 64 40 22 20 48 6 Shell Mill 17000033 F45-SEKT12-D63Z4S22 O 4 63 77 40 22 20 50 6 Shell Mill 17000034 F45-SEKT12-D63Z6S22 O 6 63 77 40 22 20 50 6 Shell Mill 17000035 F45-SEKT12-D80Z4S27 O 4 80 94 50 27 22 56 6 Shell Mill 17000036 F45-SEKT12-D80Z7S27 O 7 80 94 50 27 22 56 6 Shell Mill 17000037 F45-SEKT12-D100Z8S32 O 8 100 114 50 32 25 78 6 Shell Mill 17000038 F45-SEKT12-D125Z10S40 O 10 125 139 63 40 29 90 6 Shell Mill 17000039 F45-SEKT12-D160Z12S40 O 12 160 174 63 40 30 114 6 Shell Mill 17000500 F45-SE12T3-D50Z4S22 O 4 50 63 40 22 22 48 6 Shell Mill 17000501 F45-SE12T3-D63Z5S22 O 5 63 76 40 22 22 48 6 Shell Mill 17000502 F45-SE12T3-D80Z6S27 O 6 80 93 50 27 25 58 6 Shell Mill 17000503 F45-SE12T3-D100Z7S32 O 7 100 113 50 32 26 65 6 Shell Mill 17000504 F45-SE12T3-D125Z8S40-WOC X 8 125 138 63 40 32 85 6 Shell Mill 17000505 F45-SE12T3-D160Z10S40-WOC X 10 160 173 63 40 32 110 6 Shell Mill
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000031 F45-SEKT12-D40Z4S16 O 4 40 54 40 16 18 32 6 Shell Mill 17000032 F45-SEKT12-D50Z5S22 O 5 50 64 40 22 20 48 6 Shell Mill 17000033 F45-SEKT12-D63Z4S22 O 4 63 77 40 22 20 50 6 Shell Mill 17000034 F45-SEKT12-D63Z6S22 O 6 63 77 40 22 20 50 6 Shell Mill 17000035 F45-SEKT12-D80Z4S27 O 4 80 94 50 27 22 56 6 Shell Mill 17000036 F45-SEKT12-D80Z7S27 O 7 80 94 50 27 22 56 6 Shell Mill 17000037 F45-SEKT12-D100Z8S32 O 8 100 114 50 32 25 78 6 Shell Mill 17000038 F45-SEKT12-D125Z10S40 O 10 125 139 63 40 29 90 6 Shell Mill 17000039 F45-SEKT12-D160Z12S40 O 12 160 174 63 40 30 114 6 Shell Mill 17000500 F45-SE12T3-D50Z4S22 O 4 50 63 40 22 22 48 6 Shell Mill 17000501 F45-SE12T3-D63Z5S22 O 5 63 76 40 22 22 48 6 Shell Mill 17000502 F45-SE12T3-D80Z6S27 O 6 80 93 50 27 25 58 6 Shell Mill 17000503 F45-SE12T3-D100Z7S32 O 7 100 113 50 32 26 65 6 Shell Mill 17000504 F45-SE12T3-D125Z8S40-WOC X 8 125 138 63 40 32 85 6 Shell Mill 17000505 F45-SE12T3-D160Z10S40-WOC X 10 160 173 63 40 32 110 6 Shell Mill
