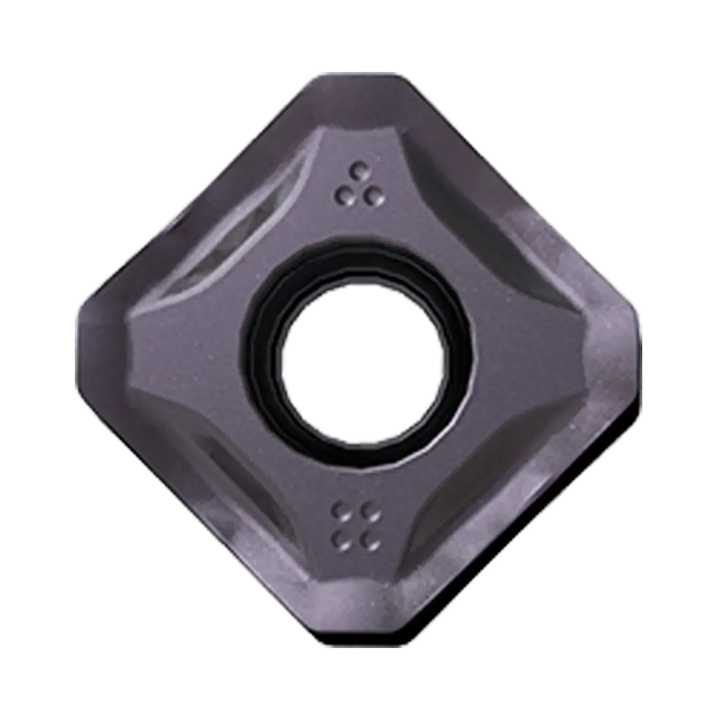

SNMX12

SNMX12
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SNMX12
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add SNMX12 to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

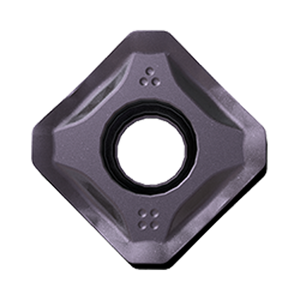

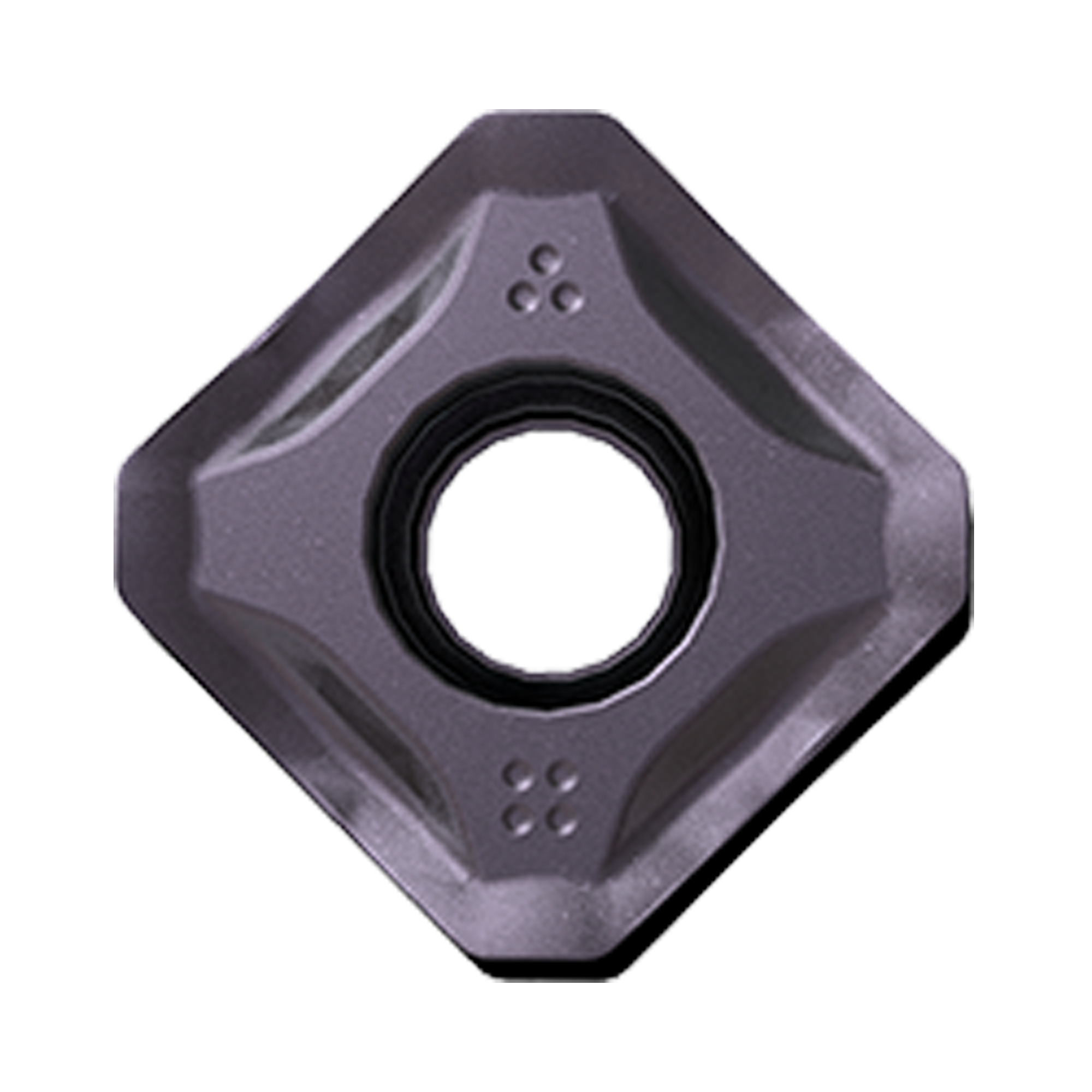

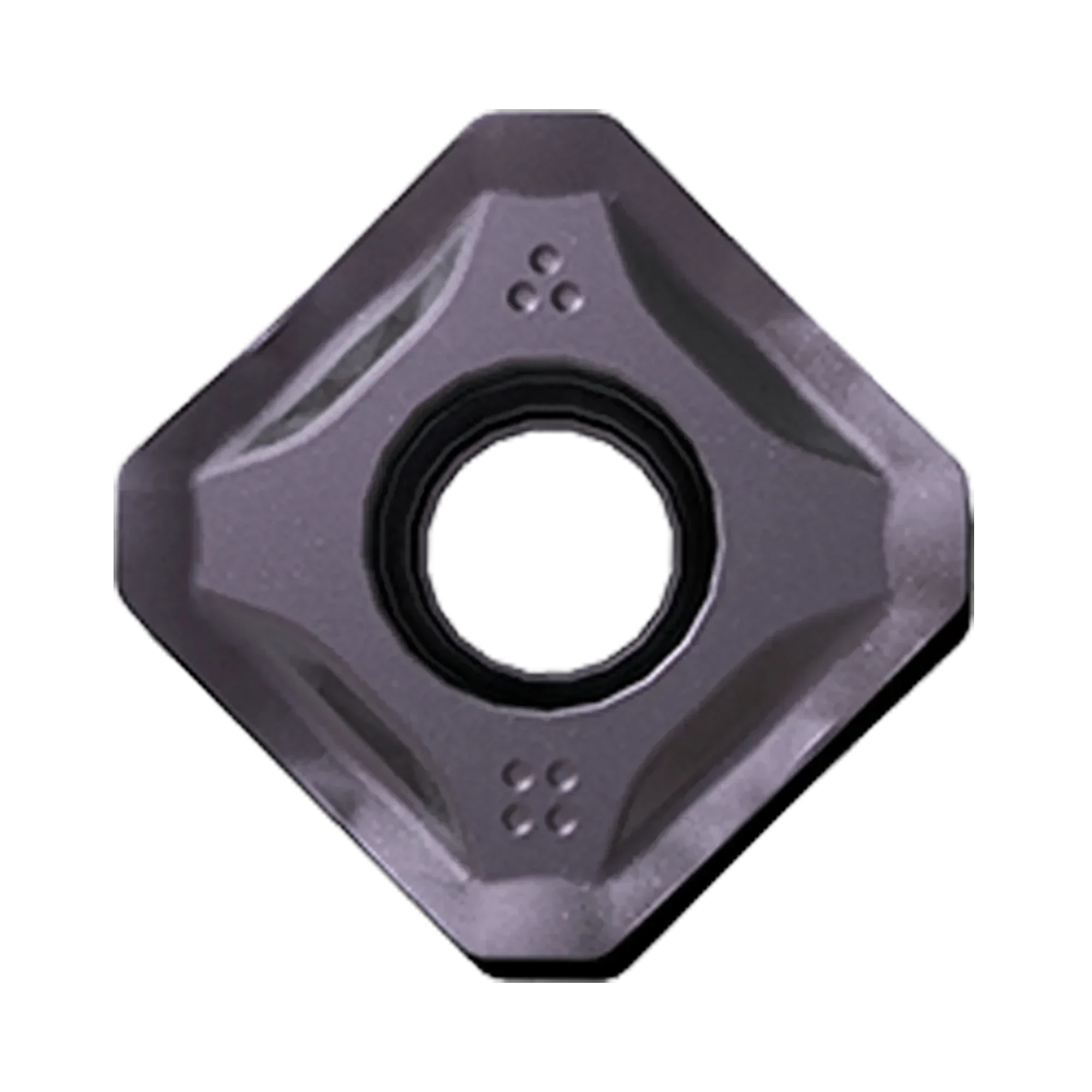

Face Milling Negative (8 Corners)

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting

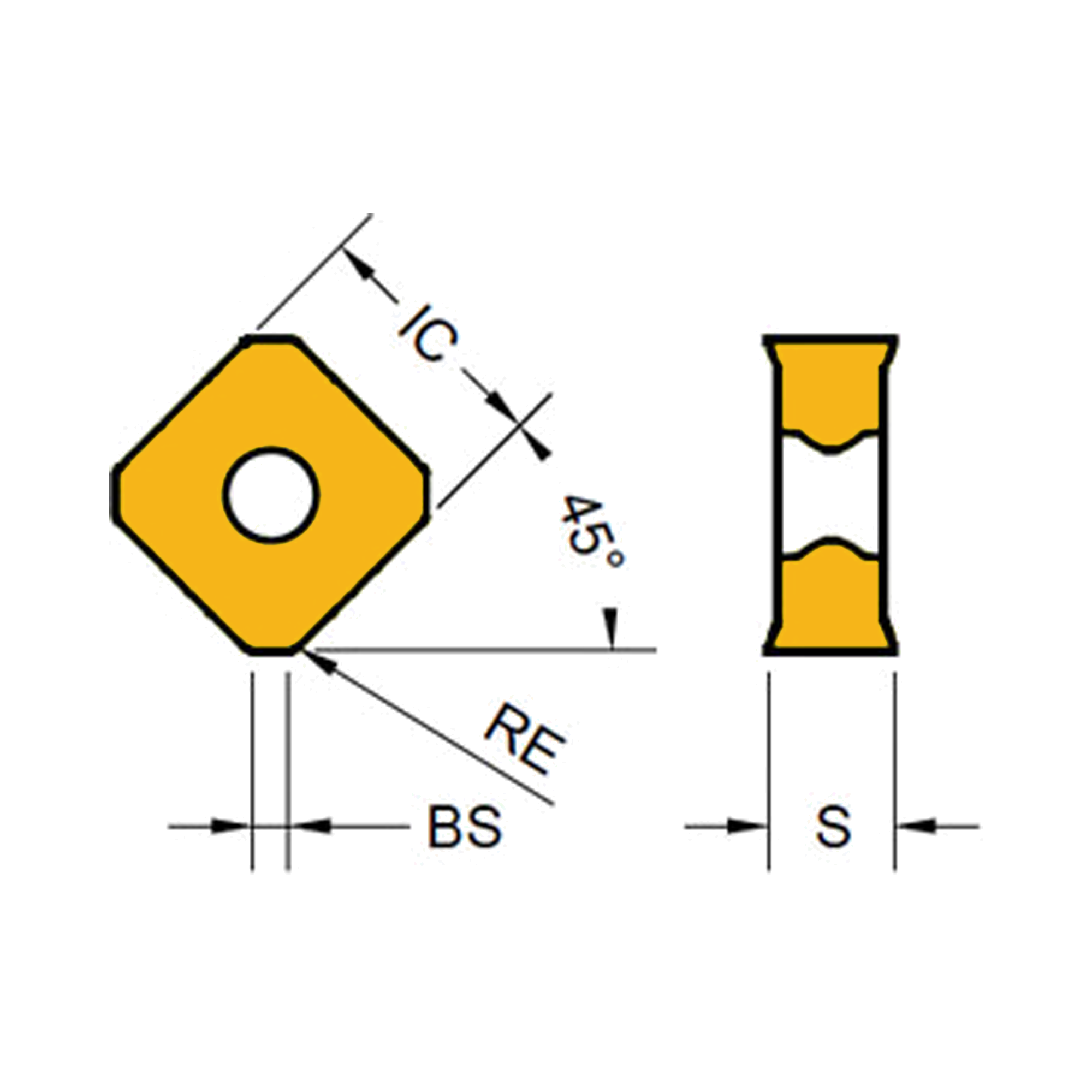

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000231 SNMX1206ANN 0.8 1.7 6 45° 12.7 6.25 General YG602 12000460 SNMX1206ANN 0.8 1.7 6 45˚ 12.7 6.25 GENERAL YG5020 12000461 SNMX1206ANN 0.8 1.7 6 45˚ 12.7 6.25 GENERAL YG501 12000674 SNMX1206ANN 0.8 1.7 6 45˚ 12.7 6.25 GENERAL YG613 12000686 SNMX1206QNN 0.8 1.99 11.5 88˚ 12.7 6.25 GENERAL YG501 12000731 SNMX1206QNN 0.8 1.99 11.5 88° 12.7 6.25 General YG5020 12000732 SNMX1206QNN 0.8 1.99 11.5 88° 12.7 6.25 General YG712 12000754 SNMX1206ANN 0.8 1.7 6 45° 12.7 6.25 General YG012 12000901 SNMX1206QNN 0.8 1.99 11.5 88° 12.7 6.25 General YG012 12000959 SNMX1206ANN 0.8 1.7 6 45° 12.7 6.25 General YG612 12001017 SNMX1206QNN-GN 0.8 2 9.5 88˚ 12.7 6.35 -GN YG012 12001018 SNMX120612-GN 1.2 11 - 12.7 6.35 -GN YG012 12001054 SNMX120612-GN 1.2 11 - 12.7 6.35 -GN YG612
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000231 SNMX1206ANN 0.8 1.7 6 45° 12.7 6.25 General YG602 12000460 SNMX1206ANN 0.8 1.7 6 45˚ 12.7 6.25 GENERAL YG5020 12000461 SNMX1206ANN 0.8 1.7 6 45˚ 12.7 6.25 GENERAL YG501 12000674 SNMX1206ANN 0.8 1.7 6 45˚ 12.7 6.25 GENERAL YG613 12000686 SNMX1206QNN 0.8 1.99 11.5 88˚ 12.7 6.25 GENERAL YG501 12000731 SNMX1206QNN 0.8 1.99 11.5 88° 12.7 6.25 General YG5020 12000732 SNMX1206QNN 0.8 1.99 11.5 88° 12.7 6.25 General YG712 12000754 SNMX1206ANN 0.8 1.7 6 45° 12.7 6.25 General YG012 12000901 SNMX1206QNN 0.8 1.99 11.5 88° 12.7 6.25 General YG012 12000959 SNMX1206ANN 0.8 1.7 6 45° 12.7 6.25 General YG612 12001017 SNMX1206QNN-GN 0.8 2 9.5 88˚ 12.7 6.35 -GN YG012 12001018 SNMX120612-GN 1.2 11 - 12.7 6.35 -GN YG012 12001054 SNMX120612-GN 1.2 11 - 12.7 6.35 -GN YG612
