SNMX12 Cutter

SNMX12 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SNMX12
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add SNMX12 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

Face Milling Cutters for SEGT,SEKT (4 Corners Positive)

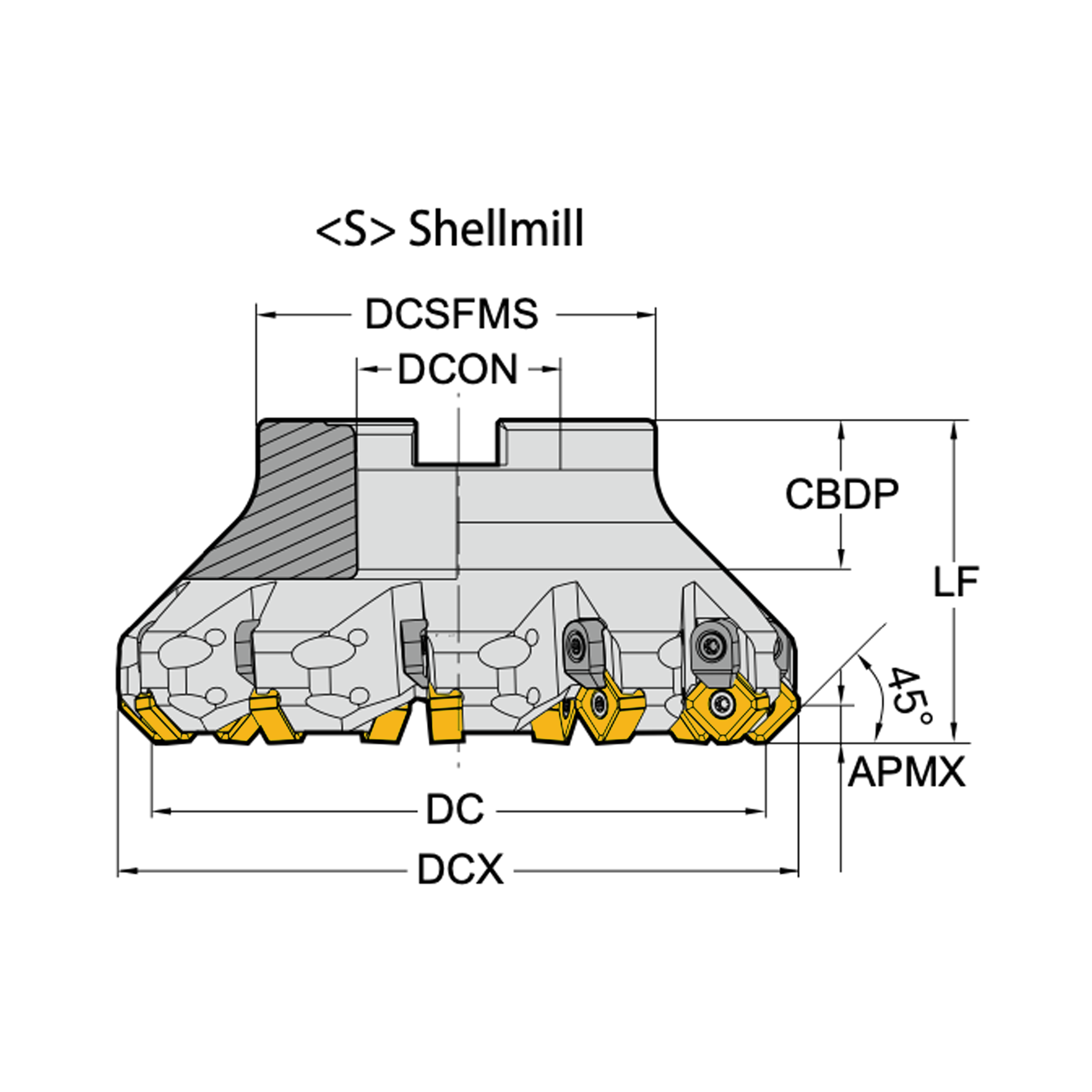

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000506 F45-SNMX12-D50Z4S22 O 4 50 63 42 22 22 42 6 Shell Mill 17000507 F45-SNMX12-D50Z5S22 O 5 50 63 42 22 22 42 6 Shell Mill 17000508 F45-SNMX12-D63Z6S22 O 6 63 76 42 22 22 48 6 Shell Mill 17000509 F45-SNMX12-D63Z7S22 O 7 63 76 42 22 22 48 6 Shell Mill 17000510 F45-SNMX12-D80Z7S27 O 7 80 93 52 27 25 58 6 Shell Mill 17000511 F45-SNMX12-D80Z8S27 O 8 80 93 52 27 25 58 6 Shell Mill 17000512 F45-SNMX12-D100Z10S32 O 10 100 113 52 32 26 67 6 Shell Mill 17000513 F45-SNMX12-D100Z8S32 O 8 100 113 52 32 26 67 6 Shell Mill 17000514 F45-SNMX12-D125Z11S40-WOC X 11 125 138 65 40 32 80 6 Shell Mill 17000515 F45-SNMX12-D160Z12S40-WOC X 12 160 173 65 40 32 110 6 Shell Mill 17000516 F45-SNMX12-D200Z14S60-WOC X 14 200 213 65 60 40 130 6 Shell Mill
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000506 F45-SNMX12-D50Z4S22 O 4 50 63 42 22 22 42 6 Shell Mill 17000507 F45-SNMX12-D50Z5S22 O 5 50 63 42 22 22 42 6 Shell Mill 17000508 F45-SNMX12-D63Z6S22 O 6 63 76 42 22 22 48 6 Shell Mill 17000509 F45-SNMX12-D63Z7S22 O 7 63 76 42 22 22 48 6 Shell Mill 17000510 F45-SNMX12-D80Z7S27 O 7 80 93 52 27 25 58 6 Shell Mill 17000511 F45-SNMX12-D80Z8S27 O 8 80 93 52 27 25 58 6 Shell Mill 17000512 F45-SNMX12-D100Z10S32 O 10 100 113 52 32 26 67 6 Shell Mill 17000513 F45-SNMX12-D100Z8S32 O 8 100 113 52 32 26 67 6 Shell Mill 17000514 F45-SNMX12-D125Z11S40-WOC X 11 125 138 65 40 32 80 6 Shell Mill 17000515 F45-SNMX12-D160Z12S40-WOC X 12 160 173 65 40 32 110 6 Shell Mill 17000516 F45-SNMX12-D200Z14S60-WOC X 14 200 213 65 60 40 130 6 Shell Mill

Video

YG Mill
