SPKN12 Cutter

SPKN12 Cutter
$0.00 INC GST $0.00 EX GST Price available on request
SKU
SPKN12 Cutter
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add SPKN12 Cutter to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

Face Milling Cutters
for SPCN, SPKN, SPKR (4 Corners Positive ISO)

Product Data
Operation Die Sinking, Facing, Side Milling, Slotting

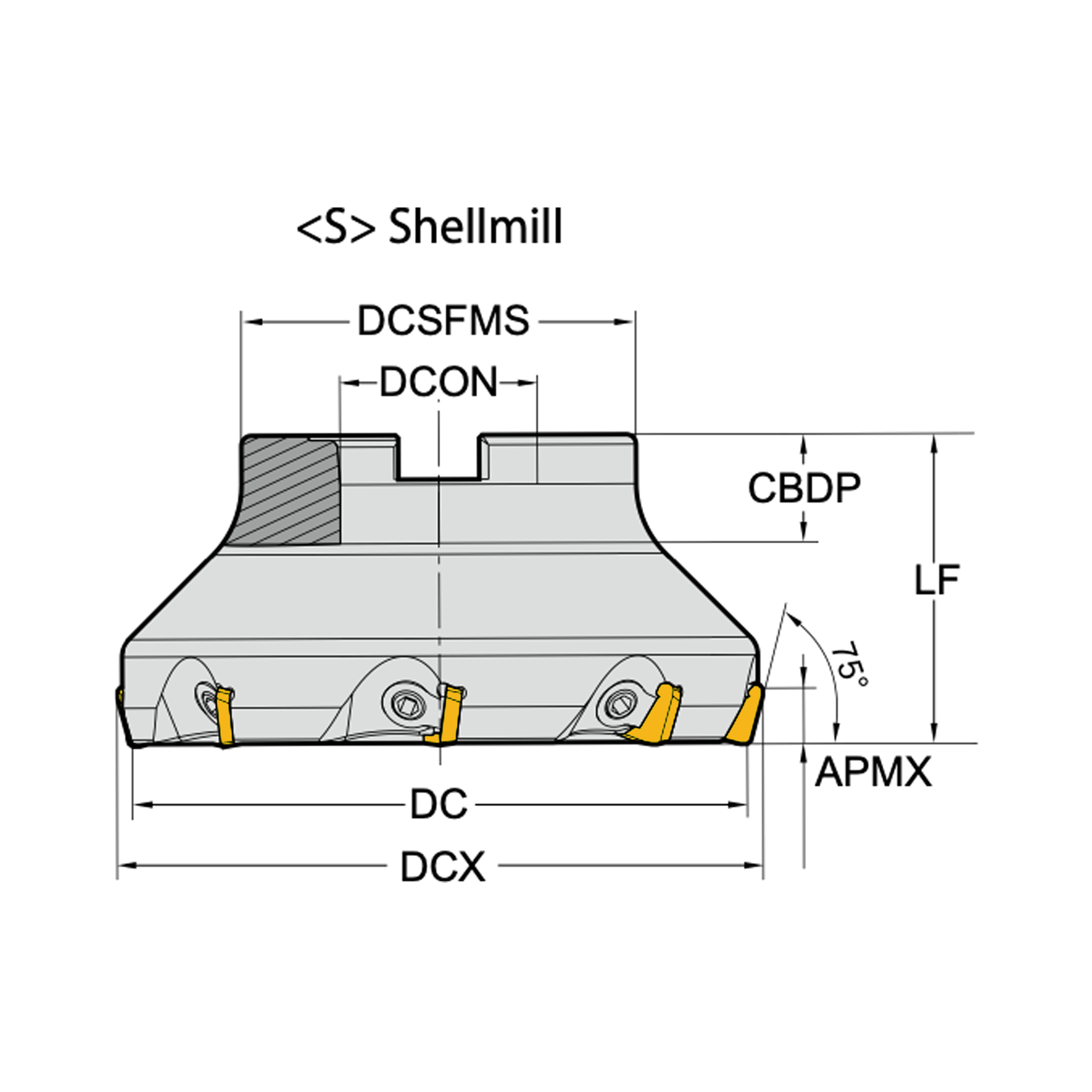

EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000611 F75-SPKN12-D50Z4S22-WOC X 4 50 56 40 22 22 42 8 Shell Mill 17000612 F75-SPKN12-D63Z5S22-WOC X 5 63 69 40 22 22 48 8 Shell Mill 17000613 F75-SPKN12-D80Z6S27-WOC X 6 80 86 50 27 25 58 8 Shell Mill 17000614 F75-SPKN12-D100Z7S32-WOC X 7 100 106 50 32 26 65 8 Shell Mill 17000615 F75-SPKN12-D125Z8S40-WOC X 8 125 131 63 40 32 80 8 Shell Mill 17000616 F75-SPKN12-D160Z9S40-WOC X 9 160 166 63 40 32 110 8 Shell Mill 17000617 F75-SPKN12-D200Z12S60-WOC X 12 200 206 63 60 40 130 8 Shell Mill
Side Milling
Slotting
Die Sinking
Facing
EDP No. Designation Coolant Number of Effective Teeth Cutter Diameter Cutter Diameter External Effective Length Connection Size Connection Bore Depth Flange Diameter Maximum Cutting Depth Connection Type 17000611 F75-SPKN12-D50Z4S22-WOC X 4 50 56 40 22 22 42 8 Shell Mill 17000612 F75-SPKN12-D63Z5S22-WOC X 5 63 69 40 22 22 48 8 Shell Mill 17000613 F75-SPKN12-D80Z6S27-WOC X 6 80 86 50 27 25 58 8 Shell Mill 17000614 F75-SPKN12-D100Z7S32-WOC X 7 100 106 50 32 26 65 8 Shell Mill 17000615 F75-SPKN12-D125Z8S40-WOC X 8 125 131 63 40 32 80 8 Shell Mill 17000616 F75-SPKN12-D160Z9S40-WOC X 9 160 166 63 40 32 110 8 Shell Mill 17000617 F75-SPKN12-D200Z12S60-WOC X 12 200 206 63 60 40 130 8 Shell Mill
