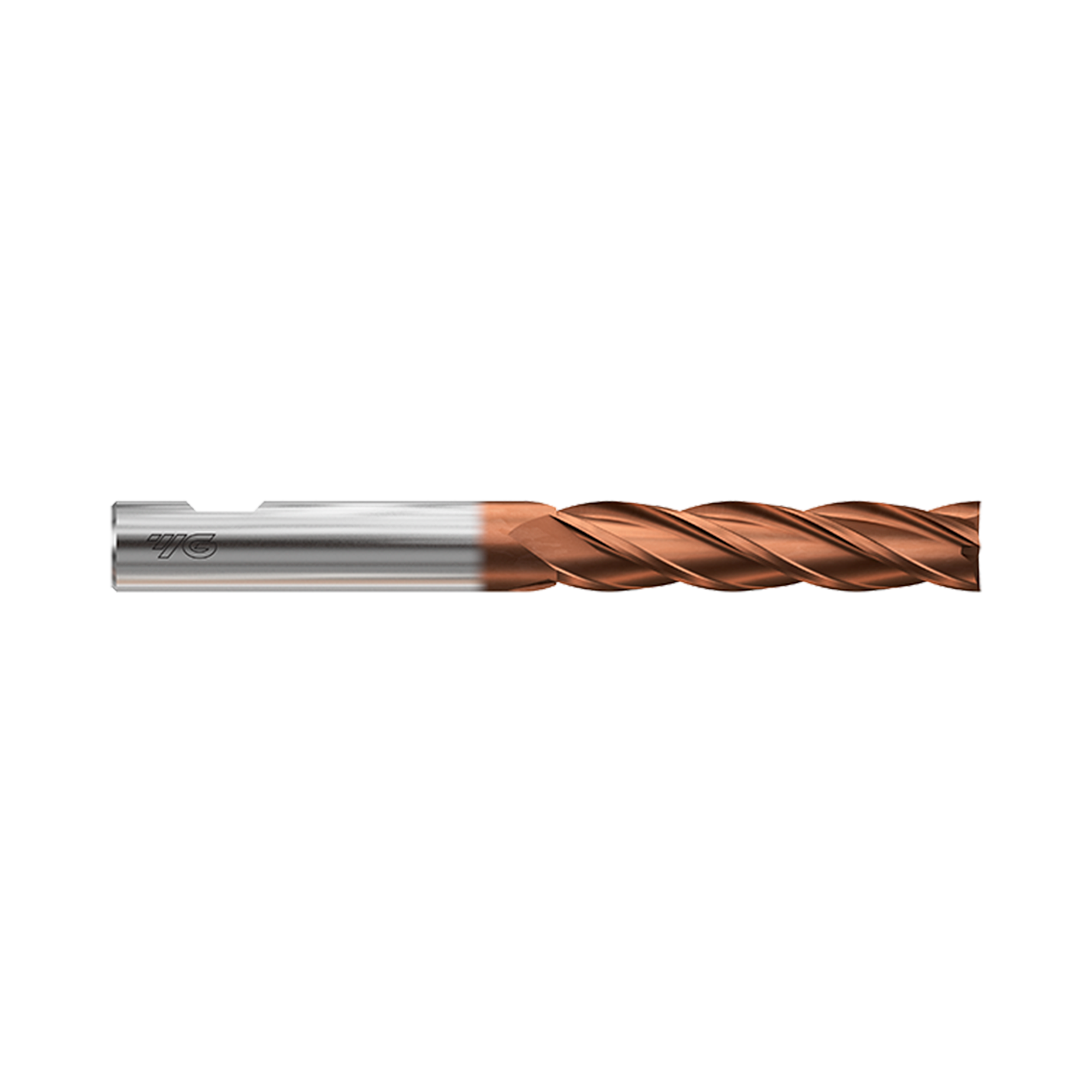

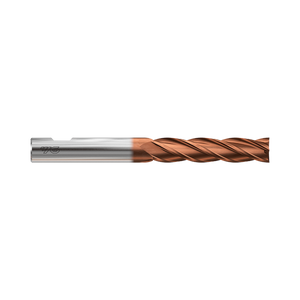

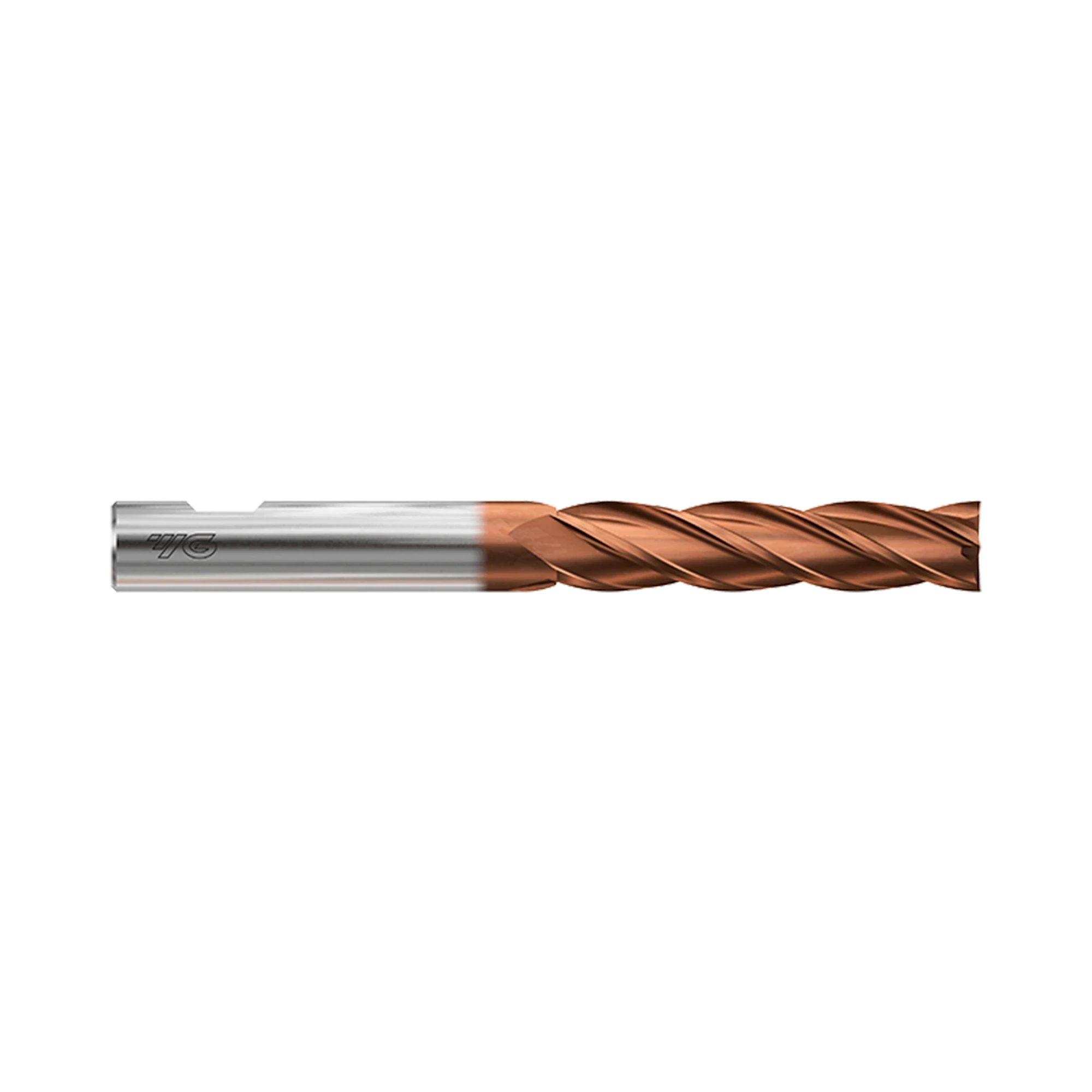

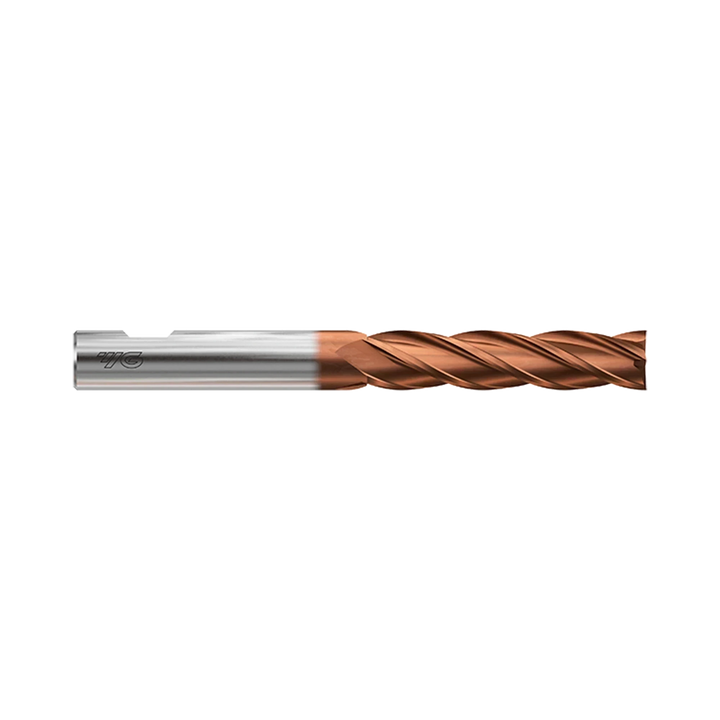

(GAA31) HSS-PM, Tank-Power, 4Flute Coated End Mill, Long Length
TiAlN-Coated HSS-PM Long-Length Four-Flute End Mill
- SKU
- GAA31020
Key features
- TiAlN-coated HSS-PM construction
- Four-flute long-length end mill geometry
- Designed for carbon alloyed and stainless steels
Made in South Korea
Steel machining focus
Designed to machine carbon steels, alloyed steels and stainless steels.
Versatile milling operations
Recommended for pocketing, cam milling, die sinking and slotting applications.
Long-length cutter range
Offers 2 mm to 25 mm cutting diameters for extended-reach milling tasks.

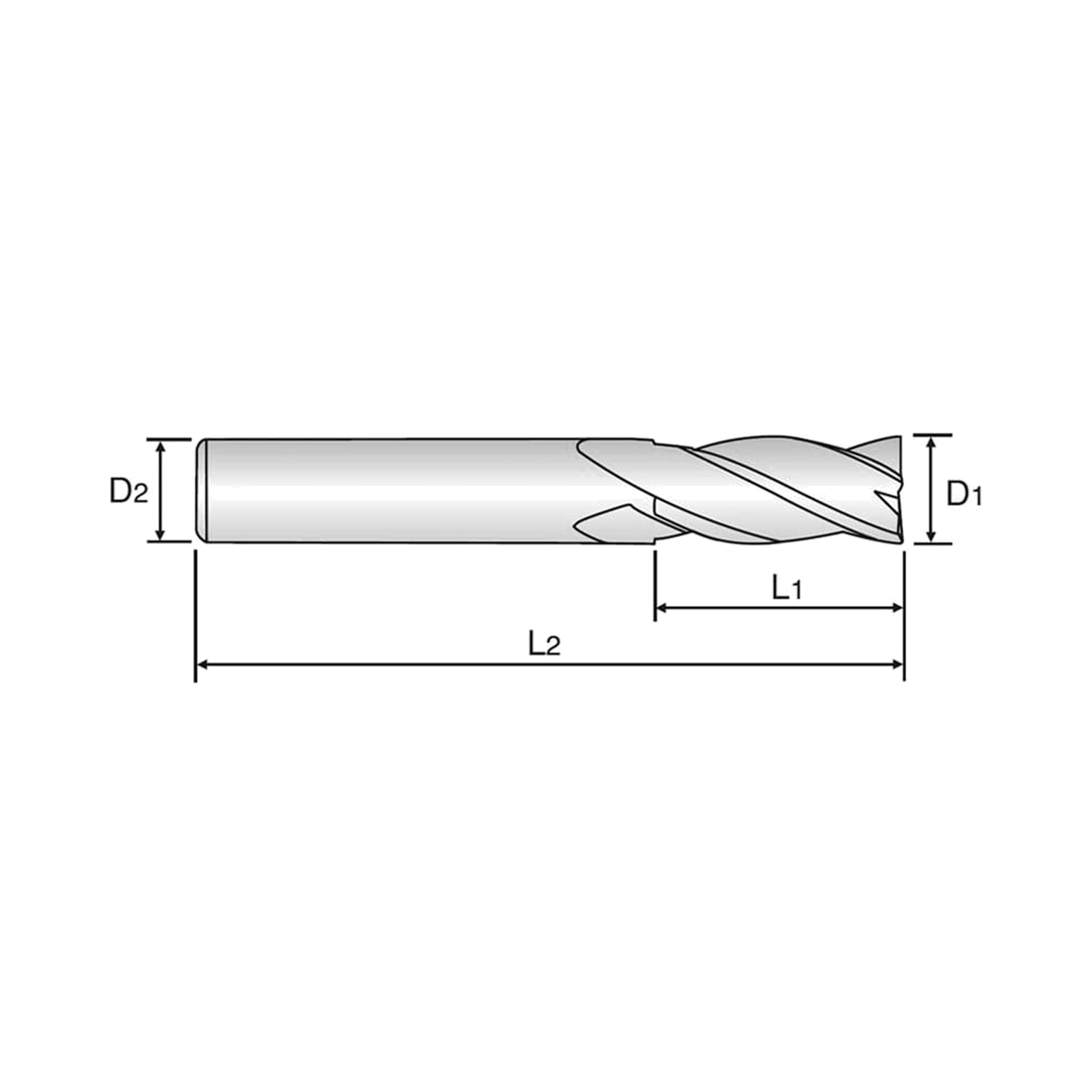

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| GAA31020 | 2 | 54.0 | 6.0 | 10.0 | 1-2 Weeks | $52.80 | ||
| GAA31030 | 3 | 56.0 | 6.0 | 12.0 | 1-2 Weeks | $52.80 | ||
| GAA31040 | 4 | 63.0 | 6.0 | 19.0 | 1-2 Weeks | $52.80 | ||
| GAA31060 | 5 | 68.0 | 6.0 | 24.0 | 1-2 Weeks | $35.80 | ||
| GAA31070 | 6 | 80.0 | 10.0 | 30.0 | 1-2 Weeks | $82.70 | ||
| GAA31080 | 7 | 88.0 | 10.0 | 38.0 | 1-2 Weeks | $82.70 | ||
| GAA31090 | 8 | 88.0 | 10.0 | 38.0 | 1-2 Weeks | $83.40 | ||
| GAA31100 | 9 | 95.0 | 10.0 | 45.0 | 1-2 Weeks | $83.40 | ||
| GAA31120 | 10 | 110.0 | 12.0 | 53.0 | 1-2 Weeks | $78.60 | ||
| GAA31140 | 12 | 110.0 | 12.0 | 53.0 | 1-2 Weeks | $130.40 | ||
| GAA31160 | 14 | 123.0 | 16.0 | 63.0 | 1-2 Weeks | $160.00 | ||
| GAA31180 | 16 | 123.0 | 16.0 | 63.0 | 1-2 Weeks | $203.70 | ||
| GAA31200 | 18 | 141.0 | 20.0 | 75.0 | 1-2 Weeks | $200.10 | ||
| GAA31220 | 20 | 141.0 | 20.0 | 75.0 | 1-2 Weeks | $290.40 | ||
| GAA31250 | 25 | 166.0 | 25.0 | 90.0 | 1-2 Weeks | $330.70 |
Add (GAA31) HSS-PM, Tank-Power, 4Flute Coated End Mill, Long Length to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 GAA31 TANK-POWER is a TiAlN-coated HSS-PM four-flute long-length end mill for steel machining. It is designed for carbon steels, alloyed steels and stainless steels in high-speed milling applications. The four-flute design is recommended for pocketing, cam milling, die sinking and slotting. TANK-POWER coating is designed for high-speed cutting of difficult-to-cut materials. This series combines a long-length profile with four cutting flutes for general milling tasks. Available cutting diameters extend from 2 mm to 25 mm for long-reach steel milling requirements. Suitable work includes steel component machining requiring a coated HSS-PM end mill.
- TiAlN-coated HSS-PM construction
- Four-flute long-length end mill geometry
- Designed for carbon alloyed and stainless steels
- Recommended for pocketing cam milling die sinking and slotting
- TANK-POWER coating for high-speed cutting
- 2 mm to 25 mm cutting diameter range
No specifications available.
