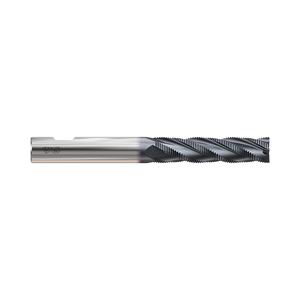

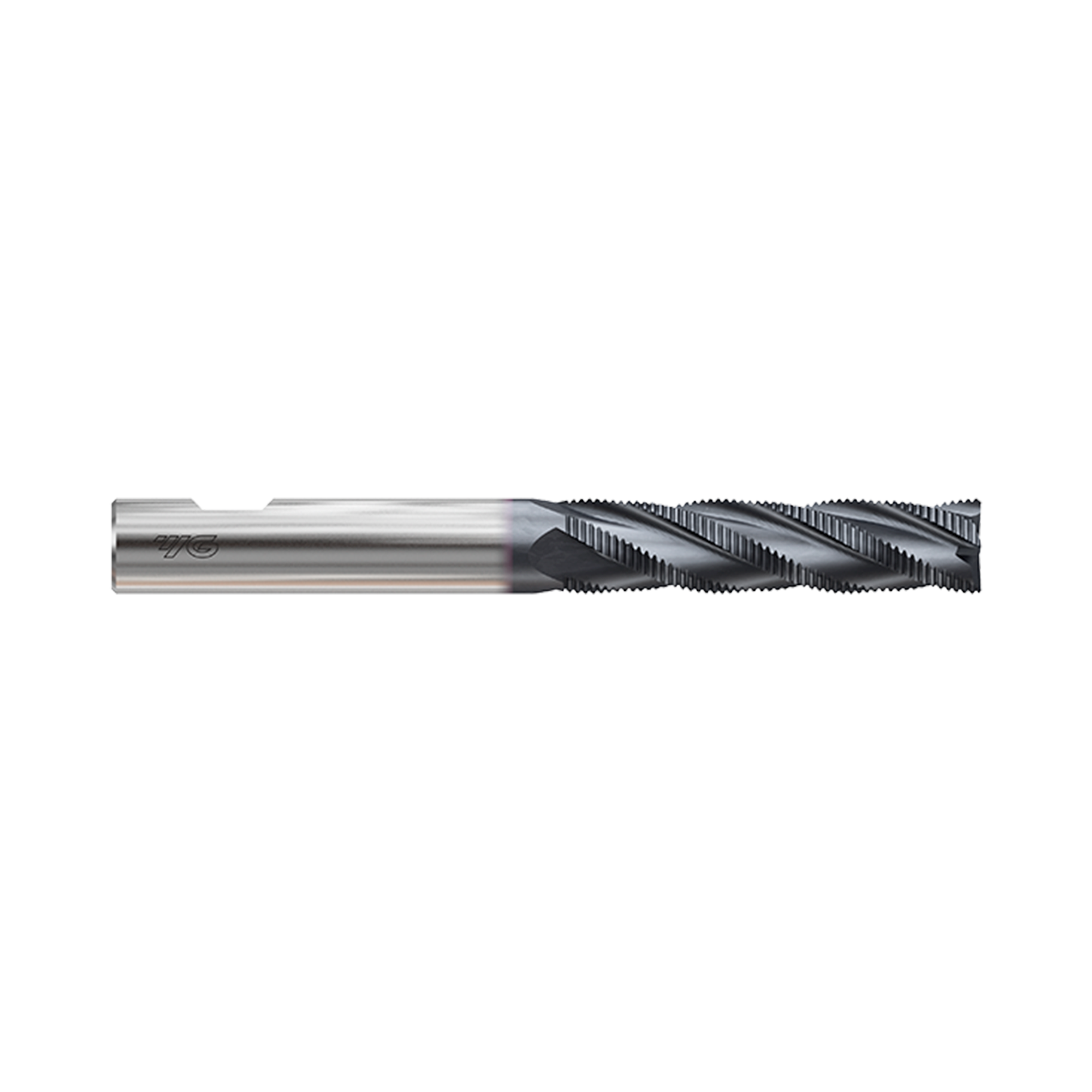

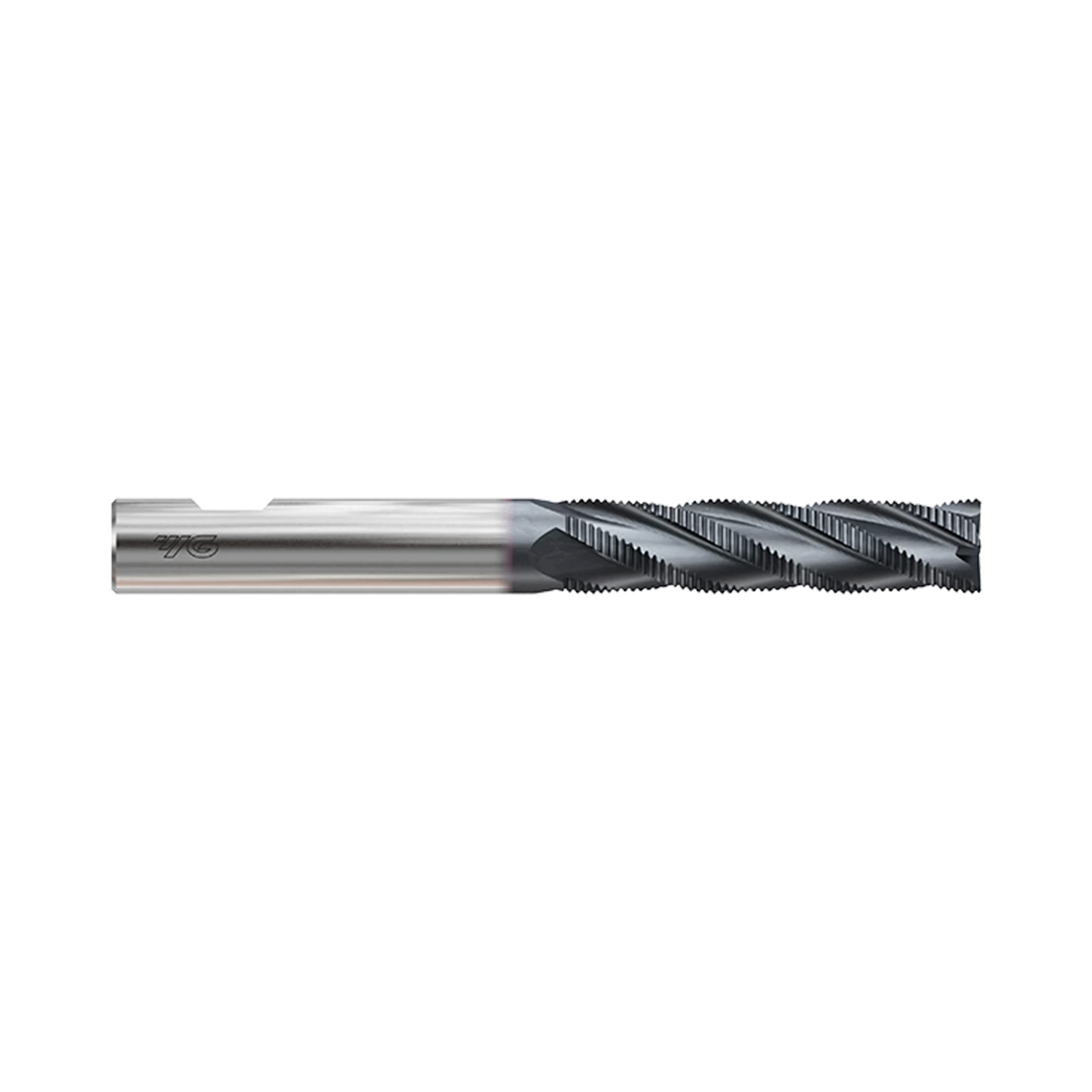

(GAA35) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Fine)

Long-Length HSS-PM Fine Roughing End Mill

(GAA35) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Fine)
$109.56 INC GST $99.60 EX GST
SKU
GAA35060
Work materials
PMKN

Key features

  • HSS-PM long-length fine roughing end mill with X-Coating
  • Suitable for high-feed roughing milling
  • Designed for carbon steels alloyed steels and stainless steels
Tool material HSS PM
Surface treatment YG-1 X Coating
Mill Diameter (mm)
Chamfer (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

High-feed roughing

Designed for high-feed roughing milling of carbon, alloyed and stainless steels.

Long cutting reach

Long-length geometry provides lengths of cut from 24 to 90 mm.

Fine roughing finish

Fine roughing geometry can provide excellent finished surfaces in many applications.

SKUMill Diameter (mm)Chamfer (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)Stock Price Qty Add
GAA350606.00.1868.06.0324.0 1-2 Weeks $99.60
GAA350707.00.1880.010.0330.0 1-2 Weeks $121.50
GAA350808.00.1888.010.0338.0 1-2 Weeks $121.50
GAA350909.00.1888.010.0338.0 1-2 Weeks $122.20
GAA3510010.00.1895.010.0445.0 1-2 Weeks $122.20
GAA3512012.00.18110.012.0453.0 1-2 Weeks $101.30
GAA3514014.00.25110.012.0453.0 1-2 Weeks $197.30
GAA3516016.00.25123.016.0463.0 1-2 Weeks $136.10
GAA3518018.00.25123.016.0463.0 1-2 Weeks $257.50
GAA3520020.00.25141.020.0475.0 1-2 Weeks $197.80
GAA3522022.00.36141.020.0575.0 1-2 Weeks $408.60
GAA3525025.00.36166.025.0590.0 1-2 Weeks $316.70

Add (GAA35) HSS-PM, Tank-Power, Multi Flute Coated Roughing End Mill, Long Length (Fine) to comparison

View Comparison
  • Overview
  • Specifications
  • Work Material
  • Reviews
Product Description

YG-1 GAA35 is a long-length HSS-PM multi-flute fine roughing end mill with X-Coating. Its TANK-POWER coating is suitable for high-speed cutting during high-feed roughing milling. Designed for carbon steels, alloyed steels and stainless steels in high-feed roughing applications. Fine roughing geometry can provide excellent finished surfaces in many machining situations. The series covers 6 to 25 mm diameters with three, four or five flutes. Tools to 20 mm are centre cutting, while 22 and 25 mm versions are non-centre cutting. Lengths of cut span 24 to 90 mm, supporting extended reach roughing work. Chamfers range from 0.18 to 0.36 mm through the specified diameter selection.

  • HSS-PM long-length fine roughing end mill with X-Coating
  • Suitable for high-feed roughing milling
  • Designed for carbon steels alloyed steels and stainless steels
  • Available in 6 to 25 mm diameters
  • Three four or five flute configurations
  • Centre cutting through 20 mm diameter
Product Data
Cutting Shape Rougher
Length Long
Surface Treatment YG-1 X Coating
Tool Material HSS PM

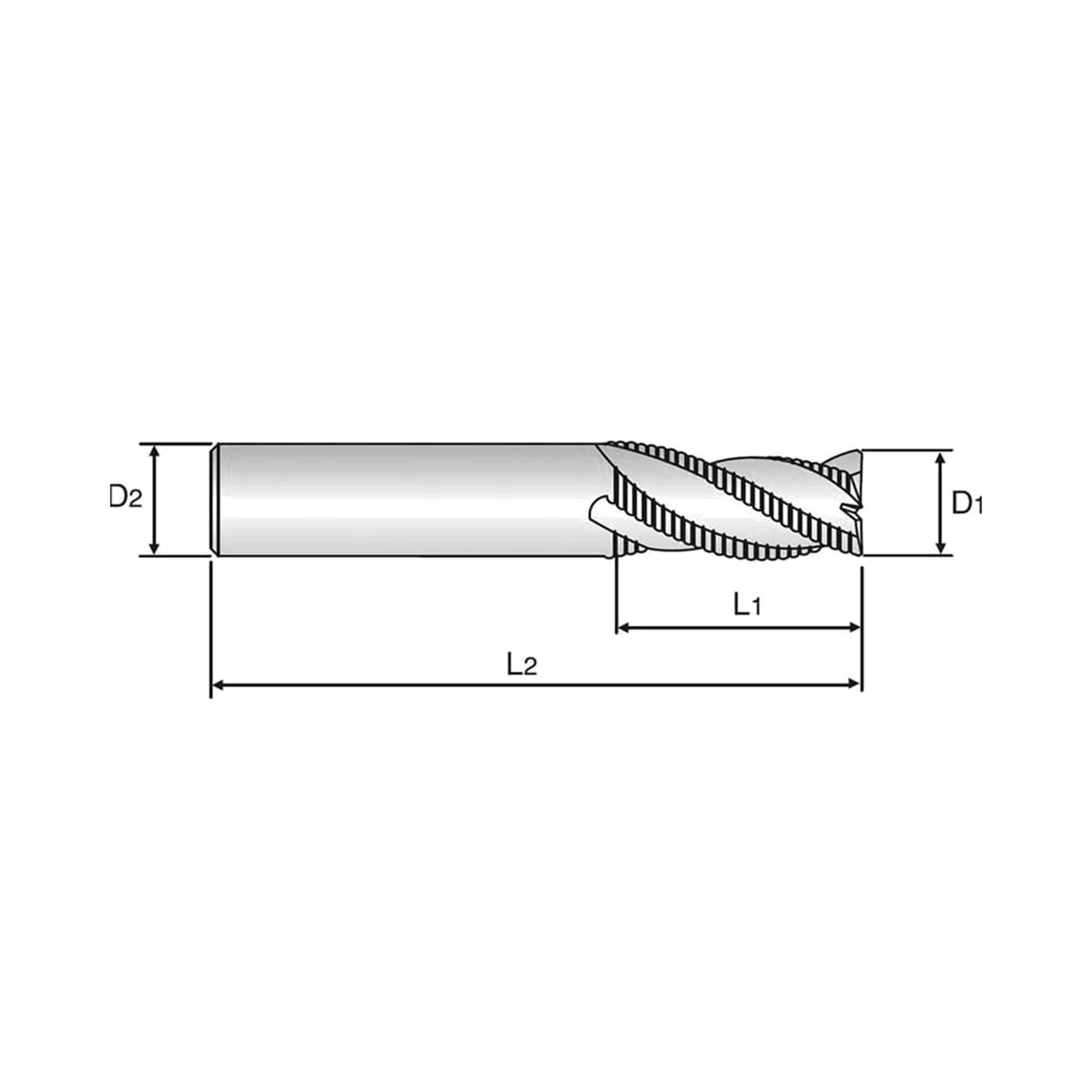

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length No. of Flute Chamfer GAA35060 6.0 6 24 68 3 0.18 GAA35070 7.0 10 30 80 3 0.18 GAA35080 8.0 10 38 88 3 0.18 GAA35090 9.0 10 38 88 3 0.18 GAA35100 10.0 10 45 95 4 0.18 GAA35120 12.0 12 53 110 4 0.18 GAA35140 14.0 12 53 110 4 0.25 GAA35160 16.0 16 63 123 4 0.25 GAA35180 18.0 16 63 123 4 0.25 GAA35200 20.0 20 75 141 4 0.25 GAA35220 22.0 20 75 141 5 0.36 GAA35250 25.0 25 90 166 5 0.36

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades
Non-alloy steel
ExcellentVDI 1–5
Low-alloy steel
ExcellentVDI 6–8
GoodVDI 9
High-alloy and tool steel
ExcellentVDI 10
GoodVDI 11

Cast iron

6 grades
Grey cast iron
ExcellentVDI 15–16
Nodular cast iron
ExcellentVDI 17–18
Malleable cast iron
ExcellentVDI 19–20

Stainless steel

3 grades
Stainless steel
ExcellentVDI 12–14

Non-ferrous materials

3 grades
Copper, bronze and brass
GoodVDI 26–28
VDI grade reference23 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelExcellent125-
2PNon-alloy steelExcellent19013
3PNon-alloy steelExcellent25025
4PNon-alloy steelExcellent27028
5PNon-alloy steelExcellent30032
6PLow-alloy steelExcellent18010
7PLow-alloy steelExcellent27529
8PLow-alloy steelExcellent30032
9PLow-alloy steelGood35038
10PHigh-alloy and tool steelExcellent20015
11PHigh-alloy and tool steelGood32535
12MStainless steelExcellent20015
13MStainless steelExcellent24023
14MStainless steelExcellent18010
15KGrey cast ironExcellent18010
16KGrey cast ironExcellent26026
17KNodular cast ironExcellent1603
18KNodular cast ironExcellent25025
19KMalleable cast ironExcellent130-
20KMalleable cast ironExcellent23021
26NCopper, bronze and brassGood110-
27NCopper, bronze and brassGood90-
28NCopper, bronze and brassGood100-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length No. of Flute Chamfer GAA35060 6.0 6 24 68 3 0.18 GAA35070 7.0 10 30 80 3 0.18 GAA35080 8.0 10 38 88 3 0.18 GAA35090 9.0 10 38 88 3 0.18 GAA35100 10.0 10 45 95 4 0.18 GAA35120 12.0 12 53 110 4 0.18 GAA35140 14.0 12 53 110 4 0.25 GAA35160 16.0 16 63 123 4 0.25 GAA35180 18.0 16 63 123 4 0.25 GAA35200 20.0 20 75 141 4 0.25 GAA35220 22.0 20 75 141 5 0.36 GAA35250 25.0 25 90 166 5 0.36
