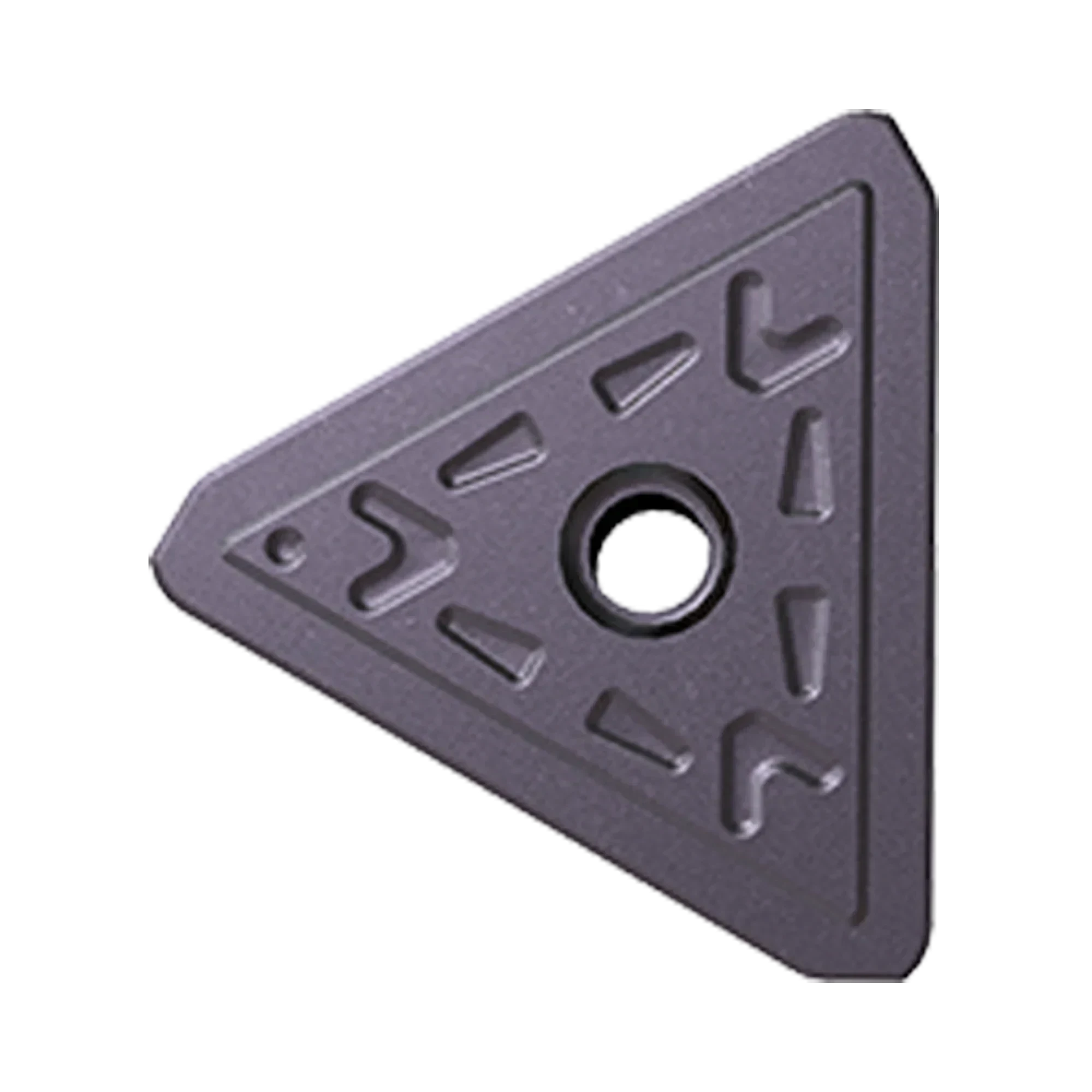

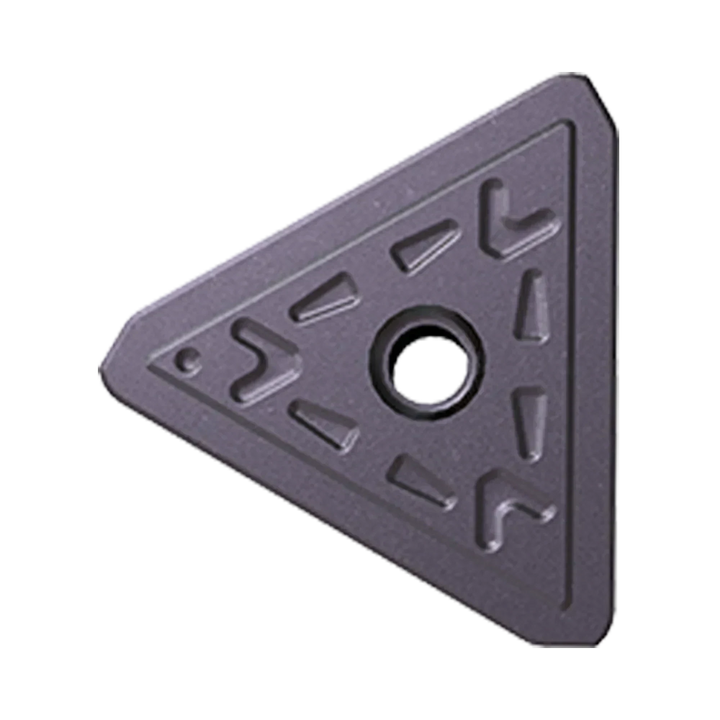

TPKN16

TPKN16
$0.00 INC GST $0.00 EX GST Price available on request
SKU
TPKN16
Code
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TPKN16 to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Reviews
Product Description

Shoulder Milling Positive (3 Corners ISO)

Product Data
Operation Facing, Helical-Interpol, Side Milling, Slotting

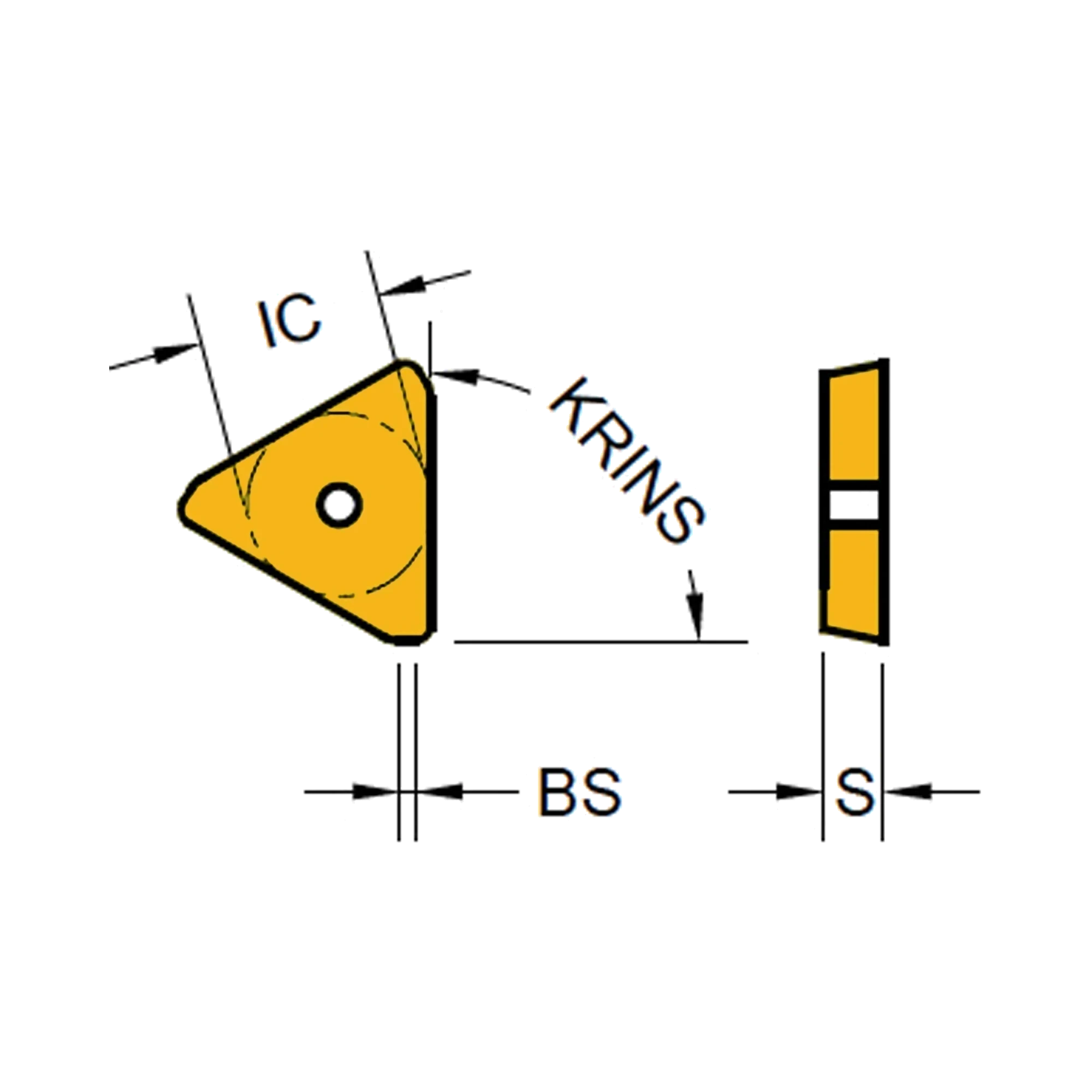

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000062 TPKN1603PDTR 1.2 1.2 12 90° 9.525 3.18 General YG602 12000302 TPKN1603PDTR-PW 0.6 1.2 12 90° 9.525 3.18 -PW YG602 12000306 TPKN1603PDTR-GW 0.6 1.62 12 90° 9.525 3.18 -GW YG602 12000956 TPKN1603PDTR 1.2 1.2 12 90° 9.53 3.18 General YG612 12001012 TPKN1603PDTR 1.2 1.2 12 90˚ 9.53 3.18 GENERAL YG613
Side Milling
Slotting
Facing
Helical Interpol
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000062 TPKN1603PDTR 1.2 1.2 12 90° 9.525 3.18 General YG602 12000302 TPKN1603PDTR-PW 0.6 1.2 12 90° 9.525 3.18 -PW YG602 12000306 TPKN1603PDTR-GW 0.6 1.62 12 90° 9.525 3.18 -GW YG602 12000956 TPKN1603PDTR 1.2 1.2 12 90° 9.53 3.18 General YG612 12001012 TPKN1603PDTR 1.2 1.2 12 90˚ 9.53 3.18 GENERAL YG613
