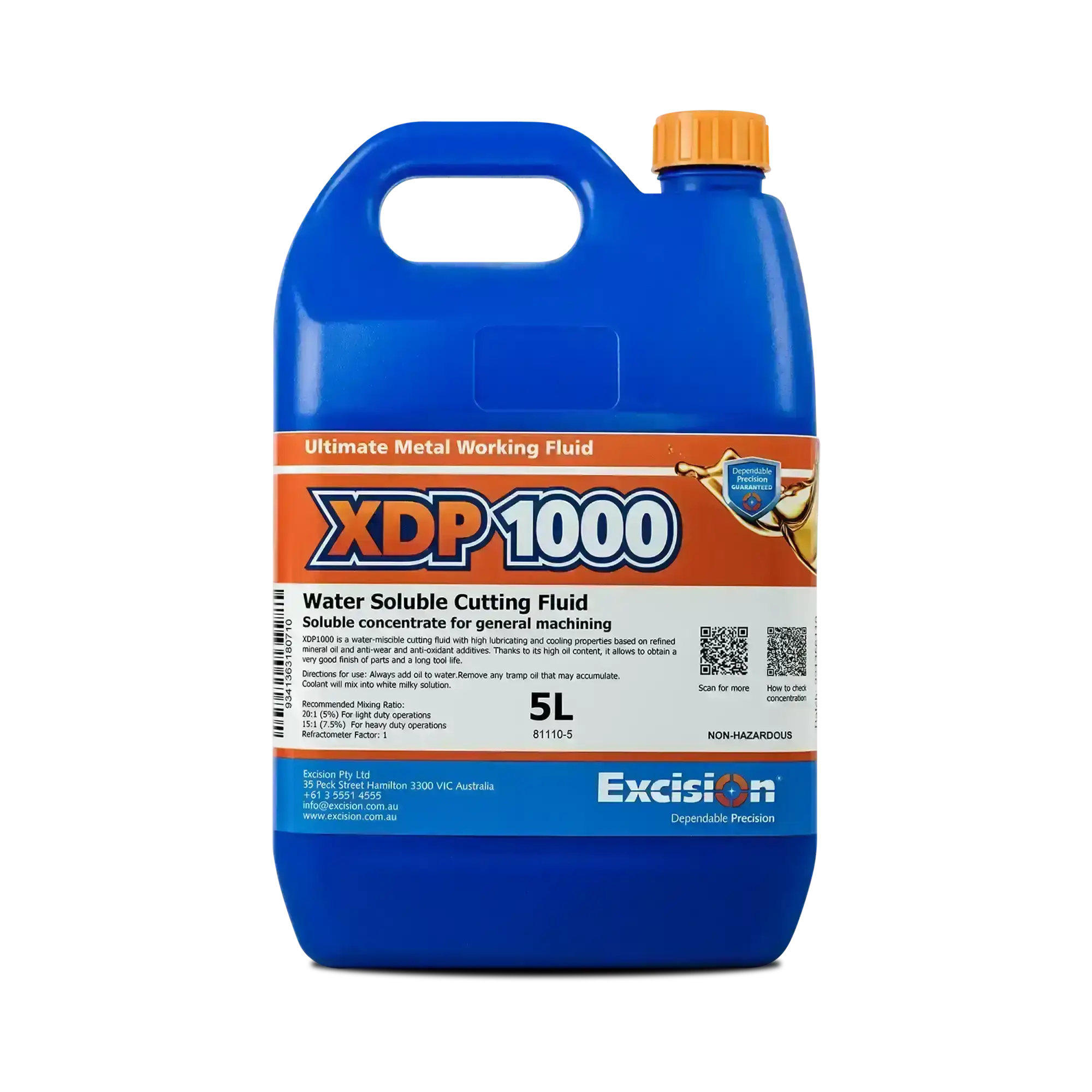

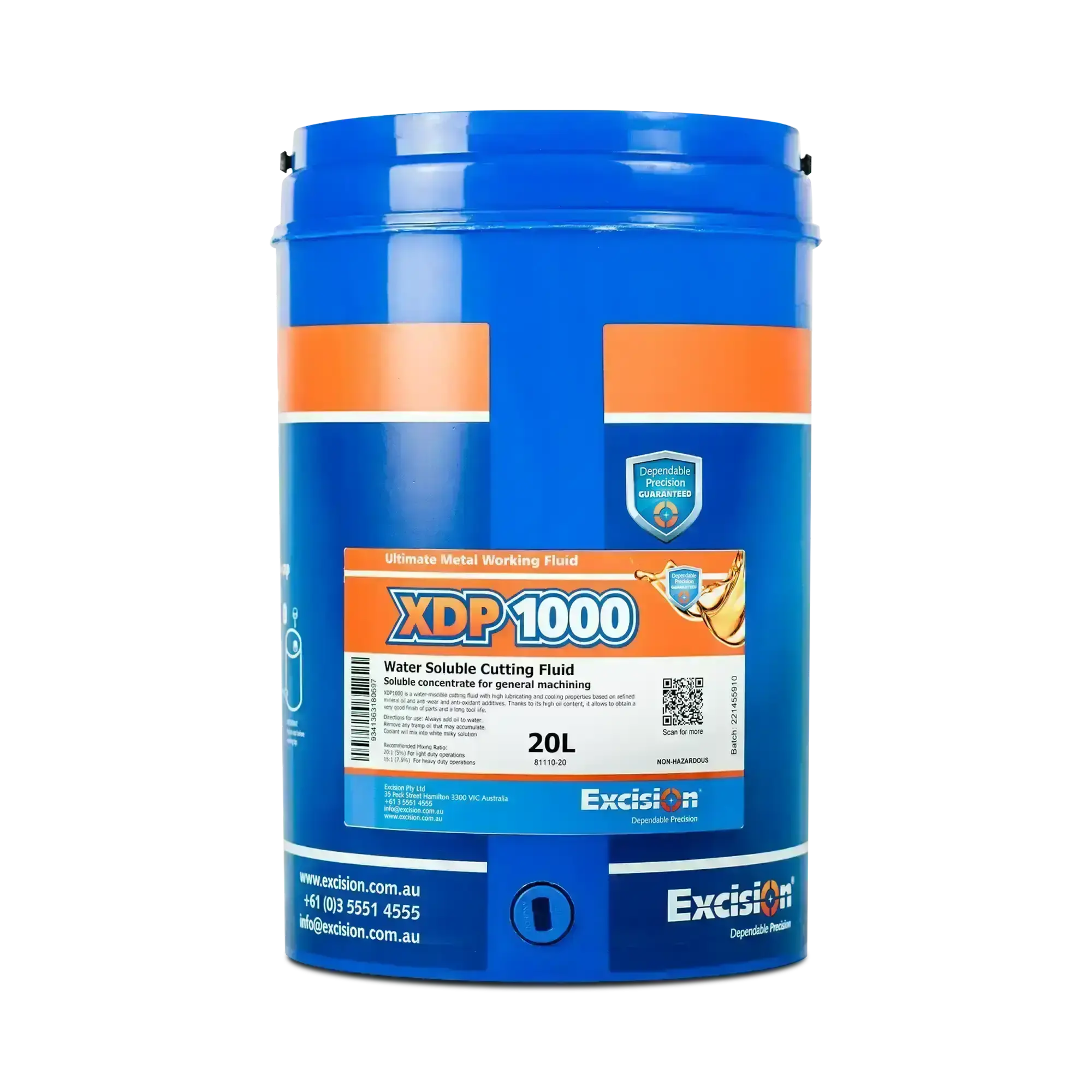

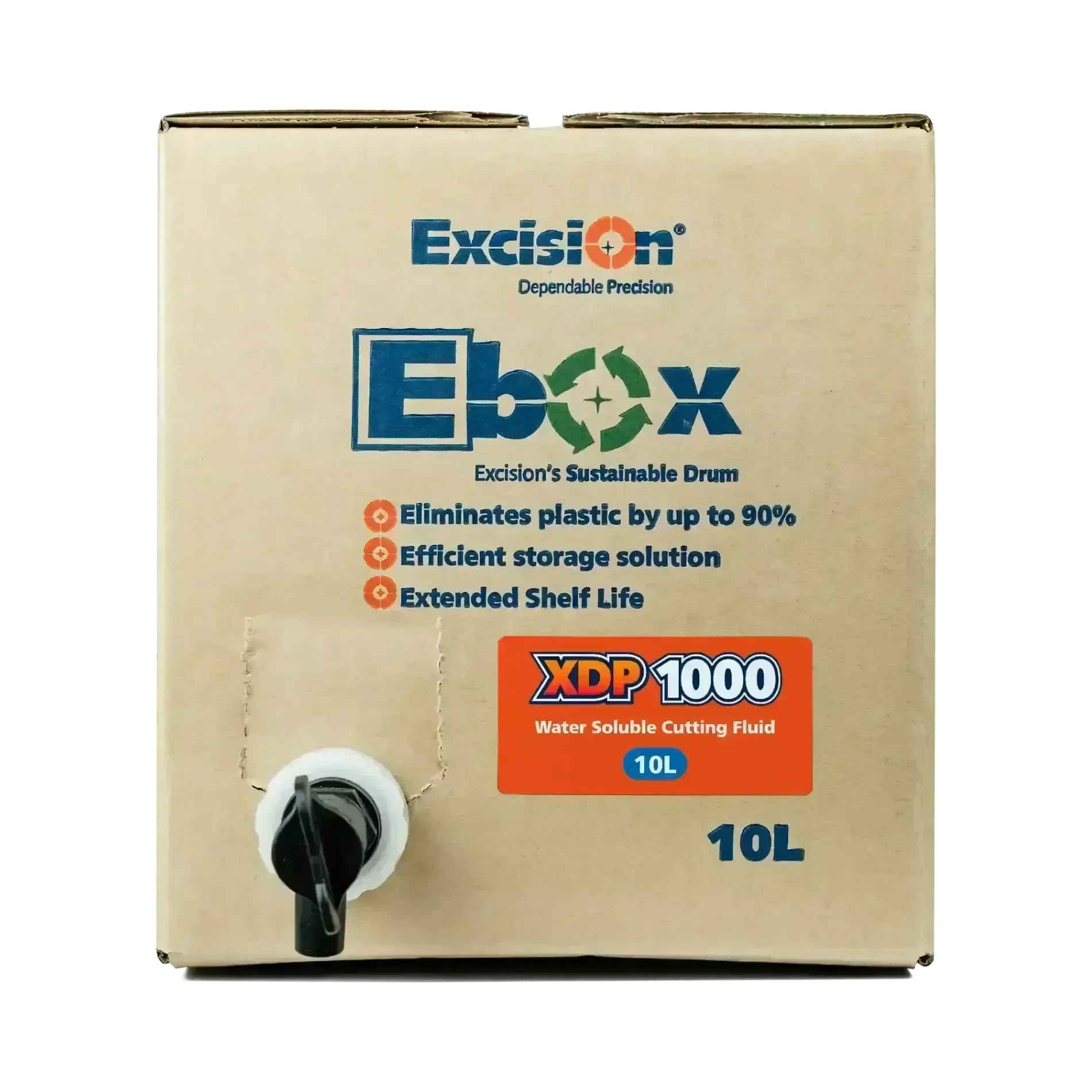

XDP1000 Soluble Coolant
Add XDP1000 Soluble Coolant to comparison
View Comparison- Overview
- Application
- Safety
- Performance
- Storage
- Specifications
- Downloads & Documents
- Work Material
- Reviews
Product Description
With its high oil content, XDP1000 delivers superior lubrication, resulting in an excellent surface finish and prolonged tool life. Free from harmful chemicals like chlorine and formaldehyde, it is safe for hands and fully WHS compliant. Works well on metals like steel, copper, and brass.
- General purpose, economical coolant
- Excellent cooling and lubrication properties
- Superior corrosion and oxidation protection
- High emulsion stability and bio-stability
- Effective chip flushing from the cutting zone
Great for Aluminium Excellent corrosion protection Exceptional value for money Lower drag-out performance
Product Data
| Workpiece Material | P M K N S |
| Cooling Power | Great |
| Corrosion Protection | Excellent |
| Drag-Out | Great |
| Lubrication | Excellent |

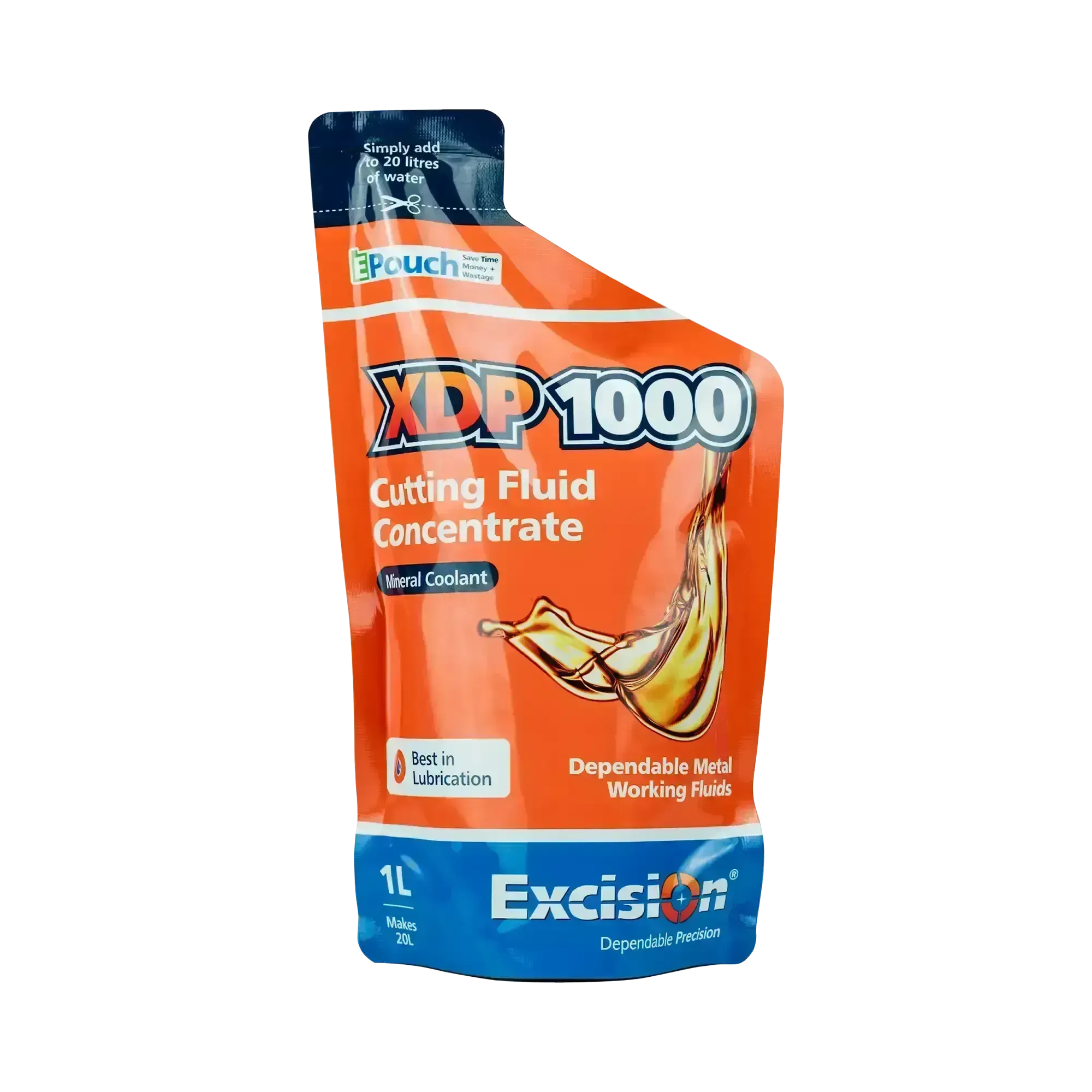

| Size | 1L |
| Tool Life Performance | Excellent |
| Type | Mineral |
XDP1000 is a concentrate that must be diluted in water with hardness between 50 to 500 ppm of CaCO3. Concentrate has to be added to water and not vice versa. The application concentration could be between 5% to 6% for light-duty operations and between 8% to 10% for heavy-duty ones.
See Safety Data Sheet
Good +
Better ++
Best +++
| Type | Soluble |
|
Lubrication Lubrication is the key to longer tool life. |
++ |
|
Drag-Out Drag-out is the amount of coolant that sticks on each workpiece that is removed. |
+ |
|
Cooling Power Heat causes premature wear, fracturing and deforming of the tooling and the workpiece. You need to keep the tool cool. |
+ |
| Corrosion Protection | ++ |
|
Water Hardness Range One of the most common causes of foaming in coolant is soft water. The lower the water hardness, the more likely the coolant is to foam. |
150-600 ppm |
| Appearance | Transparent liquid |
| Colour | Amber |
| Density at 20ºC | 0,88 g/ml |
| Refractometric factor | 1 (Measure in Brix x 1 = % of dilution) |
| pH (5%) | 9 |
Work materials
Material recommendations for this tool.
ExcellentGood
Steel
Carbon Steels
Cast iron
Cast Iron
Superalloys & titanium
Titanium
Stainless steel
Stainless Steels
Non-ferrous materials
Aluminium
Copper
These are broad material recommendations; specific VDI grades are not stated.
We've got a 90 Day Coolant Satisfaction Guarantee
Our technicians will reccomend the best coolant for your operations - and guarantee your satisfaction.
Learn MoreYou Might Also Like
350mm HSS Coldsaw Blade
350mm HSS DM05 metal cutting cold saw blades
From $314.49
INC GST
From $285.90
EX GST
Available in Thickness (mm)
2.5
3.0

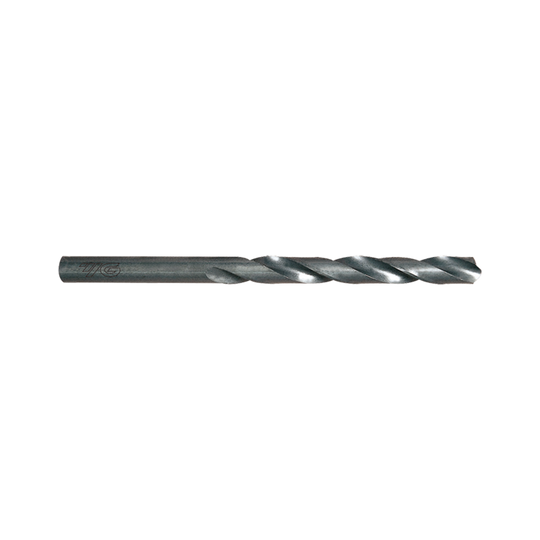

(D1105) HSS (M2) Jobber Drill for Multi Purpose (Steam Tempered)
