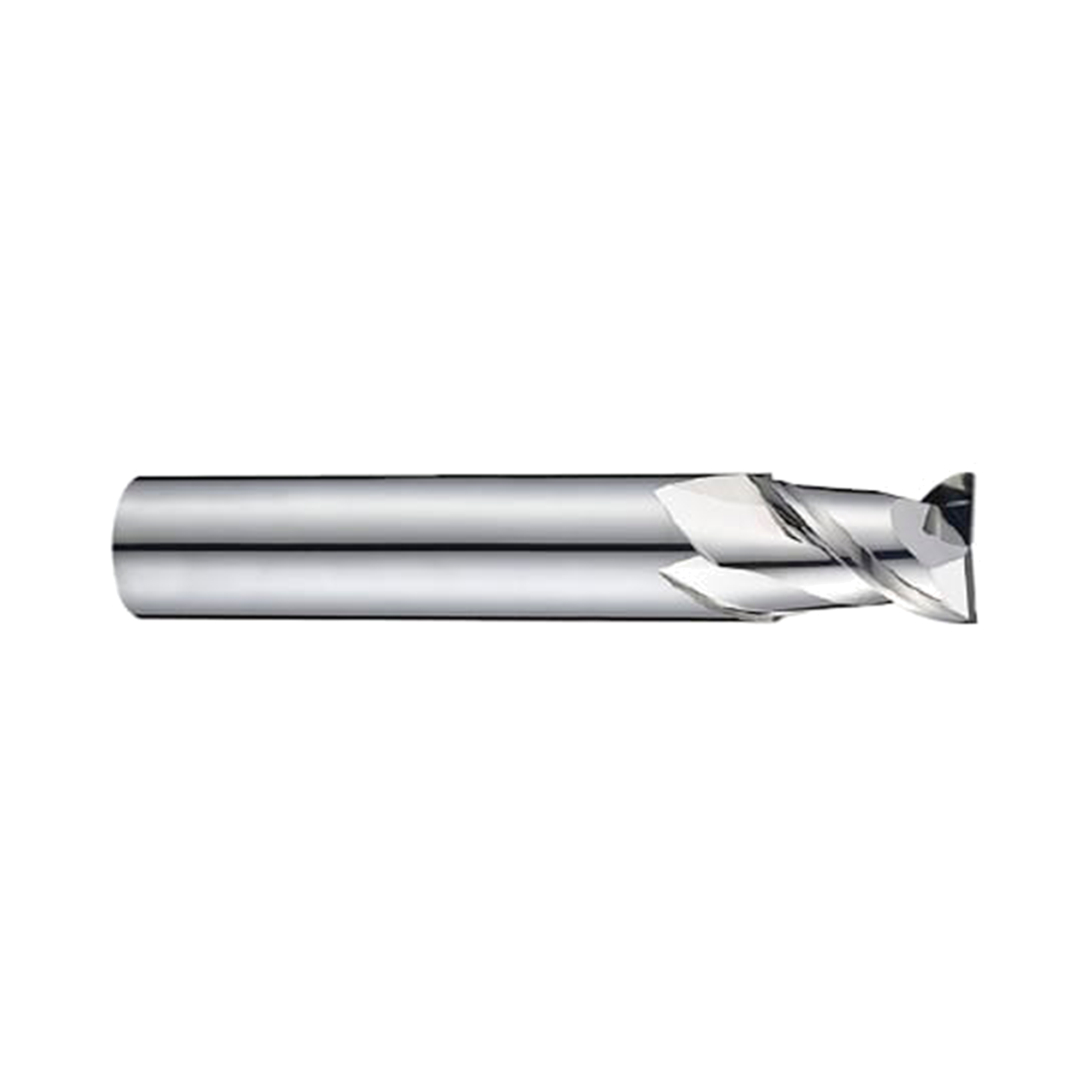

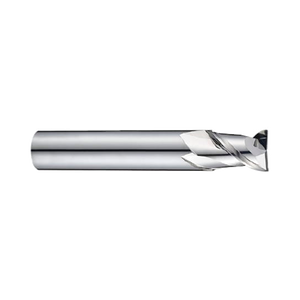

ALU-POWER 2 Flute 45°Helix Short End Mill (E5E48)
Code: E5E48030
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

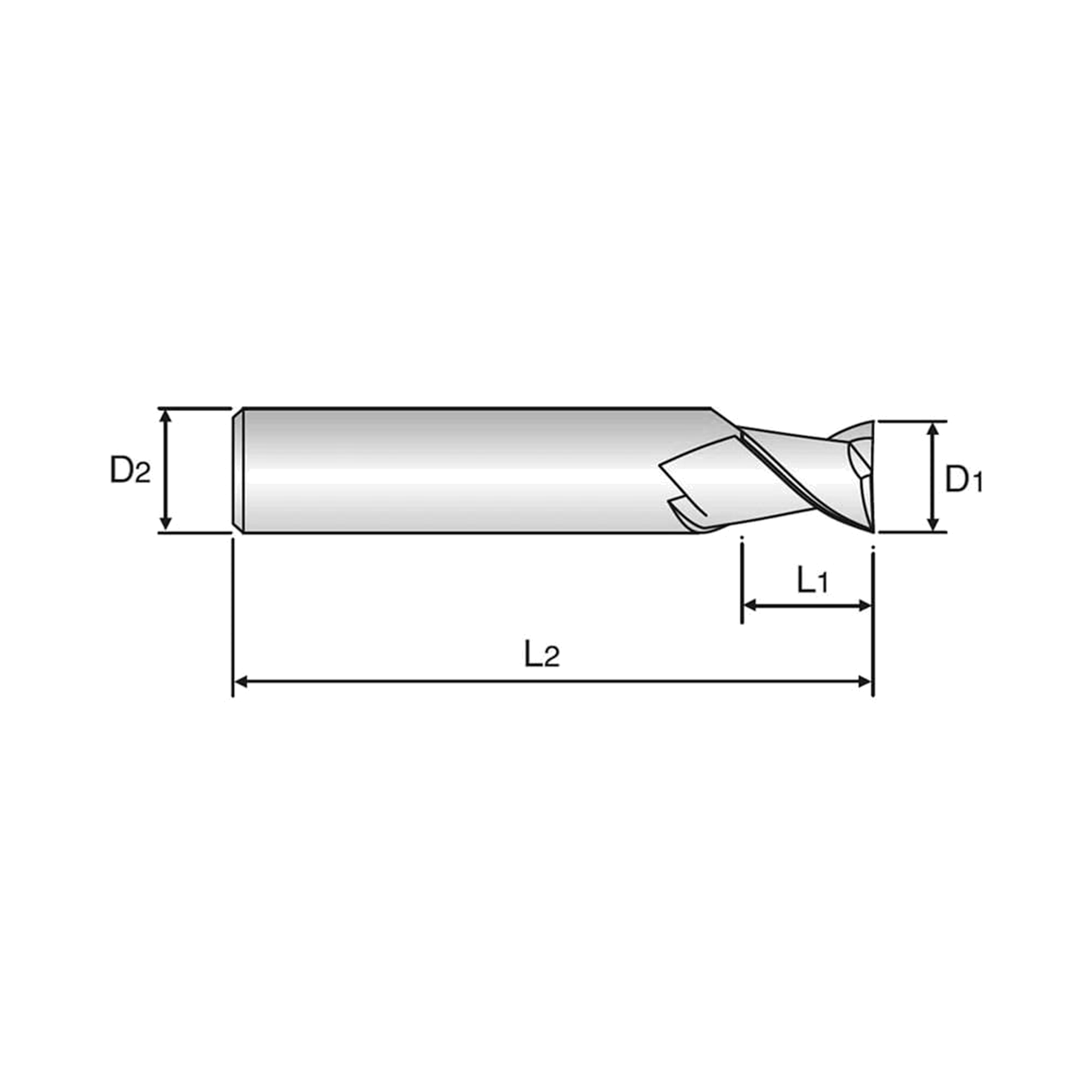

| SKU | Mill Diameter (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|
| E5E48030 | 3.0 | 57.0 | 6.0 | 12.0 | Quantity unavailable | $22.10 | ||
| E5E48040 | 4.0 | 50.0 | 6.0 | 5.0 | In stock | $32.50 | ||
| E5E48050 | 5.0 | 54.0 | 6.0 | 8.0 | In stock | $32.50 | ||
| E5E48060 | 6.0 | 54.0 | 6.0 | 9.0 | In stock | $32.50 | ||
| E5E48080 | 8.0 | 54.0 | 6.0 | 10.0 | In stock | $47.80 | ||
| E5E48100 | 10.0 | 58.0 | 8.0 | 12.0 | In stock | $61.20 | ||
| E5E48120 | 12.0 | 66.0 | 10.0 | 14.0 | In stock | $83.80 | ||
| E5E48140 | 14.0 | 73.0 | 12.0 | 16.0 | No stock | $153.60 | ||
| E5E48160 | 16.0 | 75.0 | 14.0 | 18.0 | Low stock | $148.70 | ||
| E5E48180 | 18.0 | 82.0 | 16.0 | 22.0 | No stock | $251.90 | ||
| E5E48200 | 20.0 | 84.0 | 18.0 | 24.0 | No stock | $249.20 |
Add ALU-POWER 2 Flute 45°Helix Short End Mill (E5E48) to comparison
View Comparison- Overview
- Specifications
- Operation
- Work Material
- Speeds & Feeds
- Reviews
Product Description
The E5E48 series carbide Alu-Power cutters from YG-1 range from 1-20mm in diameter. These 2 flute cutters have lapped flutes for exceptional surface finish and are ideal on Aluminium and Non-Ferrous materials.
- Suitable for high speed machining in aluminium and other non-ferrous machining.
- Special geometries & lapped flutes ensures the best chip control and surface finish on aluminium.
- Deep flute pockets prevent swarf clogging up the tool.
- Wide cut geometry, ideal for plastics such as ABS, acrylic and non-ferrous metals.
- Cylindrical relief reduces chipping of corner edges.
- Micrograin Carbide Substrate.
- Sharp cutting edges with mirror finish machining.
- Ultra-high metal removal rates possible with WAVE-CUT.
Product Data
| Workpiece Material | N |
| Cutting Shape | Square |
| Helix Angle | Square 45 |
| No. Flutes | 2 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 45° |
| Cutting Edge Shape | Square |
| Size Min | D3.0 |
| Size Max | D20.0 |
| Length | Short Length |
| Coated | Uncoated |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Aluminium
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 95 | 0.035 | 10000 | 700 |
| 4.0 | 125 | 0.045 | 10000 | 900 |
| 5.0 | 155 | 0.050 | 10000 | 1000 |
| 6.0 | 190 | 0.060 | 10000 | 1200 |
| 8.0 | 200 | 0.088 | 8000 | 1400 |
| 10.0 | 250 | 0.106 | 8000 | 1700 |
| 12.0 | 300 | 0.131 | 8000 | 2100 |
| 14.0 | 265 | 0.150 | 6000 | 1800 |
| 16.0 | 300 | 0.158 | 6000 | 1900 |
| 18.0 | 225 | 0.175 | 4000 | 1400 |
| 20.0 | 250 | 0.200 | 4000 | 1600 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 3.0 | 95 | 0.045 | 10000 | 900 |
| 4.0 | 125 | 0.055 | 10000 | 1100 |
| 5.0 | 155 | 0.065 | 10000 | 1300 |
| 6.0 | 190 | 0.075 | 10000 | 1500 |
| 8.0 | 200 | 0.113 | 8000 | 1800 |
| 10.0 | 250 | 0.131 | 8000 | 2100 |
| 12.0 | 300 | 0.163 | 8000 | 2600 |
| 14.0 | 265 | 0.183 | 6000 | 2200 |
| 16.0 | 300 | 0.200 | 6000 | 2400 |
| 18.0 | 225 | 0.225 | 4000 | 1800 |
| 20.0 | 250 | 0.238 | 4000 | 1900 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
