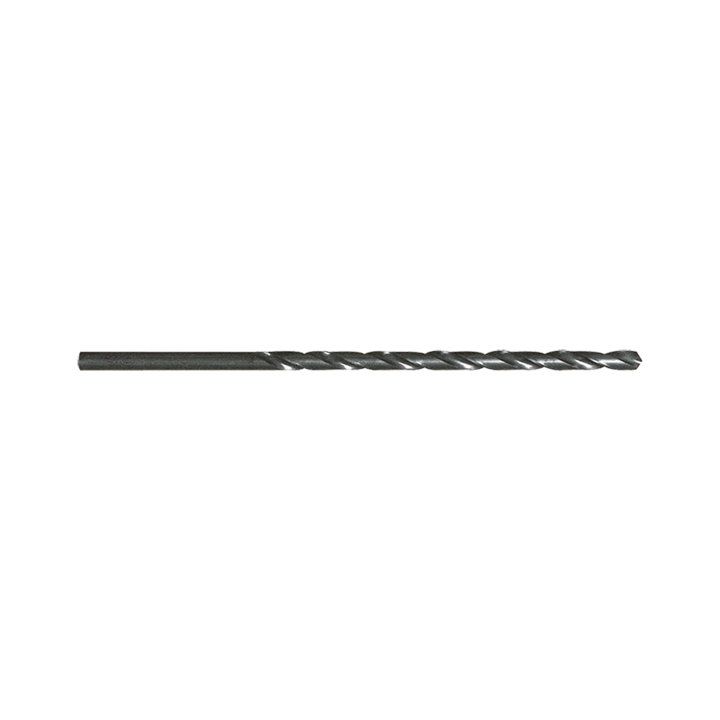

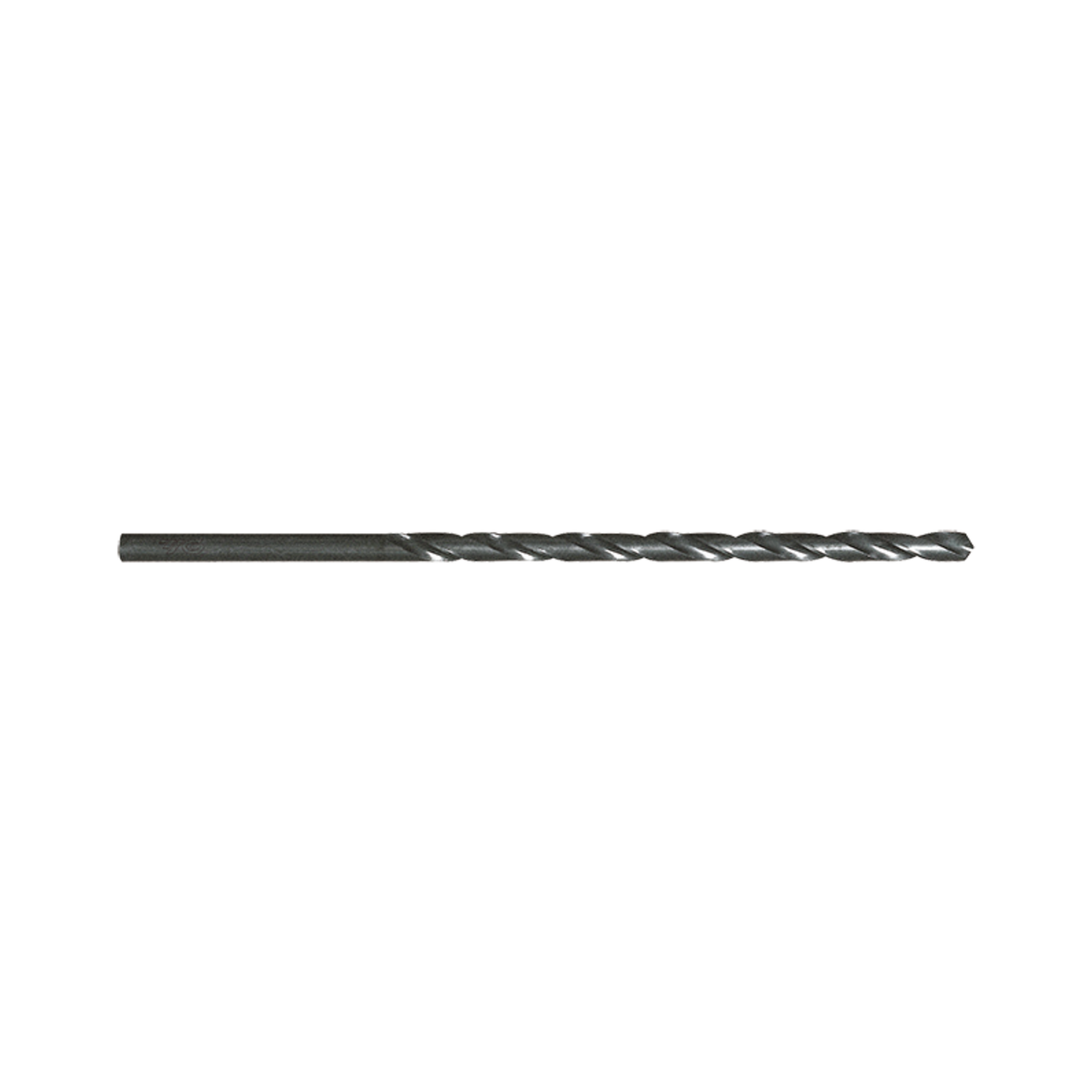

(D1121) HSS (M2) Extra Long Series Drill (Steam Tempered)

Steam-Oxide Extra Long 15×D Drilling
  • $5.50INC GST $5.00 EX GST

(D1121) HSS (M2) Extra Long Series Drill (Steam Tempered)

Steam-Oxide Extra Long 15×D Drilling
  • $5.50INC GST $5.00 EX GST

Code: D1121020

P M K N S
    Key Features
  • 15xD extra long length
  • HSS substrate, economy type
  • Steam tempered Black Oxide finish
Drill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUDrill Diameter (mm)Overall length (mm)Stock Price Qty Add
D11210202125.0 5 days $5.00
D11210252.5140.0 5 days $4.30
D11210303150.0 5 days $4.90
D11210353.5165.0 5 days $6.10
D11210404175.0 5 days $6.10
D11210454.5185.0 5 days $6.10
D11210505195.0 Low stock $10.00
D11210555.5205.0 Low stock $11.40
D11210606205.0 5 days $11.40
D11210656.5215.0 Low stock $11.40
D11210707225.0 In stock $12.60
D11210757.5225.0 In stock $15.40
D11210808240.0 In stock $16.30
D11210909250.0 In stock $17.00
D11210959.5250.0 Low stock $17.50
D112110010265.0 Low stock $22.50
D112110510.5265.0 In stock $25.80
D112111011280.0 Low stock $32.20
D112111511.5280.0 Low stock $34.50
D112112012295.0 Low stock $42.60
D112112512.5295.0 In stock $49.10
D112113013295.0 In stock $51.00

Add (D1121) HSS (M2) Extra Long Series Drill (Steam Tempered) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

YG-1 D1121 HSS EX-LONG SS Drills Steam Homo are 15xD extra long drills. They use a steam tempered Black Oxide finish for general deep hole work. The HSS substrate suits steel, non-alloyed cast steel, grey and malleable cast iron, and graphite. Sizes range from 2–13mm with bright finish under 2mm for visibility.

  • 15xD extra long length
  • HSS substrate, economy type
  • Steam tempered Black Oxide finish
  • Bright finish under 2mm
  • Diameters 2–13mm
Product Data
Workpiece Material P M K N S
Helix Angle 30
Operation Blind Drilling, Through Drilling
Surface Treatment Steam Oxide Coating
Tolerance Grade H8
Standard DIN1869/1
Length EXTRA LONG
Size Min D2.0
Size Max D13.0
SURFACE TREATMENT Steam Tempered

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth D1121020 2 2 85 125 - D1121020K 2 2 85 125 0 D1121025 2.5 2.5 95 140 - D1121025K 2.5 2.5 95 140 0 D1121030 3 3 100 150 - D1121030K 3 3 100 150 0 D1121035 3.5 3.5 115 165 - D1121035K 3.5 3.5 115 165 0 D1121040 4 4 120 175 - D1121040K 4 4 120 175 0 D1121045 4.5 4.5 125 185 - D1121045K 4.5 4.5 125 185 0 D1121050 5 5 135 195 - D1121050K 5 5 135 195 0 D1121055 5.5 5.5 140 205 - D1121055K 5.5 5.5 140 205 0 D1121060 6 6 140 205 - D1121060K 6 6 140 205 0 D1121065 6.5 6.5 150 215 - D1121065K 6.5 6.5 150 215 0 D1121070 7 7 155 225 - D1121070K 7 7 155 225 0 D1121075 7.5 7.5 155 225 - D1121075K 7.5 7.5 155 225 0 D1121080 8 8 165 240 - D1121080K 8 8 165 240 0 D1121085 8.5 8.5 165 240 - D1121085K 8.5 8.5 165 240 0 D1121090 9 9 175 250 - D1121090K 9 9 175 250 0 D1121095 9.5 9.5 175 250 - D1121095K 9.5 9.5 175 250 0 D1121100 10 10 185 265 - D1121100K 10 10 185 265 0 D1121105 10.5 10.5 185 265 - D1121105K 10.5 10.5 185 265 0 D1121110 11 11 195 280 - D1121110K 11 11 195 280 0 D1121115 11.5 11.5 195 280 - D1121115K 11.5 11.5 195 280 0 D1121120 12 12 205 295 - D1121120K 12 12 205 295 0 D1121125 12.5 12.5 205 295 - D1121125K 12.5 12.5 205 295 0 D1121130 13 13 205 295 - D1121130K 13 13 205 295 0 D1121922 2.25 2.25 90 135 - D1121922K 2.25 2.25 90 135 0 D1121927 2.75 2.75 100 150 - D1121927 2.75 2.75 100 150 0 D1121932 3.25 3.25 105 155 - D1121932K 3.25 3.25 105 155 0 D1121937 3.75 3.75 115 165 - D1121937K 3.75 3.75 115 165 0 D1121942 4.25 4.25 120 175 - D1121942K 4.25 4.25 120 175 0 D1121947 4.75 4.75 125 185 - D1121947K 4.75 4.75 125 185 0 D1121952 5.25 5.25 135 195 - D1121952K 5.25 5.25 135 195 0 D1121957 5.75 5.75 140 205 - D1121957K 5.75 5.75 140 205 0 D1121962 6.25 6.25 150 215 - D1121962 6.25 6.25 150 215 0 D1121967 6.75 6.75 155 225 - D1121967K 6.75 6.75 155 225 0 D1121972 7.25 7.25 155 225 - D1121972 7.25 7.25 155 225 0 D1121977 7.75 7.75 165 240 - D1121977K 7.75 7.75 165 240 0 D1121982 8.25 8.25 165 240 - D1121982 8.25 8.25 165 240 0 D1121987 8.75 8.75 175 250 - D1121987K 8.75 8.75 175 250 0 D1121992 9.25 9.25 175 250 - D1121992 9.25 9.25 175 250 0 D1121997 9.75 9.75 185 265 - D1121997K 9.75 9.75 185 265 0
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Tool Steels

Great

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth D1121020 2 2 85 125 - D1121020K 2 2 85 125 0 D1121025 2.5 2.5 95 140 - D1121025K 2.5 2.5 95 140 0 D1121030 3 3 100 150 - D1121030K 3 3 100 150 0 D1121035 3.5 3.5 115 165 - D1121035K 3.5 3.5 115 165 0 D1121040 4 4 120 175 - D1121040K 4 4 120 175 0 D1121045 4.5 4.5 125 185 - D1121045K 4.5 4.5 125 185 0 D1121050 5 5 135 195 - D1121050K 5 5 135 195 0 D1121055 5.5 5.5 140 205 - D1121055K 5.5 5.5 140 205 0 D1121060 6 6 140 205 - D1121060K 6 6 140 205 0 D1121065 6.5 6.5 150 215 - D1121065K 6.5 6.5 150 215 0 D1121070 7 7 155 225 - D1121070K 7 7 155 225 0 D1121075 7.5 7.5 155 225 - D1121075K 7.5 7.5 155 225 0 D1121080 8 8 165 240 - D1121080K 8 8 165 240 0 D1121085 8.5 8.5 165 240 - D1121085K 8.5 8.5 165 240 0 D1121090 9 9 175 250 - D1121090K 9 9 175 250 0 D1121095 9.5 9.5 175 250 - D1121095K 9.5 9.5 175 250 0 D1121100 10 10 185 265 - D1121100K 10 10 185 265 0 D1121105 10.5 10.5 185 265 - D1121105K 10.5 10.5 185 265 0 D1121110 11 11 195 280 - D1121110K 11 11 195 280 0 D1121115 11.5 11.5 195 280 - D1121115K 11.5 11.5 195 280 0 D1121120 12 12 205 295 - D1121120K 12 12 205 295 0 D1121125 12.5 12.5 205 295 - D1121125K 12.5 12.5 205 295 0 D1121130 13 13 205 295 - D1121130K 13 13 205 295 0 D1121922 2.25 2.25 90 135 - D1121922K 2.25 2.25 90 135 0 D1121927 2.75 2.75 100 150 - D1121927 2.75 2.75 100 150 0 D1121932 3.25 3.25 105 155 - D1121932K 3.25 3.25 105 155 0 D1121937 3.75 3.75 115 165 - D1121937K 3.75 3.75 115 165 0 D1121942 4.25 4.25 120 175 - D1121942K 4.25 4.25 120 175 0 D1121947 4.75 4.75 125 185 - D1121947K 4.75 4.75 125 185 0 D1121952 5.25 5.25 135 195 - D1121952K 5.25 5.25 135 195 0 D1121957 5.75 5.75 140 205 - D1121957K 5.75 5.75 140 205 0 D1121962 6.25 6.25 150 215 - D1121962 6.25 6.25 150 215 0 D1121967 6.75 6.75 155 225 - D1121967K 6.75 6.75 155 225 0 D1121972 7.25 7.25 155 225 - D1121972 7.25 7.25 155 225 0 D1121977 7.75 7.75 165 240 - D1121977K 7.75 7.75 165 240 0 D1121982 8.25 8.25 165 240 - D1121982 8.25 8.25 165 240 0 D1121987 8.75 8.75 175 250 - D1121987K 8.75 8.75 175 250 0 D1121992 9.25 9.25 175 250 - D1121992 9.25 9.25 175 250 0 D1121997 9.75 9.75 185 265 - D1121997K 9.75 9.75 185 265 0
