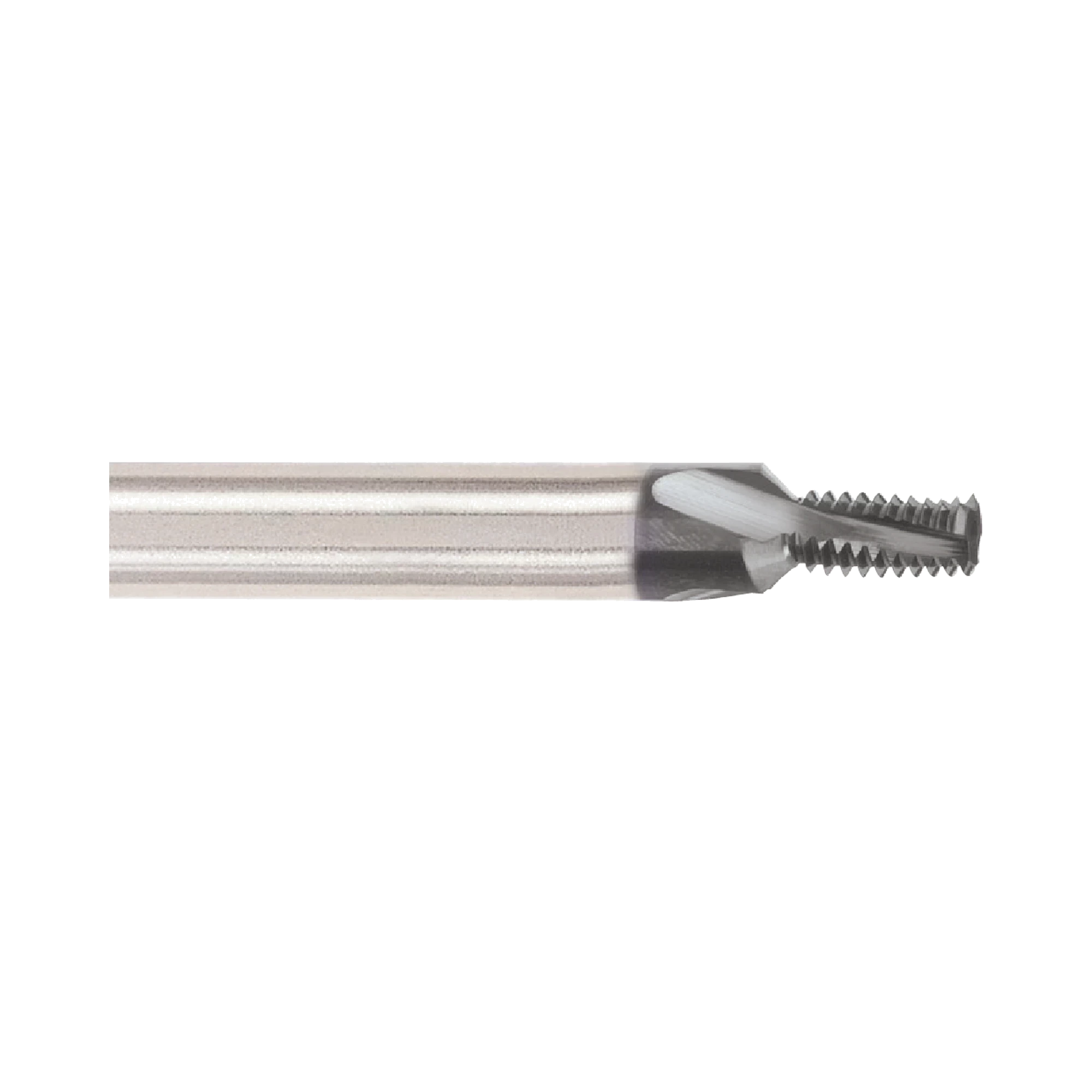

(L4271) Carbide Metric Thread Mill with Coolant Hole & Chamfer

TiAlN-Coated Coolant-Fed Metric Cutting
  • $231.22INC GST $210.20 EX GST
(L4271) Carbide Metric Thread Mill with Coolant Hole & Chamfer

(L4271) Carbide Metric Thread Mill with Coolant Hole & Chamfer

TiAlN-Coated Coolant-Fed Metric Cutting
  • $231.22INC GST $210.20 EX GST

Code: L4271310

P M K N S
Size
Pitch (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUSizePitch (mm)Thread length (mm)Overall length (mm)Shank dia. (mm)FlutesStock Price Qty Add
L4271310M6112.462.08.03 5 days $210.20
L4271360M81.2516.874.010.03 5 days $280.30
L4271420M101.520.1580.012.04 5 days $310.30
L4271500M121.7525.2590.014.04 5 days $444.30
L4271540M14228.85100.016.04 5 days $710.90
L4271600M16232.85102.018.04 5 days $575.80

Add (L4271) Carbide Metric Thread Mill with Coolant Hole & Chamfer to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Easy to cut threads even if exotic materials like Nickel, Titanium or their alloys.
  • With Internal Coolant
  • For Internal Thread
  • Thread Depth : 2.0 x D Max.
Product Data
Workpiece Material P M K N S
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Shape M
Tool Material Carbide

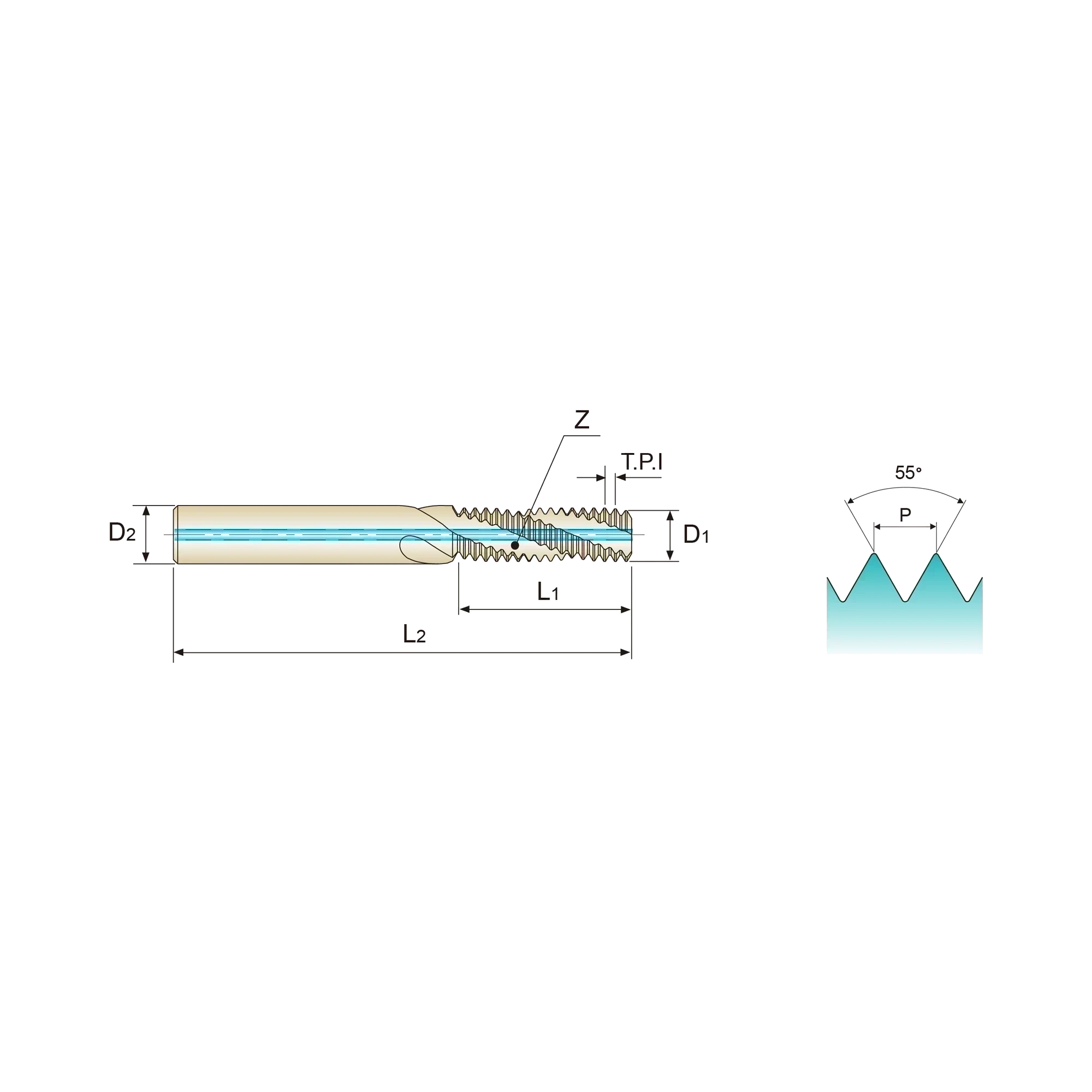

EDP No. Size Pitch Thread Length Overall Length Shank Diameter No. of Flute L4271310 M6 1 12.4 62 8 3 L4271310 M6 1 12.4 62 8 3 L4271310 M6 1 12.4 62 8 3 L4271360 M8 1.25 16.8 74 10 3 L4271360 M8 1.25 16.8 74 10 3 L4271360 M8 1.25 16.8 74 10 3 L4271420 M10 1.5 20.15 80 12 4 L4271420 M10 1.5 20.15 80 12 4 L4271420 M10 1.5 20.15 80 12 4 L4271500 M12 1.75 25.25 90 14 4 L4271500 M12 1.75 25.25 90 14 4 L4271500 M12 1.75 25.25 90 14 4 L4271540 M14 2 28.85 100 16 4 L4271540 M14 2 28.85 100 16 4 L4271540 M14 2 28.85 100 16 4 L4271600 M16 2 32.85 102 18 4 L4271600 M16 2 32.85 102 18 4 L4271600 M16 2 32.85 102 18 4
Blind Drilling
Through Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Shank Diameter No. of Flute L4271310 M6 1 12.4 62 8 3 L4271310 M6 1 12.4 62 8 3 L4271310 M6 1 12.4 62 8 3 L4271360 M8 1.25 16.8 74 10 3 L4271360 M8 1.25 16.8 74 10 3 L4271360 M8 1.25 16.8 74 10 3 L4271420 M10 1.5 20.15 80 12 4 L4271420 M10 1.5 20.15 80 12 4 L4271420 M10 1.5 20.15 80 12 4 L4271500 M12 1.75 25.25 90 14 4 L4271500 M12 1.75 25.25 90 14 4 L4271500 M12 1.75 25.25 90 14 4 L4271540 M14 2 28.85 100 16 4 L4271540 M14 2 28.85 100 16 4 L4271540 M14 2 28.85 100 16 4 L4271600 M16 2 32.85 102 18 4 L4271600 M16 2 32.85 102 18 4 L4271600 M16 2 32.85 102 18 4

Thread Mill
