THREAD MILL with Chamfer TiAlN (L4273)

THREAD MILL with Chamfer TiAlN (L4273)
THREAD MILL with Chamfer TiAlN (L4273)
New

THREAD MILL with Chamfer TiAlN (L4273)

Product Code: L4273

YG-1 LEGEND UNC Thread Shape: UNC YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 15 Helix Angle: Square 15° YG-1 LEGEND SHANK 6535HA Shank Type: 6535HA
Buy Local
  • Easy to cut threads even if exotic materials like Nickel, Titanium or their alloys.
  • With Internal Coolant
  • For Internal Thread
  • Thread Depth : 2.0 x D Max.
Product Data
Workpiece Material P M K N S
Helix Angle Square 15
Operation Blind Drilling, Through Drilling
Shank Type 6535HA
Surface Treatment Titanium Aluminium Nitride Coating
Thread Angle 60
Thread Shape UNC
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add THREAD MILL with Chamfer TiAlN (L4273) to comparison

View Comparison

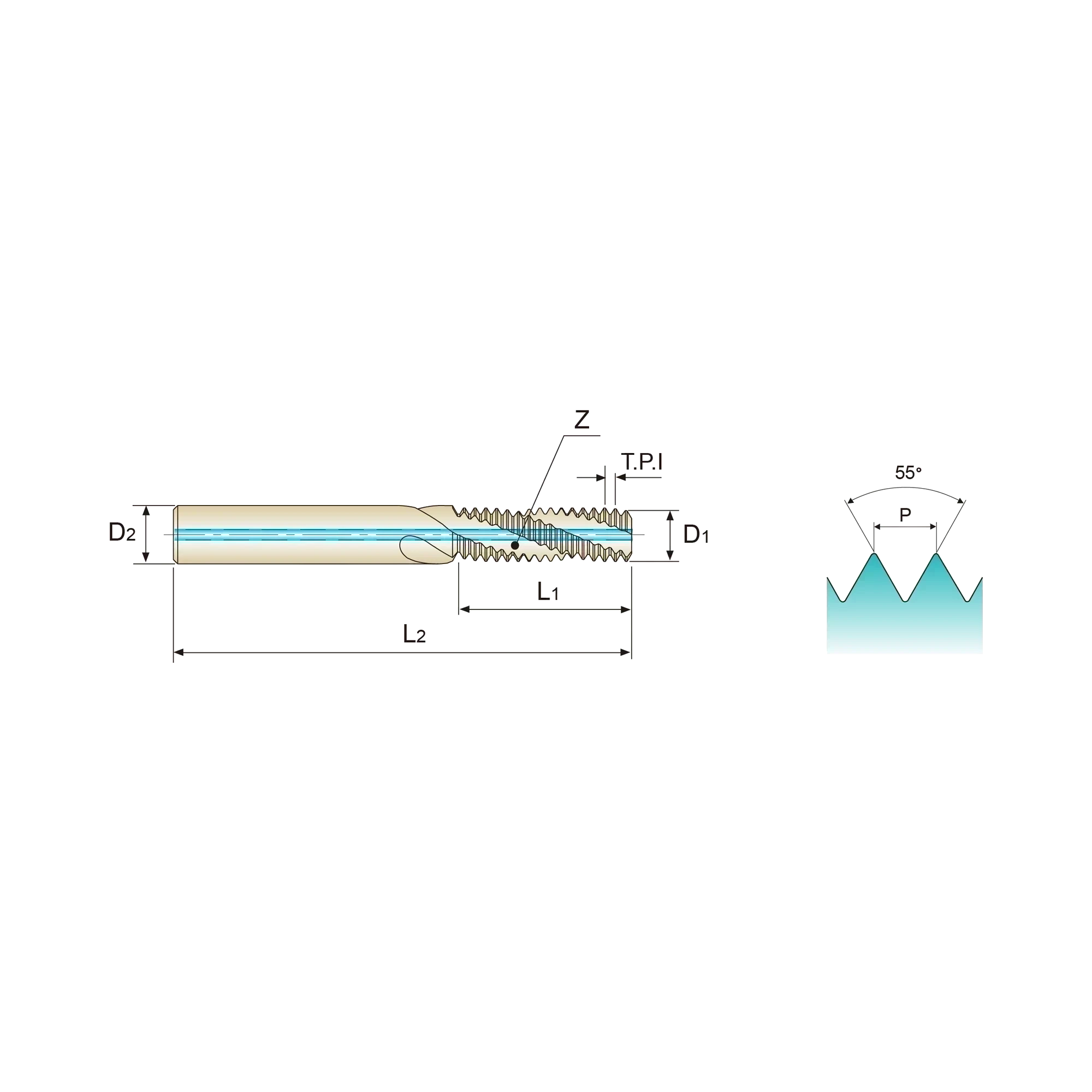

EDP No. Size TPI Thread Length Overall Length Shank Diameter No. of Flute L4273400 1/4 20 13.3 62 8 3 L4273400 1/4 20 13.3 62 8 3 L4273400 1/4 20 13.3 62 8 3 L4273440 5/16 18 16.18 74 10 3 L4273440 5/16 18 16.18 74 10 3 L4273440 5/16 18 16.18 74 10 3 L4273480 3/8 16 19.8 80 12 4 L4273480 3/8 16 19.8 80 12 4 L4273480 3/8 16 19.8 80 12 4 L4273520 7/16 14 22.62 80 12 4 L4273520 7/16 14 22.62 80 12 4 L4273520 7/16 14 22.62 80 12 4 L4273560 1/2 13 26.32 90 14 4 L4273560 1/2 13 26.32 90 14 4 L4273560 1/2 13 26.32 90 14 4 L4273600 9/16 12 30.63 100 16 4 L4273600 9/16 12 30.63 100 16 4 L4273600 9/16 12 30.63 100 16 4 L4273640 5/8 11 33.41 102 18 4 L4273640 5/8 11 33.41 102 18 4 L4273640 5/8 11 33.41 102 18 4 L4273700 3/4 10 39.29 110 20 5 L4273700 3/4 10 39.29 110 20 5 L4273700 3/4 10 39.29 110 20 5

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Excellent

Good Great Excellent
P High Alloyed

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
N Plastic

Excellent

Good Great Excellent
S Titanium

Great

Good Great Excellent
S Nickel

Great

Good Great Excellent
